3 Axis DIY CNC Router Kit USB Desktop Benbox Control 1310 Mini Milling Machine for Metal Copper PCB Wood Aluminum Cutting Engraving Machine+GRBL Offline Remote Control

3 Axis DIY CNC Router Kit USB Desktop Benbox Control 1310 Mini Milling Machine for Metal Copper PCB Wood Aluminum Cutting Engraving Machine+GRBL Offline Remote Control

Brand: ‎Changzhou Rattm Motor Co.,Ltd
Product Code: MM25766
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*♞【User Manual】Our parcel include the CD,it include the installation instructions,user manual and GRBL software.

*♞【Supported System】Windows XP / Win 7 / Win 8 / Win 10.; Please let us know if you need any help about the machine.AND please let us know if you fail to install the CH340 driver on Windows 10.

*♞【Wide Application】Suitable for carve/engrave plastic, wood, acrylic, pvc, pcb,bamboo,MDF and silimar materials engraving/cutting,as well as copper, aluminum, and other kinds of soft metal materials.

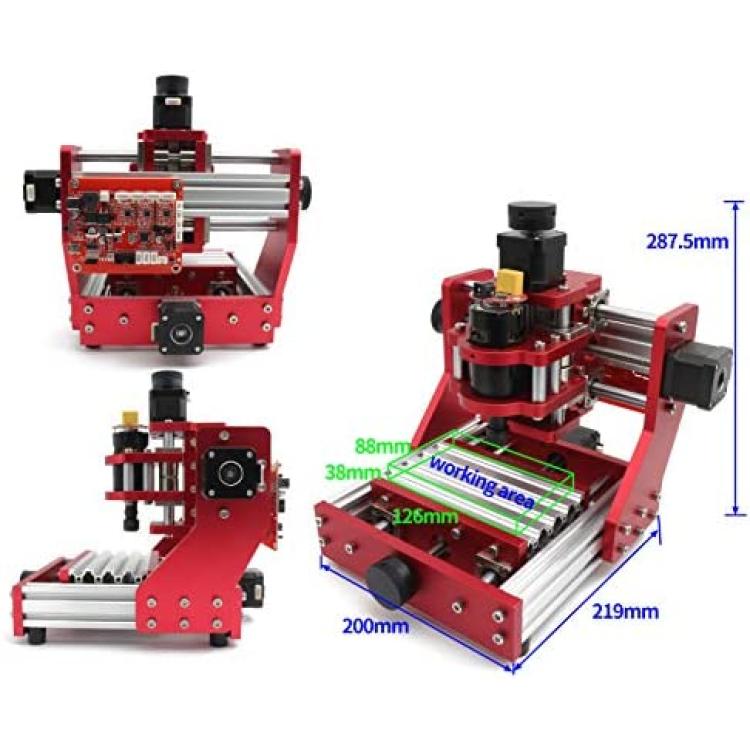

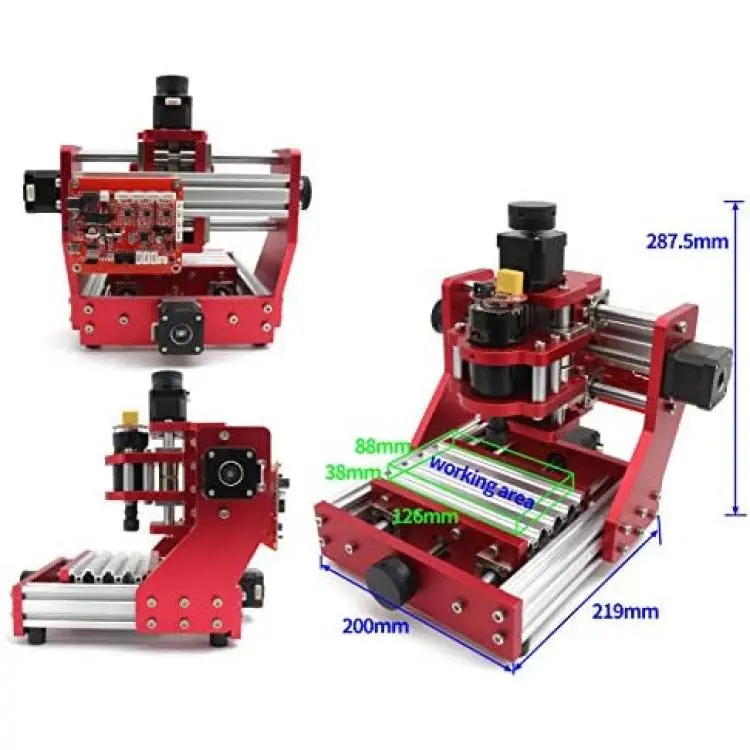

*♞【CNC 1310】 Working area:126mm*88mm*38mm / Machine Dimension: 281mm*281mm*287.5mm /Control Software: Grblcontrol / Lite.fire/Benbox. / Power Supply: DC24V adapter (input: 110VAC-240VAC) / Spindle Motor: 775 spindle motor (12-36V), 24V 8000r/min / Spindle Chuck: ER11 / Stepper Motor: 2-Phase 4-Wire Stepper Motors (1.3A 0.25N.m)

*♞【Offline Controller】Main advantages: 1,can operate without connect the computer; 2,Support SD card and TF card at the same time, standard capacity 1G. can write into the root directory G-code files or NC file; Support Manually adjust X, Y, Z axis location as engraving starting point, manually open or close spindle.

Description

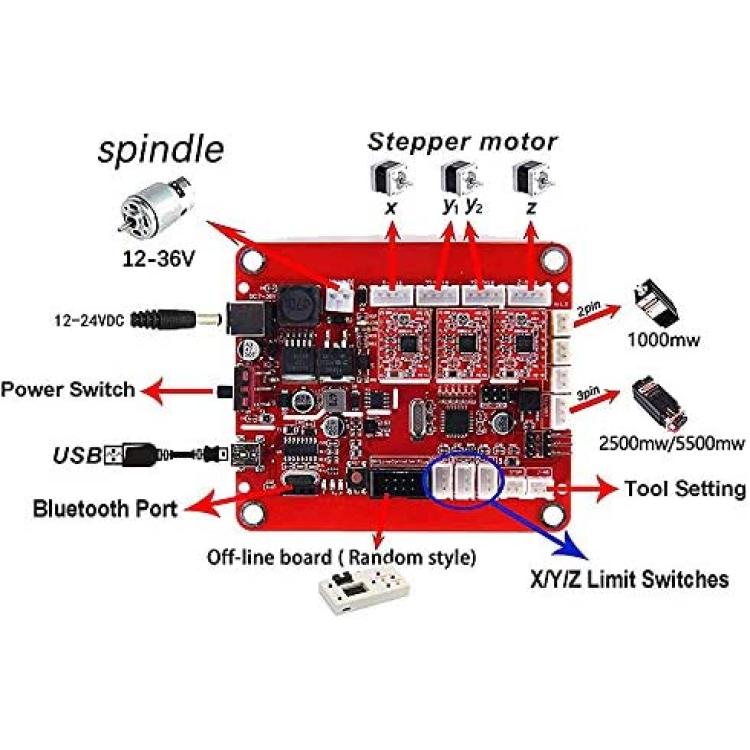

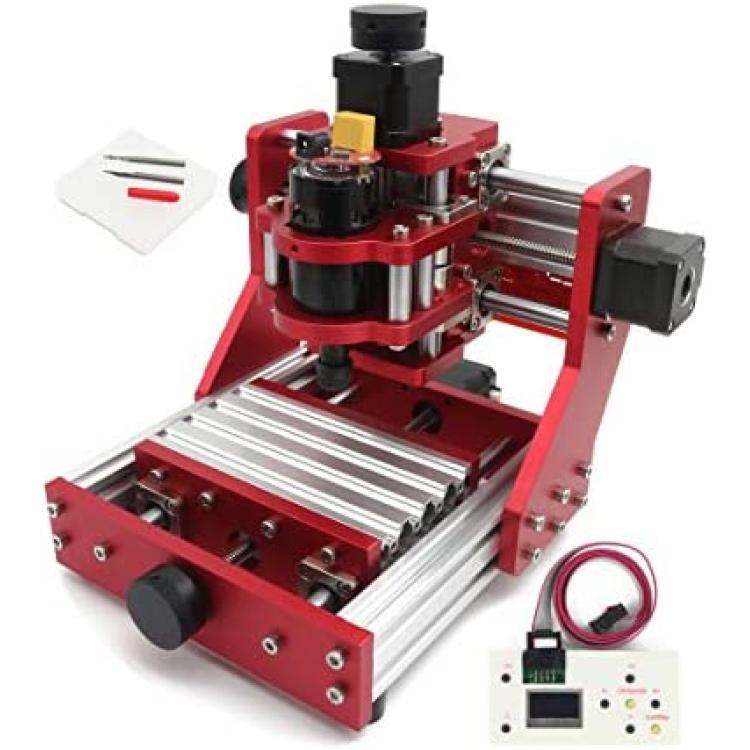

1× 3 axis 1310 cnc router mini engraving machine kit1× GRBL Control Board 1x Offline hand controller2 x drill bits1 x 775 Spindle with ER11 collet1 x Power Supply4 x plate clamps1Set Allen WrenchCD include GRBL Software and english user manual.Connection: USB (USB-CH340)Input voltage: 12-24V (DC voltage), recommended input voltage 24V 5APower interface: 5.5-2.5mm DC interfaceSpindle: 775 spindle (12-36V) 80W (8000r/min, 24V)Spindle drive chip: MOSFET, max. 60V (recommended within 48V, current: within 10A)Spindle PWM speed: SupportCan support two motors on y axisCan support 2 pins or 3 pins moduleSoftware:GRBL Software(Candle)Support port: Support for using offline control modulesupport for connecting toolsetter;Spindle with cutter especially for engraving: copper, aluminium, wood, plastic, PCB, acrylic, pvc, plywood, etc.Module engraving suitable for: wood, plastic, leather, bone, stone, paper, shell, etc.Main PageCtrl: Machine Control; File: Use the Gcode file; Press [Y+] [Y-] to select; Press[Ok] to EnterX± Y± Z±: Moving AxisOK/Spindle: Spindle ON/OFFExit/Step: Change Step/Exit (long press)after pressing the spindle button, press and hold the OK button and the Z+ button simultaneously to increase the speed.after pressing the spindle button, press and hold the OK button and the Z- button simultaneously to decrease the speed.Common supported formats include nc. tex. tap.Press [Y+] [Y-] to select filePress [Ok] to EnterPress [Ok] to begin if you are readyNote:Long press [Exit] to stop machiningSupport SD card and TF card at the same time, standard capacity 1G.With this offline controller module, you can directly control the CNC router without connecting it to your computer.After inserting the file into the SD card,the engraving file can be directly identified. You can also use the micro USB cable to connect the offline hand controller board to your computer and save the file directly.Manually control: manually adjust X,Y,Z axis location as engraving starting point,manually open or close spindle,manully open or close cooling fanFile engraving: after off-line controller save file, it can connect the GRBL control board and process engraving,no need to connect PC computerSave file: after the off-line controller connect PC,it will be recognized as USB,large capacity storage device, can access engraving file directly.SD shows it is SD card condition,turn on power supply after insert SD card,otherwise,it wont work.SD card capacity 4G could be recognized.Spindle with cutter especially for engraving: copper, aluminium, wood, plastic, PCB, acrylic, pvc, plywood, etc.Module engraving suitable for: wood, plastic, leather, bone, stone, paper, shell, etc.Our parcel include a CD,you can download the english user manual and GRBL software from the CD,if you can not download files from the CD,pls let us know,we have other way for you to download all files.File Format (gcode): *.nc, *.ncc, *.ngc, *.tap, *.cnc.Software used to create Gcode: Carbide Create, Artcam, MeshCam, Fusion360, Inkscape etc.
