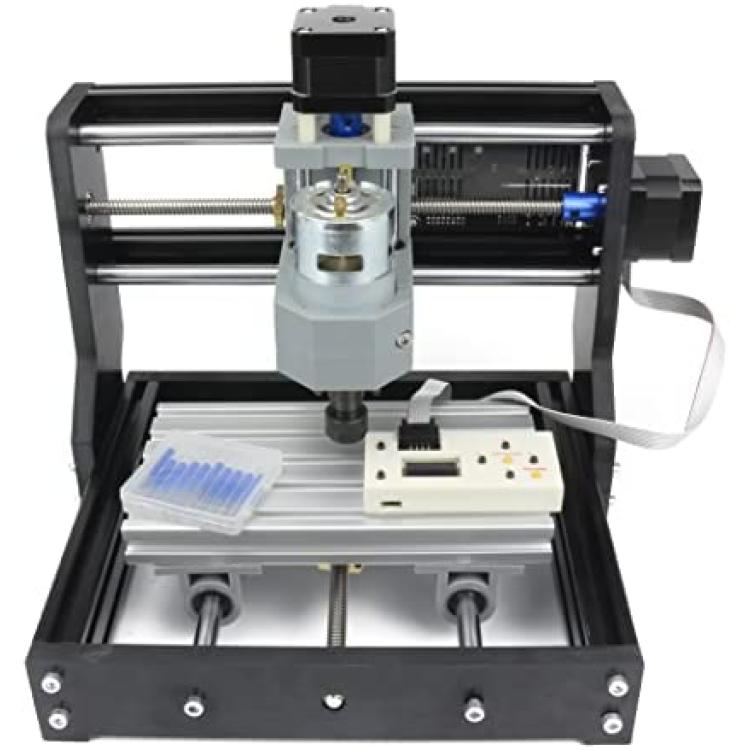

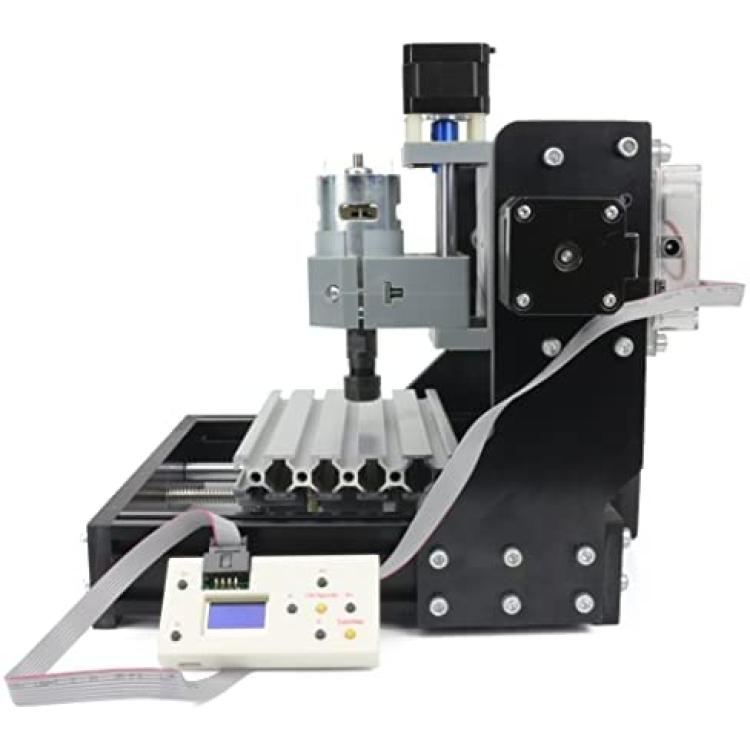

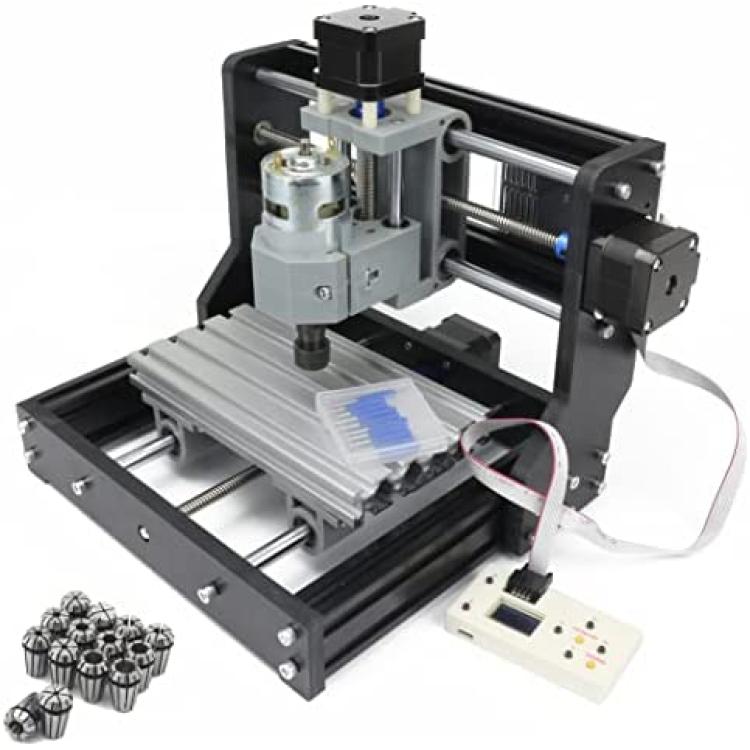

RATTMMOTOR CNC 1610 PRO 3 Axis GRBL Control DIY Mini CNC Router Machine Kit with Offline Controller and 14pcs ER11 Collets CNC Engraving Milling Machine for Cutting Wood Plastic Acrylic PVC PCB

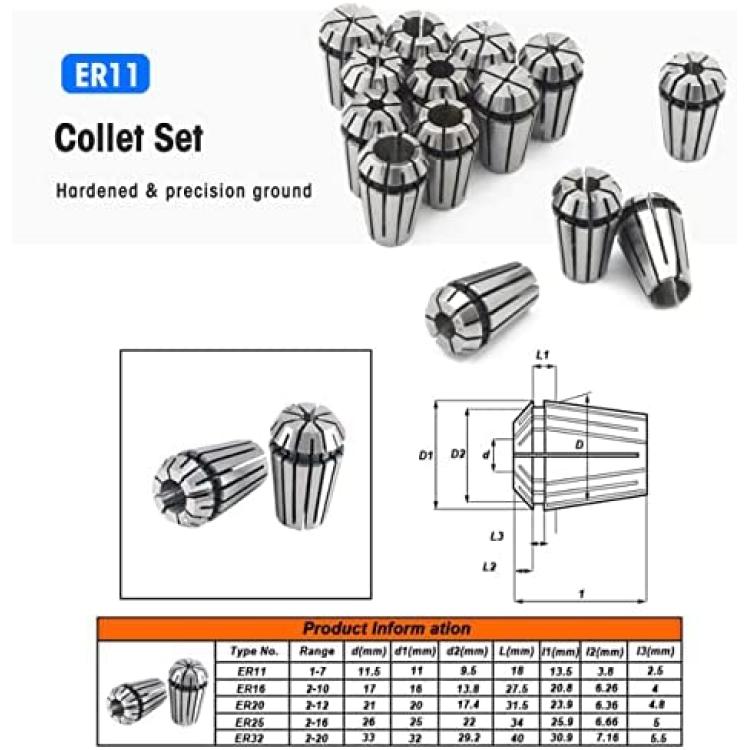

1 x 1610PRO DIY MINI CNC Router Machine Kit1 x Power Supply10 x Tip 0.1 mm, 20° 3.175 mm Drill Bits4 x Plate Clamps1 x English Manual1 x 4GB USB Flash Drive1 set Allen Wrench1 x CNC Offline Controller1 x 14pcs ER11 ColletsDimensions: 30*26*25cmWorking Area: 18*10*4.5cmMaterial: PA6 Nylon + Aluminum profilePower supply : 24V 5.6A power adapter (input voltage 110-240V)Step motor: Nema17stepper motor 1.3A, 0.25N.mControl system: grblcontrol, USB interfaceAlthough this mini engraving machine is shipped in bulk, it is simple and easy to install. The package is equipped with an English installation and operation manual, so users do not have to worry about not installing the machine.In addition, it should be noted that this is only a mini machine suitable for novices or DIY enthusiasts, and cannot be compared with professional industrial machines large torque, low friction and stable operation. Front and rear double ball bearings, high quality Control software: grbl ( candle )Support files: G-code (.nc/.txt/.tape/.gcode)Connection: PC-USB connectionInterface: 12V, support PWMSupport power: 0.5W/2.5W/5W/7W/10W module (1610PRO Package doesnt include those)Control software: la-serGRBLSupport: Gcode, pictureWith 10pcs 3.175mm Drill bitsWith 14pcs ER11 Collet, Size of each collets: 1mm, 1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 6.5mm, 7mm, 3.175mm(1/8")Add energency stop button interface.Increase optocoupler isolation: this spindle drive increase the optocoupler isolation, which makes the controler generate less heat and the spindle speed adjustment is more safer.Optimized the Z/Y/Z limit port, making wiring and operation easier.Improved USB interface: The original USB interface is patch soldering, transport collision and improper use, easy to drop, now changed to plug-in, very strong.Add the power switch button, more safety in the process of using the machine.Support : Supprt emergency stop, X/Y/X axis limit switch, offline controller, probe,ect.Enhanced spindle drive, can support up to 20,000 rpm spindle motor.Add the outer casing, not only protect control board in transit, to avoid short circuit problem during use.Cancel the drive module,use integrated imported stepper motor drive,with short circuit protection,and integrated heat dissipation aluminum alloy.Add the low noise fan port to force heat dissipation.Add offline recognition,can insert offline modules and computers at the same time. Offline will automatically identify if there is computer control.Support SD card and TF card at the same time, standard capacity 1GWith the controller, you can directly control the CNC router without connecting it to your computer.After inserting the file into the SD card,the engraving file can be directly identified.Connect the controller via USB wire to your computer and save the file directly.Connect it to GRBL controller board, you can control the CNC router machine directly.Main PageControl PageFile Page
