RATTMMOTOR 3018 Pro-Max CNC Wood Router Machine 3 Axis GRBL Control DIY Mini CNC Engraving Carving Milling Machine+Offline Controller+14pcs ER11 Collet for Cutting Acrylic PVC PCB Plastic Wood

RATTMMOTOR 3018 Pro-Max CNC Wood Router Machine 3 Axis GRBL Control DIY Mini CNC Engraving Carving Milling Machine+Offline Controller+14pcs ER11 Collet for Cutting Acrylic PVC PCB Plastic Wood

Name: RATTMMOTOR 3018 Pro-Max CNC Wood Router Machine 3 Axis GRBL Control DIY Mini CNC Engraving Carving Milling Machine+Offline Controller+14pcs ER11
Brand: ‎RTM
SKU: MM26139
Availability: InStock

Brand: ‎RTM
Product Code: MM26139
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

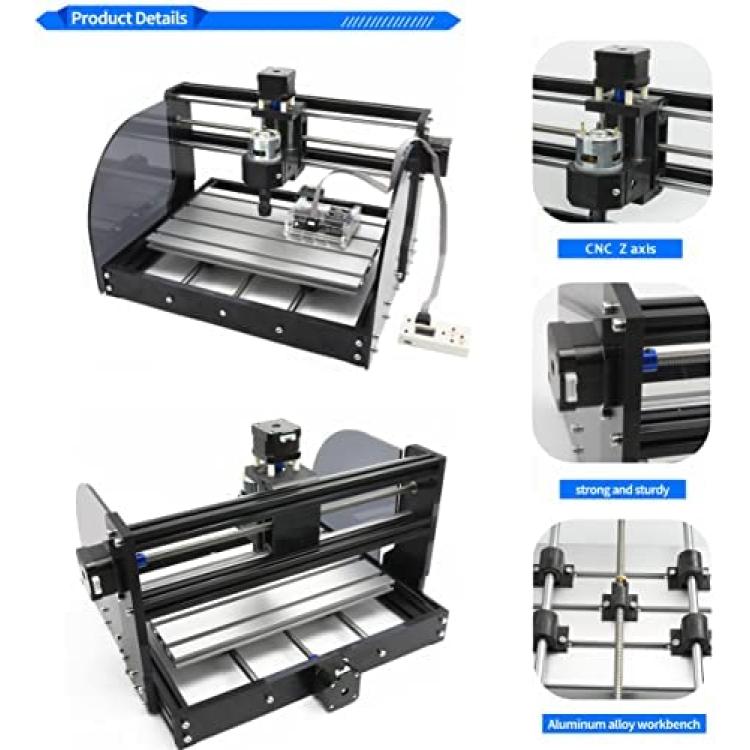

*【Upgrade Version CNC 3018 PRO MAX 】Frame size: 40x33x24CM. Working area: 30x18x4.5CM. Material: Aluminum Alloy. Spindle: 775 spindle motor (12-24V) 24V:10000r/min. Stepper motor: 42 stepper motor, 12V, phase current 1.3A, phase resistance 2.1 ohms, torque 0.25N.m

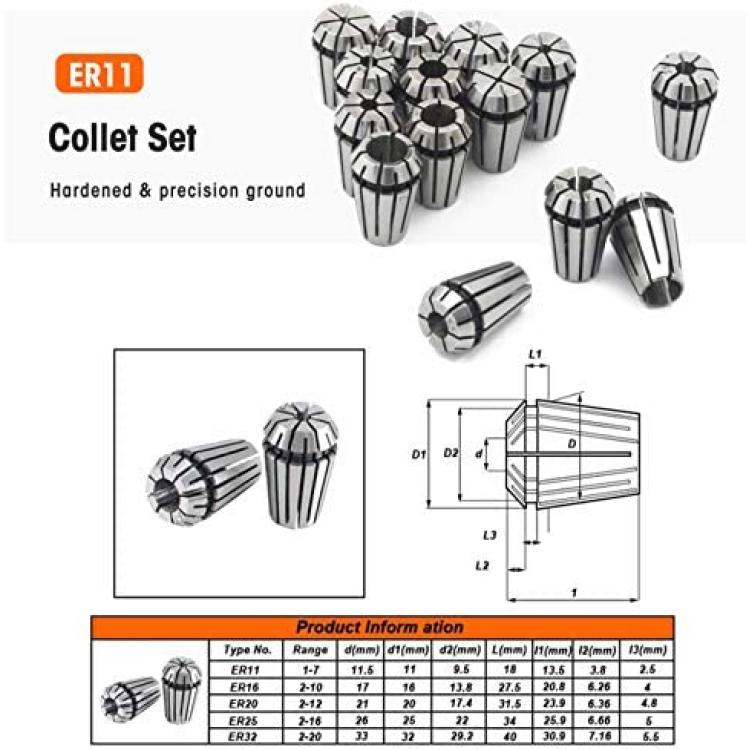

*【Simple Assembly/Use】This mini cnc router machine kit is mainly designed for DIY carving enthusiasts/beginners, easily assembled and opertated, coming with a paper manual and USB flash drive of all the files. It comes with 14pcs ER11 collets, size is : 1mm, 1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 6.5mm, 7mm, 3.175mm(1/8")

*【Applicable Engraving Material】CNC 3018 PRO MAX machine can not only engraving wood/plastic/acrylic/ pvc/pcb/carbon fiber/density board and so on, but also soft metal like copper, aluminum and the similar materials. Howerever, harder materials cannot be engraved such as glass, hard metal, jade, ect.

*【Update GRBL1.1 Control Board】 ①The GRBL board supports emergency stop and X/Y/Z axis limit functions, which can be used together with the emergency stop button and limit switch on the engraving machine to ensure a safe and simple working environment. ②Other functions and features such as: maximum support for 20000RPM spindle, tool setting(probe) , offline controller, with a power switch button and a silent fan cooling.

*【CNC Offline Controller】This machine can be controlled simply by the offline controller without connecting it to a computer. Support SD card and TF card at the same time, standard capacity 1G. After inserting the file into the SD card,the engraving file can be directly identified.

Description

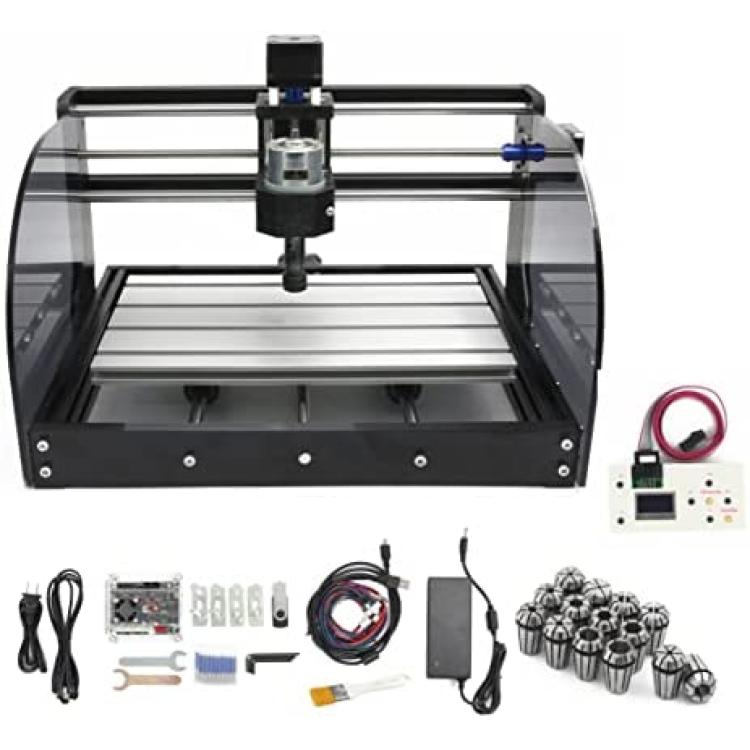

Main PageControl PageFile PageHow to increase/decrease the spindle power:1 x 3018PRO-MAX DIY MINI CNC Router Machine Kit1 x Power Supply10 x Tip 0.1 mm, 20° 3.175 mm Drill Bits4 x Plate Clamps1 x English Manual1 x 4GB USB Flash Drive1 set Allen Wrench1 x CNC Offline Controller1 x 14pcs ER11 ColletsAlthough this mini engraving machine is shipped in bulk, it is simple and easy to install. The package is equipped with an English installation and operation manual. In addition, we also have an assembly video, so users do not have to worry about not installing the machine.It should be noted that this is only a mini machine suitable for novices or DIY enthusiasts, and cannot be compared with professional industrial machines.Work area: 300x180x45 mm ((11.8 x 7.1 x 1.8”)Frame: 420x350x270mm (16.53x13.78x10.63”)Material: PA6 Nylon + Aluminum profilePower supply : 24V 5.6A power adapter (input voltage 110-240V)775 Spindle motor: 12-24VDC 10000RPMCollet: ER11 3.175mm (Can be equipped with 0-7mm)Step motor: Nema17 stepper motor 1.3A, 0.25N.mProcessing accuracy: About 0.2mmPower: 100WSpeed: 10000RPMCollet: ER11large torque, low friction and stable operation.Double ball bearings have low noise.Wood, plastic, acrylic, pvc, pcb, carbon fiber, density board, plastic phone cases, rubber stamps, copper , aluminum and other soft materials.It should be noted that materials such as jewelry, jade, stainless steel, stone, ceramics and other similar materials are not supported.Tool holder diameter: 3.175mm/0.125inMaterial: Tungsten steelBlade length: 15mm/0.59inTotal length: 38mm/1.5inTip: 0.1mm/0.004inmAngle: 20°Add energency stop button interface.Increase optocoupler isolation: this spindle drive increase the optocoupler isolation, which makes the controler generate less heat and the spindle speed adjustment is more safer.Optimized the Z/Y/Z limit port, making wiring and operation easier.Improved USB interface: The original USB interface is patch soldering, transport collision and improper use, easy to drop, now changed to plug-in, very strong.Add the power switch button, more safety in the process of using the machine.Support : Supprt emergency stop, X/Y/X axis limit switch, offline controller, probe,ect.Enhanced spindle drive, can support up to 20,000 rpm spindle motor.Add the outer casing, not only protect control board in transit, to avoid short circuit problem during use.Cancel the drive module,use integrated imported stepper motor drive,with short circuit protection,and integrated heat dissipation aluminum alloy.Add the low noise fan port to force heat dissipation.Add offline recognition,can insert offline modules and computers at the same time. Offline will automatically identify if there is computer control.Format flies that support 3-Axis engraving: Support G-code files of nc, ncc, tap, txt;Format flies that support 2-Axis engraving: Support nc, ncc, tap, G-code, ngc, png, jpg, gif, svg

Tags: CNC Router, 3 Axis CNC Machine, Mini CNC Engraving Machine, DIY CNC Router, GRBL Control, Offline CNC Router, 3018 CNC Router, Acrylic Engraving, PVC Cutting, PCB Milling, Wood Carving Machine, ER11 Collet, 3-Axis Router, Mini Engraving Machine, CNC Router Kit
