3 Axis Desktop DIY Mini CNC 3018 Router Kit GRBL Control Plastic Acrylic PCB PVC Wood Carving Milling Engraving Machine Working Area 30x18x4.5cm

3 Axis Desktop DIY Mini CNC 3018 Router Kit GRBL Control Plastic Acrylic PCB PVC Wood Carving Milling Engraving Machine Working Area 30x18x4.5cm

Brand: ‎Changzhou Rattm Motor Co.,Ltd
Product Code: MM26877
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*【Working area】 30x18x4.5cm ; Frame size: 40x33x24cm ; Type:USB Port Desktop cnc router;According to the instructions,the machine is easy to assemble.

*【Spindle】775 spindle motor (12-36V) 24V: 7000r / min, 36V: 9000r / min ; 【Stepper motor】Fuselage length 34mm,Current 1.33A, 12v.Torque 0.25N/M

*【Support System】Windows XP SP3, win7. win 8 (32/64 can be). Linux;

*【Main application】Can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.soft metal like copper and aluminum and other materials, but can not carve hard metal, jade or other very hard texture of the items.

*【User Manual&Software】Our parcel include a 4G USB flash drive include english user manual & GRBL software

Description

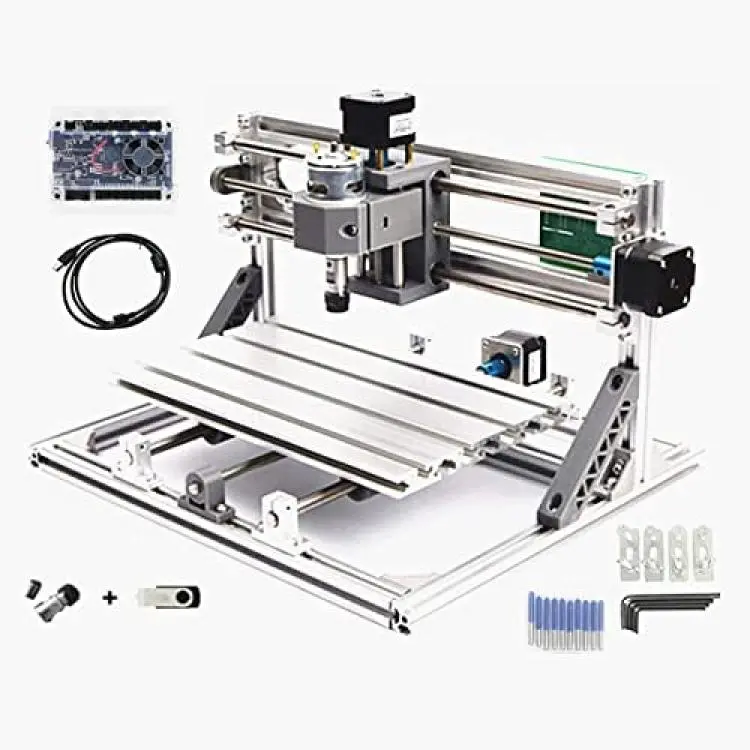

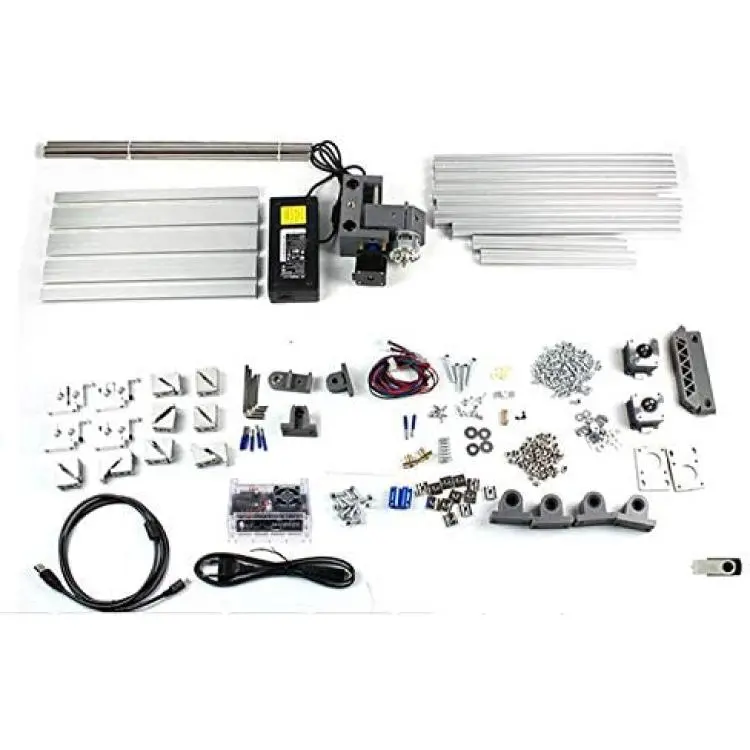

1Set 3 Axis 3018 CNC Router Engraving Machine Kit1x GRBL 1.1f Control Board1x ER11 Collet1x Power Supply10x 20°0.1mm Drill Bits4x Plate clamps1Set Allen Wrench1x 4G USB flash drive include english user manual & GRBL softwareConnection: USB (USB-CH340)Software: GRBL controller, UniversalGcodeSenderInput voltage: 12-24VDCMaster chip: atmel 328P (arduino nano)Spindle drive chip: MOSFET (recommendation 24V, current : within 10ASpindle PWM speed: SupportSupport stepper motor: 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor Nema17/Nema23)Power Interface: 5.5-2.5mm DC interfaceSupport 3-pins module: supportSpindle parameters: 775 spindle motor (12-36V) 24V:10000r/minDrill bits: 10pcs tip 0.1mm ,20 degree,diameter3.175mm.Mounting hole diameter: M4 screw hole; Mounting hole pitch: about 29mm.Spindle PWM speed: Support;power 0-100% adjustableMotor shaft diameter: 15mm; Motor diameterDrill clamp parameters: ER11-3.175mm ( can be replaced 0-7mm )Control software: grbl control(candle)Supporting files: G-code (.nc/.txt/.tape/.gcode...)Processing accuracy: About 0.2mmMachinable material: Wood? plastic? PCB? PVC? carbon fiber? acrylic? density board etcPower: DC 24V 5.6A power adapter (input voltage 110-240VAC)Support oftware: GRBL controller,Candle, UniversalGcodeSenderAdd emergency stop button port,tool probe port and XYZ limit port.Input voltage: 12-24VDCThe spindle supports 0-100% adjustable PWM power.Support limit switch, tool setting, steering gear, cooling fan and other functions.Support PWM / TTL signal control, power 0-100% adjustable!Increase the power button switchCancel the drive module,integrate the imported stepper motor drive,no need to worry about module damage. And integrated heat dissipation aluminum alloy.Add offline recognition function, you can insert offline module and computer at the same time. The machine will automatically recognize whether it is controlled by the computer.Enhanced spindle drive.can support 20,000 rpm spindle.Add the fan port to force heat dissipationDimensions: 40x33x24cmStepper motor: Nema17 42 stepper motor 34MM,1.33A,0.25N.MMaximum stroke: 30x18x4.5cmSystem support: Windows XP,SP3,Win 7,Win 8, Win 10 (32/64 can be)Power supply parameters: AC110-240VChuck specification: ER11 ColletProcessing thickness:4.5cmMaterial: Aluminum AlloyControl system:grblcontrol, USB interfaceDrill bits: 10pcs tip 0.1mm ,20 degree,diameter3.175mm.CNC 3018 Mini CNC machine small size, light weight, USB interface, GRBL control systems, great cnc router machine for beginers;3018 cnc machine is very easy to install,stable structure.Main application:can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.soft metal like copper and aluminum and other materials, but can not carve hard metal, jade or other very hard texture of the items.If you change the spindle to a module,then also can carve the kraft paper, wood, leather(wallet), bamboo, rubber.Our parcel include a 4G USB flash drive,you can download the english user manual and GRBL software from the flash drive.File Format (gcode): *.nc, *.ncc, *.ngc, *.tap, *.cnc.Software used to create Gcode: Carbide Create, Artcam, MeshCam, Fusion360, Inkscape etc.
