RATTMMOTOR CNC Wood Router Machine Kit 3018 PRO GRBL Control 3 Axis DIY Mini CNC Engraver Engraving Milling Machine+ Offline Controller +14pcs ER11 Collet for Carving Acrylic PVC PCB Plastic Wood

RATTMMOTOR CNC Wood Router Machine Kit 3018 PRO GRBL Control 3 Axis DIY Mini CNC Engraver Engraving Milling Machine+ Offline Controller +14pcs ER11 Collet for Carving Acrylic PVC PCB Plastic Wood

Brand: ‎RTM
Product Code: MM26529
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

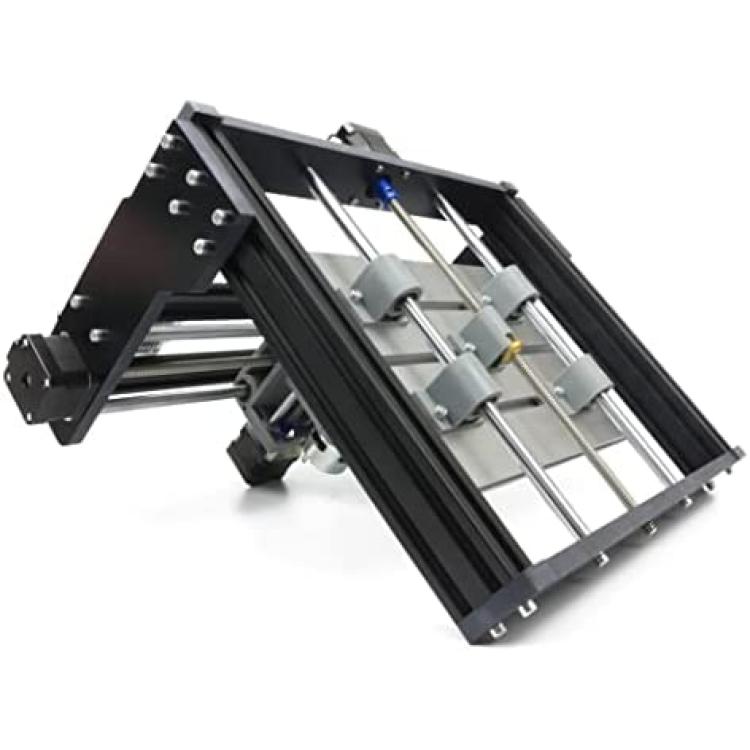

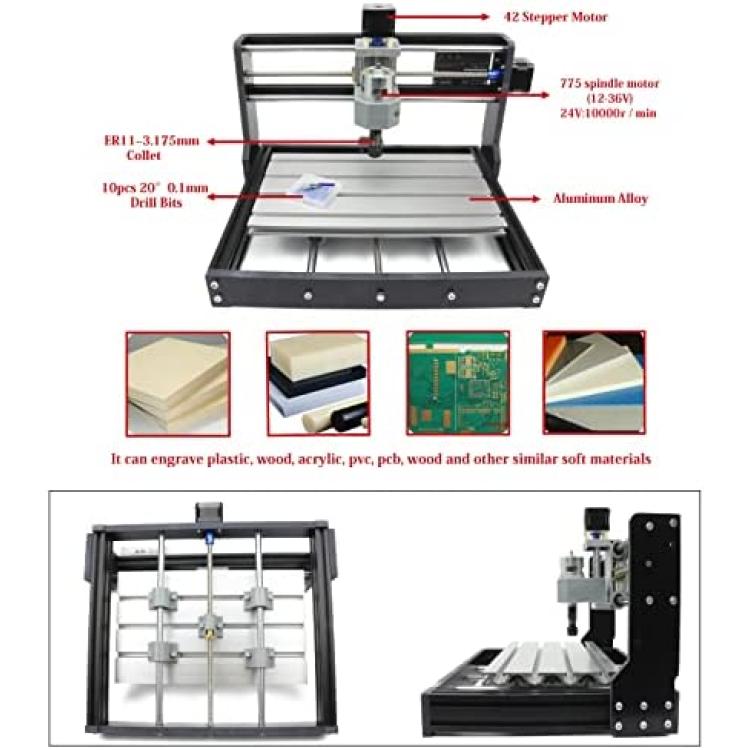

*✅【Upgrade Version CNC 3018 PRO】Frame size: 40x33x24CM. Working area: 30x18x4.5CM. Material: Aluminum Alloy. Spindle: 775 spindle motor (12-24V) 24V:10000r/min. Stepper motor: 42 stepper motor, 12V, phase current 1.3A, phase resistance 2.1 ohms, torque 0.25N.m

*✅【Simple Assembly/Use】This mini cnc router machine kit is mainly designed for DIY carving enthusiasts/beginners, easily assembled and opertated, coming with a paper manual and USB flash drive of all the files. Please let us know if you need any help.

*✅【Applicable Engraving Material】CNC 3018 PRO machine can not only engraving wood/plastic/acrylic/ pvc/pcb/carbon fiber/density board and so on, but also soft metal like copper, aluminum and the similar materials. Howerever, harder materials cannot be engraved such as glass, hard metal, jade, ect.

*✅【Update GRBL1.1 Control Board】 ①The GRBL board supports emergency stop and X/Y/Z axis limit functions, which can be used together with the emergency stop button and limit switch on the engraving machine to ensure a safe and simple working environment. ②Other functions and features such as: maximum support for 20000RPM spindle, 0.5W-20W module, tool setting(probe) , offline controller, with a power switch button and a silent fan cooling.

*✅【CNC Offline Controller】This machine can be controlled simply by the offline controller without connecting it to a computer. Support SD card and TF card at the same time, standard capacity 1G. After inserting the file into the SD card,the engraving file can be directly identified.

Description

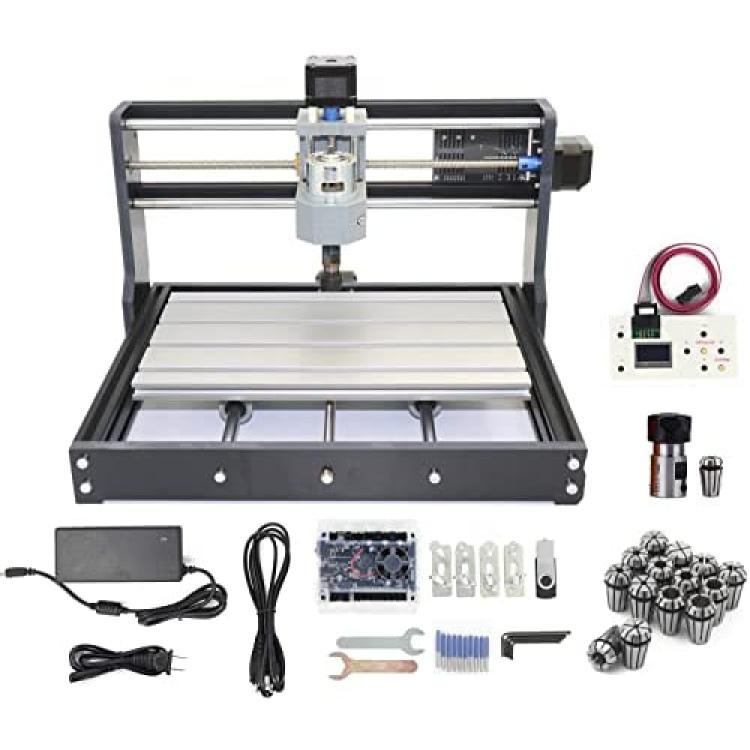

Front and rear double ball bearings, universal DC 12V-24V voltage.Shaft diameter: 15mm; Motor diameter (without magnetic sleeve): 42mmlarge torque?low friction and stable operation.Double ball bearings have low noise.Mounting hole diameter: M4 screw hole; Mounting hole pitch: about 29mm. ER11-Size: 1mm, 1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 6.5mm, 7mm, 3.175mm(1/8") Diameter 45mm 10000 rpm maximum power 120W 1 x 3018PRO DIY MINI CNC Router Machine Kit1 x Power Supply1 x CNC Offline Controller10 x Tip 0.1 mm, 20° 3.175 mm Drill Bits4 x Plate Clamps1 x English Manual1 x 4GB USB Flash Drive1 x Brush1 set Allen Wrench Work area: 300x180x45 mm ((11.8 x 7.1 x 1.8”) Frame: 420x350x270mm (16.53x13.78x10.63”) Material: PA6 Nylon + Aluminum profile Power supply : 24V 5.6A power adapter (input voltage 110-240V) 775 Spindle motor: 12-24VDC 10000RPM Collet: ER11 3.175mm (Can be equipped with 0-7mm) Step motor: Nema17 stepper motor 1.3A, 0.25N.m Processing accuracy: About 0.2mm The integral button and the key cap are not easy to fall off.Support SD card and TF card at the same time, standard capacity 1G.With this moudle, you can directly control the CNC router without connecting it to computer.After inserting the file into the SD card,the engraving file can be directly identified.You can use the USB cable to connect the module to your computer and save the file directly.Common supported formats include nc. tex. tap. After pressing the spindle button, press and hold the OK button and the Z+/Z- button simultaneously to increase/decrease the speed. Input voltage: 12-24VMaster chip: atmel 328PConnection: PC-USB connectionSpindle PWM speed: SupportSupporting file:G-code (.nc/.txt/.tape/.gcode)Spindle drive chip: MOSFETSupport Fuctions: limit switch, tool setting, steering gear, cooling fan, ect. Cancel the drive module, integrate the imported stepper motor drive, and comes with short circuit protection, no need to worry about module damage. Add offline recognition function, you can insert offline module and computer at the same time. The machine will automatically recognize it. Enhanced spindle drive. It can support 20,000 rpm spindle. Support higher power spindle. Increase the power button switch (this switch is the control signal of the power supply, no large current passes through the switch, dont worry about the size of the switch) The spindle supports 0-100% adjustable PWM power. Support PWM / TTL signal control, power 0-100% adjustable! Main PageControl PageFile Page
