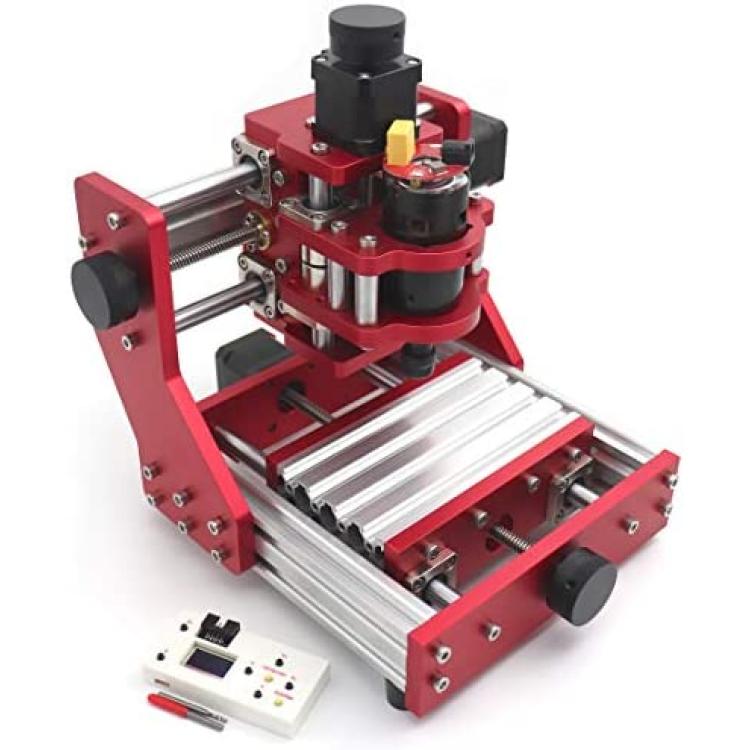

RATTMMOTOR CNC 1310 Router Machine Kit GRBL 3 Aixs DIY Mini CNC Metal Engraver Milling Machine+GRBL Offline Controller for Engraving Copper/Aluminum and Soft Metal, Plastic, Wood, Acrylic, PVC, PCB

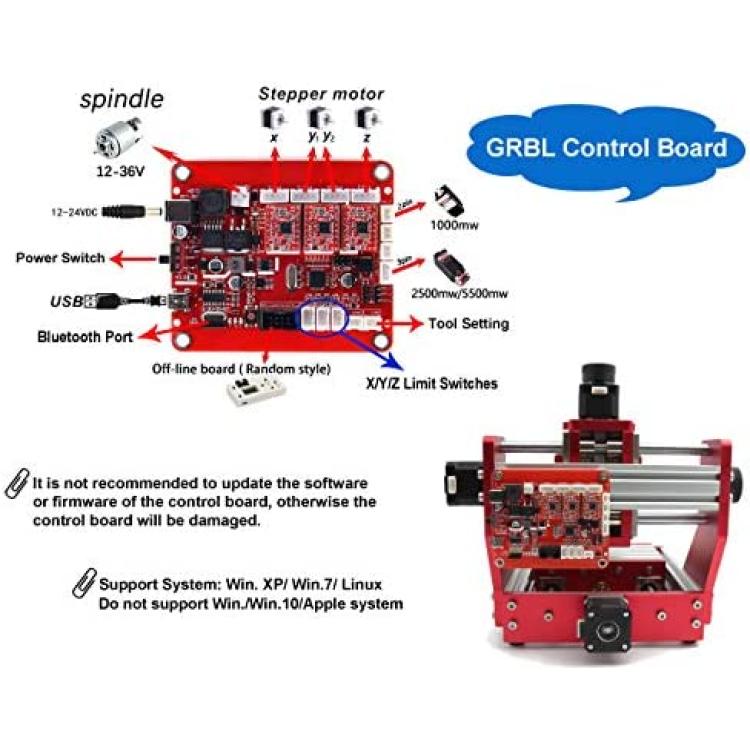

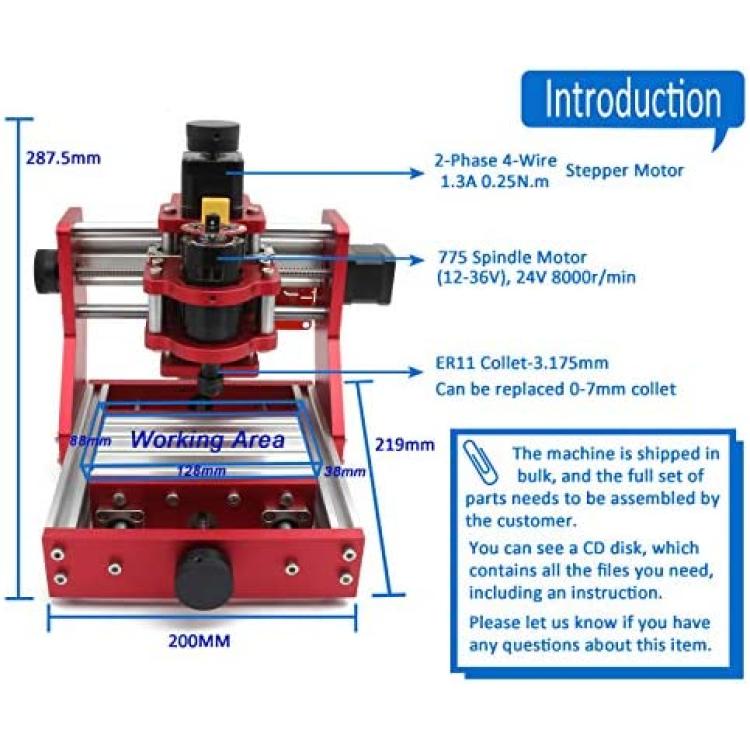

775 Spindle motor: 80W; 12-36V?24V: 8000r / min?Shaft diameter: 15mm; Motor diameter (without magnetic sleeve): 42mmlarge torque, low friction and stable operationDouble ball bearings have low noiseMounting hole diameter: M4 screw holeMounting hole pitch: about 29mm1× 3-axis CNC 1310 Engraving Machine Kit2× Drill Bits1 x Power Supply4 x Plate Clamps1 set Allen Wrench1× CD disk1 x English Manual1 x CNC Offline Controller Working Area: Approx. 126x88x38mm/ 4.96x3.46x1.49in Machine Size: Approx. 281x281x287.5mm / 11.06x11.06x11.32in Control Software: Grblcontrol / Lite.fire Support OS: Windows XP, Win7, Linux Power Supply: 5A, 24V(110V-240V) Interface: USB Stepper Motor: 2-Phase 4-Wire stepper motor(1.3A 0.25N.m) Drill clamp parameters: ER11-3.175mm ( can be replaced 0-7mm ) Ctrl: Machine Control; File: Use the Gcode file; Press [Y+] [Y-] to select; Press[Ok] to EnterX± Y± Z±: Moving AxisOK/Spindle: Spindle ON/OFFExit/Step: Change Step/Exit (long press)How to increase the spindle power: After pressing the spindle button, press and hold the OK button and the Z+ button simultaneously to increase the speed.How to decrease the spindle: After pressing the spindle button, press and hold the OK button and the Z- button simultaneously to decrease the speed.Common supported formats include nc. tex. tap.Press [Y+] [Y-] to select filePress [Ok] to EnterPress [Ok] to begin if you are readyNote:Long press [Exit] to stop machining
