3 Axis GRBL Control Board USB Port CNC Router Controller Board grbl 1.1f with GRBL Offline Controller Remote Hand Control for CNC Engraver Engraving Milling Machine Mini DIY CNC 1610/2418/3018 PRO

3 Axis GRBL Control Board USB Port CNC Router Controller Board grbl 1.1f with GRBL Offline Controller Remote Hand Control for CNC Engraver Engraving Milling Machine Mini DIY CNC 1610/2418/3018 PRO

Name: 3 Axis GRBL Control Board USB Port CNC Router Controller Board grbl 1.1f with GRBL Offline Controller Remote Hand Control for CNC Engraver Engraving
Brand: ‎Changzhou Rattm Motor Co.,Ltd
SKU: MM25049
Availability: InStock

Brand: ‎Changzhou Rattm Motor Co.,Ltd
Product Code: MM25049
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*♞【Model】Upgraded 3 Axis GRBL 1.1F USB Port GRBL Control Board with Offline controller; Input voltage: 24VDC;♞【Applications】 The control board can be used with the 1310,1610-PRO, 3018,3018-PRO and 3018-PRO MAX etc engraving machines.

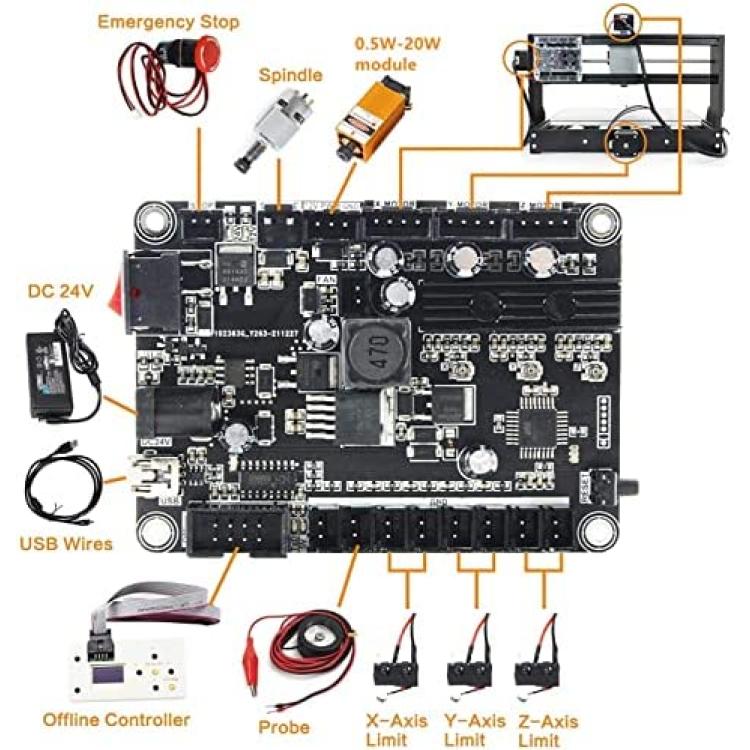

*♞【New functions】Add 2-pin emergency stop button port,probe port,XYZ limit port and add the power button switch.

*♞【Support software】GRBL Contol/Candle(3 axis)/Universal Gcode Sender; Support System: Windows XP/7/8/10

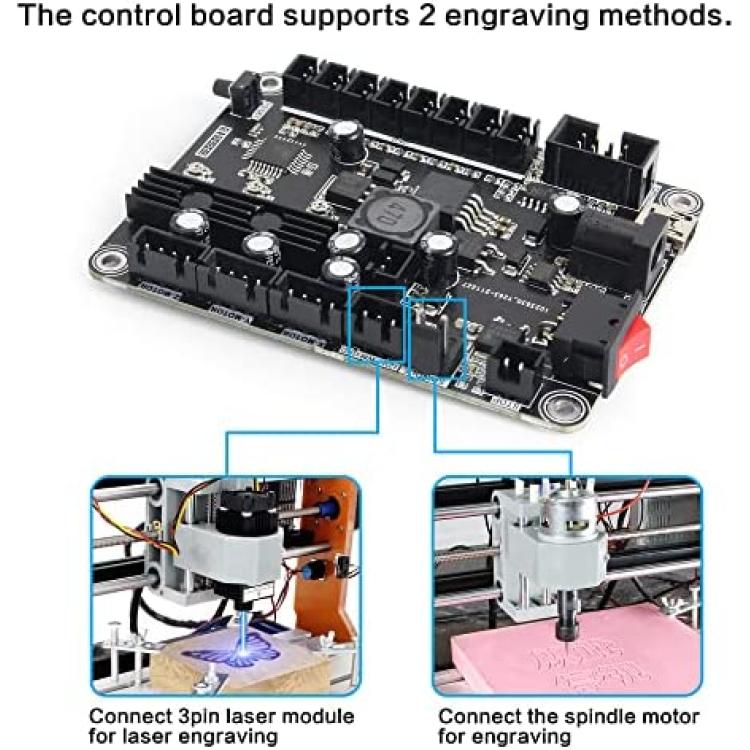

*♞【Support Motor】Support XYZ three-axis control, spindle.Support stepper motor: 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor Nema17,Nema23);Support spindle: Support 24VDC Spindle PWM speed (0%-100%),also support 3-pin PWM/TTL signal control module

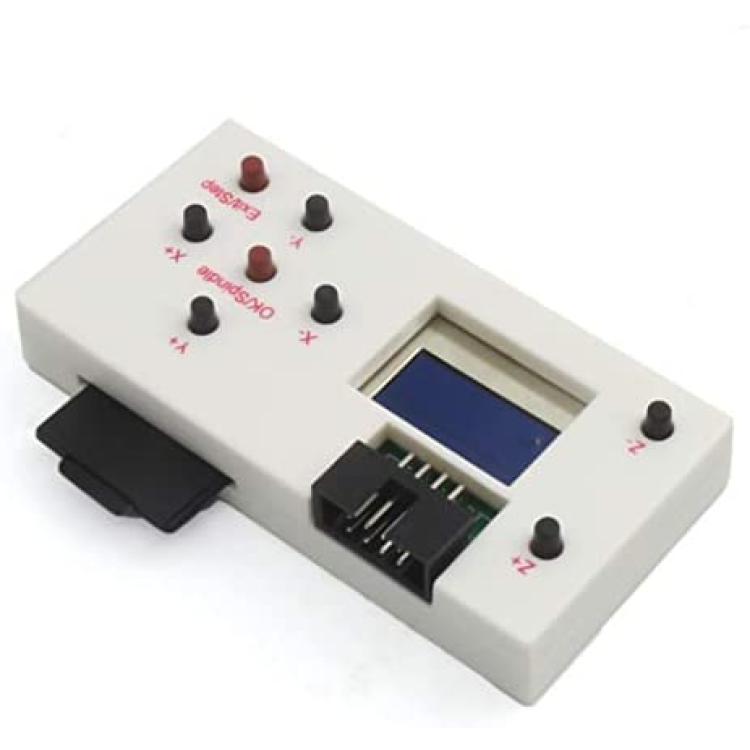

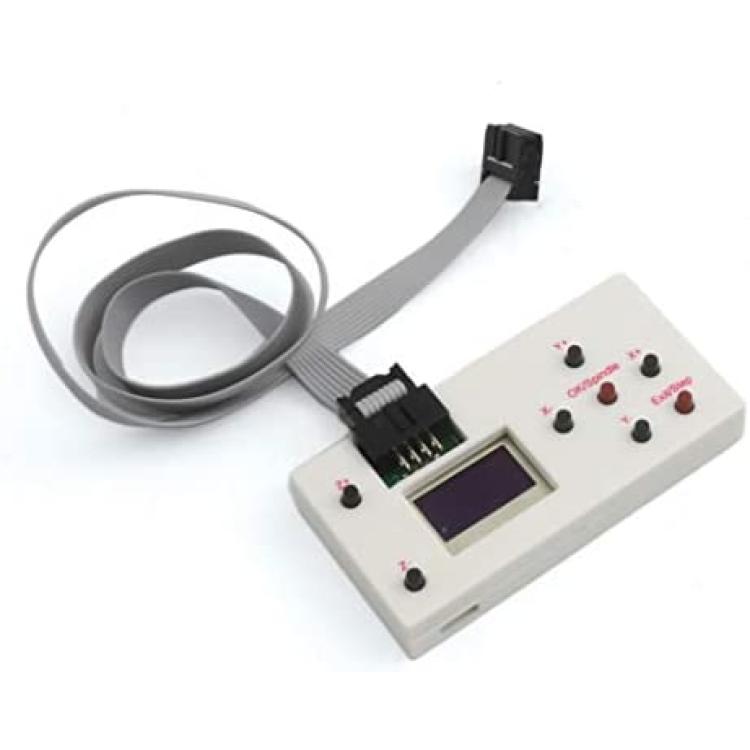

*♞【Offline Controller】It supports SD card and TF card at the same time, standard capacity 1G, (notebooks generally have SD card interface, copy files are very convenient)

Description

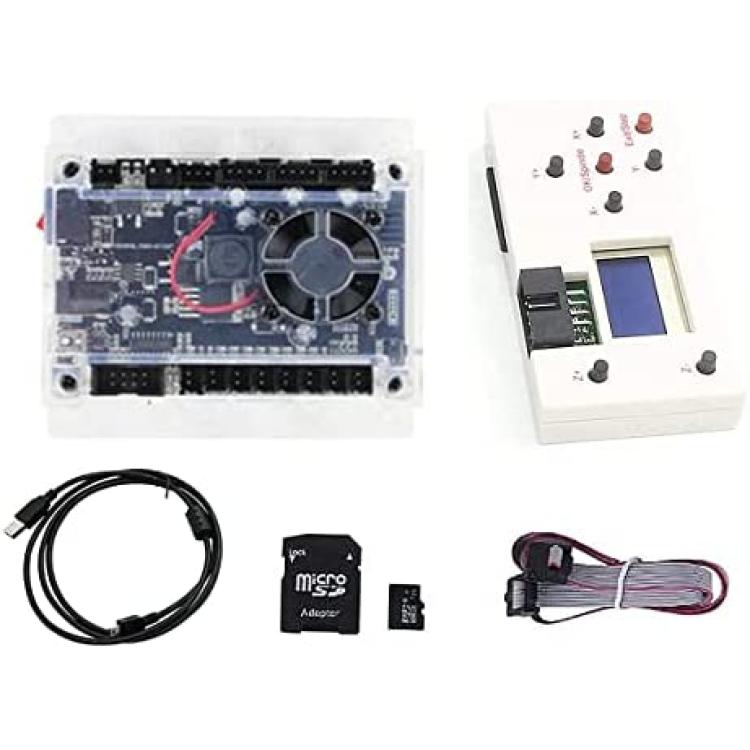

1 x GRBL 1.1F Control Board1 x USB connection cable1 x GRBL Offline Hand Controller with SD cardEnglish user manual will send to you via MessageSupport SD card and TF card at the same time, standard capacity 1G.With this offline controller module, you can directly control the CNC router without connecting it to your computer.After inserting the file into the SD card,the engraving file can be directly identified. You can also use the micro USB cable to connect the offline hand controller board to your computer and save the file directly.Easy to use: All you have to do is connect the offline module to the GRBL controller board, which you can use it to control the CNC rounter.Manually control: manually adjust X,Y,Z axis location as engraving starting point,manually open or close spindle,manully open or close cooling fanFile engraving: after off-line controller save file, it can connect the GRBL control board and process engraving,no need to connect PC computerSave file: after the off-line controller connect PC,it will be recognized as USB,large capacity storage device, can access engraving file directly.SD shows it is SD card condition,turn on power supply after insert SD card,otherwise,it wont work.SD card capacity 4G could be recognized.Ctrl: Machine Control; File: Use the Gcode file; Press [Y+] [Y-] to select; Press[Ok] to EnterX± Y± Z±: Moving AxisOK/Spindle: Spindle ON/OFFExit/Step: Change Step/Exit (long press)How to increase the spindle power: After pressing the spindle button, press and hold the OK button and the Z+ button simultaneously to increase the speed.How to decrease the spindle: After pressing the spindle button, press and hold the OK button and the Z- button simultaneously to decrease the speed.Common supported formats include nc. tex. tap.Press [Y+] [Y-] to select filePress [Ok] to EnterPress [Ok] to begin if you are readyNote:Long press [Exit] to stop machining

Tags: CNC Router Controller, GRBL Board, Offline CNC Controller, 3 Axis CNC, GRBL 1.1F, CNC Engraver, Mini CNC Router, 1610 CNC, 24VDC Controller, CNC Milling Machine, Hand Control CNC
