3 Axis GRBL 1.1f USB Port CNC Engraving Machine Control Board CNC Router Engraver Milling Machine Controller board
About this product
*♞【Model】Upgraded 3 Axis GRBL 1.1F USB Port GRBL Control Board; Input voltage: 24VDC
*♞【Support software】GRBL Contol/Candle(3 axis)/Universal Gcode Sender; Support System: Windows XP/7/8/10

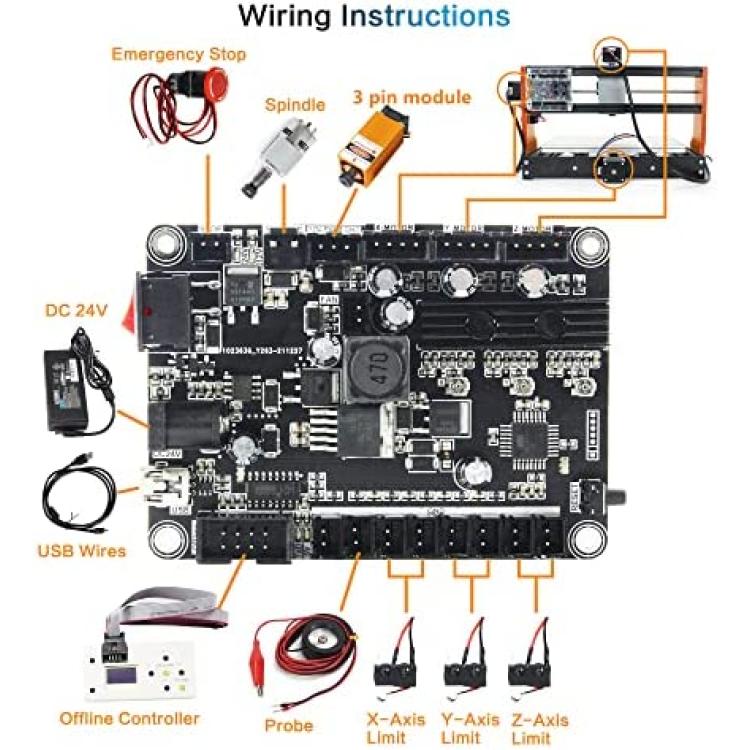

*♞【Support Motor】Support XYZ three-axis control, spindle.Support stepper motor: 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor Nema17,Nema23);Support spindle: Support 24VDC Spindle PWM speed (0%-100%),also support 3-pin PWM/TTL signal control module

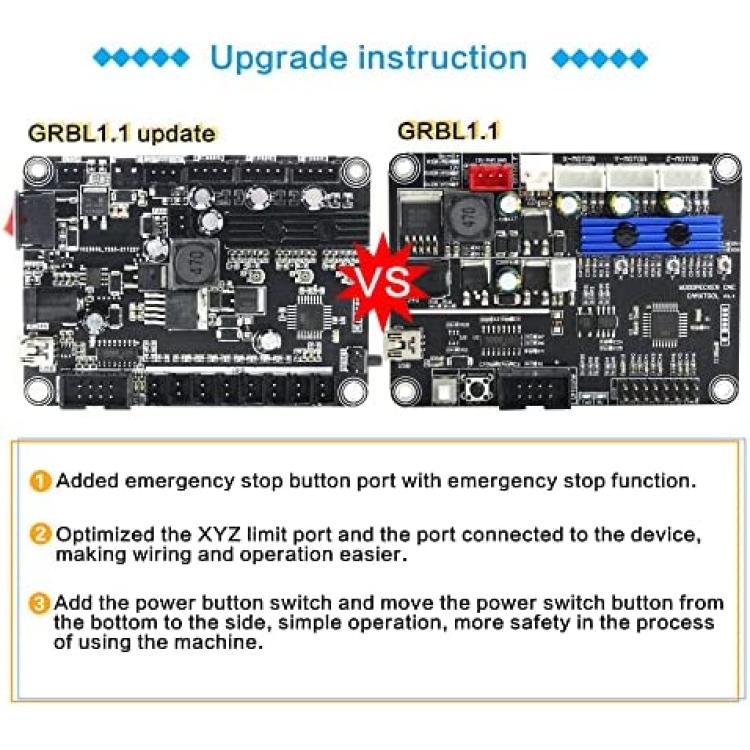

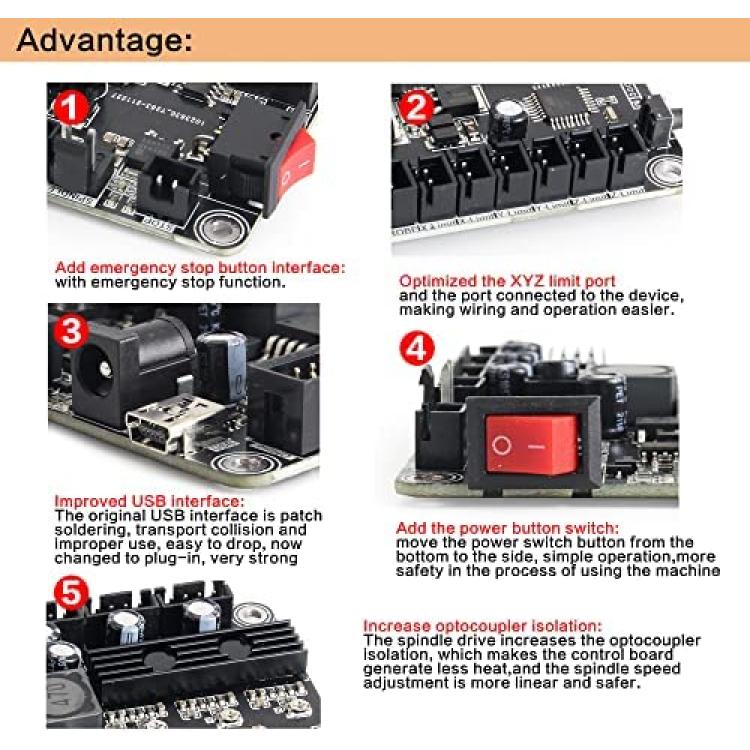

*♞【New functions】Add 2-pin emergency stop button port,probe port,XYZ limit port and add the power button switch.
*♞【Applications】 The control board can be used with the 1310,1610-PRO, 3018,3018-PRO and 3018-PRO MAX etc engraving machines.
Description

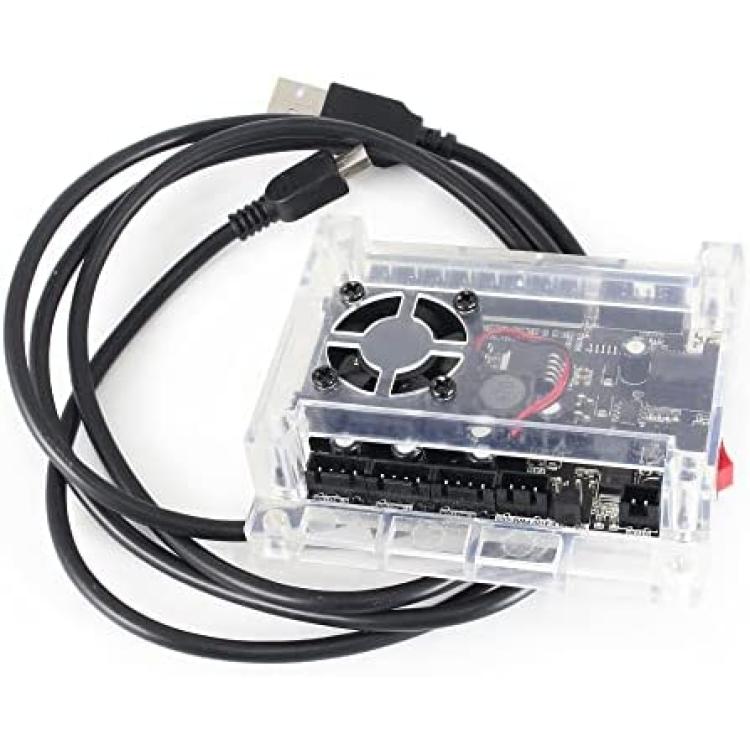

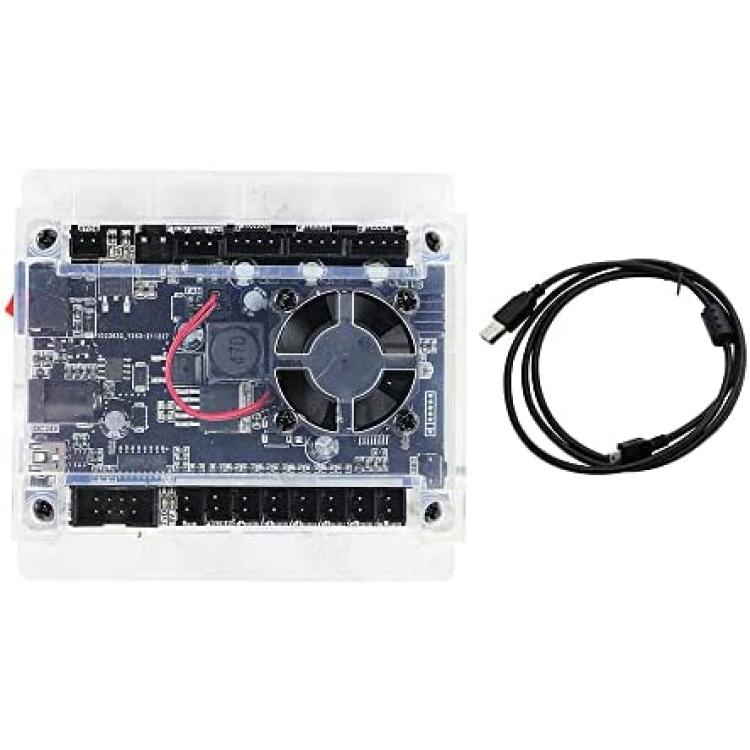

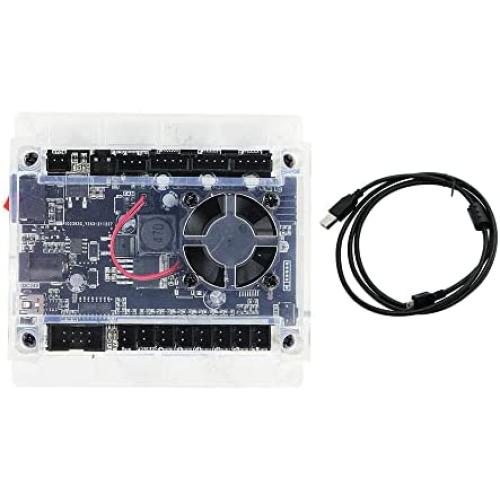

1x Upgraded 3 Axis GRBL 1.1 control board1x USB cable
