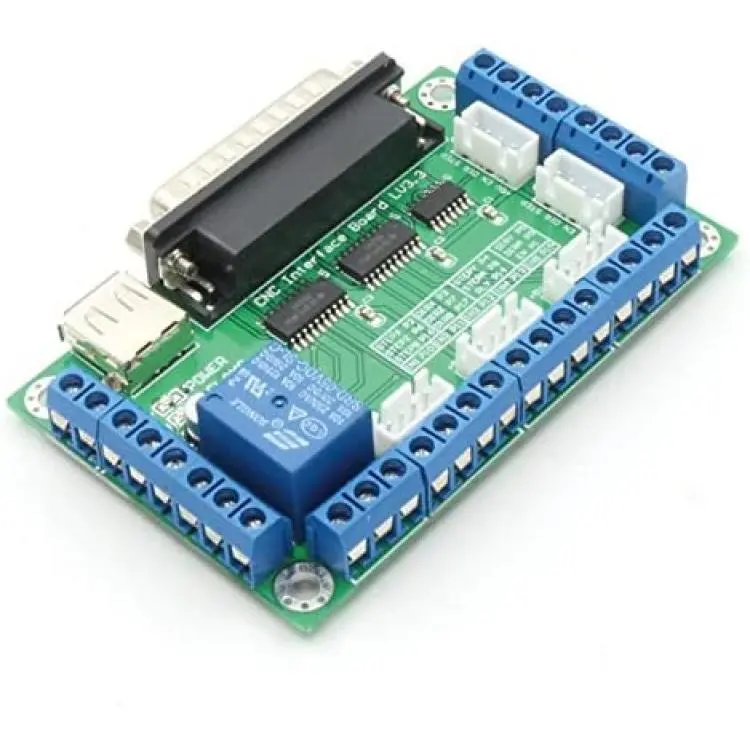

5 Axis Breakout Board interface Mach3 Stepper Motor Driver CNC Router Engraving Milling Machine CNC Controller
Availability: Pre-Order, Inquiry Price
About this product
*♞【5V input】This breakout board needs to be connected to the parallel port and USB port of the computer at the same time.but you can choose USB of PC to supply 5V or external power supply 5V;
*♞【5 Axis】The maximum control five stepper motor driver
*♞【Relay output control interface】Can be accessed by the spindle motor or the air pump, water pump, etc
*♞【Support Software】Support MACH3, KCAM4, EMC2 and other software；
*♞【Input interface】5-way input interface, you can connect limit switch and emergency stop switch,reset,knife signal;
Description
Descriptions:

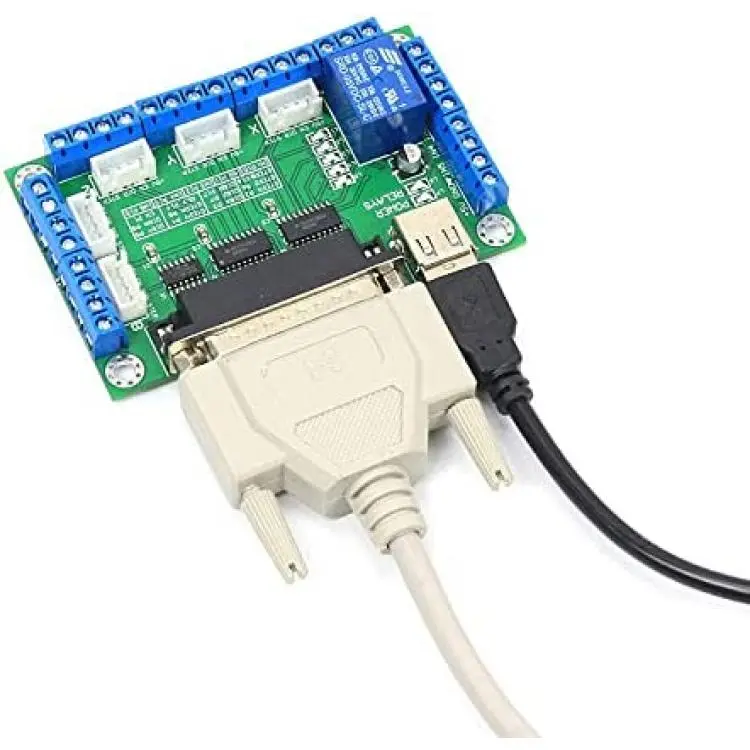

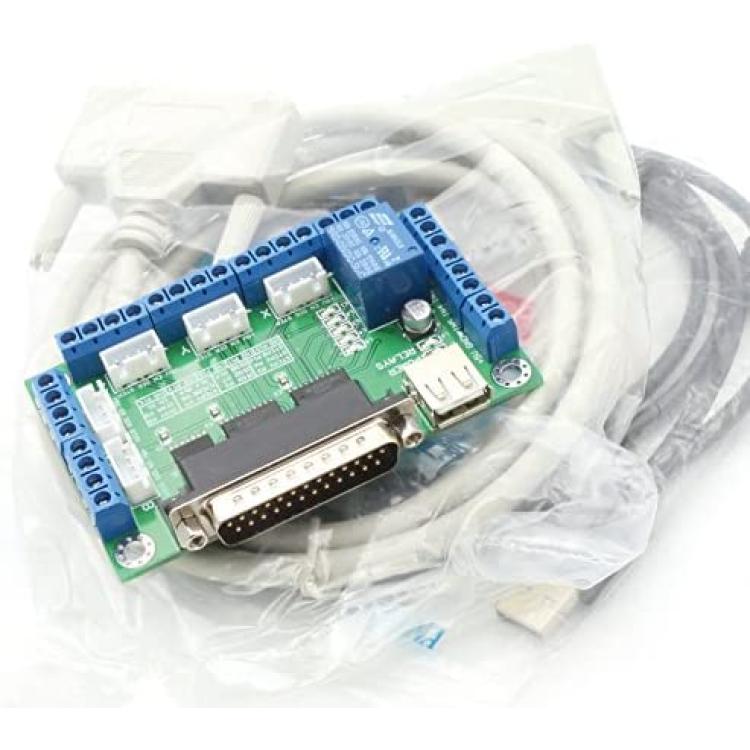

1 x 5 Axis Breakout Board1 x DB25 LPT parallel cable1 x USB cableEnglish user manual will send by message.Support MACH3,KCAM4,EMC2 and other software;This breakout board needs to be connected to the parallel port and USB port of the computer at the same time.The USB port on the board is only used to provide 5V input.The interface board uses a high-performance three-state bus driver74HC244 and schmitt inverter 74HC14,The signal drive capability is stronger and more stable after filtering. add 5V input terminal and the light of input and relay,makes the operation more convenient to use.Control five stepper motor driver;5-way input interface, you can connect limit switch and emergency stop switch,reset,knife signal;Input signal then have LED indicates;NO and NC port of relay all allow?you can choose them to control spindle;Can choose USB of PC to supply 5V or external power supply 5V;Data transfer speed can up to 10MBit/s;Output pin with extension interface.
