tb6560 3 axis Stepper Motor Driver Board nema 23 nema17 Controller Driver Breakout Board V Type 3.5A 12-36V DC with parallel cable for CNC Router Engraving Milling Machine

Introduction

Introduction

CNC stepper motor driver board TB6560,the new chip TB6560AHQ, the max ouput peak current can reach to 3.5A , this driver board can drive the 2-phase or 4-phase stepper motor whose current is less than 3A.

CNC stepper motor driver board TB6560,the new chip TB6560AHQ, the max ouput peak current can reach to 3.5A , this driver board can drive the 2-phase or 4-phase stepper motor whose current is less than 3A.

The advantages of the TB6560AHQ chip:

The advantages of the TB6560AHQ chip:

Wiring diagram

Features:

The limit switch port connection

The limit switch port connection

The 4th aixs expansion port connection

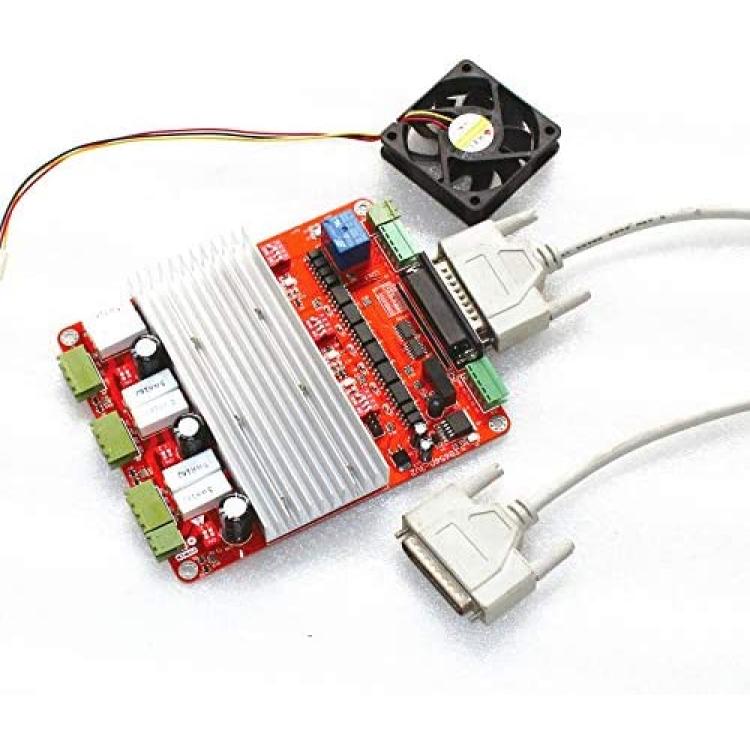

The 4th aixs expansion port connection 1 x 3 Axis TB6560 Stepper Motor Driver board (High-speed Optocoupler) 1 x DB25 parallel cable 1 x Fan 4 x M4 screw English user manual will send by message. It can drive three axis,The 4th axis expansion, to facilitate your needs 4-axis machining when working. Spindle relay output, easy to use software such as mach3 to control spindle start and stop. Semi-flow control functions, and effective to stop the motor when the current is reduced to a minimum. Interface with a fan, you can add fan under your choice. With 3 wire 0.8-3.5A (peak) rated output of two-phase adjustable-current bipolar stepper motor drive; Standard parallel port interface, support for MACH2, MACH3 and KCAM4 series software; With optical isolation and DCDC power supply isolation, the full protection of your computer parallel port and equipment; with limit switch,can connection 4 aixs limit switch Support four microstepping 1, 1/2, 1/8, 1/16 12-36V DC single switching power supply,microchips to use as a 5V power supply, stable and heat small Using RC +7414 automatic semi-flow,the current automatic reduce when stepper motor stop to down the heat. The vibration of the motor is small and low noise: because of the 2/8/16 resolution can satisfy the different speed.Flush type low heat: The area of the chip can support itself to cool when the current is lowSupports a lot of stepper motors.The advantages in the high-speed running condition.
