3 Axis Stepper Motor Nema 23 270oz-in 76mm 3.0A+TB6560 Driver Board CNC Controller Kit for CNC Router Milling Machine/3D Printer/DIY Wood Engraving Machine

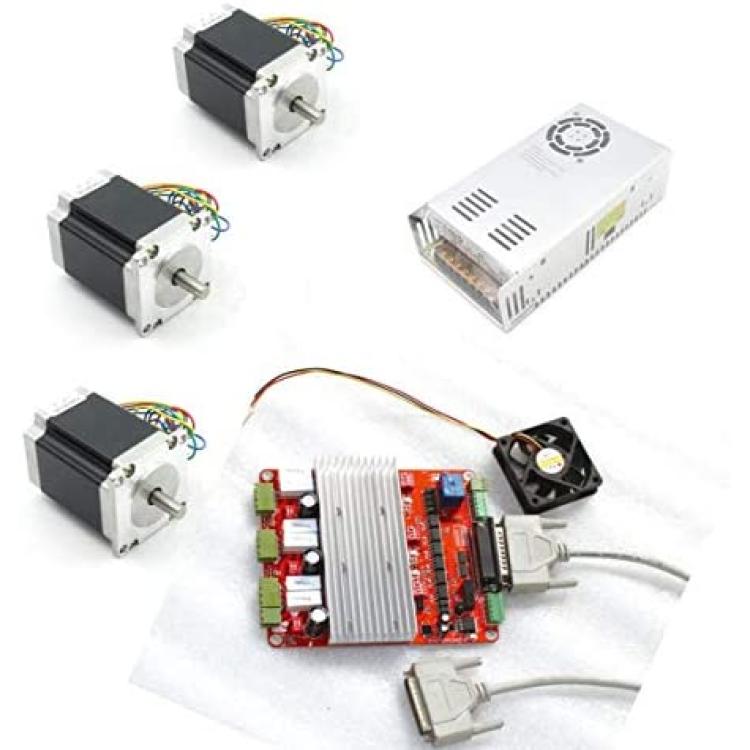

Package include:

3 x 23HS8430 Nema23 Stepper Motor  (270oz-in,3.0A,76mm)

1 x 3 Axis TB6560 Stepper Motor Driver board V type

1 x 350W 24V DC Switching Power Supply

1 x DB25 parallel cable

1 x Fan,4pcs M4 screw

English user manual for 3 axis driver board will send by email

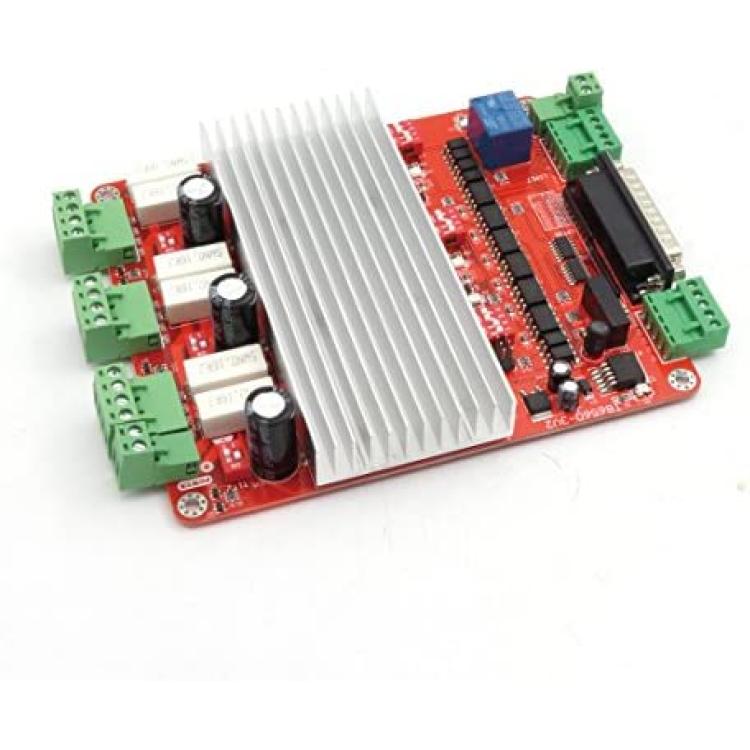

1. TB6560 Driver

CNC stepper motor driver board TB6560,the new chip TB6560AHQ of TOSHIBA, the max ouput peak current can reach to 3.5A , this driver board can drive the 2-phase or 4-phase stepper motor whose current is less than 3A.

Features:

it can drive three axis,The 4th axis expansion, to facilitate your needs 4-axis machining when working.

Spindle relay output, easy to use software such as mach3 to control spindle start and stop.

Semi-flow control functions, and effective to stop the motor when the current is reduced to a minimum.

Interface with a fan, you can add fan under your choice.

With 3 wire 0.8-3.5A (peak) rated output of two-phase adjustable-current bipolar stepper motor drive.

Standard parallel port interface, support for MACH2, KCAM4 series software.

With optical isolation and DC power supply isolation, the full protection of your computer parallel port and equipment.

with limit switch,can connection 4 aixs limit switch.

Support four microstepping:1,1/2,1/8,1/16.

12-36V dc single switching power supply,microchips to use as a 5V power supply, stable and heat small.

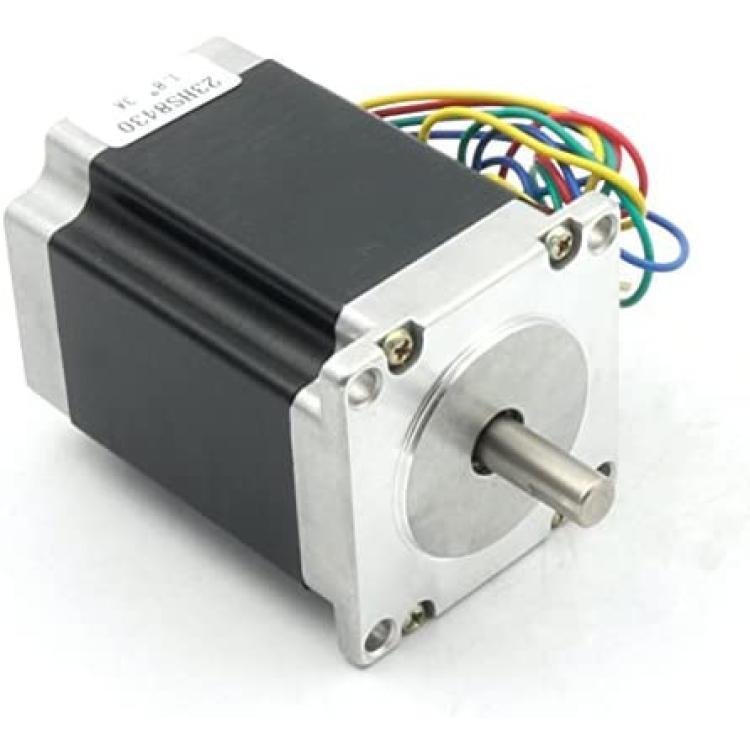

2. Stepper Motor

Frame Size: NEMA23

Step Angle: 1.8 degree

Current: 3.0A/phase

Resistance: 1.0 Ohm/phase

Inductance: 3.5 mH/phase

Holding torque: 180N.cm/18kg-cm  270 oz-in

Rotor inertia: 440g-cm2

Number of wire leads:  4

Length:76mm

Shaft : single shaft,8mm diameter

3. 350W 24V/10 A,single output switching power supply
