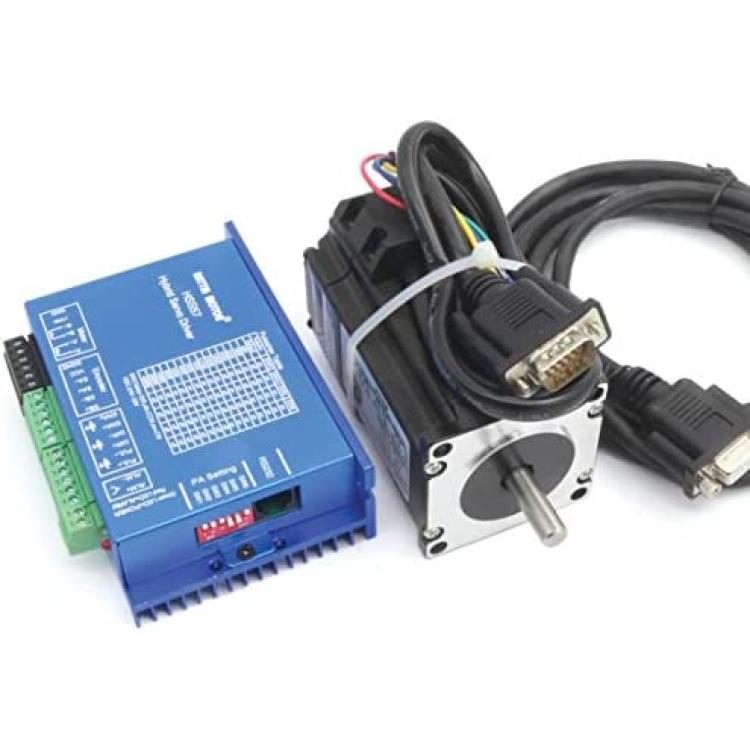

Nema23 2N.m 57 Hybrid Closed Loop Servo Stepper Motor 2Nm 76mm+HSS57 Servo Driver Controller CNC Kit 24-50V DC For CNC Router Engraving Milling Machine
About this product
*Name:Nema23 2N.M Servo Motor Driver CNC Kit;Holding Torque:2N.m;Current:3.0A;Phase:2
*Servo Driver:HSS57 2-Phase Hybrid Stepper Servo Driver
*Size:57x57x76mm;Step Angle(degrees):1.8 deg;Voltage:DC24~50V;Insulation resistance:100MOhm(500V)

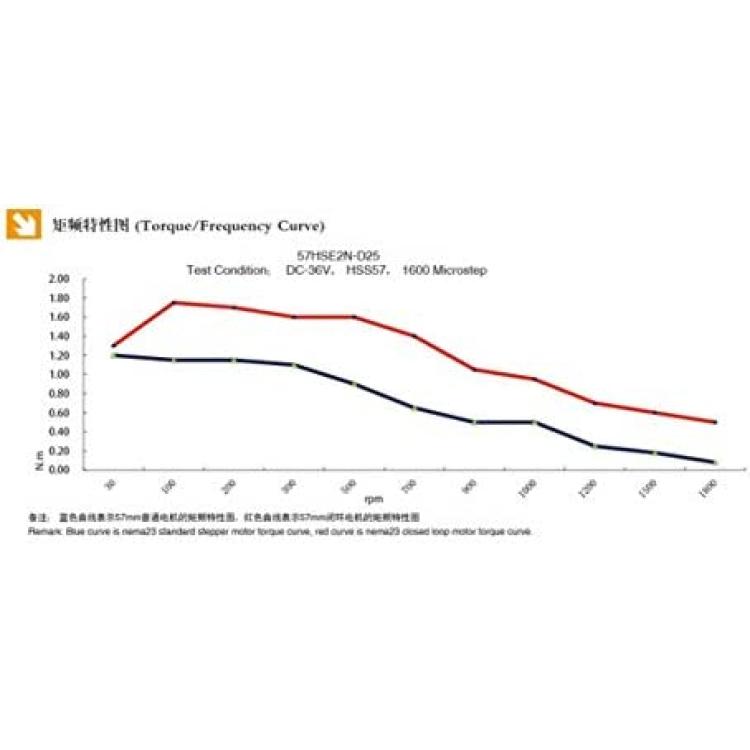

*The torque reducing is much lower than open loop stepper motor when it is at higher speed.The high speed performance and torque are enhanced in a great extent.and the current control is based on the load, that can reduce the motor temperature rising effectively, then can extend the using life of the motor. Improve motor output torque and working speed.Automatic current adjustment based on load, lower temperature rising.fit for all mechanical load conditions,no need to adjust gain parameter.
*Name:Nema23 2N.M Servo Motor Driver CNC Kit;Holding Torque:2N.m;Current:3.0A;Phase:2
Description
Overview
HSS57 is 2 phase nema 23 series hybrid stepper servo driver. It adopts new generation 32 bit DSP and vector control technology,which can avoid the stepper motor losing steps and ensure the accuracy of the motor. The torque reducing is much lower than open loop stepper motor when it is at higher speed. The high speed performance and torque are enhanced in a great extent. Meanwhile the current control is based on the load, that can reduce the motor temperature rising effectively, then can extend the using life of the motor. The build-in place in position and alarm output signal can help the upper monitor to monitor and control. The function of position ultra difference alarm can ensure the machine work safely. The closed loop system is an ideal improvement and a good replacement of open loop system.
Applications
Closed loop stepper system can be applied to all kinds small automatic equipment and Instruments, such as engraving machine, special industrial sewing machine, stripping machine, marking machine, Dispensing machine, cutting machine, module phototypesetting, graph plotter, NC machine, automatic, assembly equipment and so on.
Stepper motor closed loop system, never lose step.Improve motor output torque and working speed.Automatic current adjustment based on loadSuitable for all mechanical load conditionsMotor work smoothlyNo vibration from high speed to zero speedDrive nema 23 series 2N.m closed loop stepper motor.Pulses response fre can reach 200KHZ16 kinds microsteps choice, highest 51200microsteps/rev.Voltage range: DC24V~50VOver-current, over-voltage and position ultra difference protection function.Frequency Asked Questions
