4Nm Nema34 4.5N.m Closed Loop Servo Stepper Motor 4.5Nm 82mm 6A w/ 2 Phase Hybrid HSS86 Servo Driver w/ 3M encoder extension wire CNC Controller Kit for CNC Router Engraving Milling Machine

4Nm Nema34 4.5N.m Closed Loop Servo Stepper Motor 4.5Nm 82mm 6A w/ 2 Phase Hybrid HSS86 Servo Driver w/ 3M encoder extension wire CNC Controller Kit for CNC Router Engraving Milling Machine

Brand: ‎Changzhou Rattm Motor Co.,Ltd
Product Code: MM6522
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*Holding Torque:4.5N.m;Current:6A;Phase:2;Peak current:8A

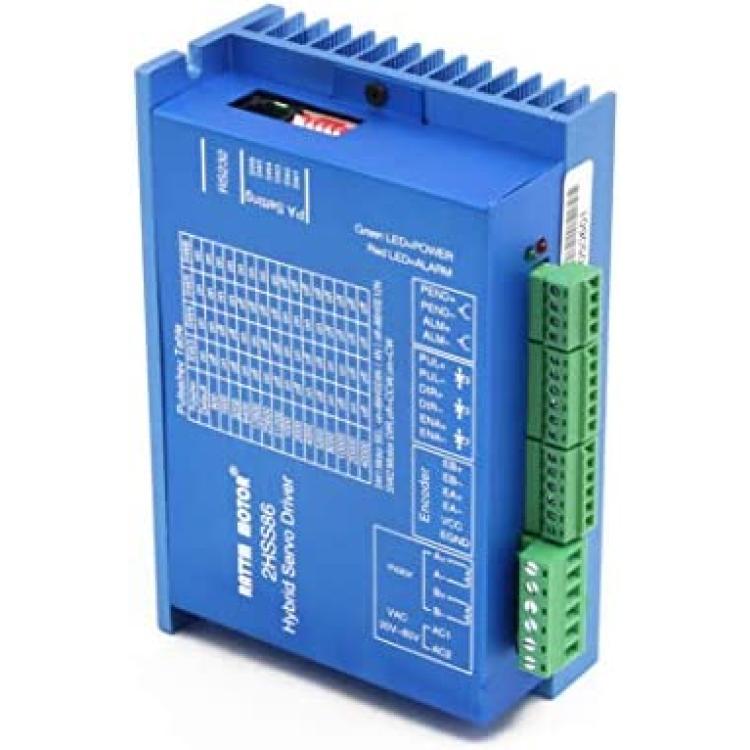

*HSS86 2-Phase Hybrid Stepper Servo Driver

*Size:86x86x82mm;Step Angle(degrees):1.8deg

*Voltage:AC24~70V or DC30~100V;Insulation resistance:100MOhm(500V)

*Holding Torque:4.5N.m;Current:6A;Phase:2;Peak current:8A

Description

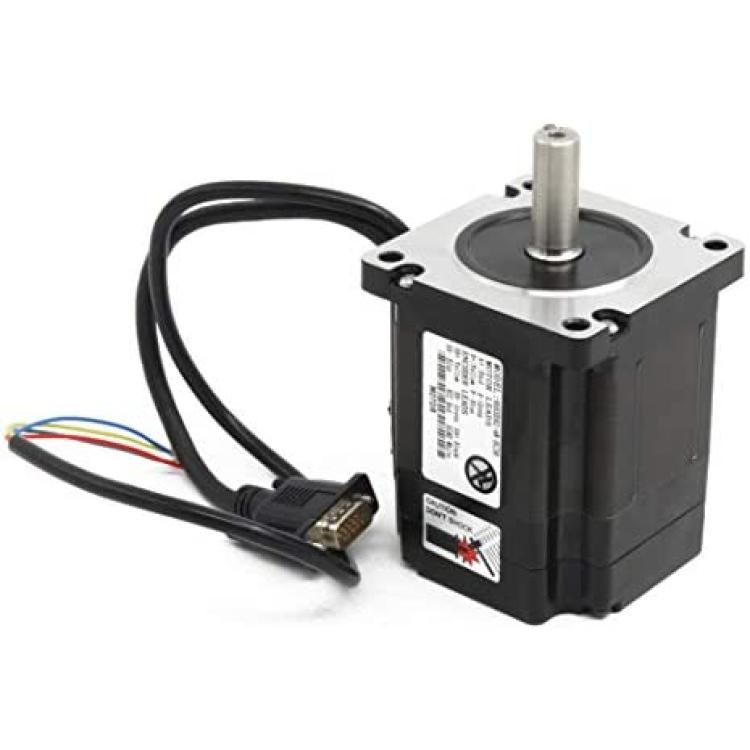

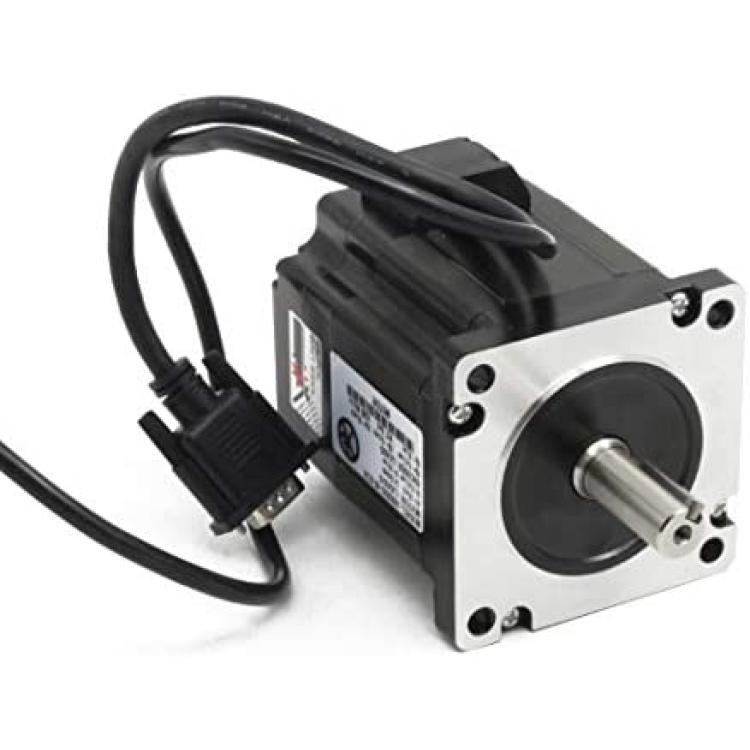

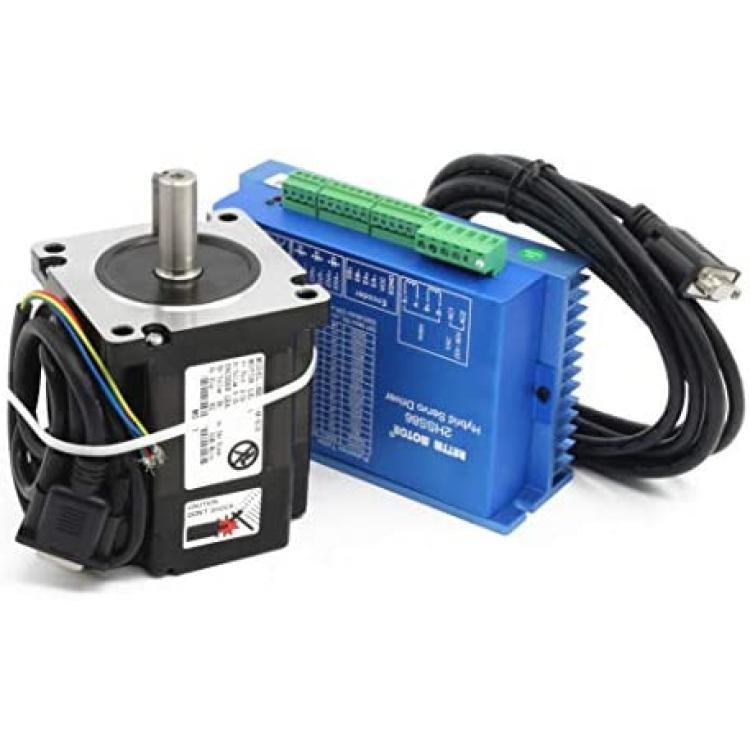

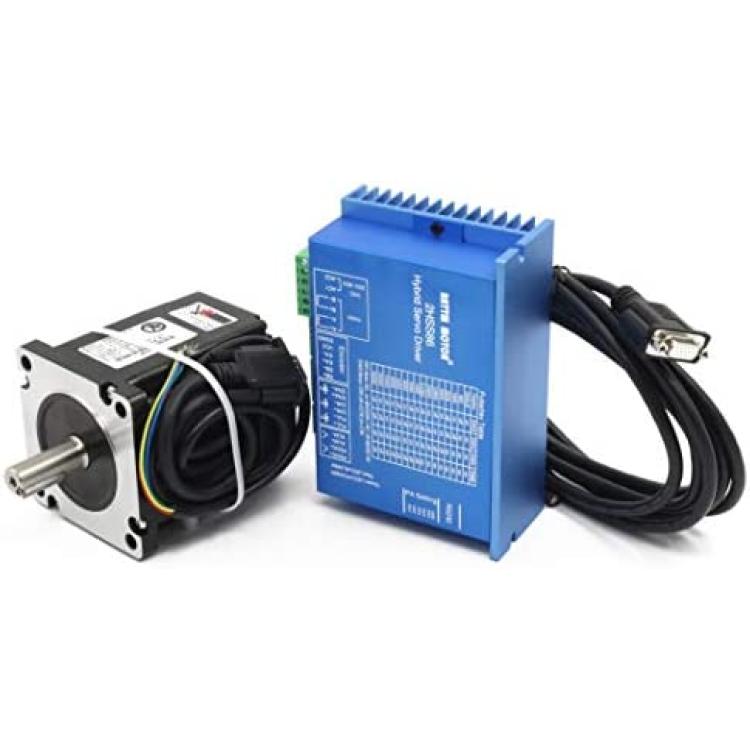

1 x 86HSE82 Nema34 4.5N.m Closed-loop servo motor1 x HSS86 Servo driver1 x 3M Extension cordEnglish user manual will send by messageSize:86x86x82mmCurrent :6.0APhase:2Step Angle(degrees):1.8 degreeLead wire:4pcsHolding Torque:450NcmResistance:0.44±10%?Inductance:3.7±20%mHInsulation resistance:100MOhm(500V DC)Insulation Class:BVoltage range: AC24-70V or DC30-100VPeak current :Peak 8.0ALogic input current:7-20mAFrequency:0-200KHzSuitable motorHSE156,86HSE118, 86HSE82Encoder lines:1000Insulation resistance:>=500M?Operating temprature:0~50?Operating humidit:40~90%RHVirbration:5.9m/s2MaxOver-current,over-voltage and position ultra difference protection function.Closed loop stepper system can be applied to all kinds small automatic equipment and instrument. Such as engraving machine, special industrial sewing machine, stripping machine, marking machine, cutting machine, graph plotter, cnc machine, automatic assembly equipment and so on
