Servo Motor Nema57 8Nm Closed Loop Stepper 2 Phase HSS86 Hybrid Motor Driver 6A With 400W 60V Power Supply
About this product
*【Closed-loop Servo Motor】-Holding Torque: 8Nm; Voltage:36V; Phase:2ph; Current / Phase:6A; Resistance: 0.44Ω;Encoder Resolution:1000PPR; Step Angle(degrees): 1.8; Inductance: 3.7mH; Insulation class:B; Stepping closed-loop circuit system, no loss of movement synchronization. Motor runs smoothly, vibrates mildly, and improves acceleration deceleration dynamic performance.
*【HSS86 Servo Driver】- Stepper motor driver supports over current protection, over voltage protection. Insulation Class B. Voltage range: AC20~80V,DC30~110V; Peak currentPeak: 6.0A; Logic input current: 7~20mA; Frequency: 0~200KHz;Suitable motor: 86HSE4.5N, 8N,12N; Phase:2Ph;Encoder lines: 1000;Switch setting:SW1: NC; SW2: Rotate direction setting.on=CW, off=CCW; SW3、SW4、SW5、SW6: Microstep setting
*【Status indication】- PWR: Power indicator light : When power is on, the green light is on. ALM: Alarm indicator light: If the red light is flicker one time within 3 seconds, that means over current or interphase short circuit; If the red light is flicker twice within 3 seconds, that means over voltage; if the red light is flicker three times within 3 seconds, that means position ultra difference or the encoder connector is disconnected.
*【Application】- Closed loop stepper system can be applied to all kinds small automatic equipment and Instruments, such as engraving machine, special industrial sewing machine, stripping machine, marking machine, Dispensing machine, cutting machine, laser phototypesetting, graph plotter, NC machine, automatic, assembly equipment and so on.
*【Closed-loop Servo Motor】-Holding Torque: 8Nm; Voltage:36V; Phase:2ph; Current / Phase:6A; Resistance: 0.44Ω;Encoder Resolution:1000PPR; Step Angle(degrees): 1.8; Inductance: 3.7mH; Insulation class:B; Stepping closed-loop circuit system, no loss of movement synchronization. Motor runs smoothly, vibrates mildly, and improves acceleration deceleration dynamic performance.
Description

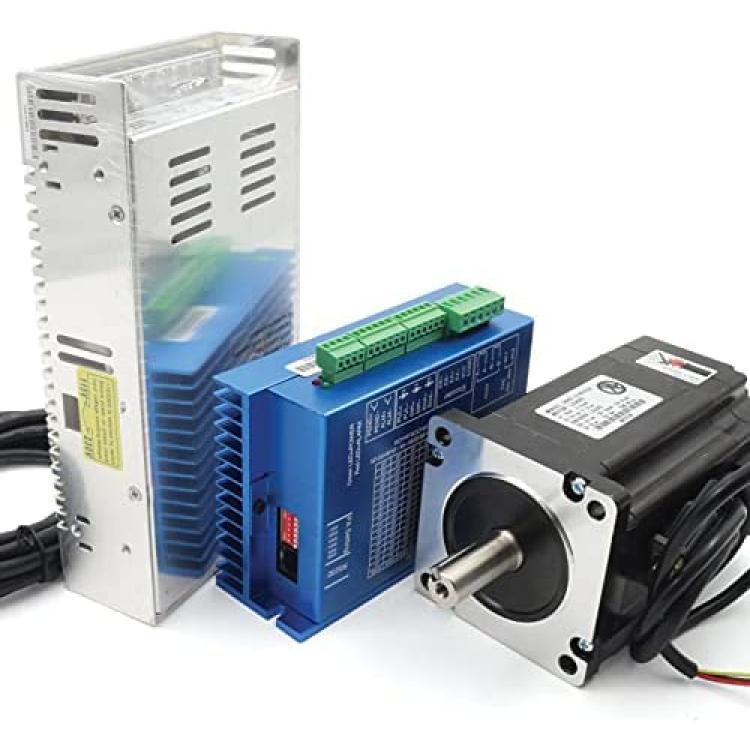

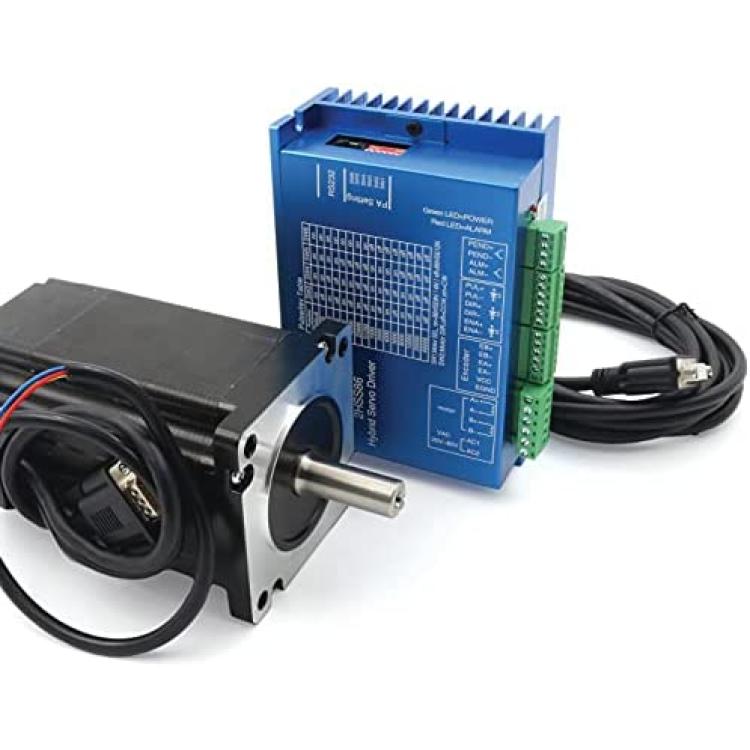

Products Package:
1Â x 86HSE118 Closed-loop Servo Motor
1 x HSS86 Servo driver
1 x 400W 60V Power supply

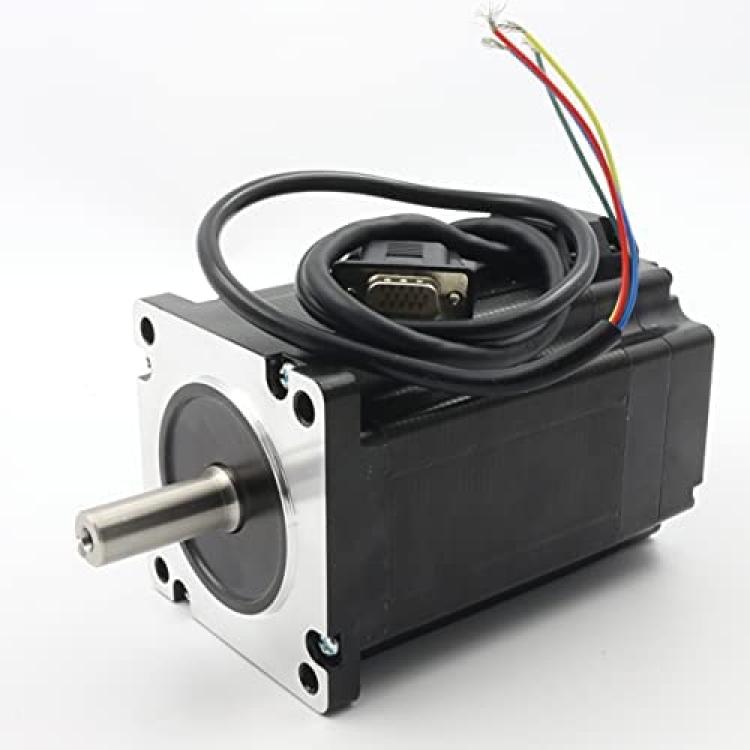

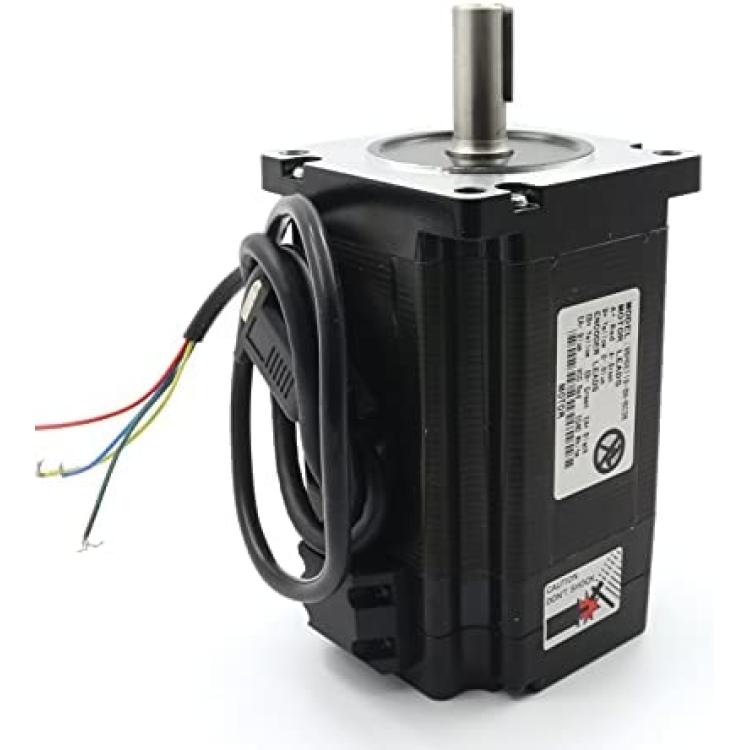

b>1. 86HSE118 Closed-loop Servo Motor
Basic parameters
Model:86HSE118 Holding Torque: 8Nm
Phase:2ph
Current / Phase:6A
Step Angle(degrees): 1.8
Inductance: 3.7mH
Resistance: 0.44?
Insulation resistance:100MOhm Insulation class:B
Lead line number: 4
Motor Length:118mm Encoder Resolution:1000PPR
Features
1.Stepper motor closed loop system, never lose step.
2.Improve motor output torque and working speed.
3.Automatic current adjustment based on load, lower temperature rising.
4.Suitable for all mechanical load conditions (include low rigidity belt pulley and wheel), no need to adjust gain parameter.
5.Motor work smoothly and low vibration, high dynamic performance at acceleration and deceleration. 6.No vibration from high speed to zero speed.
7.Drive nema 34 series 4.5Nm,8Nm,12Nm closed loop stepper motor.
8.Pulses response frequency can reach 200KHZ.
9.16 kinds microsteps choice, highest 51200microsteps/rev.
10.Voltage range: AC20~80V, DC30V~110V.
11.Over-current, over-voltage and position ultra difference protection function.
2.Servo Driver
Basic parameters
Model:HSS86 Voltage range: DC24~50V Peak currentPeak: 6.0A(current change according to load) Logic input current: 7~20mA Frequency: 0~200KHz Phase:2Ph Suitable motor: 86HSE4.5N,8N,12N Encoder lines: 1000PPR Net Weight: 0.56kg
Switch setting
SW1: NC.
SW2: Rotate direction setting.on=CW, off=CCW.
SW3?SW4?SW5?SW6: Microstep setting
