Nema23 2Nm Closed Loop Stepper Servo Motor 2 Phase HSS57 Hybrid Motor Driver 6A & 350W 36V Power Supply
About this product
*-【Closed-loop Servo Motor】-Holding Torque: 2Nm; Voltage:36V; Phase:2ph; Current / Phase:4.2A; Resistance: 0.5ohms;Encoder Resolution:1000PPR;Resistance: 0.5ohms;Step Angle(degrees): 1.8;Inductance: 1.8mh
*-【HSS57 Servo Driver】- Voltage range: DC24~50V;Peak currentPeak: 6.0A;Logic input current: 7~20mA;Frequency: 0~200KHz;Suitable motor: 57HSE2N;Phase:2Ph;Encoder lines: 1000;Switch setting:SW1: NC; SW2: Rotate direction setting.on=CW, off=CCW; SW3、SW4、SW5、SW6: Microstep setting
*-【Status indication】- PWR: Power indicator light : When power is on, the green light is on. ALM: Alarm indicator light: If the red light is flicker one time within 3 seconds, that means over current or interphase short circuit; If the red light is flicker twice within 3 seconds, that means over voltage; if the red light is flicker three times within 3 seconds, that means position ultra difference or the encoder connector is disconnected.
*-【Application】- Closed loop stepper system can be applied to all kinds small automatic equipment and Instruments, such as engraving machine, special industrial sewing machine, stripping machine, marking machine, Dispensing machine, cutting machine, laser phototypesetting, graph plotter, NC machine, automatic, assembly equipment and so on.
*-【Closed-loop Servo Motor】-Holding Torque: 2Nm; Voltage:36V; Phase:2ph; Current / Phase:4.2A; Resistance: 0.5ohms;Encoder Resolution:1000PPR;Resistance: 0.5ohms;Step Angle(degrees): 1.8;Inductance: 1.8mh
Description

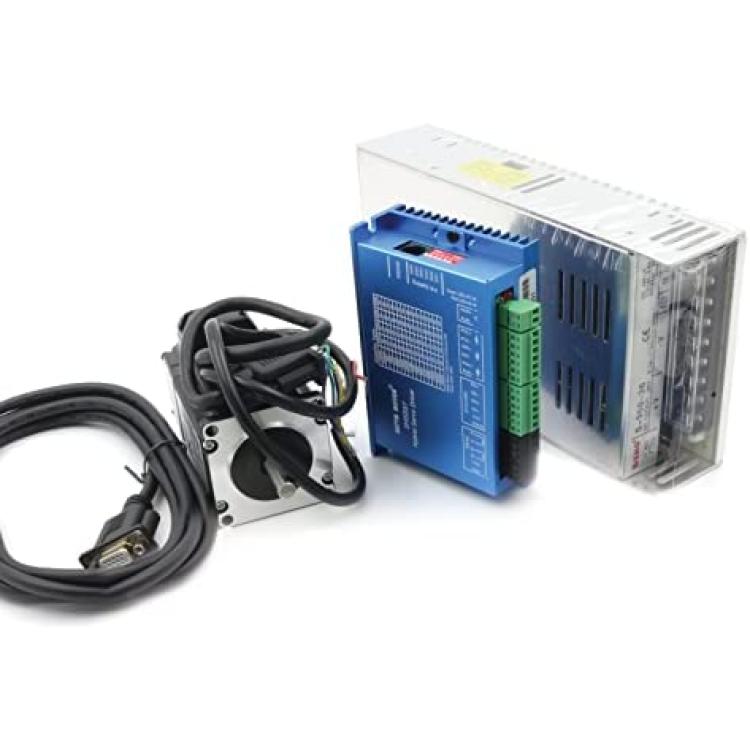

Products Package:

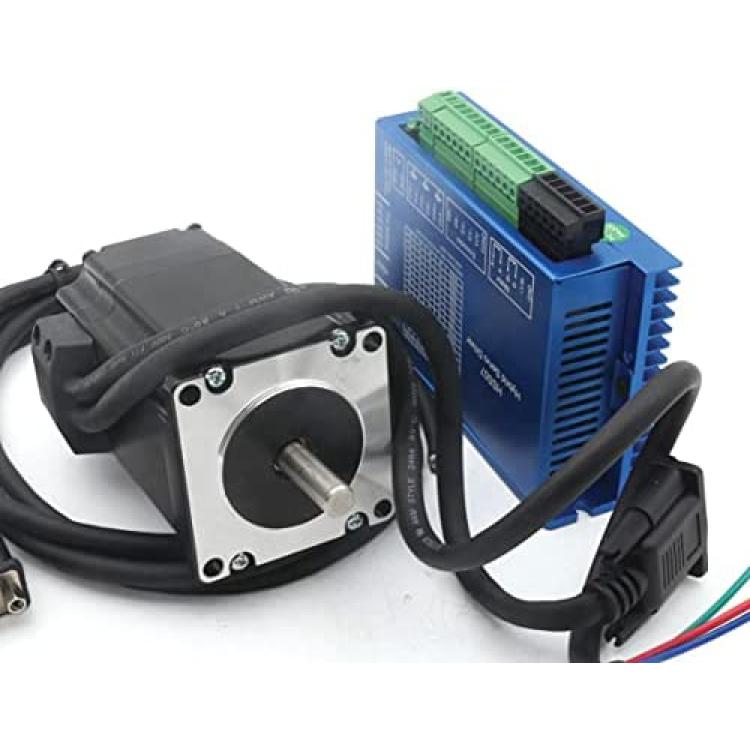

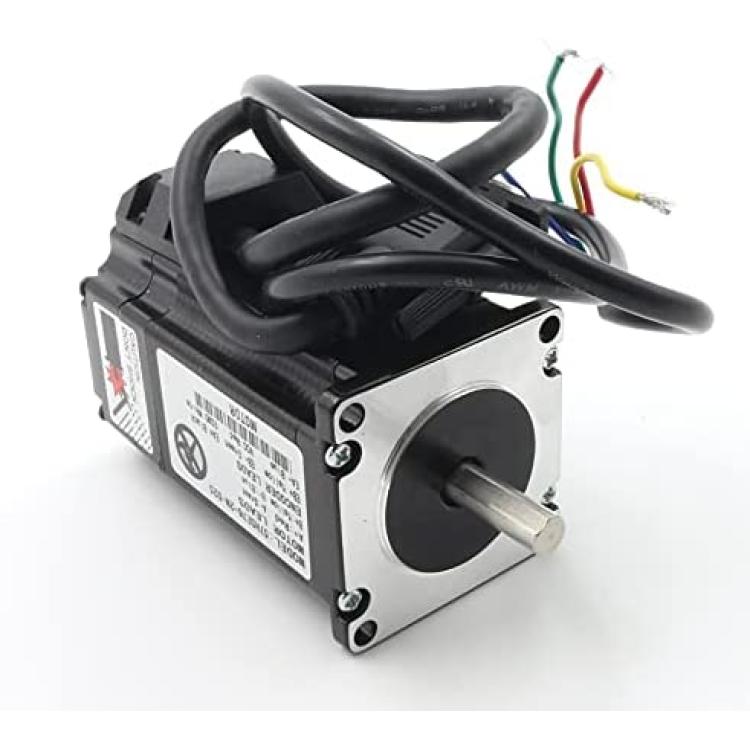

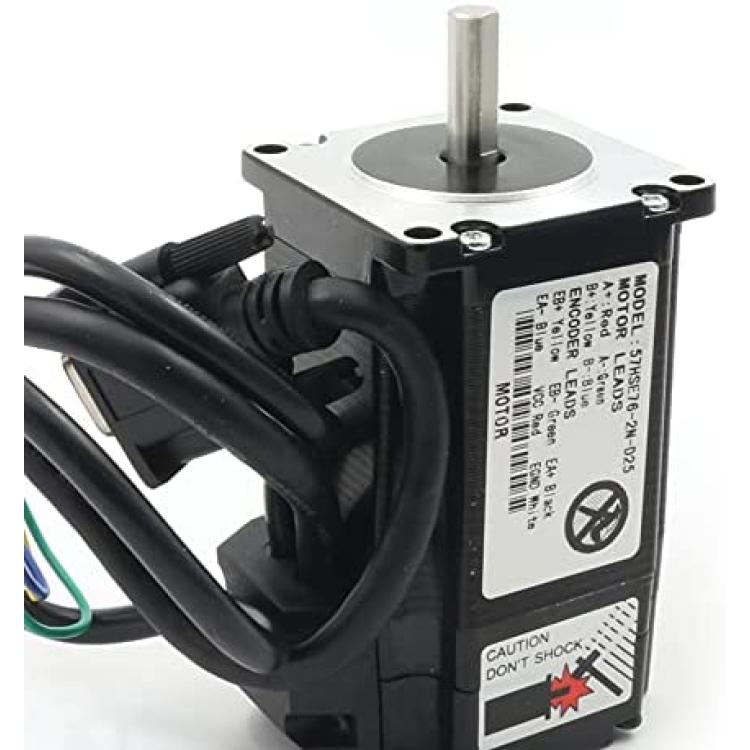

1Â x 57HSE76 Closed-loop Servo Motor

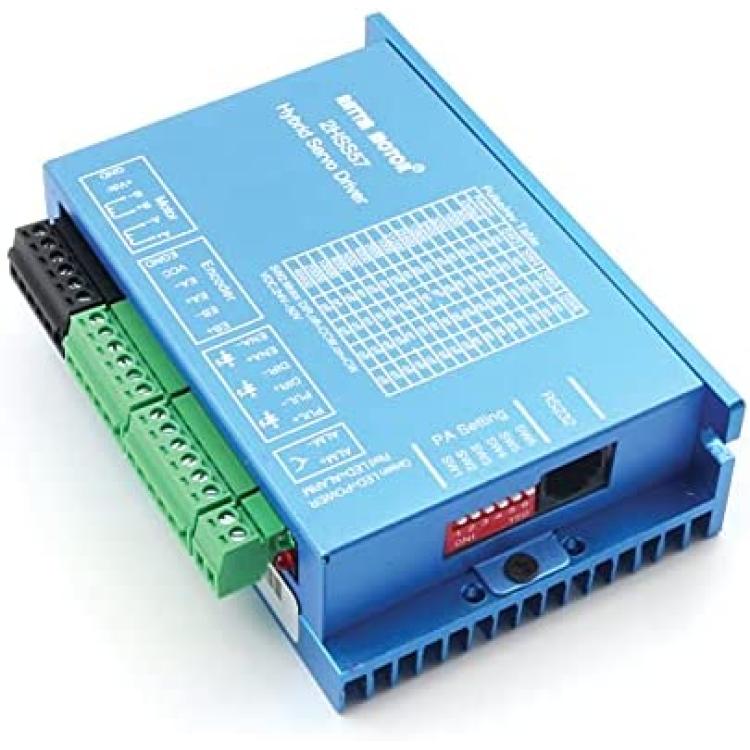

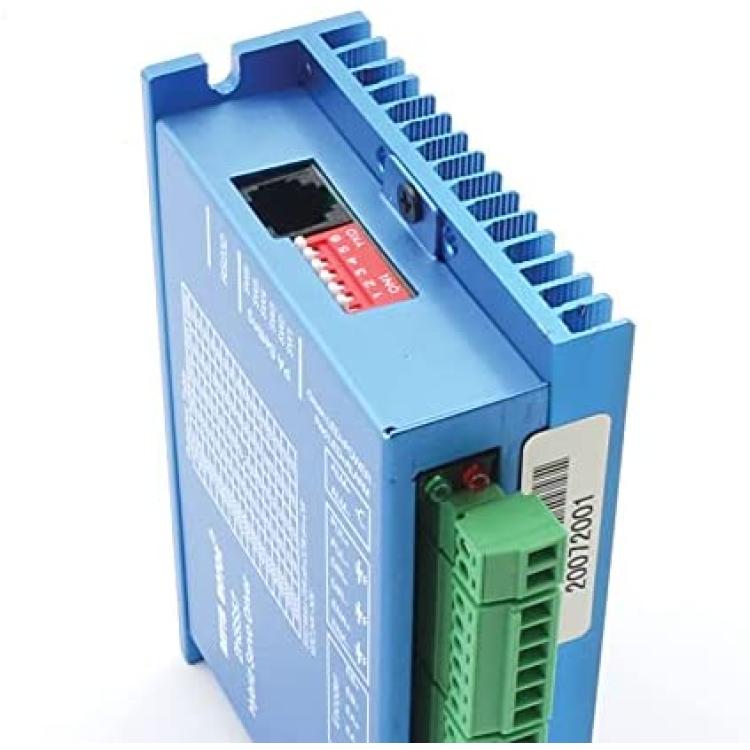

1 x HSS57 Servo driver
1 x 350W 36V Power supply
1. 57HSE76 Closed-loop Servo Motor
Basic parameters
Model:57HSE76
Holding Torque: 2Nm
Rated operational voltage:36V 5A
Phase:2ph
Current / Phase:4.2A
Step Angle(degrees): 1.8
Inductance: 1.8mh
Resistance: 0.5ohms
Insulation resistance:100MOhm Insulation class:B
Lead line number: 4
Motor Length:76mm
Encoder Resolution:1000PPR
Net Weight: 1.1kg
Features
1.Stepper motor closed loop system, never lose step.
2.Improve motor output torque and working speed.
3.Automatic current adjustment based on load, lower temperature rising.
4.Suitable for all mechanical load conditions (include low rigidity belt pulley and wheel), no need to adjust gain parameter.
5.Motor work smoothly and low vibration, high dynamic performance at acceleration and deceleration.
6.No vibration from high speed to zero speed.
7.Drive nema 23 series 2N.m closed loop stepper motor.
8.Pulses response frequency can reach 200KHZ.
9.16 kinds microsteps choice, highest 51200microsteps/rev.
10.Voltage range: DC24V~50V.
11.Over-current, over-voltage and position ultra difference protection function.
2.Servo Driver
Basic parameters
Model:HSS57
Voltage range: DC24~50V
Peak currentPeak: 6.0A(current change according to load)
Logic input current: 7~20mA
Frequency: 0~200KHz
Phase:2Ph
Suitable motor: 57HSE2N
Encoder lines: 1000PPR
Net Weight: 0.56kg
12 output signal, which is allowed to controlling output, supporting as many as 6 axis linkage.3 replays, P2, P3 and P4, which can support MACH3 control software programming. Wide input voltage power supply: 15-32VDC. The function of preventing reverse connection protection.
