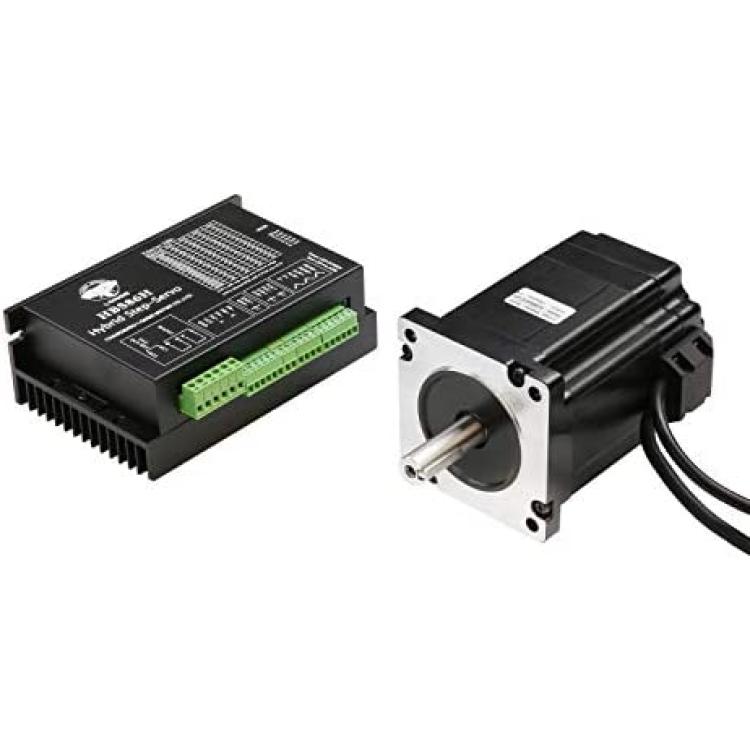

LS nema34 closed loop servo motor 5.0NM 6.0A with 3m cable& driver HBS86H 24-74VAC for CNC machine
About this product
*Holding Torque:5.0N.m;Current:6.0A;Phase:2;

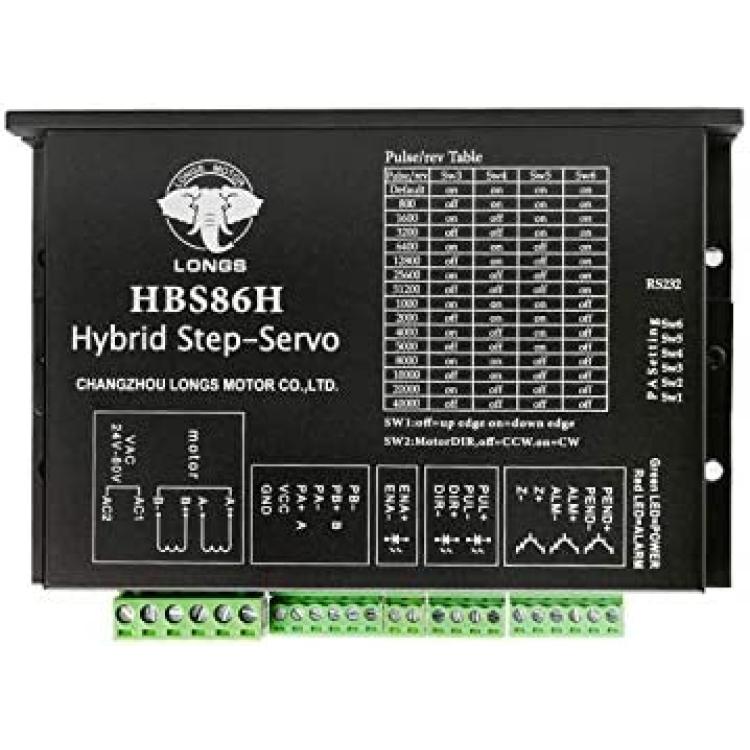

*Servo Driver:HBS86H 2-Phase Hybrid Stepper Servo Driver
*Size:86*86*101mm;Step Angle(degrees):1.8deg
*Voltage:24~75VAC;Insulation resistance:100MOhm(500V)
*Type:Hybrid;Frequency:0~200KHz;Insulation class:B
Description
PACKING INCLUDING:
1. 1pc motor 34SSM8460-EC1000;
2. 1pc servo driver HBS86H;
3. 1pc extended wire 3m;

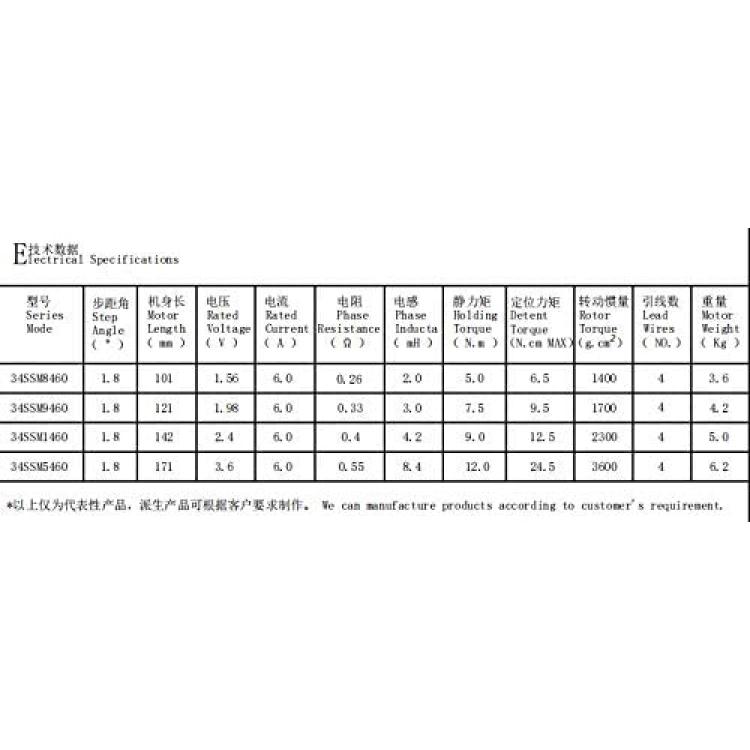

Product Parameters:

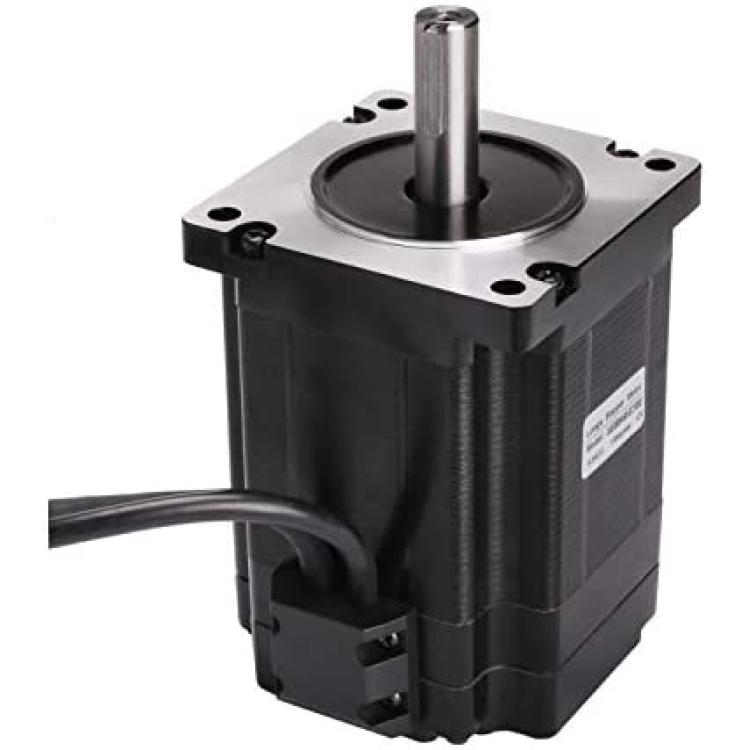

Product name: Bipolar 86 closed loop servo motor
Holding torque: 5.0Nm
Rated current: 6.0A
Resistance: 0.26 ohm
Inductance: 2.0mH
Rotor inertia: 1400gcm2
Weight: 3.6kg
Length: 101mm
Phrase: 2 Step angle: 1.8°
Motor frame size: 86*86mm
Wiring: Black (A+); Red (A-);Yel (B+); Blue (B-)
Application: Stage lighting;laser engraving; textile machinery; medical equipment; placement machine; non-standard equipment; 3D printer; automation equipment
