4 Axis Nema 23 Stepper Motor 270oz-in 76mm 3A+TB6560 Driver Board 12-36V/DC+350W 24V DC Switching Power Supply with Parallel Cable CNC Controller Kit for CNC Router/Engraver Milling Machine/3D Printer

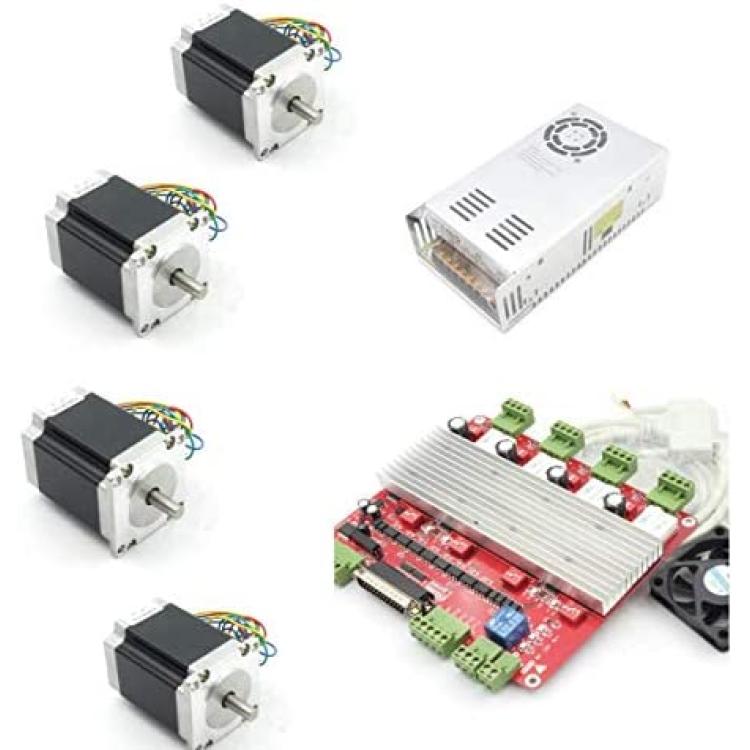

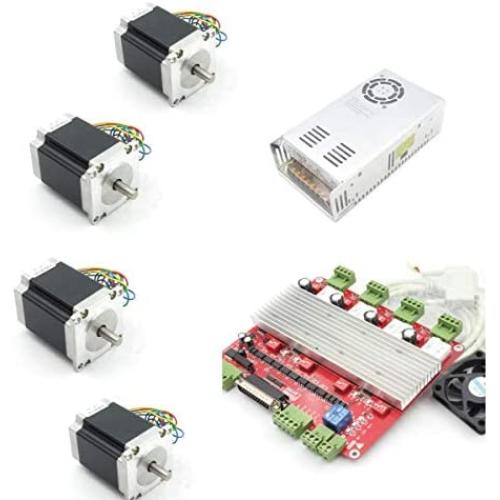

Package include:

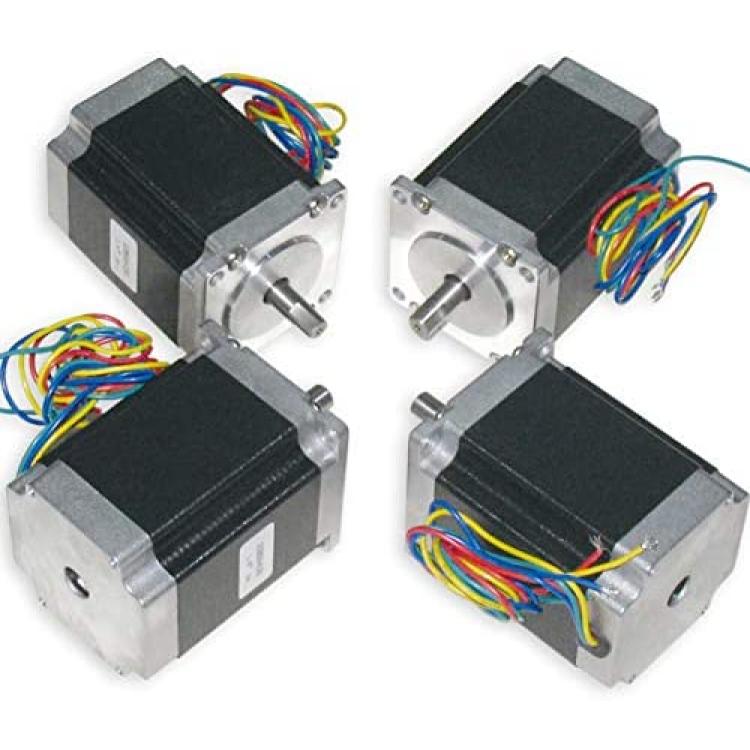

4 x 23HS8430 Nema23 Stepper Motor  (270oz-in,3.0A,76mm)

1 x 4 Axis TB6560 Stepper Motor Driver board V type

1 x 350W 24V DC Switching Power Supply

1 x DB25 parallel cable

1 x Fan,4pcs M4 screw

English user manual for 4 axis driver board will send by email

1. TB6560 Driver

CNC stepper motor driver board TB6560,the new chip TB6560AHQ of TOSHIBA, the max ouput peak current can reach to 3.5A , this driver board can drive the 2-phase or 4-phase stepper motor whose current is less than 3A.

it can drive four axis,The 5th axis expansion, to facilitate your needs 5-axis machining when working

With optical isolation and DCDC power supply isolation, the full protection of your computer parallel port and equipment;

Spindle relay output, easy to use software such as mach3 to control spindle start and stop

Semi-flow control functions, and effective to stop the motor when the current is reduced to a minimum

Interface with a fan, you can add fan under your choice.

With 4 way 0.8-3.5A (peak) rated output of two-phase adjustable-current bipolar stepper motor drive

Standard parallel port interface, support for MACH2, KCAM4 series software;

with limit switch,can connection 4 aixs limit switch

Support four microstepping ——1,1/2,1/4,1/16

12—36V single switching power supply,microchips to use as a 5V power supply, stable and heat small

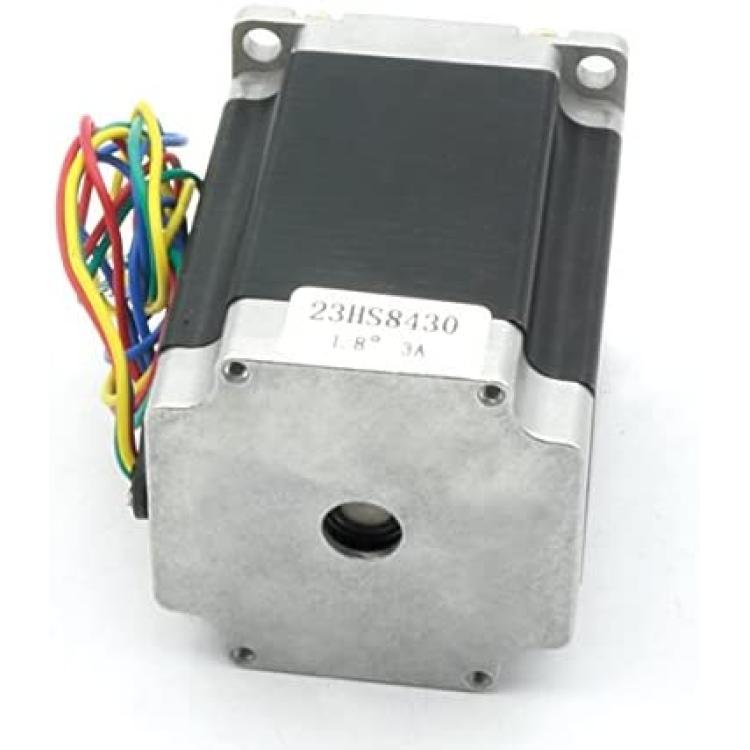

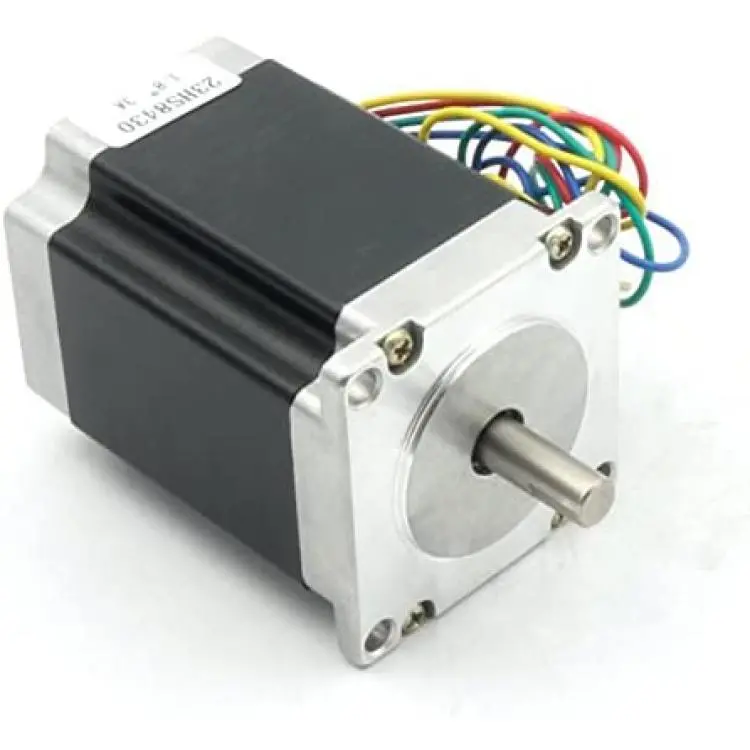

2. Stepper Motor

Frame Size: NEMA23

Step Angle: 1.8 degree

Current: 3.0A/phase

Resistance: 1.0 Ohm/phase

Inductance: 3.5 mH/phase

Holding torque: 180N.cm/18kg-cm  270 oz-in

Rotor inertia: 440g-cm2

Number of wire leads:  4

Length:76mm

Shaft : single shaft,8mm diameter

3. 350W 24V/10 A,single output switching power supply
