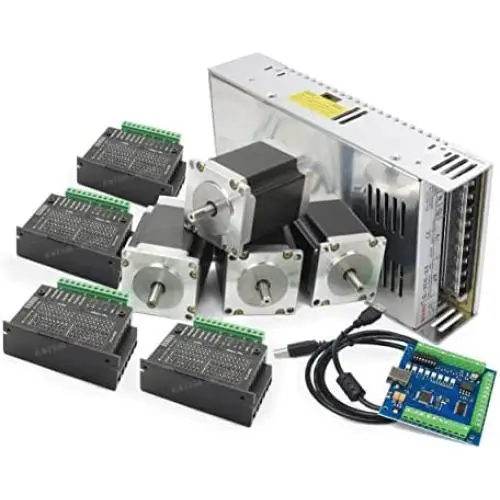

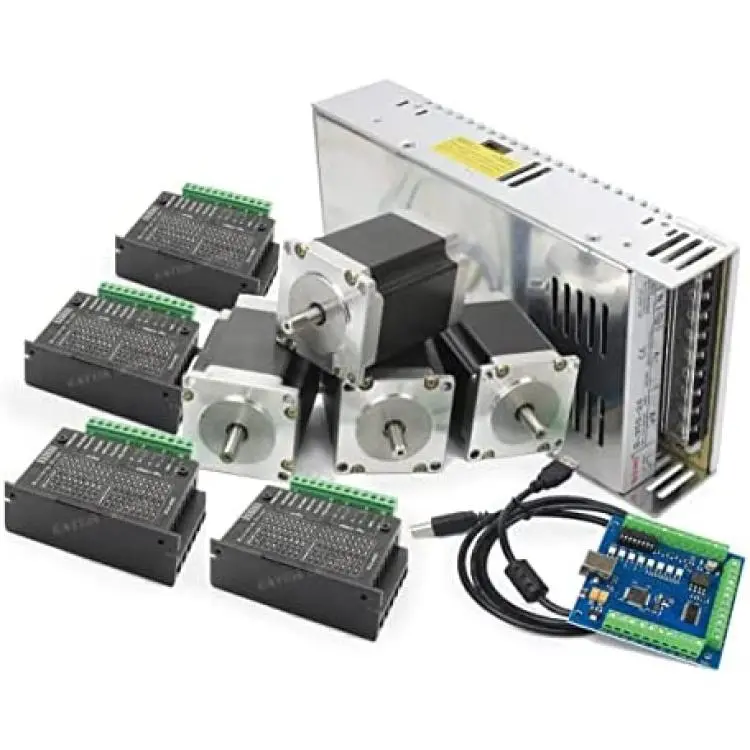

RATTMMOTOR 4 Axis USB Mach3 CNC Controller Kit Nema23 Stepper Motor Single Shaft 76mm 270Oz-in 3A 1.8Nm+CNC Motion Control Board Signal Output 0-10V+TB6600 Driver 4A+350W 24V DC Switch Power Supply

Electrical parameters:

Electrical parameters:

Input and output description:

Input and output description:

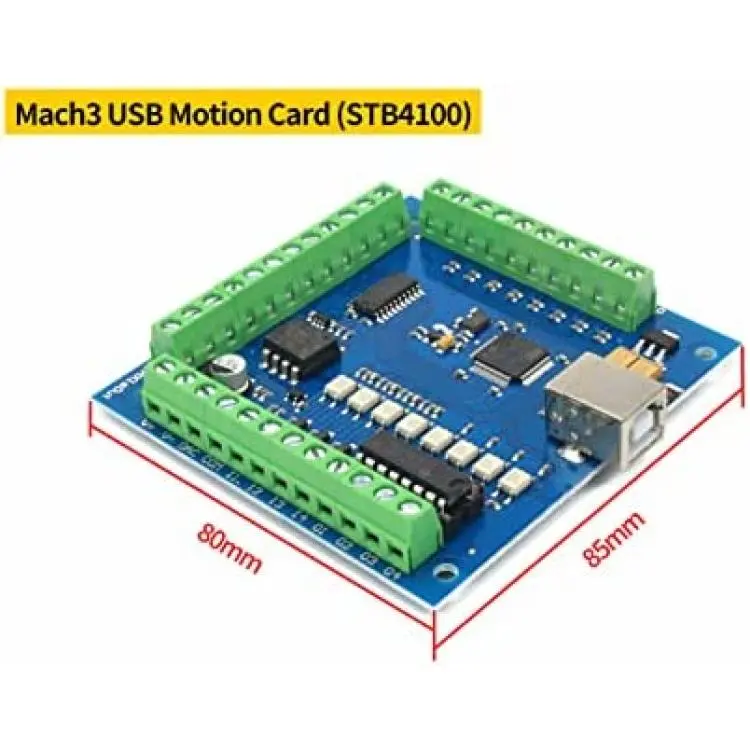

USB Mach3 Motion Control Card

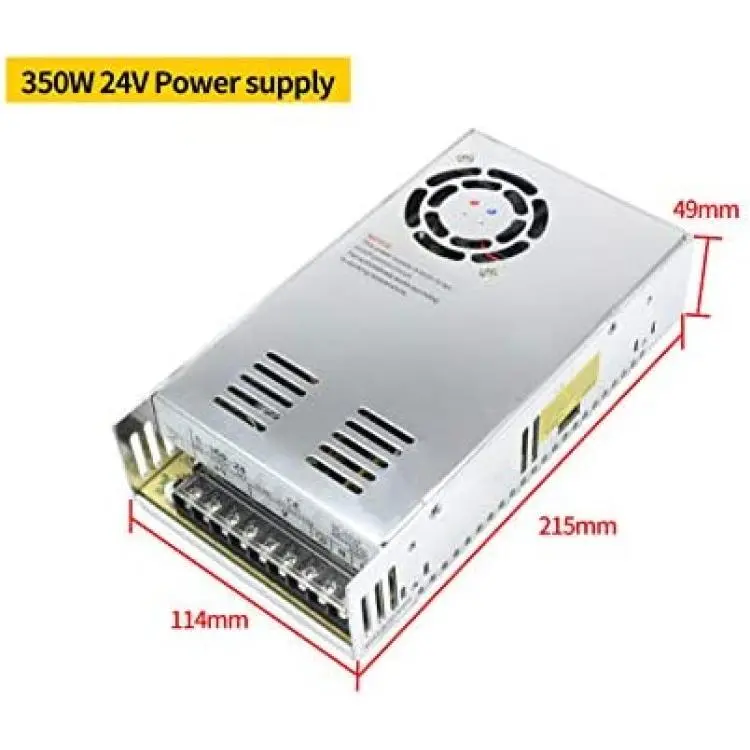

350W 24V DC Switching Power Supply

Specification:

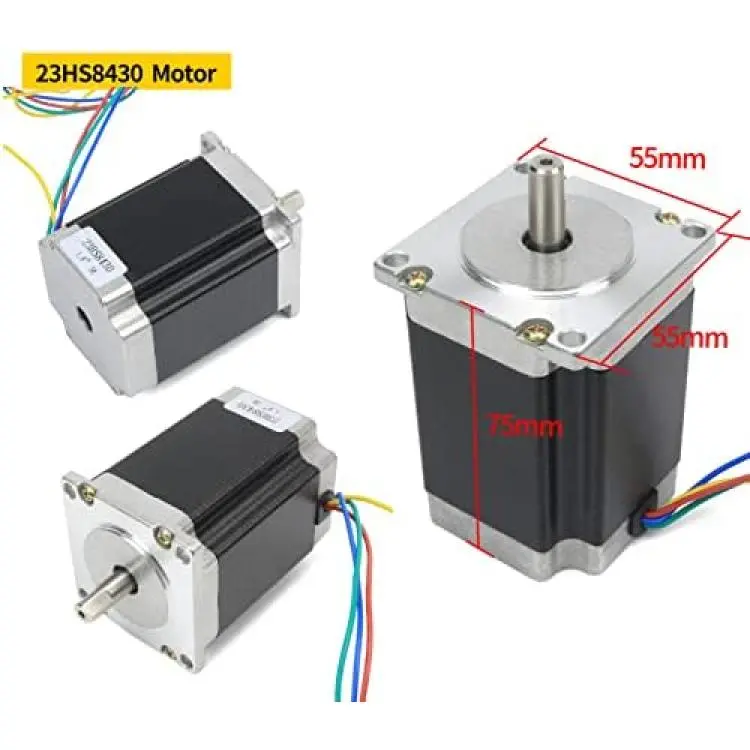

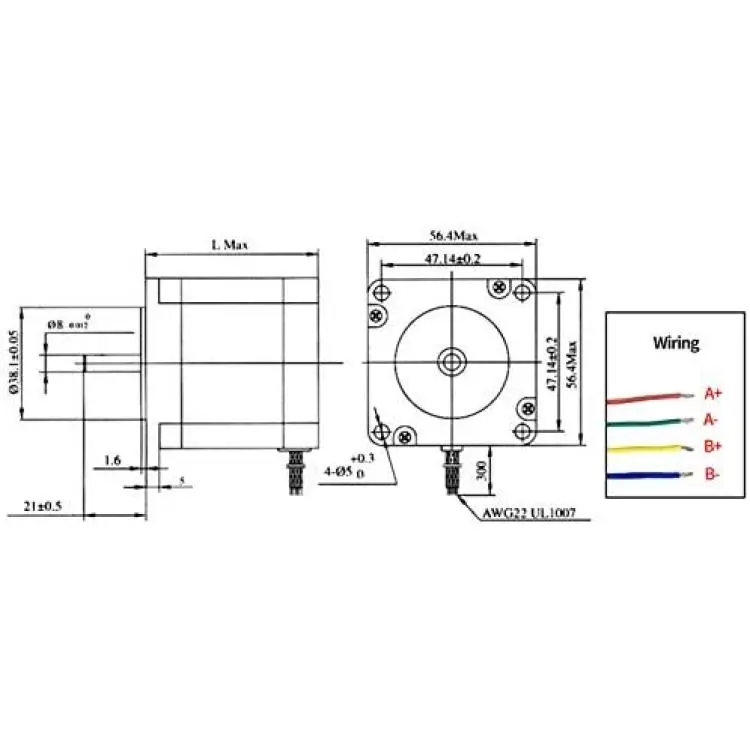

Specification: 4 × Nema23 stepper motor dual shaft 57*76mm4 × Tb6600 stepper motor driver1 × Mach3 USB CNC control board + USB cable1 × 350W 24V DC Switching power supplyStep angle accuracy: ±5%(full step,not load)Resistance accuracy: ±10%Inductance accuracy: ±20%Temperature rise: 80deg Max(rated current,2 phase on)Ambient temperature ----------—20deg ~+50degInsulation resistance:100M? Min,500VDCInsultion Strength--------500VAC for one minuteA+ : RedA- : GreenB+ : YellowB- : BlueTB6600 stepper motor driver a professional two-phase stepper motor drive. It can realize forward and reverse control.Through the 3-digit dialing code, you can choose 7-step subdivision control (1, 2 / A, 2 / B, 4, 8, 16, 32), 8-step current control (0.5A, 1.0 A, 1.5A, 2.0A, 2.5A, 3.0A).It is suitable for driving 57 and 42 type two-phase and four-phase hybrid stepping motors, and can achieve low vibration, low noise and high speed driving effect.Original brand new stepper motor driver chip8-speed current control7 kinds of subdivision adjustableInterface uses high-speed optical couplingAutomatic half flow reduces calorific valueLarge area heat sink is not afraid of constant high temperature environmentStrong anti-high frequency interferenceInput voltage anti-reverse protectionOverheat and overcurrent short circuit protectionInput voltage: DC9-42VInput current: 5A switching power is recommendedOutput current: 0.5-4.0AMaximum power consumption: 160WBreakdown: 1? 2 / A? 2 / B?4? 8? 16? 32Temperature Working temperature: -10-45°C; Storage temperature -40 °C-70°CHumidity: No condensation, no water dropsGas: Combustible gas and conductive dust are prohibitedPUL + : Pulse signal input +PUL- : Pulse signal input +DIR + : Motor forward and reverse control +DIR- : Motor forward and reverse control-EN + : Motor offline control +EN- : Motor offline control-A + : Connect motor winding A + phaseA- : Connect the motor winding A-phaseB + : Connect the motor winding B + phaseB- : Connect the motor winding B-phaseVCC : Power supply positive terminal "+"GND : Negative terminal "+"Note : DC9-42V: Do not exceed this range, otherwise it will not work properly or even damage the drive.Support for 4-axis linkage, you can connect four stepper motor drives or servo drives.Maximum step-pulse frequency is 100KHz,which is suitable for the servo or stepping motor.4 general-purpose opto-couplers isolation input : can connect the limit switch, emergency stop switch, auto tool zero, home switch etc.Support for connecting electronic handwheel.Have 0-10V signal output , you can use mach3 software to control the spindle motor speed.1 status LED, indicate connection status on the board.4 general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps or other deviceThis USB motion card does not need install any USB driver, It can be identified directly.It is recommended that the limit switch and emergency stop switch must be installed first and can be used normally.If you are not familiar with the product and software features, make sure the machines power switch on hand, you can quickly turn off the power.DC output: 24V 0-14.5AInlet stability: ±0.5%Load stability: ±0.5%DC voltage of Adjustable range: ±10%AC input voltage range: 115VAC/6.5A/50HZ----230VAC/3.4A/60HZ; Selected by switchOverload protection: 105%-135% cut off the output, automatic recoveryOver-voltage Protection: 115%-150% shut down O/P voltage, re-power on to recoverSetup/rise/hold-up time: 200ms?50ms?20ms/230VAC at full loadWithstand voltage: I/P-O/P: 1.5KvAC; I/P-FG: 1.5KvAC; O/P-FG: 1.5KvAC; 1minuteIsolation resistance: I/P-O/P? I/P-FG?O/P-FG: 500VDC/100M?Working Temperature: -10??+50?
