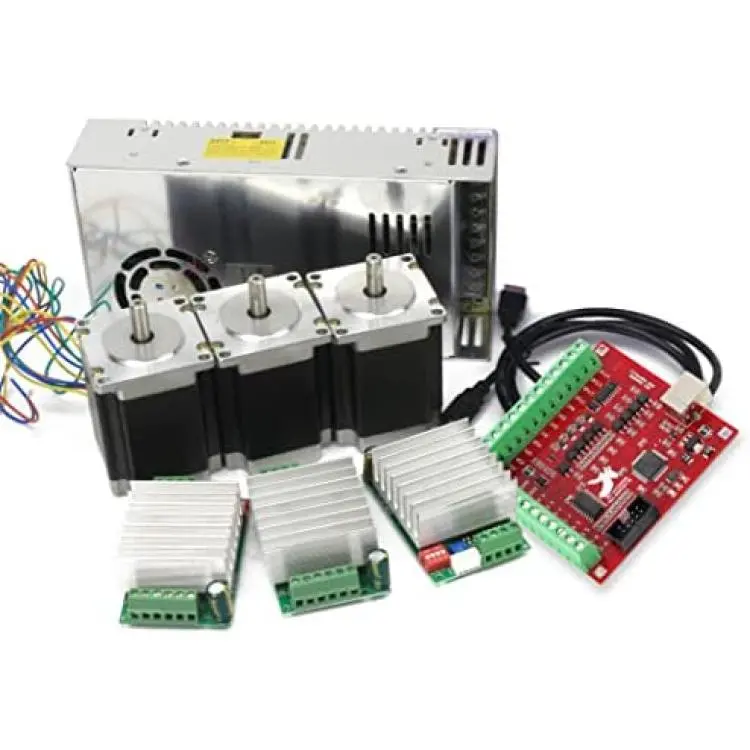

RATTMMOTOR 3 Axis USB Mach3 CNC Controller Kit, Nema23 Stepper Motor 57mm 3A 1.8Nm+CNC Motion Control Board Mach3 USB Card Signal Output 0-10V+TB6600 Driver 4.5A+350W 24V DC Switching Power Supply

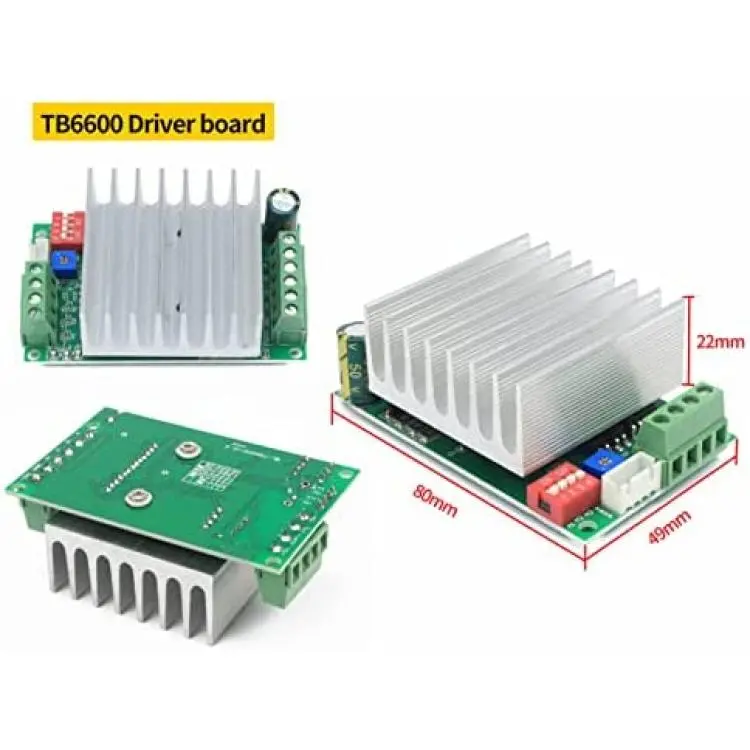

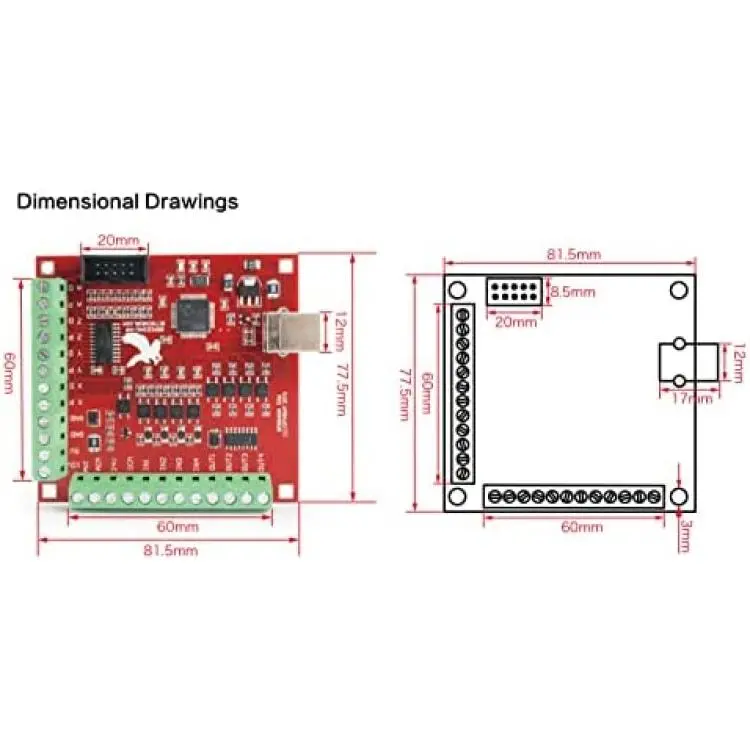

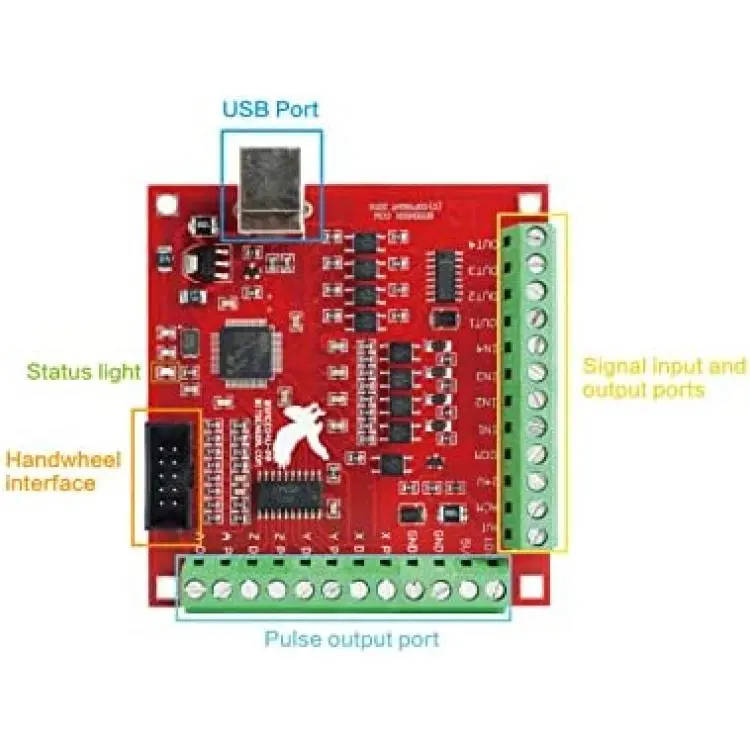

3 × Nema23 Stepper Motor Driver 57mm3 × TB6600 Stepper Motor Driver1 × Mach3 USB CNC Control Card1 × USB Cable1 × DC Switching Power SupplyStep angle accuracy: ±5%(full step,not load)Resistance accuracy: ±10%Inductance accuracy: ±20%Temperature rise: 80deg Max(rated current,2 phase on)Ambient temperature ----------—20deg ~+50degInsulation resistance:100M? Min,500VDCInsultion Strength--------500VAC for one minuteA+ : RedA- : GreenB+ : YellowB- : BlueThe working voltage is DC 10V-45V.Adopt 6N137 high-speed optical lotus root to ensure high speed without losing step.Using Toshibas new high-current, high-voltage TB6600HG brand new original chip, with low-voltage shutdown, overheating shutdown and over-current protection circuits, and short-circuit protection added compared to TB6560.The rated maximum output reaches: ±4.5A. Automatic half-flow function.Suitable for 42, 57, 86 two-phase/four-phase/four-wire/six-wire stepper motors within 4.2A.Subdivision: full step, half step, 1/4 step, 1/8 step, 1/16 step, maximum 16 subdivisions.There are two input terminals, both of which adopt the common anode input mode.The level of the input pulse is 5V, if it is a 12V level pulse, a 1K resistor is required, if it is a 24V level pulse, a 2.4K resistor is required.The motor runs when the CLK has pulses, and automatically enters the set half-current state when there is no pulse, and the motor is locked.The motor rotates forward when CW is high or suspended, and reverses when it is low.When EN is high or floating, it is working state, when it is low, it is offline.Note 1: The power supply cannot be connected reversely, otherwise the chip will be burnt out. Note 2: The set current should not exceed the rated current of the motor.Maximum step-pulse frequency is 100KHz,which is suitable for the servo or stepping motor.Need use external 24V DC power supply to isolate USB and external port, and to make the system more stable.4 general-purpose inputs, you can connect the limit switch, estop switch, probe switch, back to zero and other device.4 general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps and other device.1 status LED, indicate connection status on the board.Have 0-10V output port, you can use mach3 software to control the spindle motor speed.Support for 4-axis linkage, you can connect four stepper motor drives or servo drives.Support automatic probe tool.Support Emergency input.Support for limit switch (It is recommended that the limit switch and emergency stop switch must be installed first and can be used normally.)Support for connecting electronic handwheel.The motion control card for machine control, with strong professional.Requires the operator to have the relevant expertise!If you are not familiar with the product and software features, make sure the machines power switch on hand, you can quickly turn off the powerIt should be noted that the wiring diagram of the 4-axis motion control card above is for reference only, then if you connect this control card and the TB6600 driver, such as connect to X motor driver, then:Drivers "CLK-" connects to control cards XP pin ,Drivers "CW-" connects to control cards XD pin ,Drivers "5V" connects to control cards 5V pin.(The USB Mach3 control card cant support connection EN- and EN+ )The inverter interface (AVI +, AVI-) is isolated from the computer and the main control circuit, and has strong anti-interference ability.No interference signal will be introduced due to the introduction of external strong electrical equipment.This interface can output 0 ~ 10V analog signals, and can also be configured as 0 ~ 5V output.It is recommended that the limit switch and emergency stop switch must be installed first.If these protection switches are not installed, in an emergency, in addition to pressing the emergency stop to return (sometimes too late to press), and turning off the motor power (sometimes too late to turn off), the most convenient way to stop is to pull the USB cable !! As long as the USB cable is pulled, the machine will automatically stop! !! !!DC output: 24V 0-14.5AInlet stability: ±0.5%Load stability: ±0.5%DC voltage of Adjustable range: ±10%AC input voltage range: 115VAC/6.5A/50HZ----230VAC/3.4A/60HZ; Selected by switchOverload protection: 105%-135% cut off the output, automatic recoveryOver-voltage Protection: 115%-150% shut down O/P voltage, re-power on to recoverSetup/rise/hold-up time: 200ms?50ms?20ms/230VAC at full loadWithstand voltage: I/P-O/P: 1.5KvAC; I/P-FG: 1.5KvAC; O/P-FG: 1.5KvAC; 1minuteIsolation resistance: I/P-O/P? I/P-FG?O/P-FG: 500VDC/100M?Working Temperature: -10??+50?
