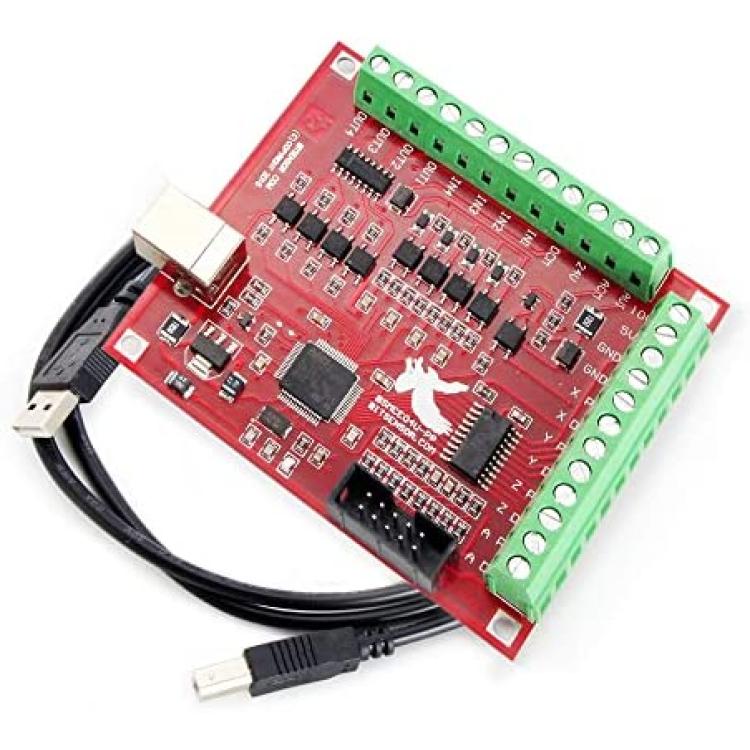

RATTMMOTOR Mach3 USB Motion Control Card 4 axis CNC Motion Controller Breakout Board Stepper Motor Driver with Cable for CNC Router Machine

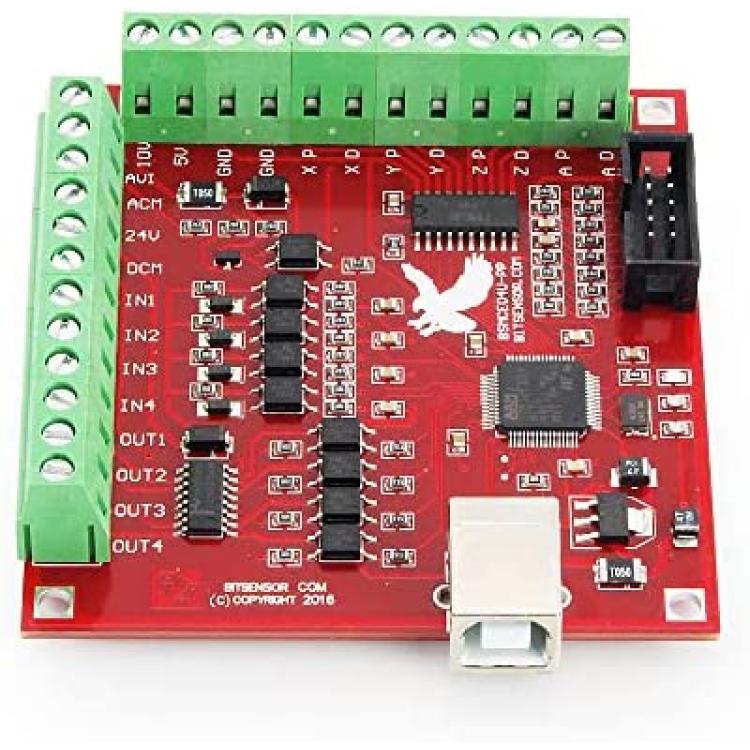

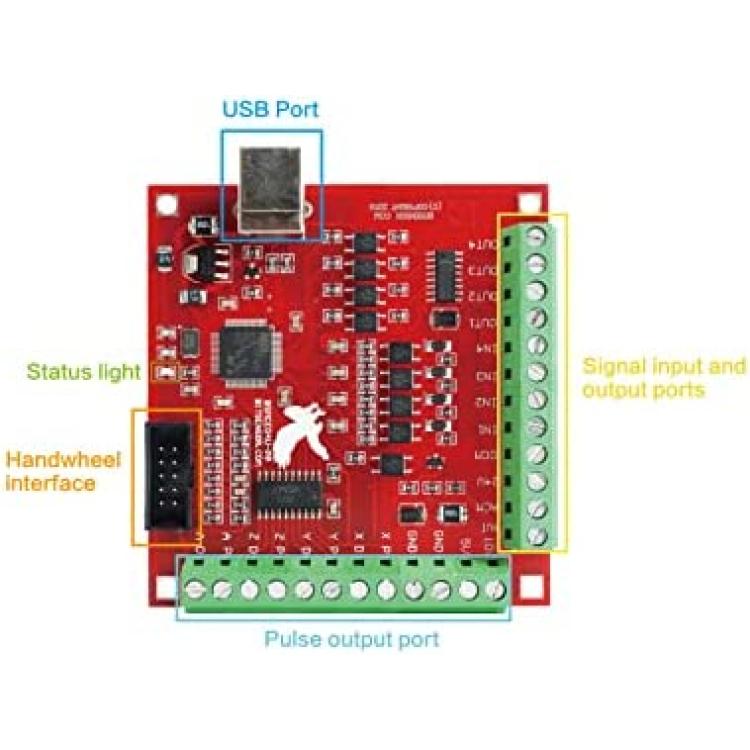

1×Mach3 USB Motion Card1× USB CableSupport automatic probe toolSupport Emergency inputSupport for limit switch (It is recommended that the limit switch and emergency stop switch must be installed first and can be used normally.)Support for connecting electronic handwheel 1 status LED, indicate connection status on the board. Have 0-10V output port, you can use mach3 software to control the spindle motor speed. Support for 4-axis linkage, you can connect four stepper motor drives or servo drives. Maximum step-pulse frequency is 100KHz,which is suitable for the servo or stepping motor.Need use external 24V DC power supply to isolate USB and external port, and to make the system more stable.4 general-purpose inputs, you can connect the limit switch, estop switch, probe switch, back to zero and other device.4 general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps and other device The motion control card for machine control, with strong professional.Requires the operator to have the relevant expertise! Please strictly follow the instructions and warnings before using this product. If you are not familiar with the product and software features, make sure the machines power switch on hand, you can quickly turn off the power.
