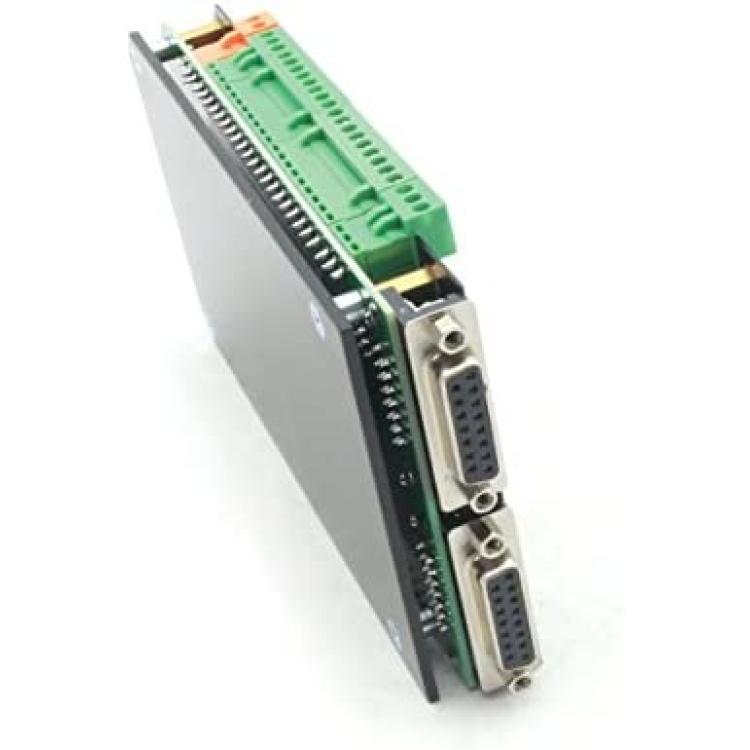

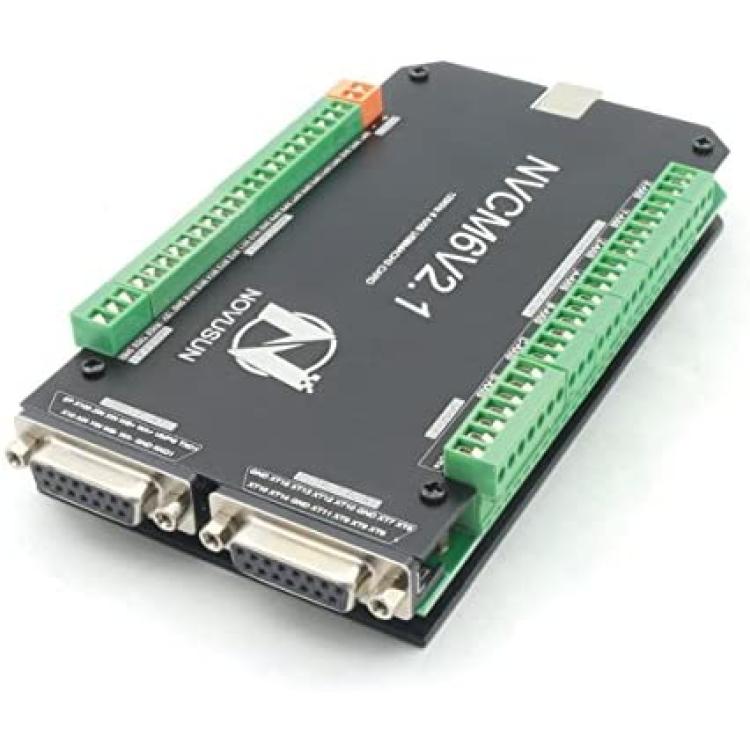

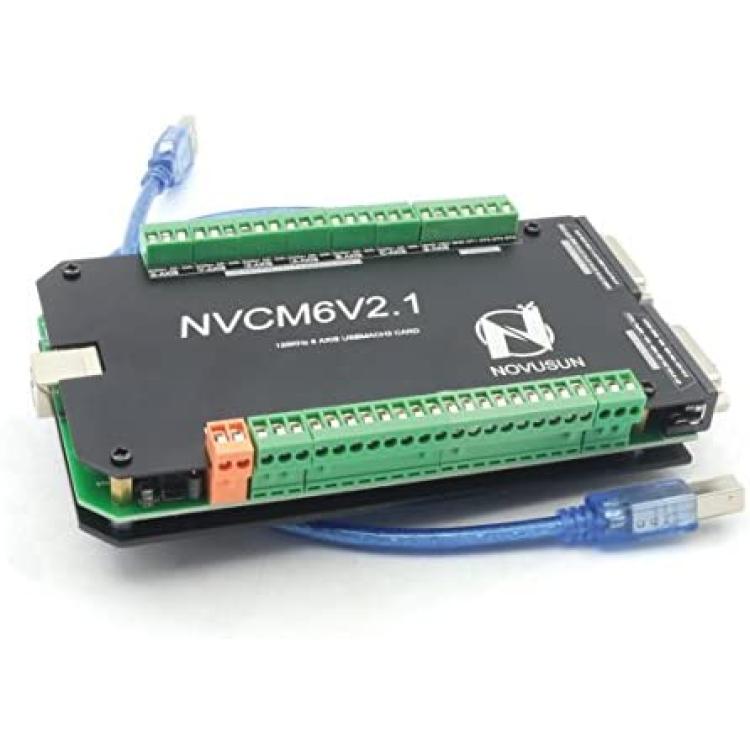

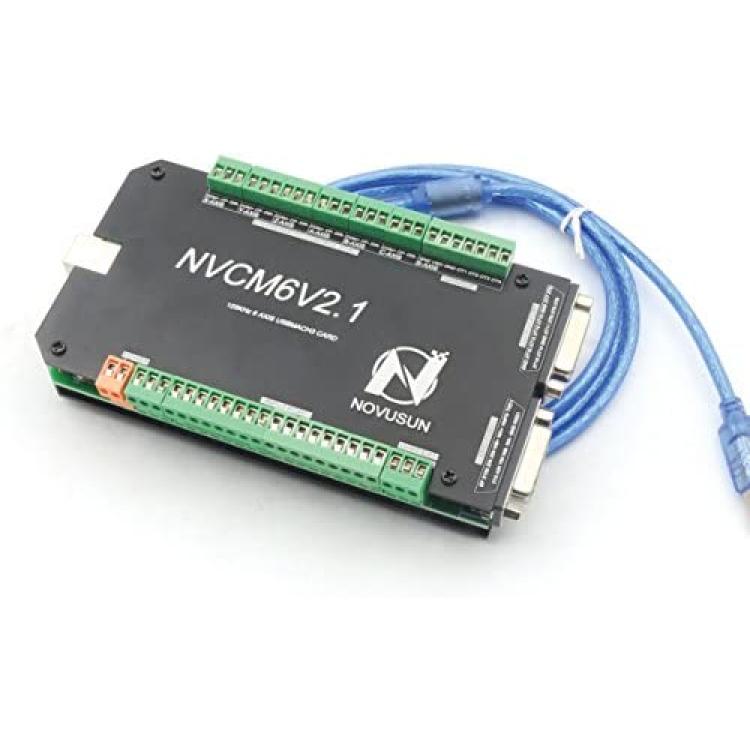

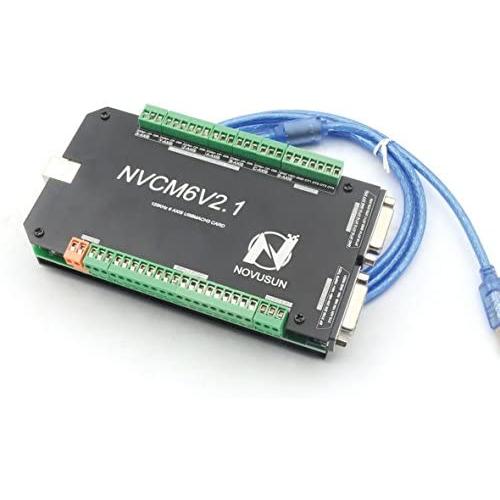

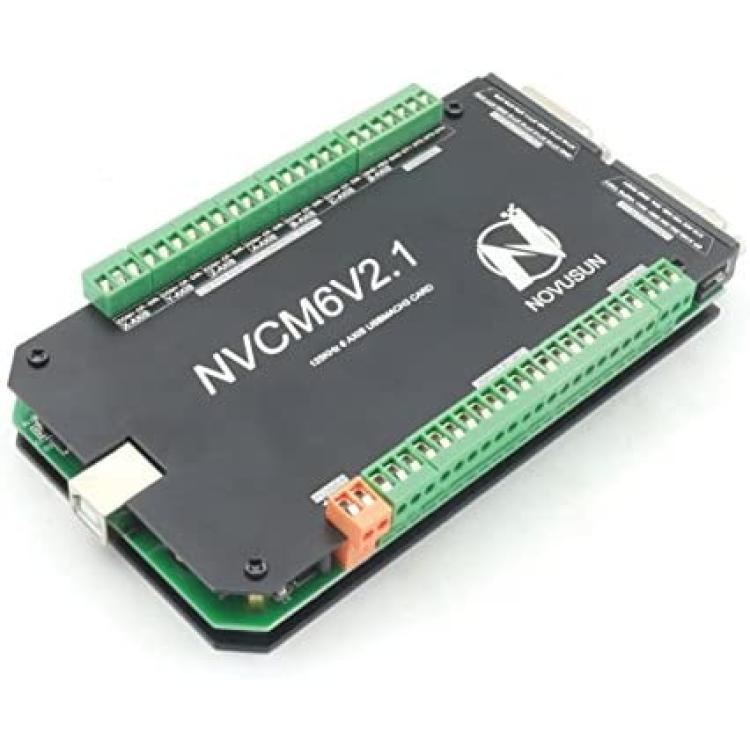

6 Axis 125KHz NVCM USB Mach3 Stepper Motor Motion Control Card Breakout Board USB interface CNC Controller Board 12-32VDC for Servo Motor

Introduction

Introduction

Novusun CNC has engaged in the Numerical control industry for 7 years,specialized in the research,development and production of various CNC controller systems with high quality and high reliability.

Novusun CNC has engaged in the Numerical control industry for 7 years,specialized in the research,development and production of various CNC controller systems with high quality and high reliability.

NVCM is the 6 axis motion controller we spend 2 years to design. NVCM support Mach3 software, through USB port to communicate with computer.

NVCM is the 6 axis motion controller we spend 2 years to design. NVCM support Mach3 software, through USB port to communicate with computer.

Products specification

Products specification

Substantival explanation

Substantival explanation

As the Figure showed, the connection of the controller includes power supply interface, USB connection interface, Stepper/Servo control output interface, spindle control output interface, Estop and limited switch and tool setting input interface and so on.

As the Figure showed, the connection of the controller includes power supply interface, USB connection interface, Stepper/Servo control output interface, spindle control output interface, Estop and limited switch and tool setting input interface and so on.

3 lines Proximity Switch connection,brown cable for Proximity switch connect with 12V,Black cable connect channel, blue cable connect with GND1. Only support NPN 3 lines proximity switch.

3 lines Proximity Switch connection,brown cable for Proximity switch connect with 12V,Black cable connect channel, blue cable connect with GND1. Only support NPN 3 lines proximity switch.

2 lines Proximity Switch/ordinary fretting switch / drawing

2 lines Proximity Switch/ordinary fretting switch / drawing

Read more

Stepper motor driver port

As the Figure show, The marked No. 8 are 6 axis stepper motor controller port. They are X/Y/Z/A/B/C from left to right. Each axis's pin is defined as COM+/CP-/DIR- from left to right.

Support USB; 16 ports photoelectric isolated input interface; 16 ports photoelectric isolated output interface; 1 port 0-10V spindle speed analog output interface(can change to PWM output); can support 6 axis stepper systems maxisim,125KHz pulse output for every axis; ARM motion control chip; main device is 12V-32V DC power supply input,current should higher than 1A; We define the interface from left are: GND1(Output GND),VSO(0-10V adjustable speed output),OT1,OT2,OT3,OT4. Spindle control output and the inverter connection showed as Figure.If ACM and DCM are closed,only need to connect one port. VSO real output voltage=10V*s spindle setting speed/max spindle speed.Forexample,if max spindle speed is 24000,current spindle speed is S=18000,so the VSO output voltage=10*18000/24000=7.5V Max. spindle speed setting ports,open it from Pulley from Menu config. The current spindle speed can be set by S directive or Mach 3 spindle setting speed module. FRO: Feeding adjust: During the operating process, the F value already set, and need to adjust the current feeding speed, then we can adjust FRO value to realize it.SRO: Spindle speed adjust: During the operating process, the S value already set, and need to adjust the current spindle speed, then we can adjust SRO value to realize it : Current Speed S#=setting S*SRO.SRJ: speed adjust manually,During the operating process,as the manual speed already set,and we need to adjust the current speed,and impossible to fix the value during it is working,then we can revise the SRJ value to realize it. Current manual speed FS#=Setting manual speed*SRJ.F:Feedingspeed,the unit is mm/min.For example F=200,means every minute feeding 2000mm.S: Spindle Speed. Unit is rad/min.For example S=20000,means 20000 revolution/Minute.X axis Coordinate Y axis CoordinateZ axis CoordinateA axis CoordinateB axis Coordinate C axis CoordinateReady:ReadyMode.In the mode we can do any operation,include processing or values modification or starting 2nd mode.Reset: Reset mode.In this mode,it should stop every operation.Step: Manual Step Mode. Every axis candonduct the manual step operation at this mode.MPG: MPG mode.Every axis can conduct the MPG operation at this mode.
