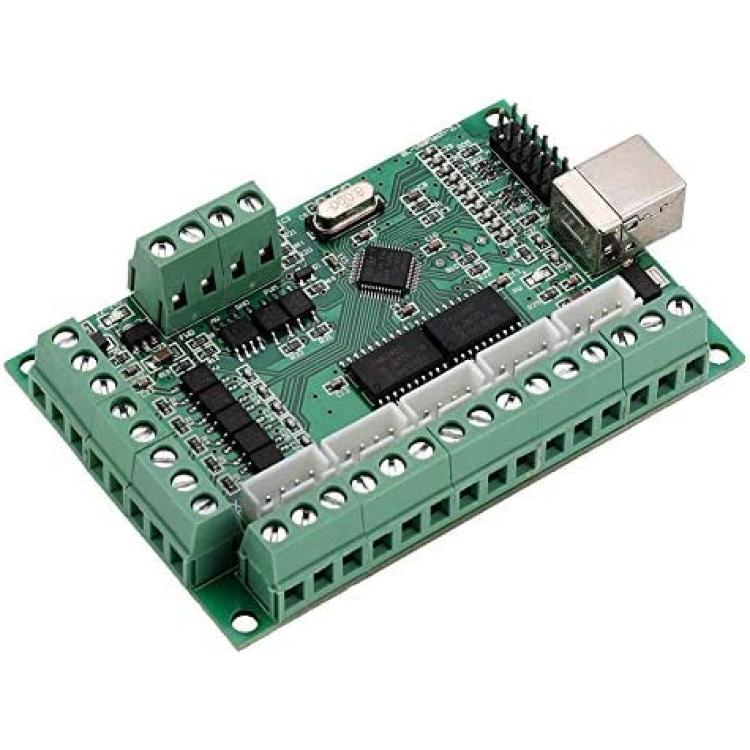

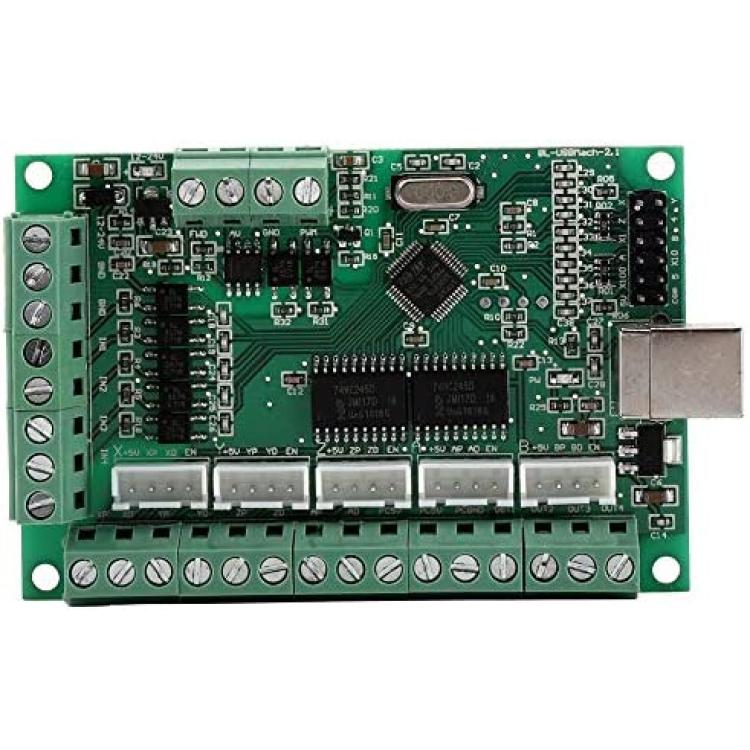

Mach3 Stepper Motor Controller Board USB Interface Board CNC Motion Control Card For CNC Router Engraving Milling Machine
About this product
*【High anti-interference】: The inverter interface (AVI+, AVI-) is isolated from the computer and the main control circuit, with strong anti-interference ability. External wide voltage input, 12-24V and anti-reverse function.
*【Safe operation】: All input signals are isolated by light lotus, which can be accessed through emergency stop, cutter, limit, zero return, etc., to ensure computer safety.
*【Control the spindle】: One way is isolated from 0-10V analog voltage output by optocoupler, and the input voltage can be controlled from the 0-10V analog voltage converter to control the spindle speed.
*【Supported systems】: The USB interface board supports various versions of MACH3 software, supports the latest version; supports Windows XP, WIN7, WIN8, WIN10, supports 64-bit systems, supports laptops, and supports tablet computers.
*【Connection】: When 4 output ports (5V level) are provided, they can be connected with the photocoupler, water control, spray, etc. of the relay module.
Description
Features:
To provide PWM output (5V level), can be controlled by the PWM spindle control.
Can be accessed by a total of yang or common cathode, the input level of 5V, with optocoupler input stepper motor driver.Â
To provide electronic hand wheel interface.
Specifications:
Type:USB Interface Board
Support: for MACH3 software
Size: 9.8 x 6cm / 3.96 x 2.36in
Weight: 145g

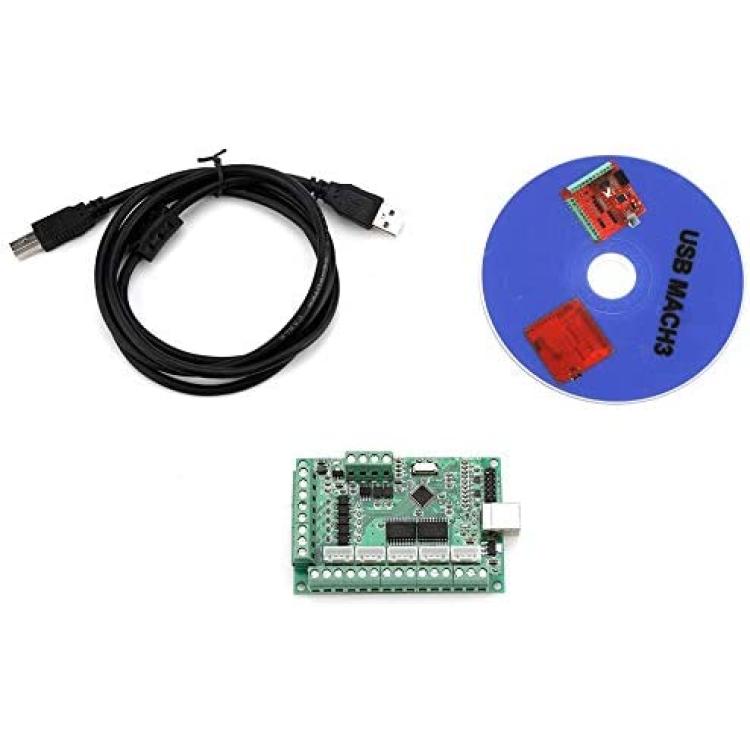

Package included:
1 x interface board
1 x USB cable
1 x CD
Note:
Please ask customer service for the software and drivers required for the product
