3 Axis CNC Kit Nema23 Stepper Motor Dual Shaft 270oz.in 76mm 3A+MD430 Driver+5 Axis Breakout Board Mach3 Controller Card+350W 24V DC Power Supply for CNC Router Engraving Milling Machine

3 Axis CNC Kit Nema23 Stepper Motor Dual Shaft 270oz.in 76mm 3A+MD430 Driver+5 Axis Breakout Board Mach3 Controller Card+350W 24V DC Power Supply for CNC Router Engraving Milling Machine

Brand: ‎Changzhou Rattm Motor Co.,Ltd
Product Code: MM1987
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*♞【Product】3 Axis nema23 stepper motor driver controller kit; Model Number:23HS8430B/TB6560

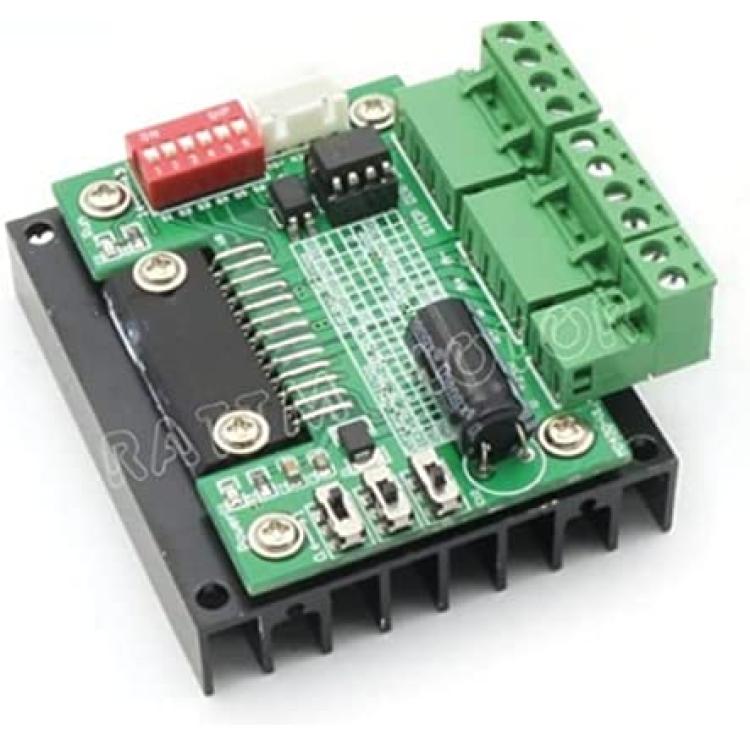

*♞【Stepper Motor Driver】 : MD430 Stepper Motor Driver 3Amps / Support voltages:12-34VDC / Step frequency up to 100khz / 2 phases bipolar driver

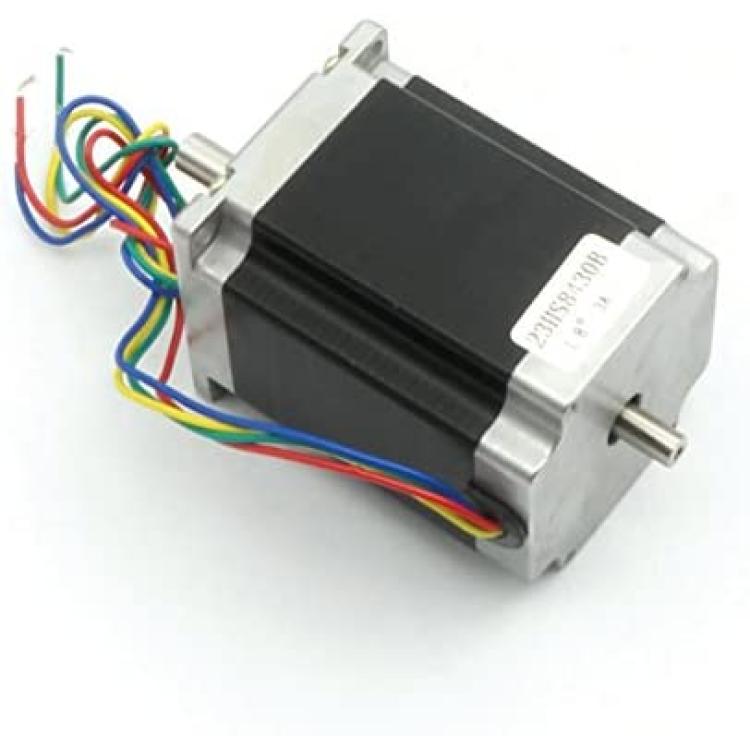

*♞【Nema 23 Stepper Motor】 Nema 23 Stepper Motor / Holding Torque: 270 oz-in,180N.cm / Motor Size:57x57x76mm / Phase:2 / Motor wire:4pcs / 1.8 Step

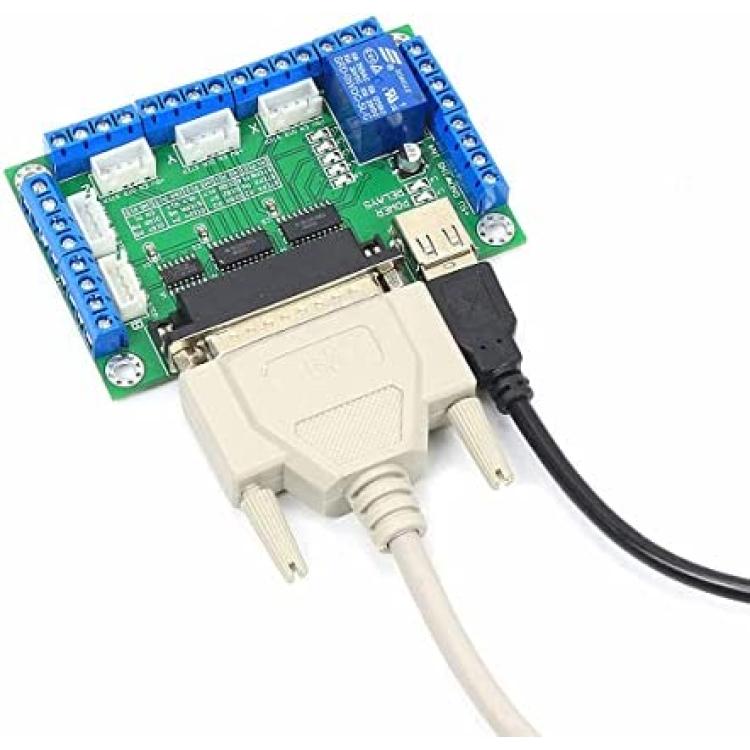

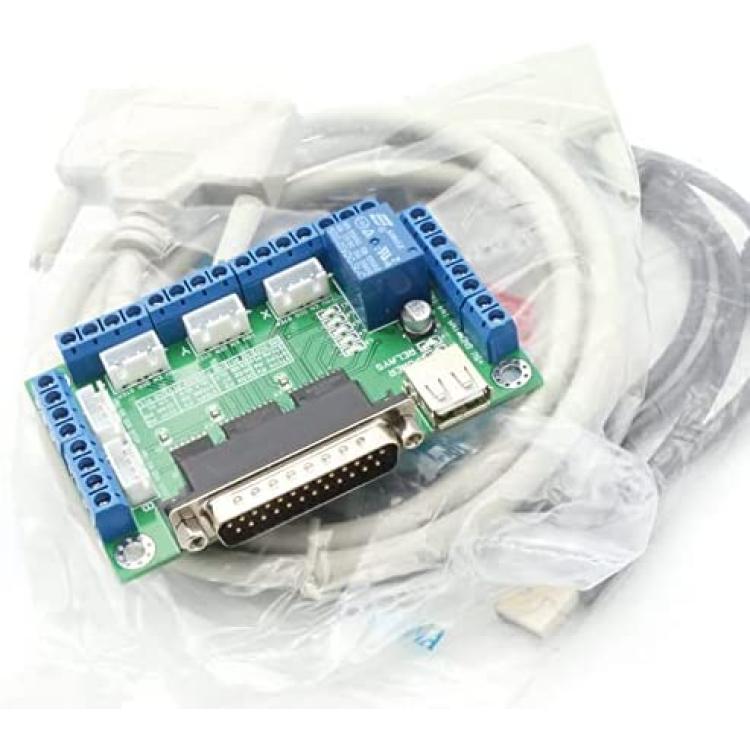

*♞【5 Axis Breakout Board】 Come with DB25 parallel cable and USB cable;Support MACH3,KCAM4,EMC2 and other software;5-way input interface, you can connect limit switch and stop switch,reset,knife signal;

*♞【Product】3 Axis nema23 stepper motor driver controller kit; Model Number:23HS8430B/TB6560

Description

3 x TB6560 MD430 single axis driver3 x 23HS8430B Nema23 stepper motor 76mm 270oz-in Dual Shaft1 x 350W 24V DC switching power supply1 x 5 axis breakout board1 x DB25 LPT parallel cable1 x USB cableEnglish user manual for breakout board and stepper motor driver will send by message. Stepper motors red wire connect to drivers A+ port Stepper motors green wire connect to drivers A- port Stepper motors yellow wire connect to drivers B+ port Stepper motors blue wire connect to drivers B- port Step angle accuracy:+ - 5%(full step,not load)Resistance accuracy: + - 10%Inductance accuracy:+ - 20%Temperature rise: 80deg Max(rated current,2 phase on)Ambient temperature: 20deg-50degInsulation resistance:100ohm Min,500VDC1) Single-chip motor driver for sinusoidal microstep control of stepping motors2) Power on in indication led3) 3Amps,34Volts (Supply voltages: 12-34VDC)4) Full step, half step, eight step and sixteenth step(selection with dipswitches)5) Torque (100%, 75%,50%, 20%)6) Work Current (0-3A selection with SW1/SW2/SW3)7) 4 Wire,6 Wire,8 Wire stepper motors can be used8) Two phases bipolar driver9) Easy wiring with standard screw terminals10) Step frequency up to 100khzStepper motors red wire connect to drivers A+ portStepper motors green wire connect to drivers A- portStepper motors yellow wire connect to drivers B+ portStepper motors blue wire connect to drivers B- portSupport MACH3,KCAM4,EMC2 and other software;Control five stepper motor driver;5-way input interface, you can connect limit switch and stop switch,reset,knife signal;Input signal then have LED indicates;NO and NC port of relay all allow?you can choose them to control spindle;Can choose USB of PC to supply 5V or external power supply 5V;Data transfer speed can up to 10MBit/s;Output pin with extension interface.This breakout board needs to be connected to the parallel port and USB port of the computer at the same time.The USB port on the board is only used to provide 5V input.The interface board uses a high-performance three-state bus driver74HC244 and schmitt inverter 74HC14,The signal drive capability is stronger and more stable after filtering. add 5V input terminal and the light of input and relay,makes the operation more convenient to use.1 EN=Enable all axis2 STEPX=X pulse signal3 DIRX=X direction signal4 STEPY=Y pulse signal5 DIRY=Y direction signal6 STEPZ=Z pulse signal7 DIRZ=Z direction signal8 STEPA=A pulse signal9 DIRA=A direction signal10-13 LIMIT-1/2/3/4=input1/2/3/414 RLY=Relay15 LIMIT-5=input516 STEPB=B pulse signal17 DIRB=B direction signal18-25=GNDModel: S-350W-24VOutput Current:14.6AOutput Voltage:36VOutput Frequency:85%Output Power: 350WIt comes with built-in cooling fanL: Live wireN: Negative wire+V: DC power output “+”-V: DC power output “-“+V ADJ: output voltage regulationInput: 110-120V AC or 220V-240V ACPlease flip the side input voltage selector switch
