3 Axis Stepper Motor CNC Router Kit Nema23 425oz-in 112mm Dual Shaft+CW5045 Driver 4.5A 256 microstep+400W 36V Power Supply CNC Controller Kit for Engraving Lathe Plasma Milling Drilling Machine

3 Axis Stepper Motor CNC Router Kit Nema23 425oz-in 112mm Dual Shaft+CW5045 Driver 4.5A 256 microstep+400W 36V Power Supply CNC Controller Kit for Engraving Lathe Plasma Milling Drilling Machine

Brand: ‎Changzhou Rattm Motor Co.,Ltd
Product Code: MM1260
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*♞【Product】3 Axis nema23 stepper motor driver controller kit; ♞【Application】This cnc kit are widely used in engraving machine, printer, medical equipment, embroidery machine, stage lighting, textile automation, printing, packaging and other industries automation equipment.

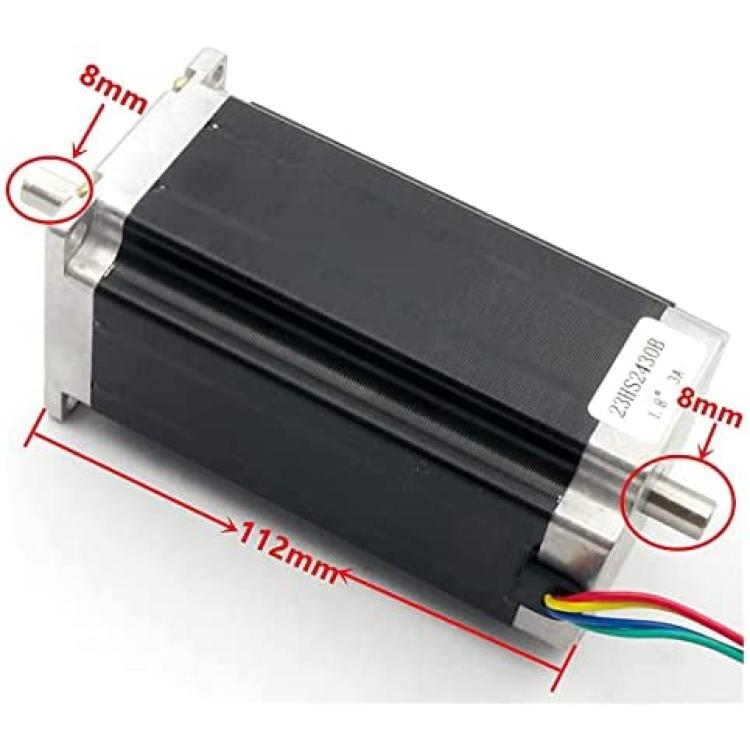

*♞【Stepper Motor】23HS2430B Nema23 57 stepper motor;Step Angle: 1.8°; Current: 3.0A; Holding torque: 425oz-in/ 280Ncm; Shaft : Dual Shaft,8mm diameter; Wirings: "A+"=Red / "A-"=Green / "B+"=Yellow / "B-"=Blue

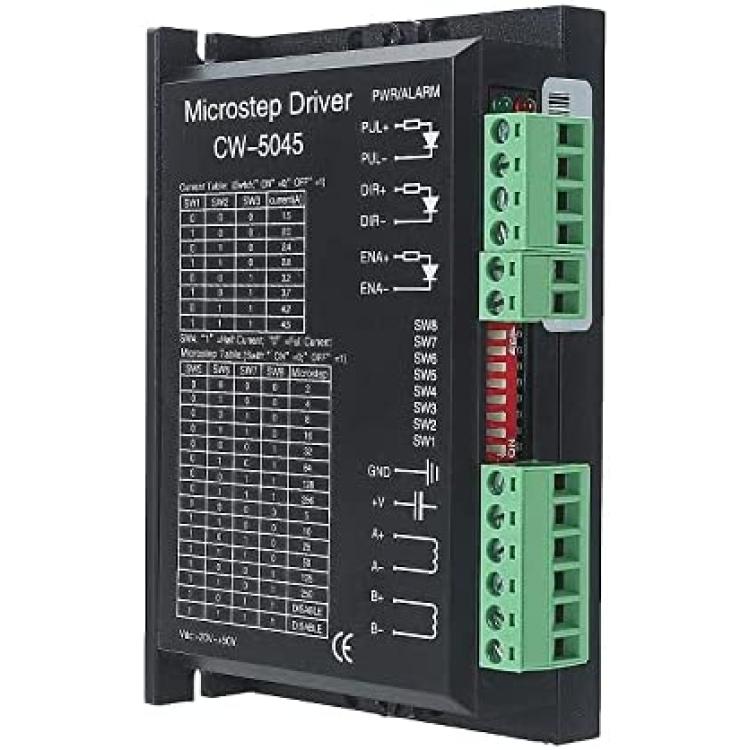

*♞【Driver】CW5045 driver Voltage: DC 24-50V; Current: rated maximum output reaches: ±4.5A ; Driver microstep:256microstep; Mircostepping 1(1.8°), 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 1/256, 1/5, 1/10, 1/25, 1/50, 1/125, 1/250

*♞【5 Axis Breakout Board】5 Axis breakout boad with cables,this breakout board needs to be connected to the parallel port and USB port of the computer at the same time.Working voltage is 5V DC and support with MACH3,EMC2,KCAM4 software

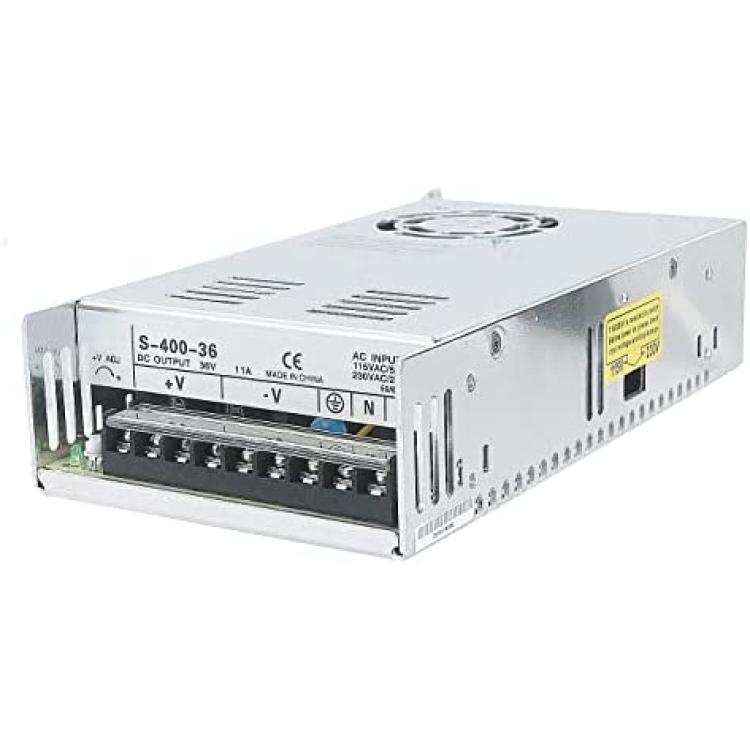

*♞【Power supply】400W,36V/9.7A switching power supply; Output Voltage:36V ; Input: 110-120V AC or 220-240V AC

Description

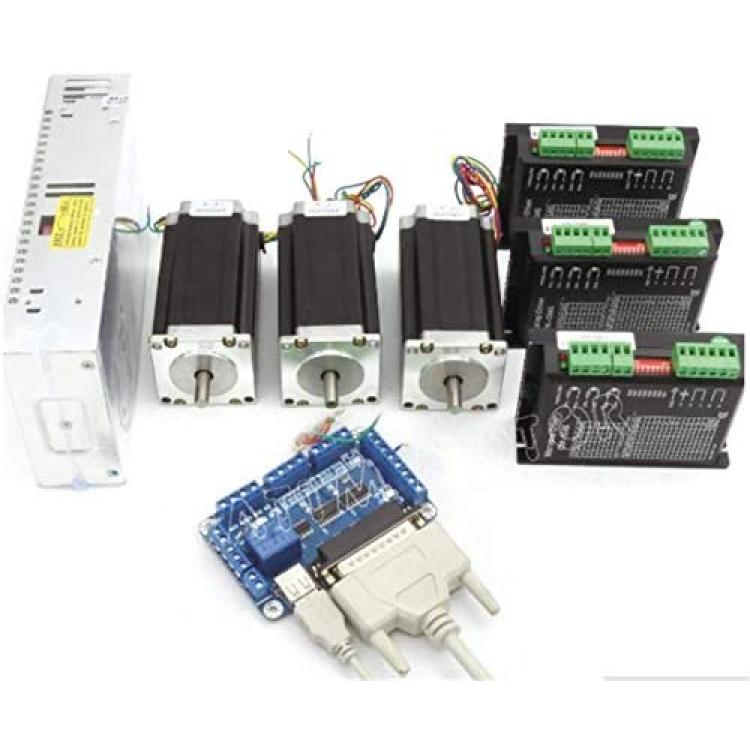

3 x 23HS2430B Nema23 stepper motor (Dual Shaft) 112mm,425oz-in,3A3 x CW5045 stepper motor driver 24-50V,4.5A,256 high microstep1 x 400W 36VDC 11A switching power supply1 x 5 Axis breakout board V5 type1 x DB25 parallel cable1 x USB cableEnglish user manual Stepper motors red wire connect to drivers A+ port Stepper motors green wire connect to drivers A- port Stepper motors yellow wire connect to drivers B+ port Stepper motors blue wire connect to drivers B- port Step angle accuracy:+ - 5%(full step,not load)Resistance accuracy: + - 10%Inductance accuracy:+ - 20%Temperature rise: 80deg Max(rated current,2 phase on)Ambient temperature: 20deg-50degIt can most connection 5pcs driver and control 5pcs motor in the same timeIt is with relay port to control the cnc spindleSize:9x5.7cmWorking voltage is 5VDC and support with MACH3,EMC2,KCAM4 softwareThe USB port on the board is used to provide 5V input.It is with 4-wire limit switch port DC power input type: 24V~50VDC Output current: 1.3A-4.5A Dimensions: 118mm×76mm×33mm Phase: 2 phase Model: S-400W-36VOutput Current:11AOutput Voltage:36VOutput Frequency:85%Output Power: 400WL: Live wireN: Negative wire+V: DC power output “+”-V: DC power output “-“+V ADJ: output voltage regulationInput: 110-120V AC or 220-240VPlease flip the side input voltage selector switch
