3 Axis CNC Kit Nema23 Stepper Motor (Dual Shaft) 425oz-in 112mm 3A & Driver 40VDC 4A 128 microstep for CNC Router Milling Engraving Machine
Product Code: MM1148
Availability: Pre-Order, Inquiry Price
Availability: Pre-Order, Inquiry Price
About this product

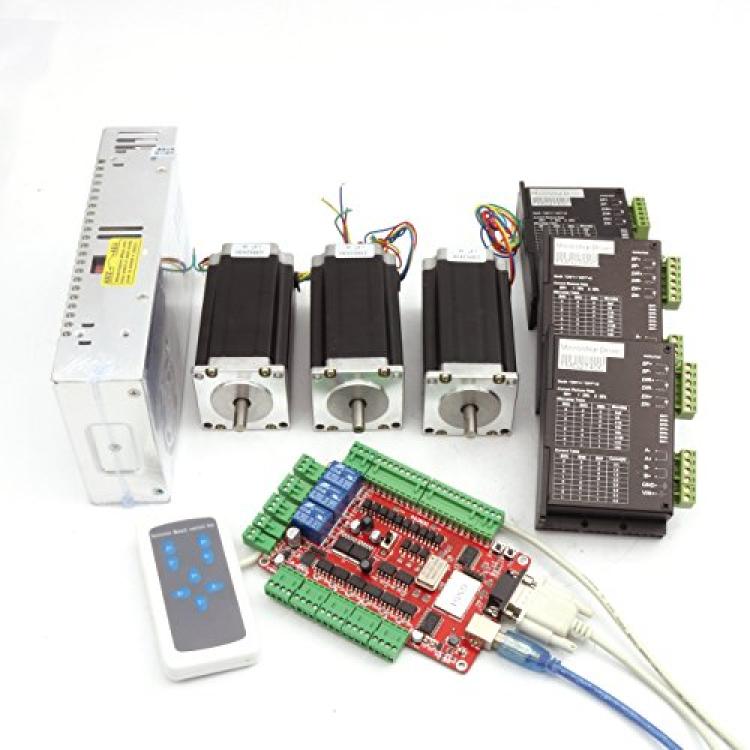

*♞【Product】3 Axis nema23 stepper motor driver usbcnc controller kit; Model Number:23HS2430B/FMD2740C
*♞【Nema 23 Stepper Motor】 Nema 23 Stepper Motor / Holding Torque: 425oz-in,280Ncm / Motor Size:57x57x112mm / Phase:2 / 4pcs lead wire / 1.8 Step

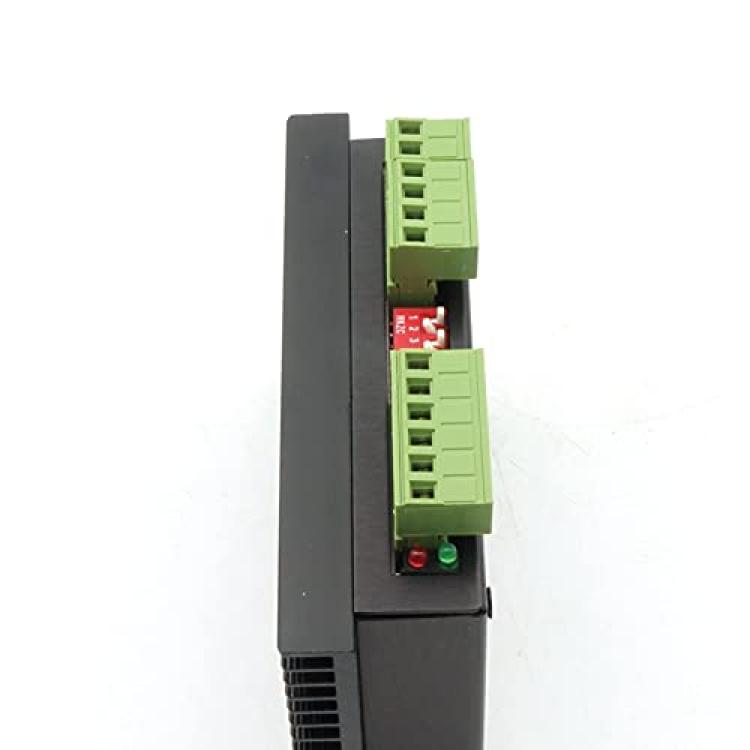

*♞【Stepper Motor Driver】FMD2740C Stepper Motor Driver / 4Amps / Support voltages:12 to 50V DC / 128microstep
*♞【4 Axis USBCNC breakout board】 Come with Hand Control with USB Cable / Only support USBCNC software / input voltage: 15-36V DC.

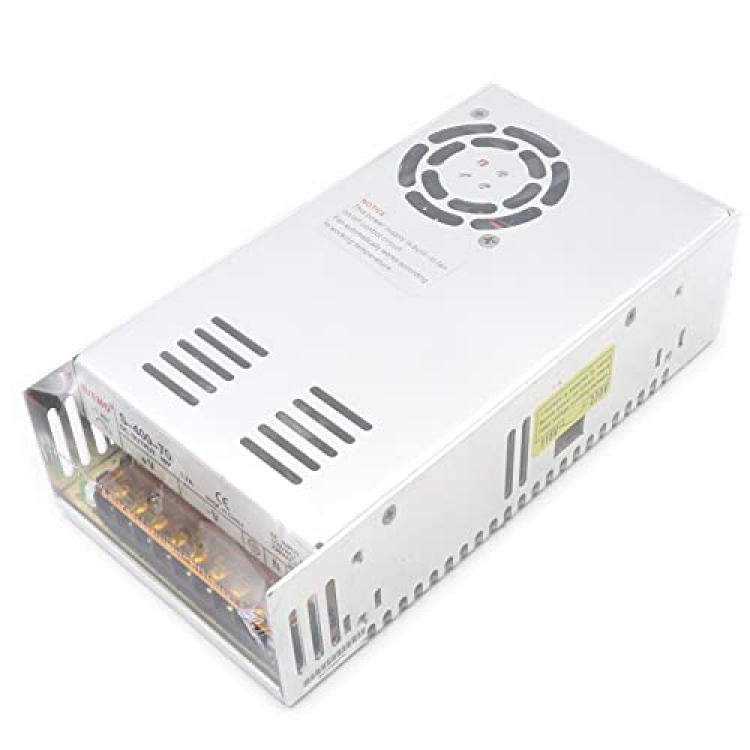

*♞【DC Power Supply】400W 36V 11A DC Switching power supply
