3 Axis GRBL 1.1f USB Control Board with CNC Offline Remote Hand Controller for 1610/2418/3018-PRO Engraving Machine Milling Machine

3 Axis GRBL 1.1f USB Control Board with CNC Offline Remote Hand Controller for 1610/2418/3018-PRO Engraving Machine Milling Machine

Brand: ‎GREESUNY
Product Code: MM25286
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

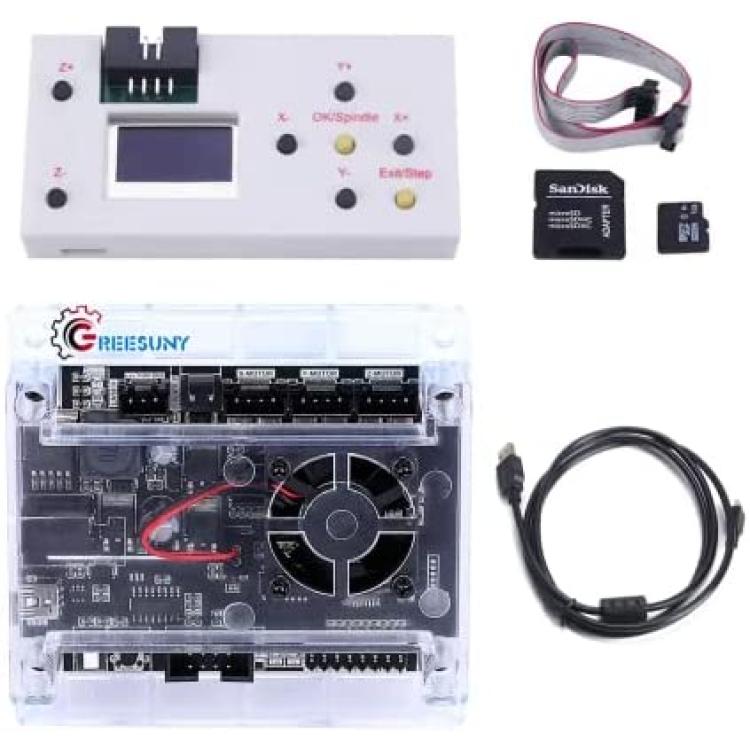

*Package Contains：1×GRBL 1.1f 3 Axis Control Board V3.4+ 1×USB cable+1×Offline Controller+1×1G SD card, 1×SD card cover, 1×connecting cable, 1×instructions

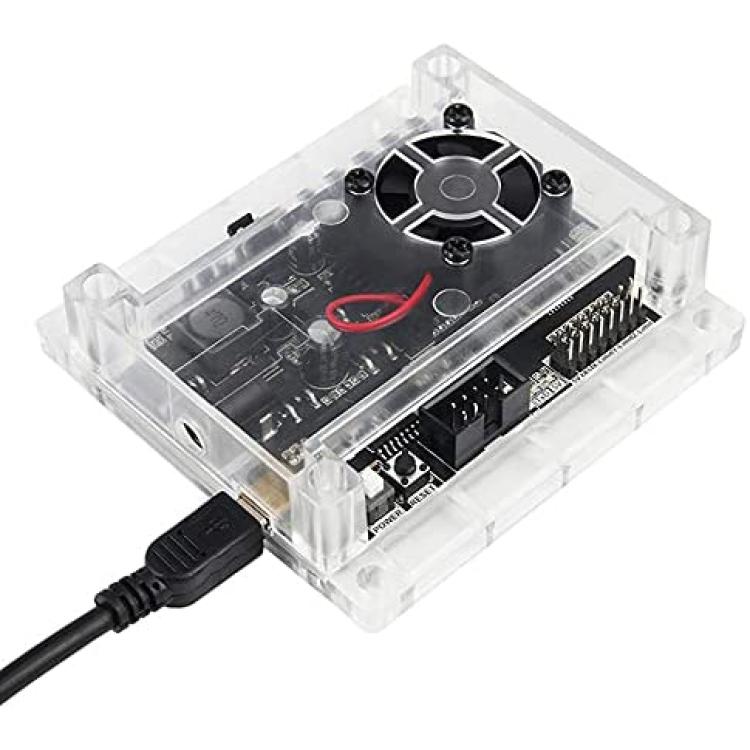

*Basic Parameters: USB (USB-CH340), Input voltage: 12-24V,masterchip atmel 328P (Arduino Nano),spindle drive chip MOSFET (recommendation 24V, current within 10A), Current interface: DC, 5.5-2.5 mm (please confirm, the indicator lamp on the control panel lights up when the installation is complete)

*Improved spindle drive (support spindle with 20000rpm), Improved USB connection added offline detection, can insert offline modules and computers at the same time, also automatically detects whether computer control is available is

*Supported Software GRBL Kontrol / Candle (3 axes) / Universal Gcode transmitter, system Windows XP/7/8, stepper motor Nema 17/23 (42/57);Offline Control support SD card and tf card at the same time, standard capacity 1G, (notebooks generally have SD card interface, copy files are very convenient)

*Easy to use: You only need to connect the offline module to the GRBL controller board to control the engraving machine.(We have perfect after-sales service. If you have any questions, please contact us)

Description

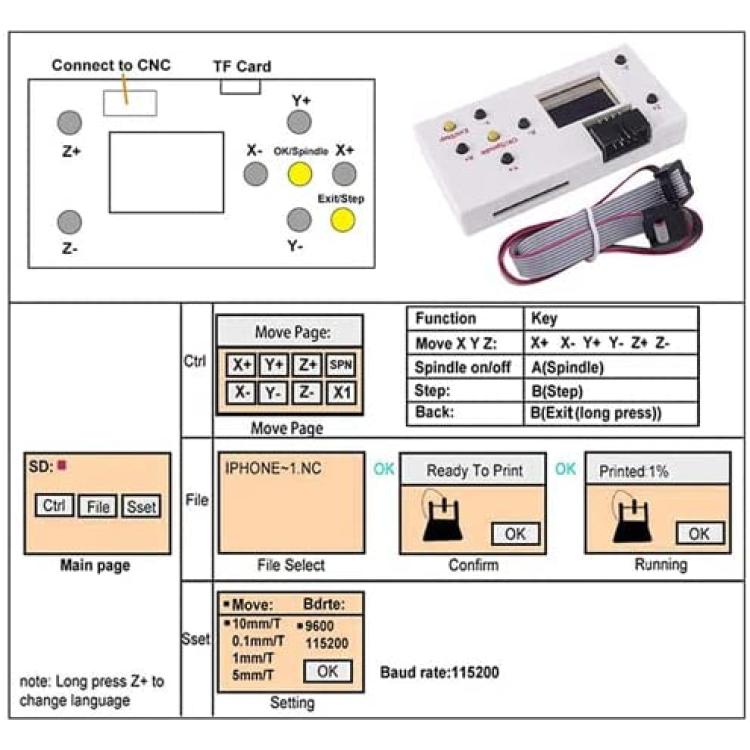

1 x GRBL 1.1f control board 1 x USB connection cable 1 x GRBL Offline Hand Controller 1 x SD card 1 x 8P cable 1 x Instructions Common supported formats include nc. tex. tap.Press [Y+] [Y-] to select filePress [Ok] to EnterPress [Ok] to begin if you are readyNote:Long press [Exit] to stop machiningCtrl: Machine Control; File: Use the Gcode file; Press [Y+] [Y-] to select; Press[Ok] to EnterX± Y± Z±: Moving AxisOK/Spindle: Spindle ON/OFFExit/Step: Change Step/Exit (long press)How to increase the spindle power: After pressing the spindle button, press and hold the OK button and the Z+ button simultaneously to increase the speed.How to decrease the spindle: After pressing the spindle button, press and hold the OK button and the Z- button simultaneously to decrease the speed.
