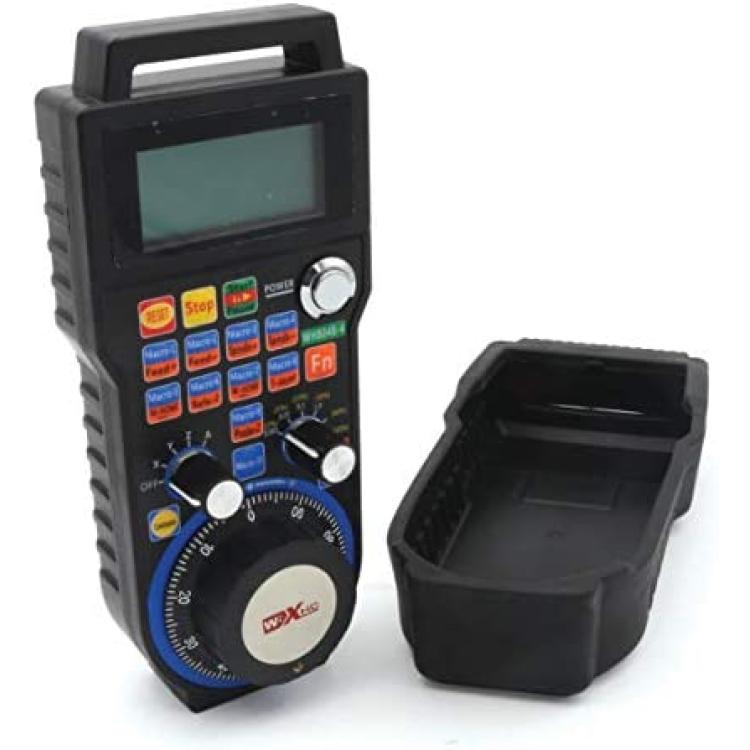

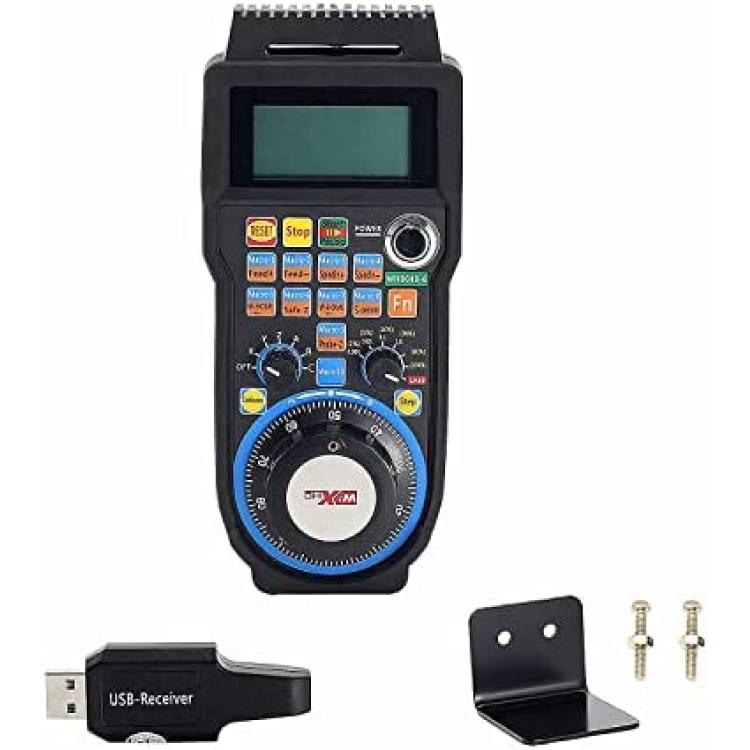

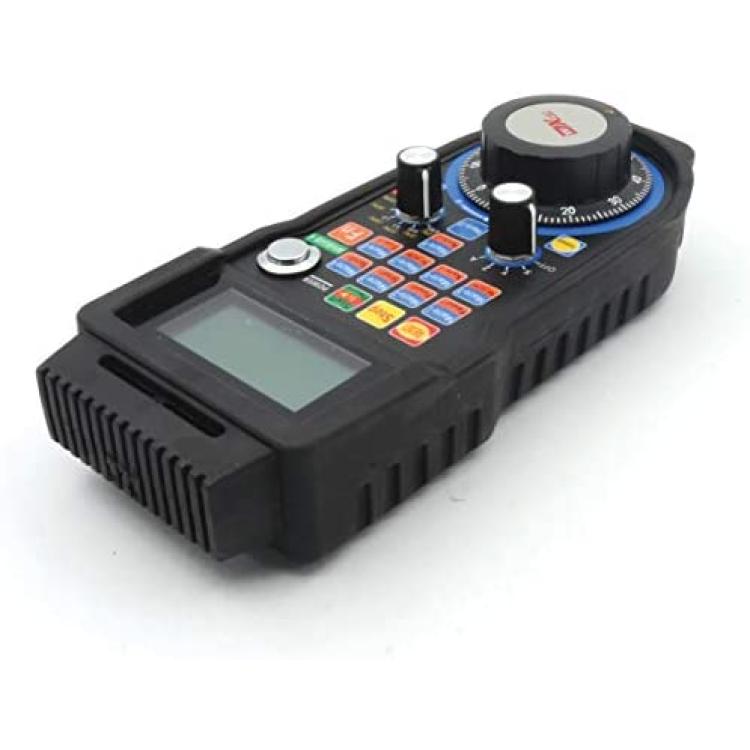

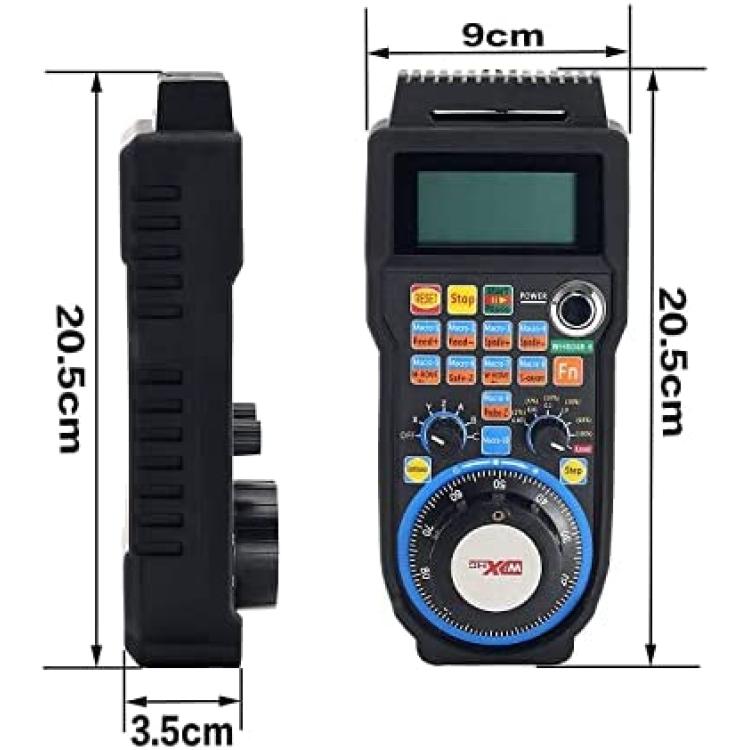

4 Axis 6 Axis USB Mach3 Wireless Handwheel Controller Remote Hand Control CNC Handwheel Manual Pulse Generator for CNC Lathe Engraving Milling Machine (WHB04B) (4 Axis)

Description:

1) Adopt frequency hopping transmission, strong anti-interference ability. Using 433MHZ, ISM wireless FR transmission technology, transmit power 10DB, receive sensitivity -98DB.

2) With 64 frequency hopping channels, each channel interval 1MHZ.

3) Intelligent wireless technology, automatic frequency hopping, automatic power saving, automatic to learn ID code.

4) Frequency hopping transmission technology, the same room, can support 64 sets of equipment at the same time, do not affect each other.

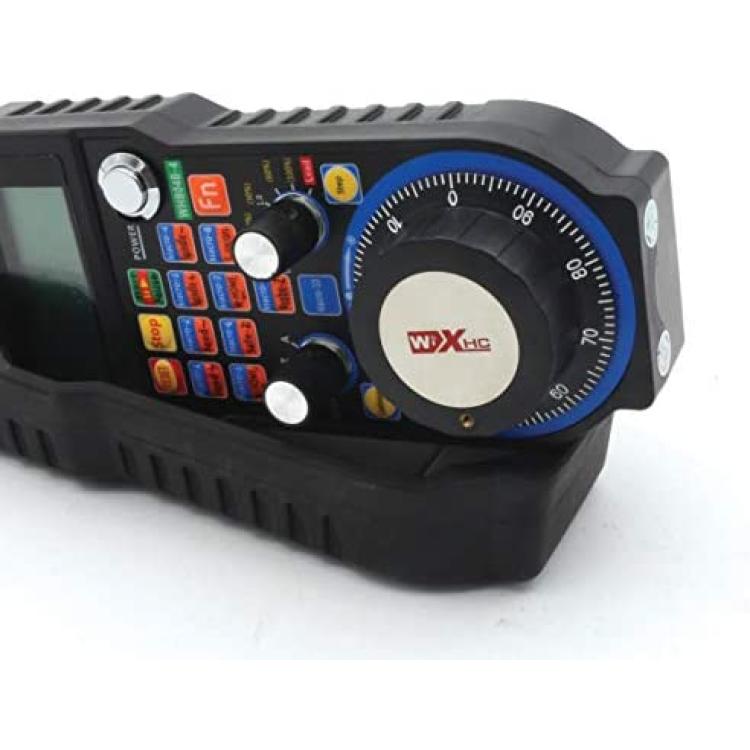

5) 100PPR manual pulse generator support 10 macro function button.

6) LCD display:Display X Y Z A axis of the mechanical coordinates and workpiece coordinates. Show the spindle speed, the value of the feed rate. Dot matrix LCD with backlight. Axis selection, power band switch control.

7) Axis select band switch to achieve the electronic hand wheel off and the corresponding X Y Z A each axis function of the choice of control. The choice of the step distance value is realized by selecting the switching value band, which is simple and convenient.

8) The series of remote control, providing DLL library files for customers to carry out the 2 development, suitable for the customer's own a variety of numerical control system. The series of remote control, based on the WINDOWS system.

Application:

For Windows: All Mach3 CNC system,milling machine,carving machine,wood machine and so on.

(Notice: this handwheel don't support Mach4)

?

Explanation:

1. Key success indication: when you press the button, the receives the key value, the indicator flasher about, indicating successful key operation.

2. Speed Indicator: when the band switch to select 1X,10X,100X,1000X,the LCD display value:0.001,0.01,0.1,MPG.

3. Axis selected location: Axis selection switch position, LCD display axis selected. X:X workpiece coordinate axis,1X:X axis mechanical coordinate.

Key feature:

1 .Auto Frequency Hopping When Noise.

Frequency band:433Mhz,ISM ,the output power up to10DB?High receiver sensitivity-98DB.

32 hopping channels?the channel frequency gap is 1Mhz.

the transmission is encrypted,auto build communication network and pair. auto hopping when noise.

32 sets of wireless MPG could be used at the same time in one room.

2. LCD display

Display the X Y Z A axis work and machine coordinate data.

Display the spindle and feed speed.

The lcd display data with background light.

3. Axis/Step band switch

To choose X/Y/Z/A axis or close all axis by axis switch,to choose jog step by step switch.

4. support 10 macro function button
