Wireless Mach3 MPG Pendant USB CNC Controller Handwheel Manual Pulse Generator for CNC Lathe Engraving Milling Machine 4 Axis
About this product

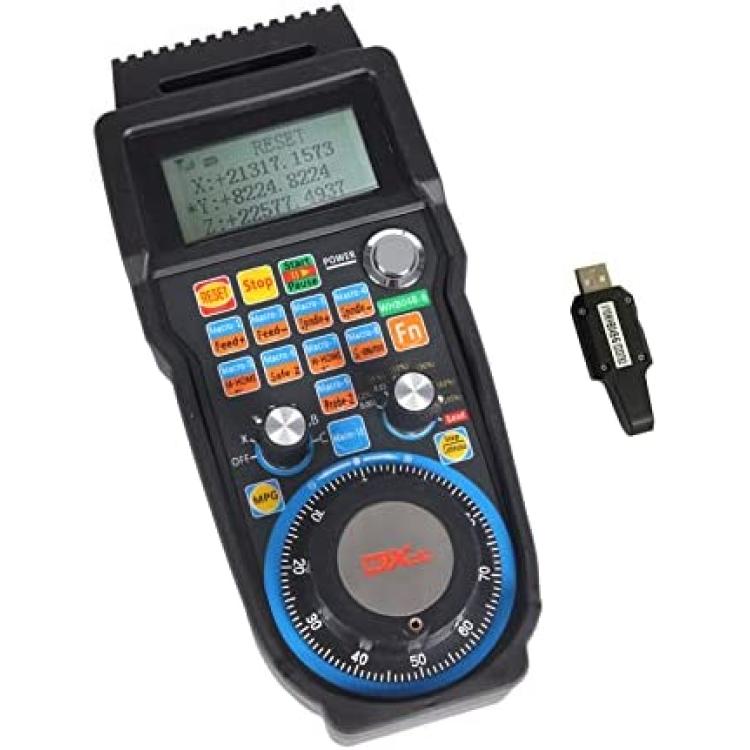

*All orders are shipped by FedEx or DHL, normally 5-10 days delivered after shipped, or even faster. Wireless Mach3 Pendant CNC Controller with LCD display: machine coordinates and workpiece coordinates X, Y, Z, A-axes. LCD Display: Spindle speed value, processing feed rate value. Application:For Windows: All Mach3 CNC system,milling machine,carving machine,wood machine and so on (But dont support Mach4)
*100PPR manual pulse generator supports 10 macro function button.Using 433MHZ, ISM wireless RF transmission technology, transmit power 10DB, receive sensitivity -98DB. 2x AA batteries powered (NOT included)
*USB Mach3 MPG Pendant supports wireless operation,to bring you convenience and practicality of the operation.40 meter wireless transmission distance,stable and reliable data transmission.

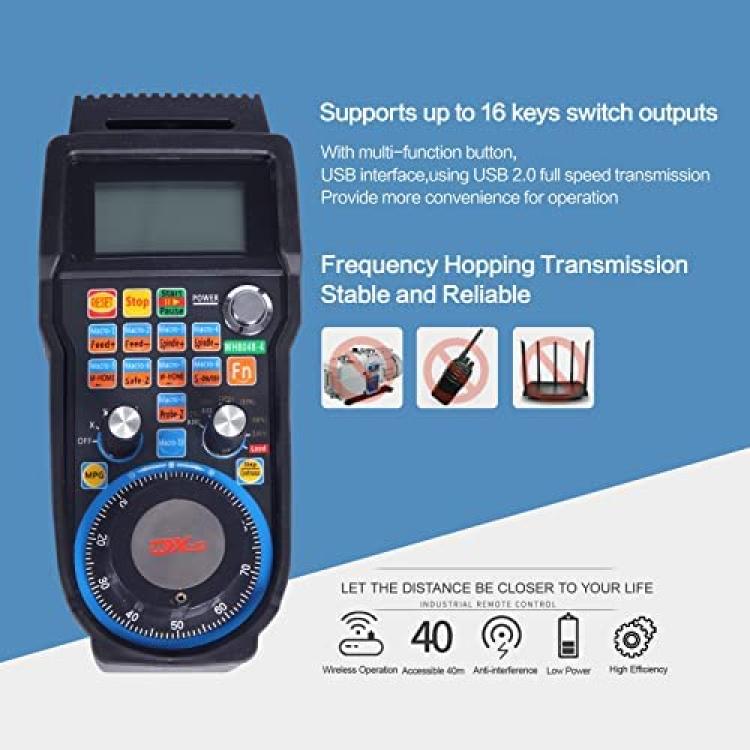

*Wireless Electronic Handwheel adopts frequency hopping transmission, strong anti-interference ability. 32 sets wireless handle work fine at the same time in one room, with no-interference each other.
*Wireless handwheel with high performance, low power consumption, automatic ID code learning, to bring you convenience and practicality of the operation.There is a piece of paper in the cnc pendant package with a QR code on it, you can scan to download the driver and manual.
Description
Brand: XHC
WiXHC TECH OFFICIAL STORE is a professional manufacturer of making wireless CNC MPG electronic handwheels and control systems.Our products are sold all over the world and we are committed to providing our customers with the best products and services.
Installation:
There is a piece of paper in the cnc pendant package with a QR code on it, you can scan to download the driver and manual.If you don't know how to scan, please send us a message.
ShuttlePro.dll is the Driver of WHB04B for MACH3 cnc control system.
You could externd the IO input with our wireless handle.To do reset,start,stop etc.
The handle is just like ShuttlePRO,you coul do jog mpg and step with the handle. In all,you could control much things if you had our wireless WHB04B.
1. First you must install mach3 and then insert WHB04B handle USB controller.then install the batteries to WHB04B handle's cell box.
2. You should copy the ShuttlePro.dll to Mach3\plugins\ directroy;
3. Open the macro file:
M930.m1s is the probez file.You should copy the it to Mach3\macros\Mach3Mill directroy;
M999.m1s is the ref all home file.You should copy the it to Mach3\macros\Mach3Mill directroy;
m933 is go to zero work macro,You should copy the it to Mach3\macros\Mach3Mill directroy;
4. You could change the macro file M930.m1s ,M990.m1s, m933 to satisfy your cnc system;
Warning:when you are using lhb04b,please note that:
when press fn key and other key,please release the fn key first .don't release the fn key and the other key at the same time!!!

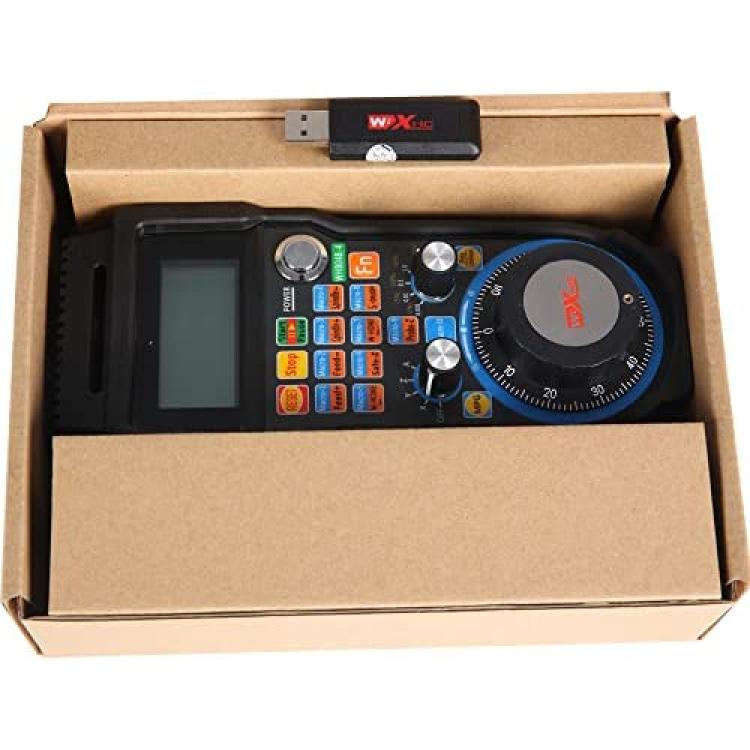

Package Includes:
1 x 4 Axis Wireless CNC Handwheel (batteries are NOT included)
1 x USB receiver
1 x Silicone Case
1 set x Mounting Accessories
1 x English Instruction
