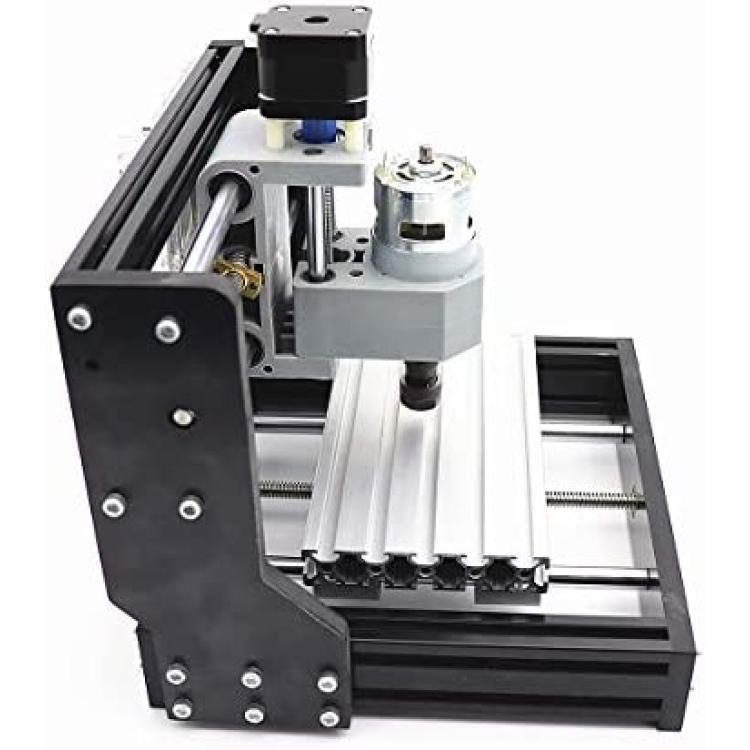

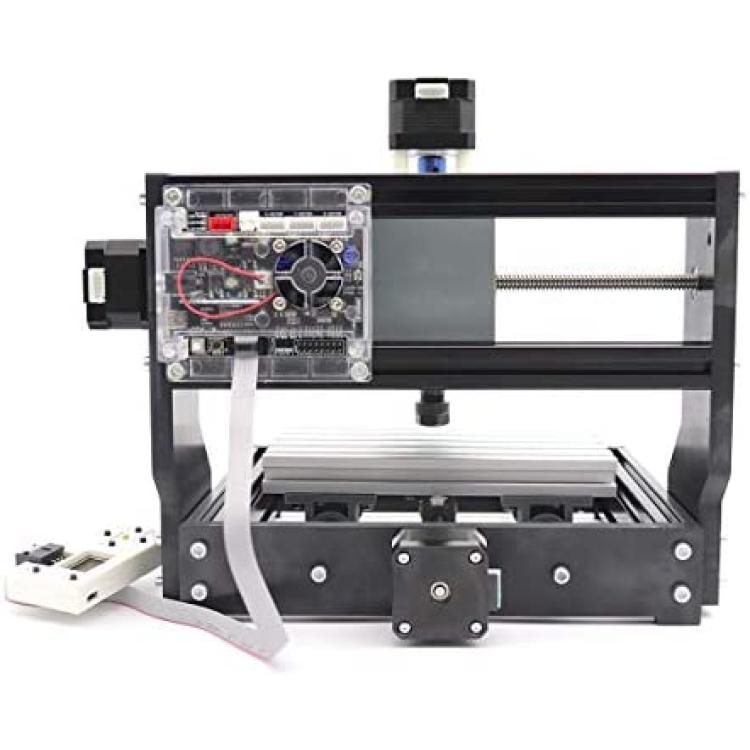

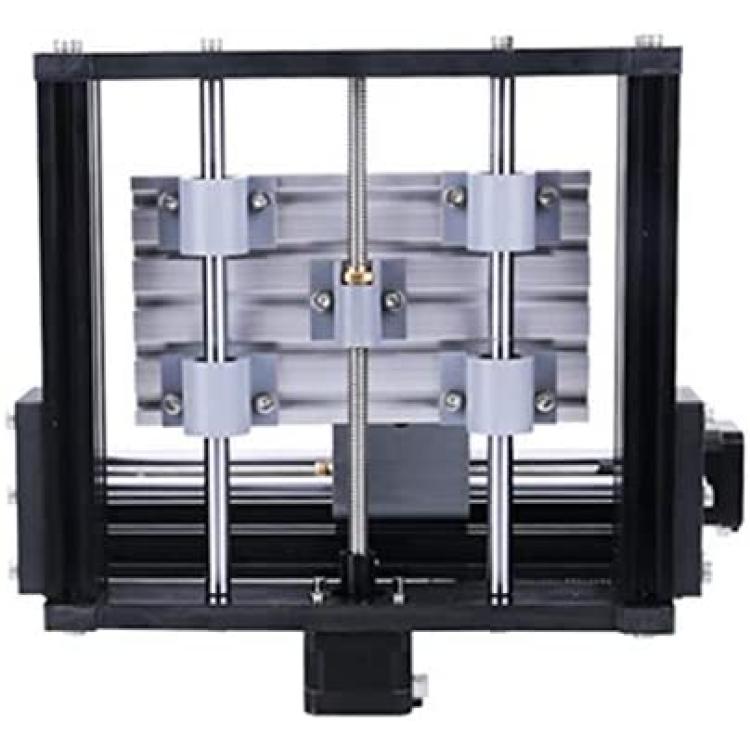

DIY Mini 1610 PRO Milling Machine 3 Axis GRBL Control CNC Router Kit Engrave PVC,PCB,wood router engraver Engraving Machine CNC1610 Pro with Offline Hand Control (1610 Pro w/offline controller)

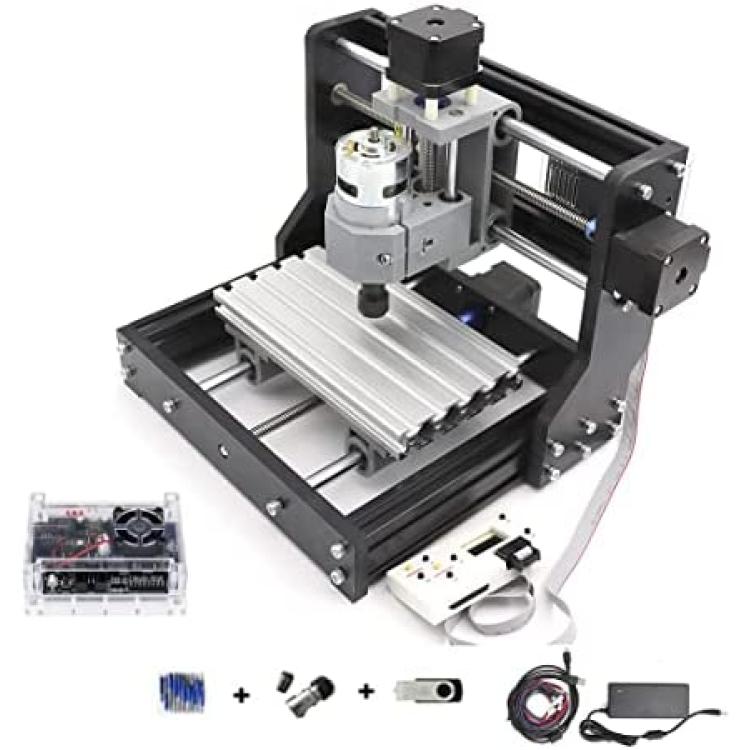

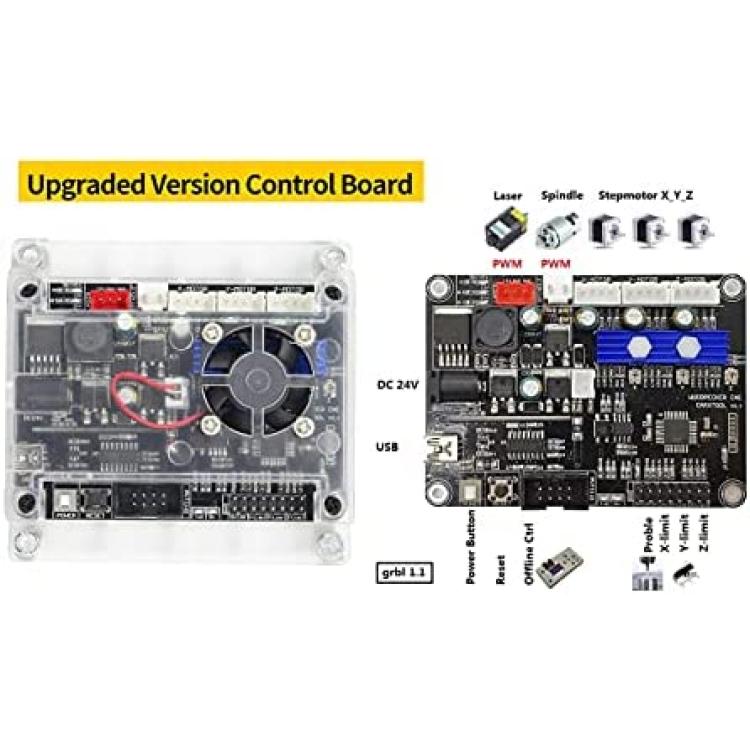

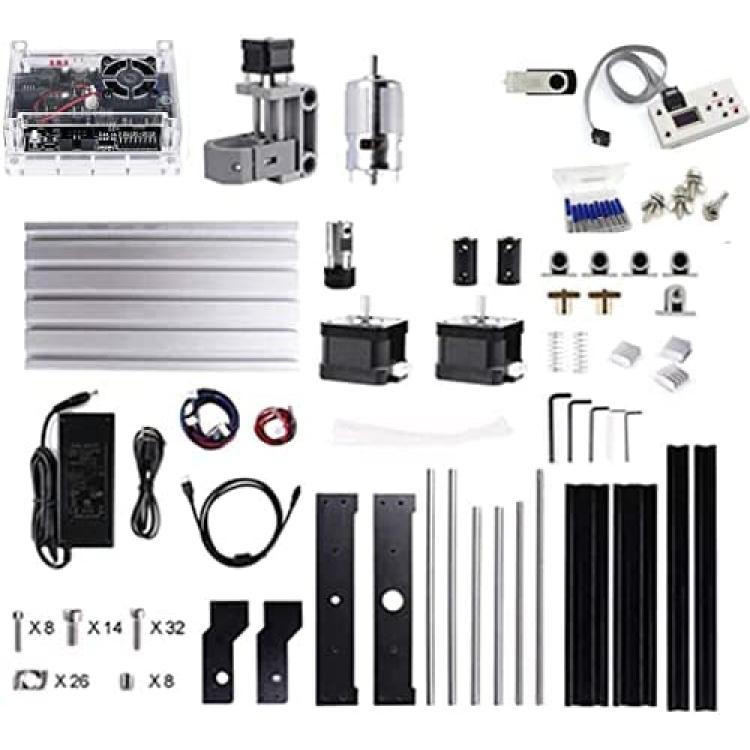

1 set 3 Axis 1610 Pro CNC Router Kit Engraver Machine1x GRBL 1.1f Control Board1x 775 spindle with ER11 collet1x Offline remote controller1x 24V DC Power Supply Aadapter10x 20°0.1mm Drill Bits1Set Allen Wrench1x 4G USB flash drive include english user manual & GRBL softwareWorking area: 18x10x4.5cm (approx.7.08x3.93x1.77 inches)Frame size :30x26x25cm(approximately 11.81x10.23x9.84 inches)Spindle: Diameter 45mm 10000 rpm maximum power 120WMaterial: Aluminum AlloyScrew rod: T8 screw rod, lead 4mm, double copper nut backlashSpindle Chuck: ER11 ColletStep motor: nema17 42 stepper motor 1.3A,0.3N.mPower supply : 24V 5.6A power adapter (input voltage 110-240V)Support System:Windows XP / Win 7 / Win 8 / Win 10 (32/64 can be)Connection: PC-USB connectionSoftware: GRBL controllerSupporting file:G-code (.nc/.txt/.tape/.gcode)Processing accuracy:About 0.2mmSpindle PWM speed: Support;power 0-100% adjustableSpindle parameters: 775 spindle motor (12-36V) 24V:10000r/minMounting hole diameter: M4 screw hole; Mounting hole pitch: about 29mm.Spindle PWM speed: Support;power 0-100% adjustableMotor shaft diameter: 15mm; Motor diameterDrill clamp parameters: ER11-3.175mm ( can be replaced 0-7mm )Control software: grbl control(candle)Supporting files: G-code (.nc/.txt/.tape/.gcode...)Processing accuracy: About 0.2mmMachinable material: Wood? plastic? PCB? PVC? carbon fiber? acrylic? density board etcPower: DC 24V 5.6A power adapter (input voltage 110-240VAC)Support SD card and TF card at the same time, standard capacity 1G.With this offline controller module, you can directly control the CNC router without connecting it to your computer.After inserting the file into the SD card,the engraving file can be directly identified. You can also use the micro USB cable to connect the offline hand controller board to your computer and save the file directly.Manually control: manually adjust X,Y,Z axis location as engraving starting point,manually open or close spindle,manully open or close cooling fanFile engraving: after off-line controller save file, it can connect the GRBL control board and process engraving,no need to connect PC computerSave file: after the off-line controller connect PC,it will be recognized as USB,large capacity storage device, can access engraving file directly.SD shows it is SD card condition,turn on power supply after insert SD card,otherwise,it wont work.SD card capacity 4G could be recognized.1.add the outer casing: protect in transit,to avoid short circuit problem during use;2.add the power button switch;3.Add the fan port to force heat dissipation;4.add offline recognition,can insert offline modules;5.Enhanced spindle drive,can support 20000rpm spindle;7.Improved USB interface: changed to plug-in, very strong8.spindle drive increases the optocoupler isolation,which makes the control board generate less heat,and the spindle speed adjustment is more linear and safer.Connection: USB (USB-CH340)Software: GRBL controller, UniversalGcodeSenderInput voltage: 12-24VDCMaster chip: atmel 328P (arduino nano)Spindle drive chip: MOSFET (recommendation 24V, current : within 10ASpindle PWM speed: SupportSupport module:SupportSupport stepper motor: 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor 42, 57)Power Interface: 5.5-2.5mm DC interfaceCtrl: Machine Control; File: Use the Gcode file; Press [Y+] [Y-] to select; Press[Ok] to EnterX± Y± Z±: Moving AxisOK/Spindle: Spindle ON/OFFExit/Step: Change Step/Exit (long press)How to increase the spindle power: After pressing the spindle button, press and hold the OK button and the Z+ button simultaneously to increase the speed.How to decrease the spindle: After pressing the spindle button, press and hold the OK button and the Z- button simultaneously to decrease the speed.Common supported formats include nc. tex. tap.Press [Y+] [Y-] to select filePress [Ok] to EnterPress [Ok] to begin if you are readyNote:Long press [Exit] to stop machiningCNC 1610 Pro Mini CNC machine small size, light weight, USB interface, GRBL control systems, great cnc router machine for beginers;1610 Pro cnc machine is very easy to install,stable structure.Main application:can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.soft metal like copper and aluminum and other materials, but can not carve hard metal, jade or other very hard texture of the items.If you change the spindle to a module,then also can carve the kraft paper, wood, leather(wallet), bamboo, rubber.Our parcel include a 4G USB flash drive,you can download the english user manual and GRBL software from the flash drive.File Format (gcode): *.nc, *.ncc, *.ngc, *.tap, *.cnc.Software used to create Gcode: Carbide Create, Artcam, MeshCam, Fusion360, Inkscape etc.
