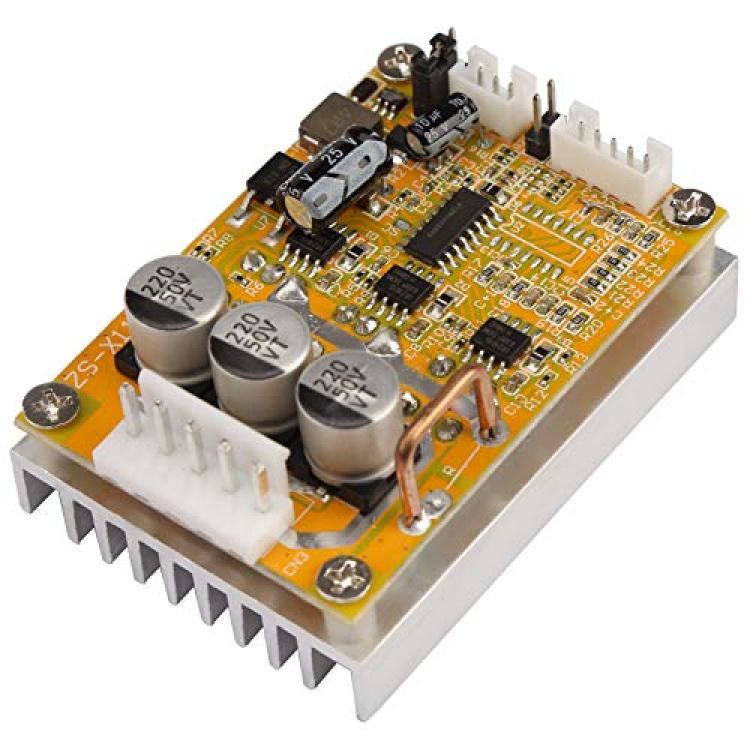

5V-36V 350W Wide Voltage 3-phase Sensorless BLDC Motor Controller Board Brushless ESC Motor Driver Module with Heatsink
Availability: Pre-Order, Inquiry Price
About this product
*This driver board can be fit for DC brush less without hall sensor three-phase motors
*It was with an heat sink,and also coming with speed controller and forward -reverse switch cable
*This brush less motor controller features wide voltage high power, suitable for both small motor and large motor.
*This motor controller has the function of over-current protection
*This item can be used directly, when you got it, wide voltage 5-36V, high power 350W, with heat sink, lead wire, control switch, so convenient
Description
The brushless motor speed control is fit for DC brushless three-phase Motors without hall sensor;
Rotation Control: equipped with control wiring, can control forward or reverse motor rotation;
Speed Control Function: this controller module is with controlling switch, convenient to regulate the motor speed;
Over Current Protection: the motor controller module is designed with over current protect, will be shut down the module and no output if over current.
Specifications:
Working voltage: 5-36V
Maximum current: 16A
Maximum power: 350W
Over current protection: yes
Size: length 63 x 45 x 27mm/2.48 x 1.77x 1.06inch Weight:100g
Interface instruction:
1.MA MB MC: phase line output connection motor 2 5V GND: motherboard comes with original 3.VCC GND: external DC power supply line 4.SC :pulse signal output 5.Z/F: positive inversion control line 5V or GND to achieve positive and negative inversion 6.VR: speed signal input, the general external 100K tripod middle pin potentiometer VR, the remaining two feet 5V and GND main board.
Package included:

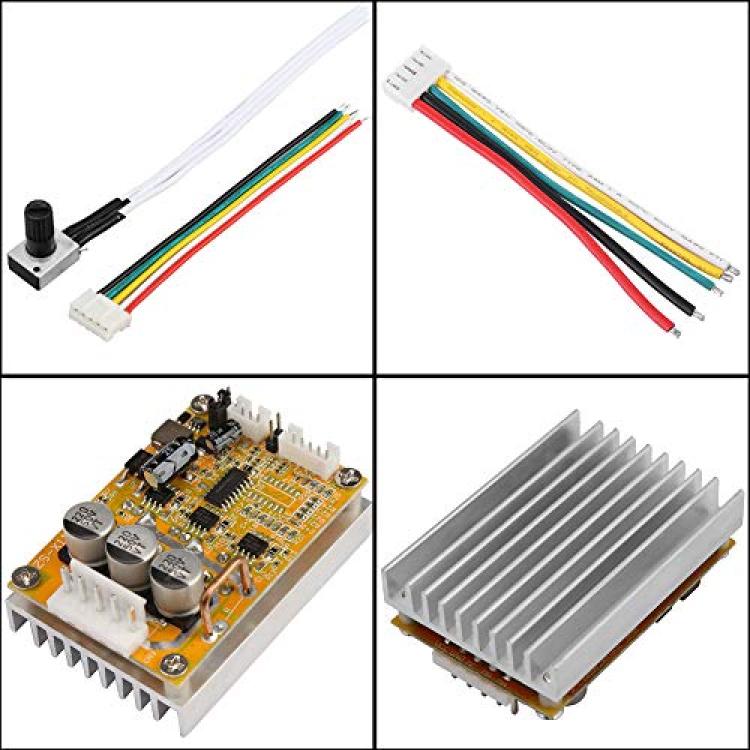

1x Brush less with hall motor controller; 1x speed controller & forward-reverse switch cable; 1x power cable;
