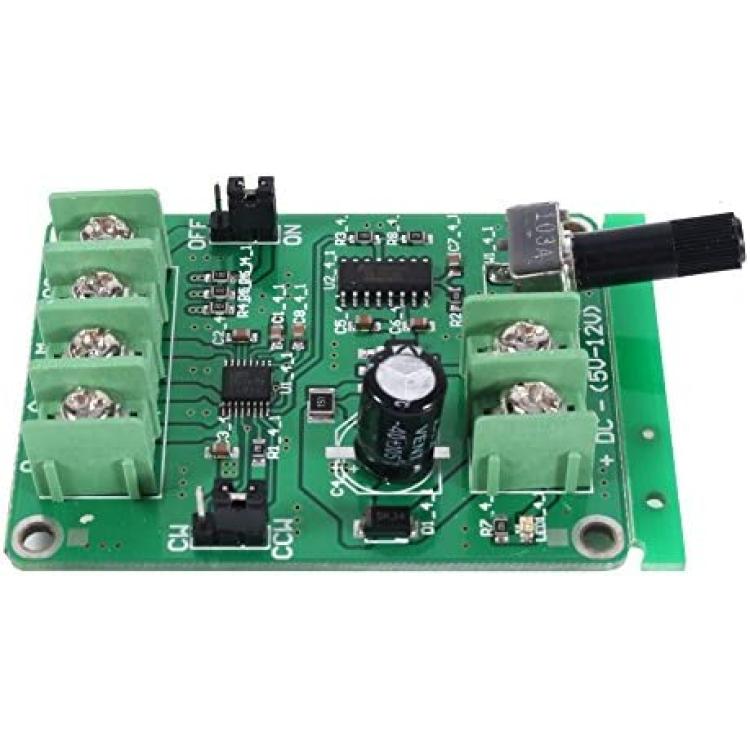

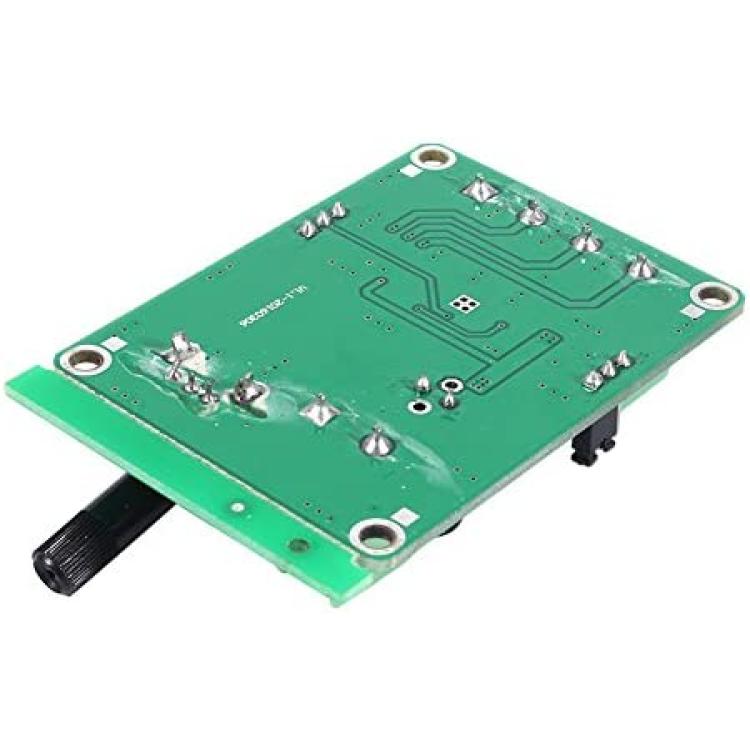

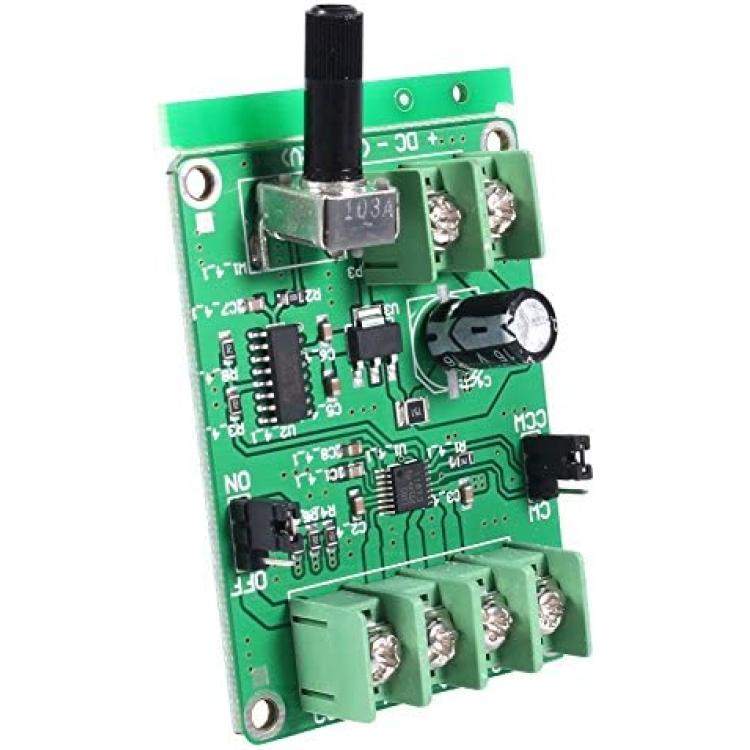

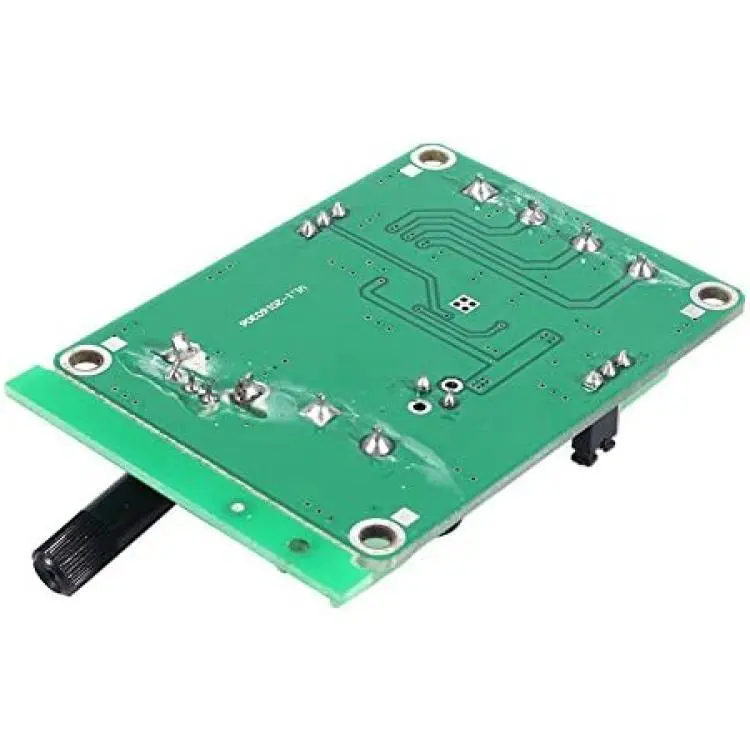

5V-12V DC Brushless Motor Driver Controller Board Module for Hard Drive Motor 3 Wire 4 Wire
Availability: Pre-Order, Inquiry Price
About this product
*The DC Brushless Motor Driver Controller Support reverse voltage protection
*The DC Brushless Motor Driver Controller Support reverse voltage protection
*The DC Brushless Motor Driver Controller Support over current protection.
*Simple wiring and very easy to use.
*The DC Brushless Motor Driver Controller is suitable for hard brushless motor, brushless motor drive and other miniature 3-wire or 4-wire brushless motor without hall.
Description
Description:
The driver board can drive hard disk brushless motors, CD-ROM brushless motors and other micro brushless motor of line 3 or 4 wires without hall sensor. Specifications:
Drive Voltage Range: DC 5 V-12 V
Suggested Voltage Range: 7 V-12 V
Current: 1.8 A(if higher than 1.8 A, chip might be burnt)
Working Current: 1.2 A
Speed Control Range: 0%-100%
Phase Inversion Control: Support
Reverse Voltage Protection: Support
Over Current Protection: Support Package include:
1 X Brushless Motor Driver Board
