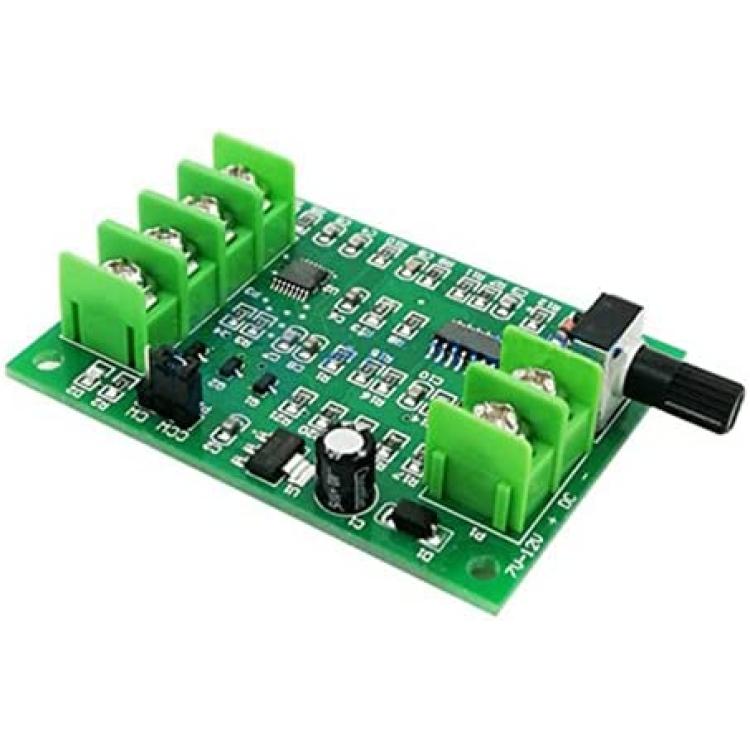

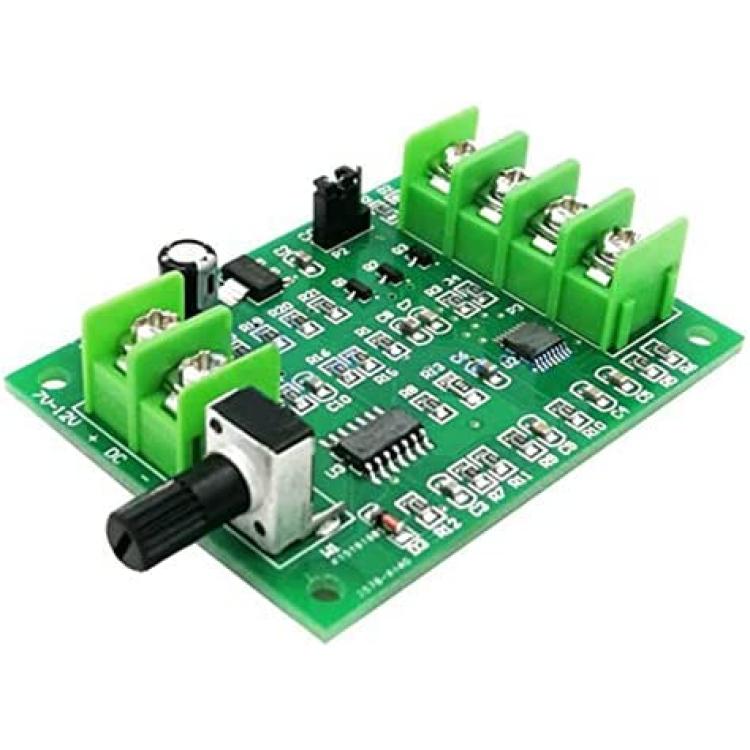

Oligemok 7V-12V Brushless Motor Driver Board Controller for Hard Drive Motor
About this product
*without hall brushless motor ,
*Description: The driver board can drive hard disk brushless motors ,CD-ROM brushless motor and so on , the -3-wire or 4-wire
*Driver voltage : DC7-12v
*Its have reverse voltage , Over current , Phase inversion control
*Working voltage : ≤1.2A
Description
Oligemok Speed adjust :0%-100%
Note : Brushless motor line of receiving terminal drive plate must be pressed sturdiness, poor contact will lack of phase
operation and burn out the chip.Board terminals fixed screw clearance, please use coarser line connected to the board.
How to identify four line motor public port: use the resistance of the multimeter x gears test this four terminal,One of the
terminals and the other three terminal resistance value of the minimum and equal
So it's COM terminal
Size:6 x 4.5cm/2.36 inch x 1.77 inch
Quantity: 1Pc
Color: green
material: plastic
Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package Contents: 1Pc x Brushless Motor Driver Board Controller
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
