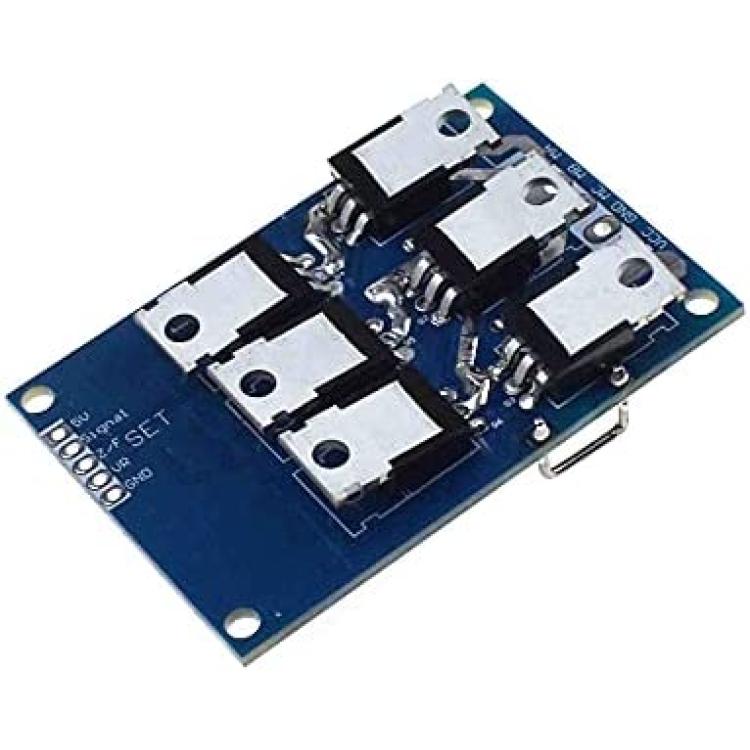

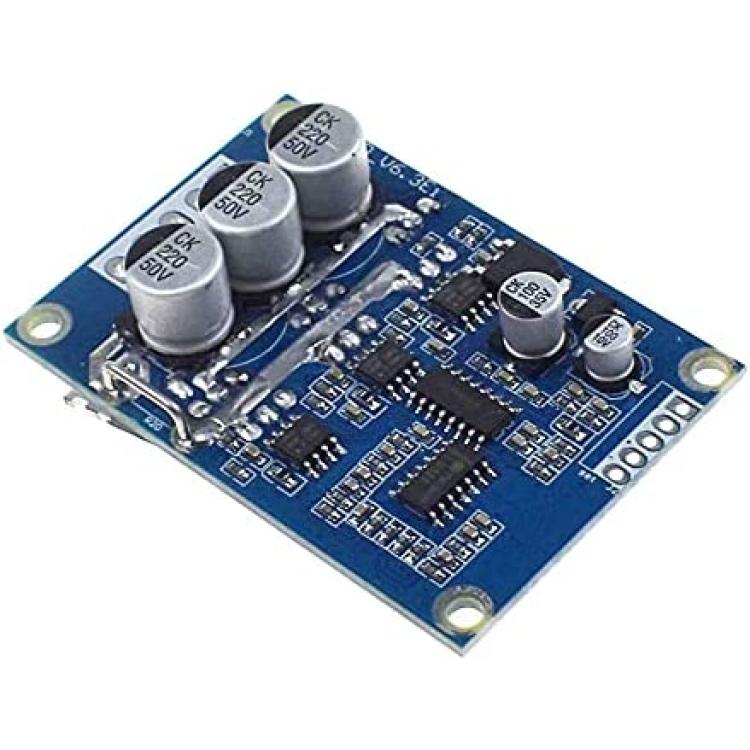

Reland Sun 12V-36V 500W Brushless DC Motor Controller Motor Driver Driver Board Module (Without hall)
About this product
*12V-36V 500W Brushless DC Motor Controller Motor Car Driver Driver Board Module
*Operating voltage: DC 12V to 36V; operating current Less than15A.
*Drive power: ? 500W (related working voltage)
*Speed control function: voltage speed regulation or single chip,microcomputer control PWM speed regulation
*12V-36V 500W Brushless DC Motor Controller Motor Car Driver Driver Board Module
Description
Working voltage: DC 12V-36V
Working current: <=15A
Drive power: <=500W
Speed voltage: 0.1V-5V
Working temperature: -40-85
Control terminal connection:
1.VR speed control port connection method can be controlled by voltage regulation control or PWM control speed voltage regulation can be adjusted by the adjustable resistance (20K 3 pin bit VR port side of the port side of the 5V port to connect to the GND port through the regulation of voltage control)
2.positive reverse port connection method to connect 5V a direction to the direction of GND
3.Singnal speed pulse output port output of a circle of pulse = motor pole number x 3
4.5V control terminal 5V voltage output portÂ
