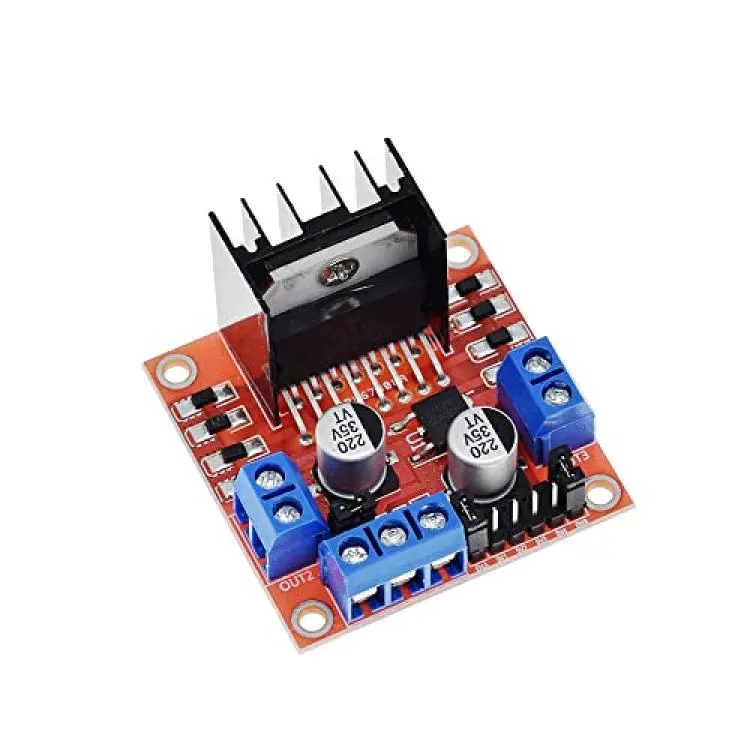

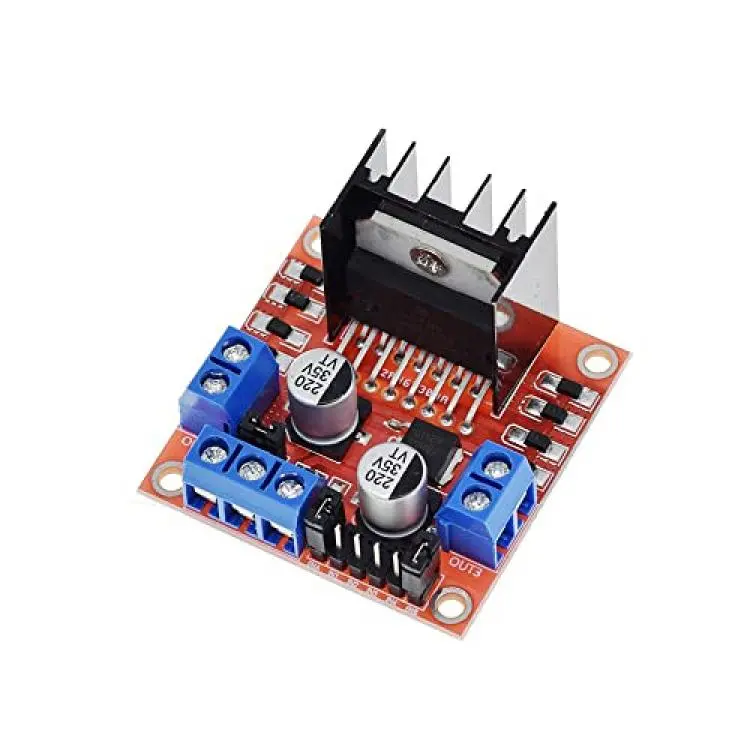

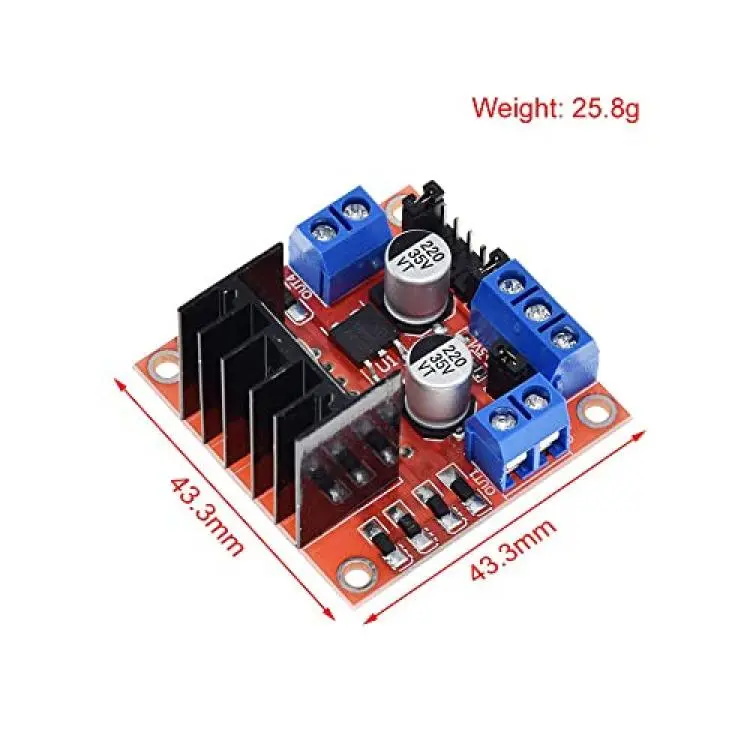

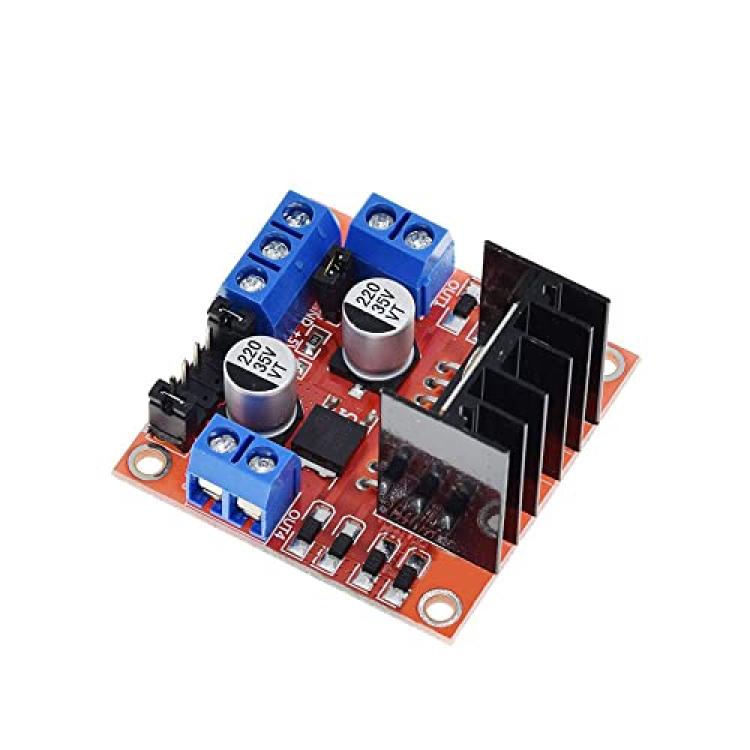

10PCS DC Stepper Motor Drive Controller Board Module
Availability: Pre-Order, Inquiry Price
About this product
*The module uses L298N chip as the main drive, with driving ability, low heat, anti-jamming features.
*lt can be used to take power through the built-in 78M05 drive power part of the work, but in order to avoid damage to the regulator chip, when a drive voltage greater than 12v, please use an external 5V logic supply.
*Uses high-capacity filter capacitors, freewheeling diode protection, reliability can be improved.
*The module uses L298N chip as the main drive, with driving ability, low heat, anti-jamming features.
*lt can be used to take power through the built-in 78M05 drive power part of the work, but in order to avoid damage to the regulator chip, when a drive voltage greater than 12v, please use an external 5V logic supply.
Description
Origin:CN(Origin)
Model Number:L298N
Application:Computer
Operating Temperature:-40°C~+85°C
Supply Voltage:5V-35V
Functions:Electronic Module
The main features
high voltage, maximum operating voltage up to 46V
output current, instantaneous peak current up to 3A, continuous operating current of 2A
rated power 25w.
Contains two H-bridge high-voltage and high current full-bridge driver can be used to drive DC motors and stepper motors, relays, coils and other inductive load; using standard logic level signal control; having two enable control terminal, in allows input signal without being affected or disable the device has a logic supply input, the internal logic circuit part of the work at a low voltage; can be an external sense resistor, the amount of change back to the control circuit.
