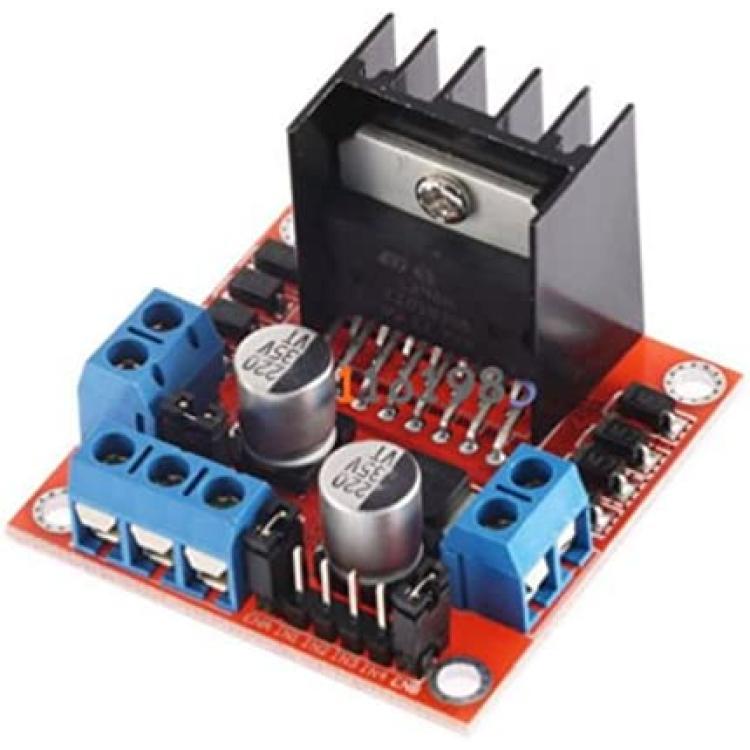

Stepper Motor Drive Controller Board Module L298N Dual H Bridge DC For Arduino
About this product
*L298N as main chip, ST corporation production. Low heat,outstanding anti-interference performance. High working power to 46v,large current can reach 3A MAX and continue current is 2A, power to 25w.
*Can drive one 2-phase stepper motor, one 4-phase stepper motor or two DC motors. Built-in 78M05,get power from drive power, however, when drive power over12V, please use the external 5v power as power supply. Large capacity filter capacitance,afterflow protection diode, more stable and reliable.
*Specification: Double H bridge drive , Chip: L298N (ST NEW) , Logical voltage: 5V , Drive voltage: 5V-35V , Logical current: 0mA-36mA
*Drive current: 2A(MAX single bridge) , Max power: 25W , Size:43 x 43 x 26mm , Net weight: 26g , Package weight:36g
*Its brand new, good quality & high performance. ** PLS PAY ATTENTION the accurate size & voltage rate before placing order in order to avoid buying wrong thing. Free Shipping & the deliver time to USA is approx. 10-18 days after the shipment date.
Description
Note: This module has a built-in 5v power supply, when the driving voltage is 7v-35v, this supply is suitable for power supply.
DO NOT input voltage to +5v supply interface, however ledding out 5v for external use is available.
When ENA enable IN1 IN2 control OUT1 OUT2
When ENB enable IN3 IN4 control OUT3 OUT4
Package Included: 1 x Dual H Bridge DC Stepper Motor Drive Controller Board Module Arduino L298N
