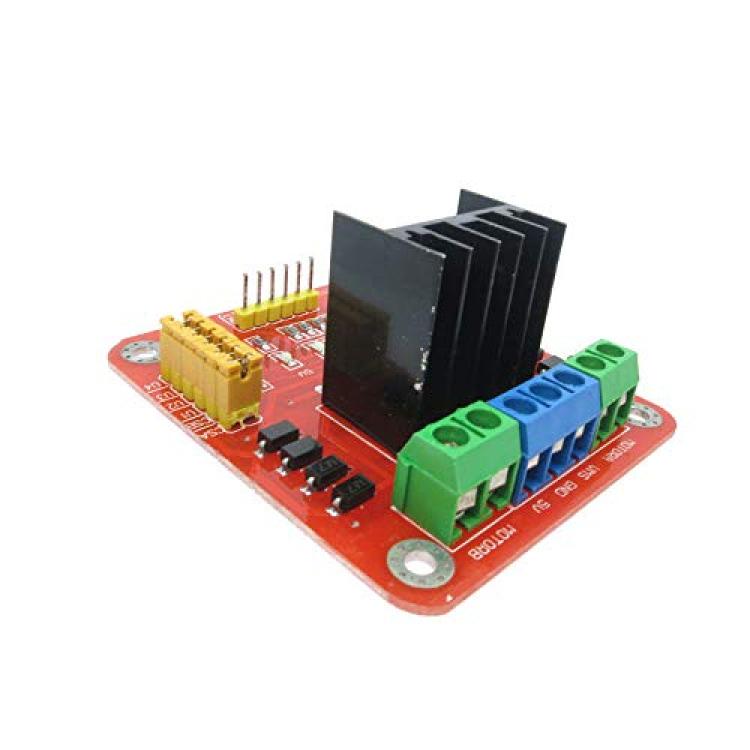

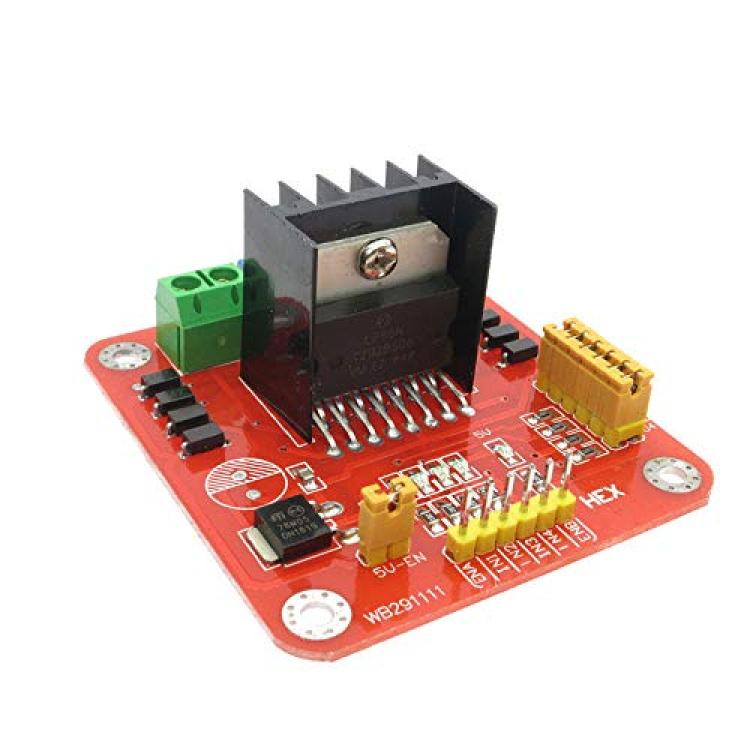

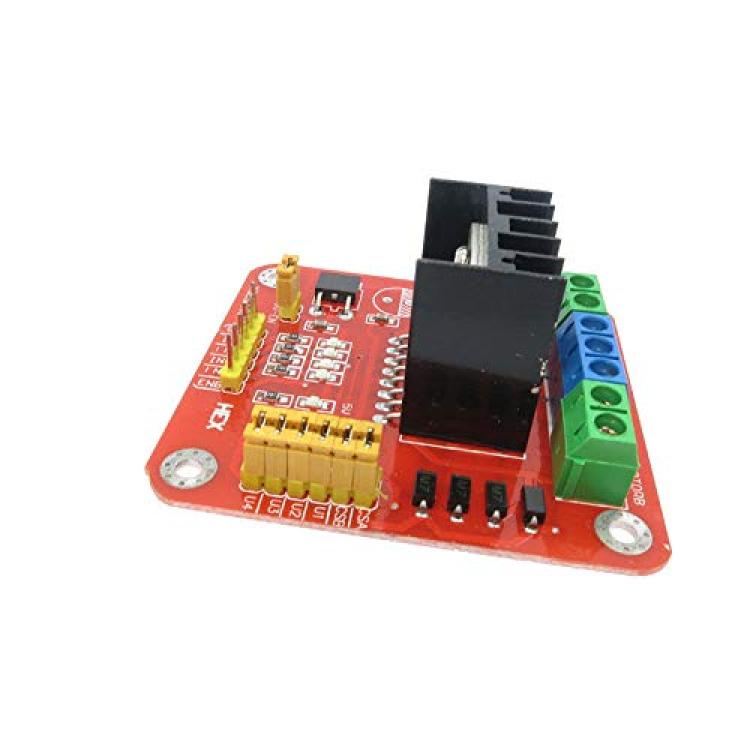

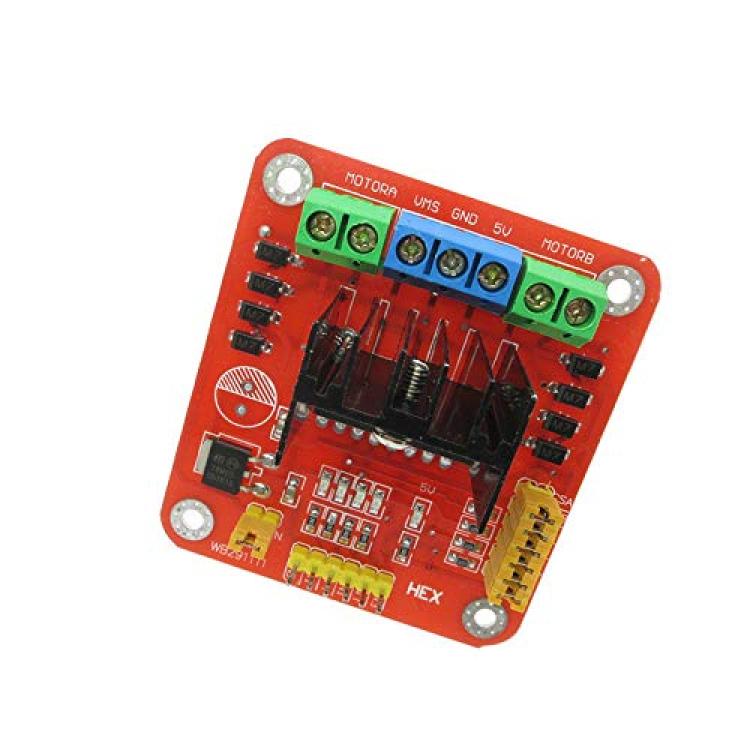

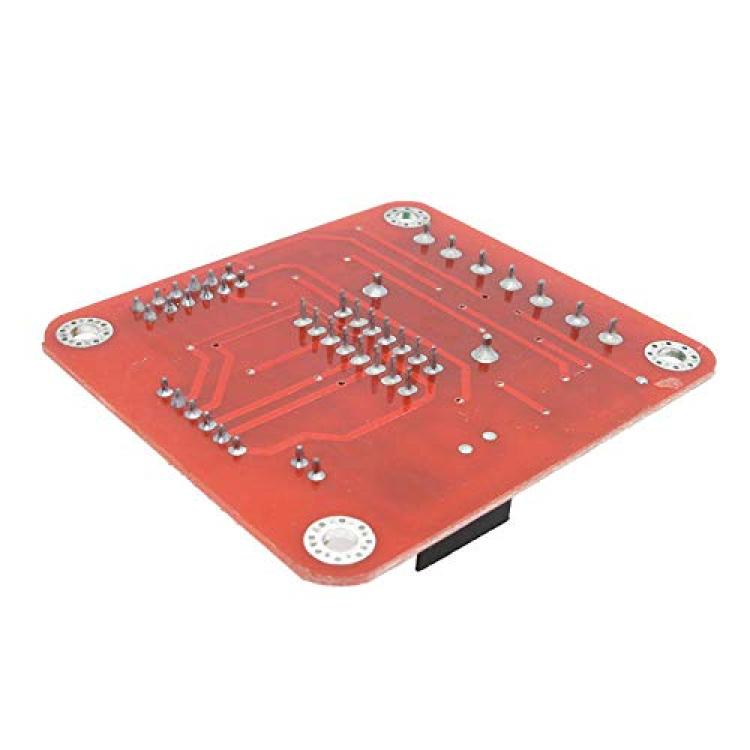

L298N Dual Bridge DC Stepper Controller for arduino Control Motor Driver Module Board
Availability: Pre-Order, Inquiry Price
About this product
*L298N Dual Bridge DC stepper Controller for arduino Control Motor Driver module Board
*Developed Countries Estimated Delivery Time: 7-17 days(trackable),Other countries Estimated delivery time : 8-30 days.----- We provide Expedited Shipping service : 3-8 days.(excluding handling time).If the order amount above US $200, we will use Expedited Shipping service for free.
*If it is not delivered within the specified time, or if it is not satisfactory. You only need to send a refund request and we will refund you in full.
*We make every effort to provide customers with satisfactory service.any question,please feel free to contact me.
*L298N Dual Bridge DC stepper Controller for arduino Control Motor Driver module Board
Description
Baby delivery directory:
1.L298N module is a
2. Shorting cap (blue, yellow, or black) 7, do not specify the color
Pin with black and yellow
Unless otherwise specified, the board terminals, pin color sent at random, can not be specified.
Robot motor driver board peripheral L298n
Product description:
The L298N driver module, using L298N chip can directly drive two 3-30V DC motor, and provides a 5V output interface can 5V single-chip circuitry to supply, support 3.3VMCU control, you can easily control the DC motor speed and direction can be controlled two-phase stepper motor, smart car is essential.
Product parameters:
A driver chip: L298N dual H-bridge driver chip
2 drive section terminal supply area VMS: +5 V ~ +35 V
3 drive section peak current Io: 2A / Bridge
4 logical part of the terminal supply area Vss :4.5-5 .5 V
5 logical part of the operating current range: 0 ~ 36mA
6 Control signal input voltage range: 4.5-5.5V HIGH LOW 0V
7 Maximum power consumption: 20W
9 Driver Board Size: 55mm * 60mm * 30mm
10 driver board Weight: 33g
11 Other functions: control direction indicator, power indicator, current sensing, logic portion plate to take power interface
