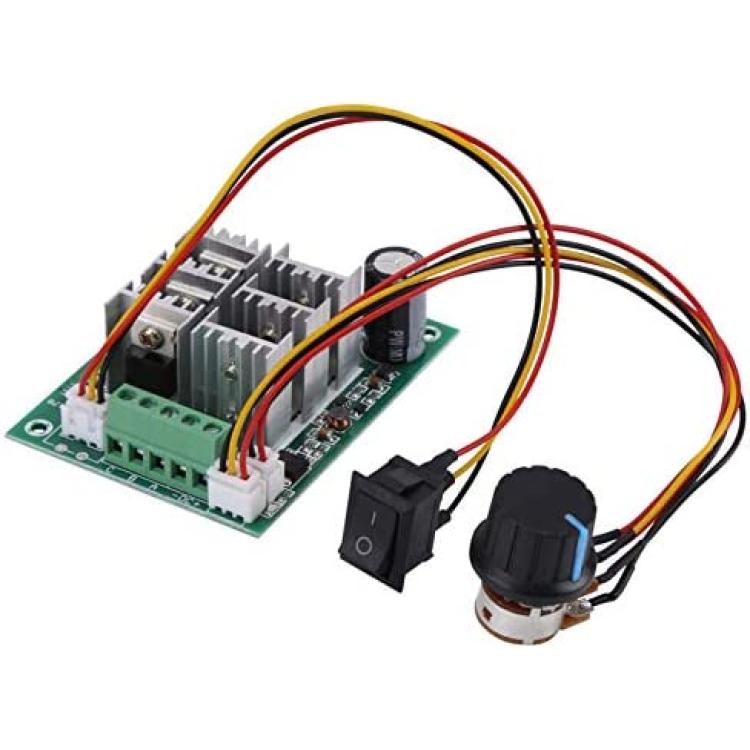

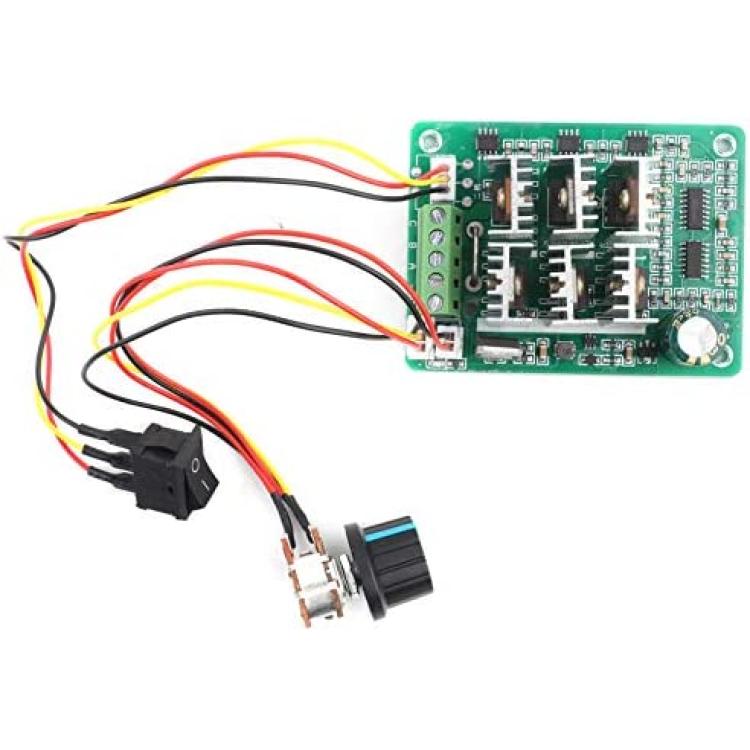

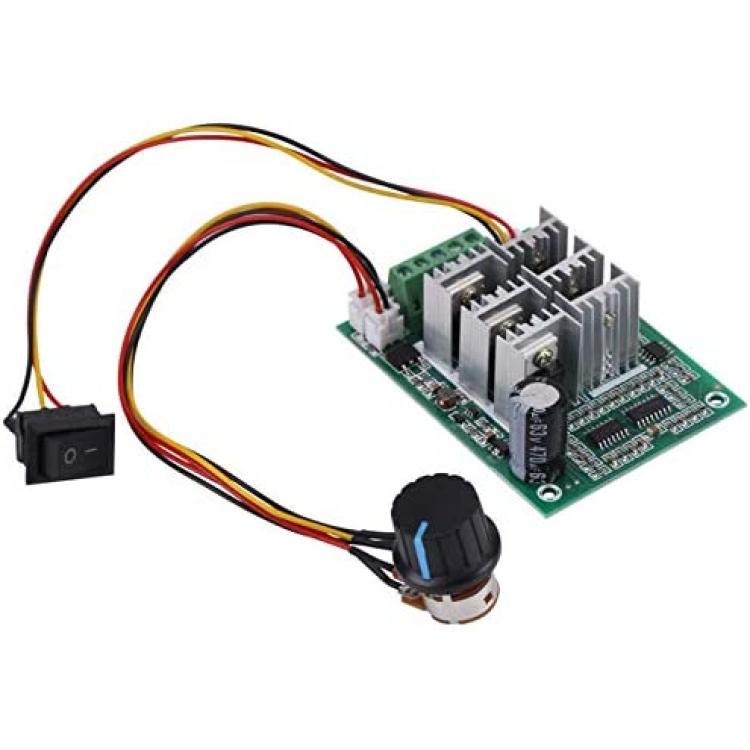

DC 5v-36v Bldc Motor Controller, Brushless Regler, Brushless Motor Driver Module for 3 Phase and Motor CW CCW

Descriptions:

This speed controller switch is for 3-Phase brushless motor, and support motor CW CCW, stable performance, simple and most cost-effective multi-function operation.The speed of the motor can be regulated by the potentiometer, easy to use.

Features:

- This speed controller switch is for 3-Phase brushless motor, and support motor CW CCW

- Stable performance, simple and most cost-effective multi-function operation.

- The speed of the motor can be regulated by the potentiometer, easy to use.

- With wide voltage range, DC5-36v, and protective current is 15A.

- Small size and elegant appearance.

Specifications:

Input voltage: DC5-36v

Output current: <15A

Protective current: 15A

CW CCW: support

Speed regulating mode: potentiometer (270 degree linear)

Speed adjustment range: 0-100%

support for Motor: brushless motor

Connection type: fence type terminal

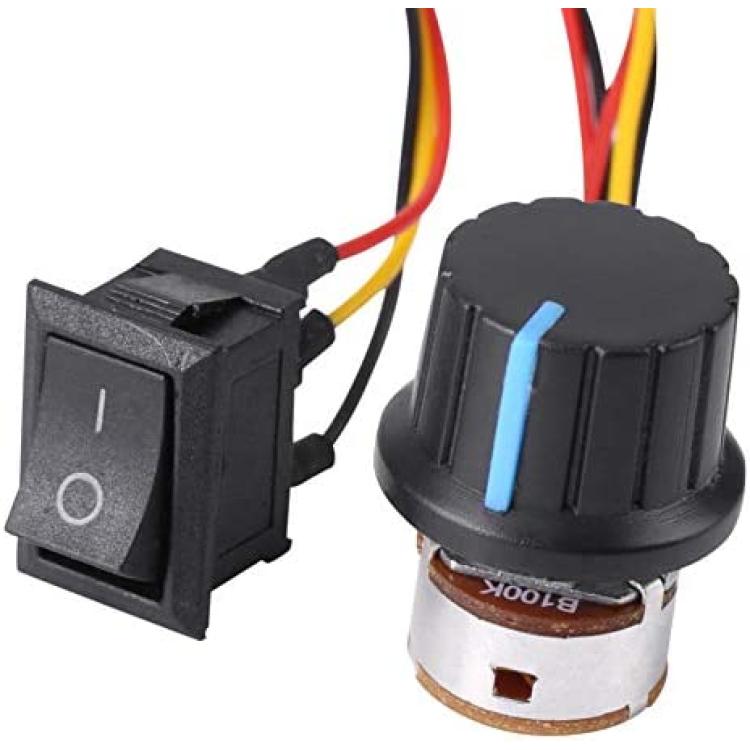

Knob specification: 100K (with switch)

Module size: 8 x 6 x 2.8cm/3.15 x 2.36 x 1.1inch

Weight: 87g

Package Included:

1 x Motor Speed Controller

Note:

1.The input voltage must be divided into positive and negative and cannot enter 220V home power

2.The input voltage shall be equal to the rated voltage of the motor (5-36v).

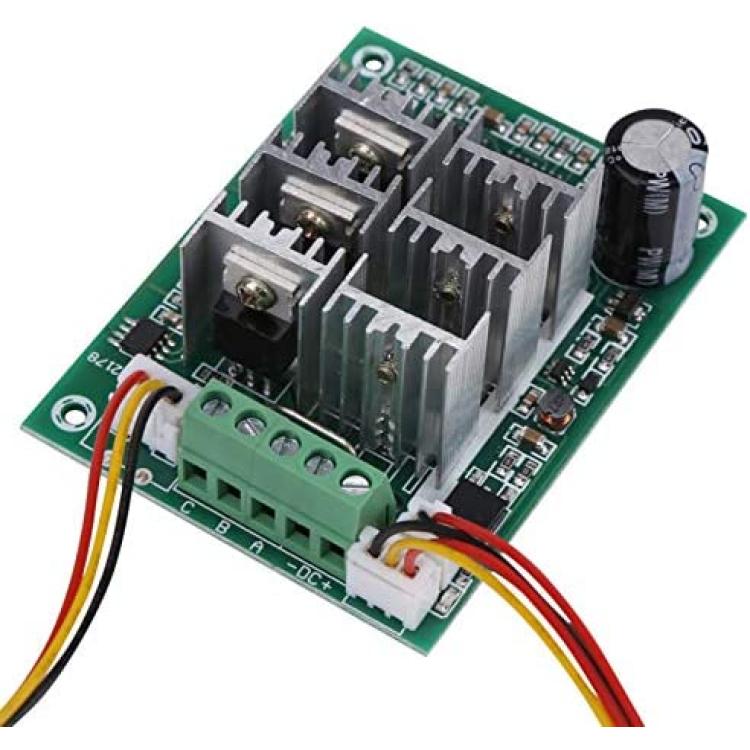

3. Motor line ABC,no sequence of distinction
