ICQUANZX DC 5V-36V 15A 3-Phase Brushless Motor Speed Controller Motor Control Board CW CCW Reversible Switch Motor Driver Control Regulator Module
About this product
*Easy Operation: This DC Brushless Motor Controller is easy to operate, and the speed of the motor can be regulated by the potentiometer, you can adjust it upon your different needs speed, very easy and convenient
*3-Phase Brushless Design: This Brushless Motor Speed Controller is fit for DC brushless 3-Phase motors, and it is support motor CW CCW , you can use it easily
*Excellent Performance: This Motor Speed Switch features with multi-functions to offer a effective performance, it has stable performance, simple and most cost-effective operation, and it also adopts with a protective current design, which will be shut down if over current, no worry about emergency issues happened
*Wide Voltage Range: This 3-Phase Brushless Motor Speed Controller has a wide operation voltage range for wide use, and the range is DC 5-36v, you can use it upon different voltage needs
*Suitable Size: This Brushless Motor Controller designed with a small size and elegant appearance for easy and convenient daily use, no worry about the space limitation, you can install it for different purposes
Description
Descriptions:
This speed controller switch is for 3-Phase brushless motor, and support motor CW CCW, stable performance, simple and most cost-effective multi-function operation.The speed of the motor can be regulated by the potentiometer, easy to use.
Features:
This speed controller switch is for 3-Phase brushless motor, and support motor CW CCW Stable performance, simple and most cost-effective multi-function operation. The speed of the motor can be regulated by the potentiometer, easy to use.
With wide voltage range, DC5-36v, and protective current is 15A. Small size and elegant appearance.
Specifications:
Input voltage: DC5-36v
Output current: <15A
Protective current: 15A
CW CCW: support

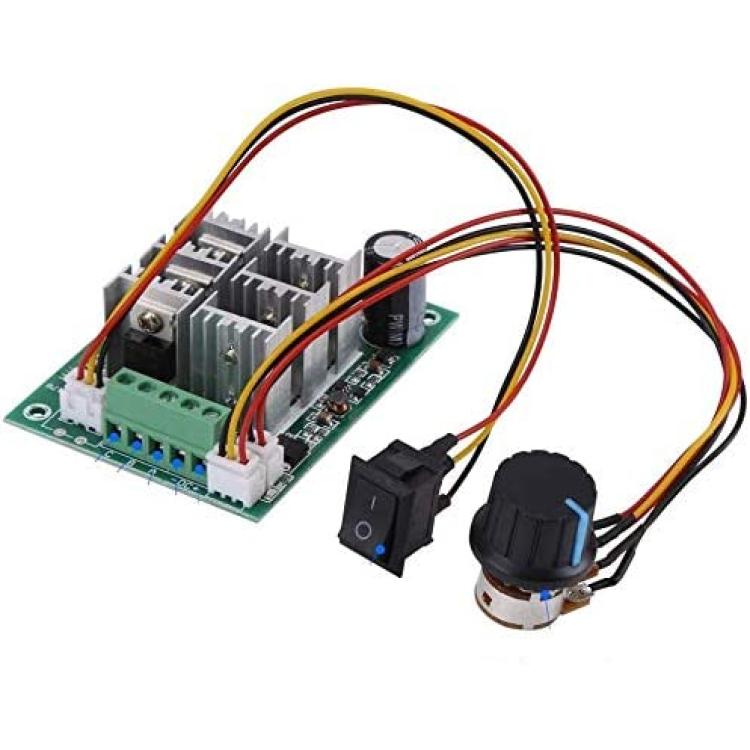

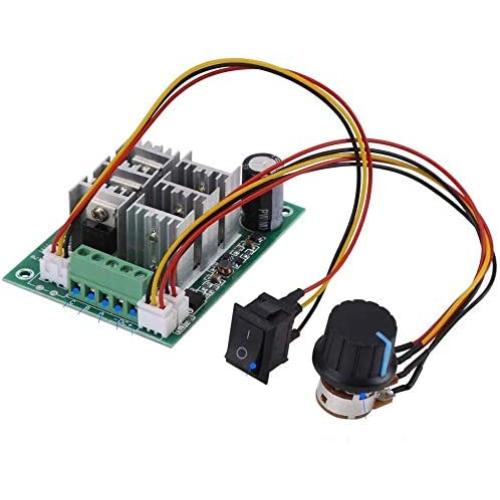

Speed regulating mode: potentiometer (270 degree linear)
Speed adjustment range: 0-100%
support for Motor: brushless motor
Connection type: fence type terminal
Knob specification: 100K (with switch)

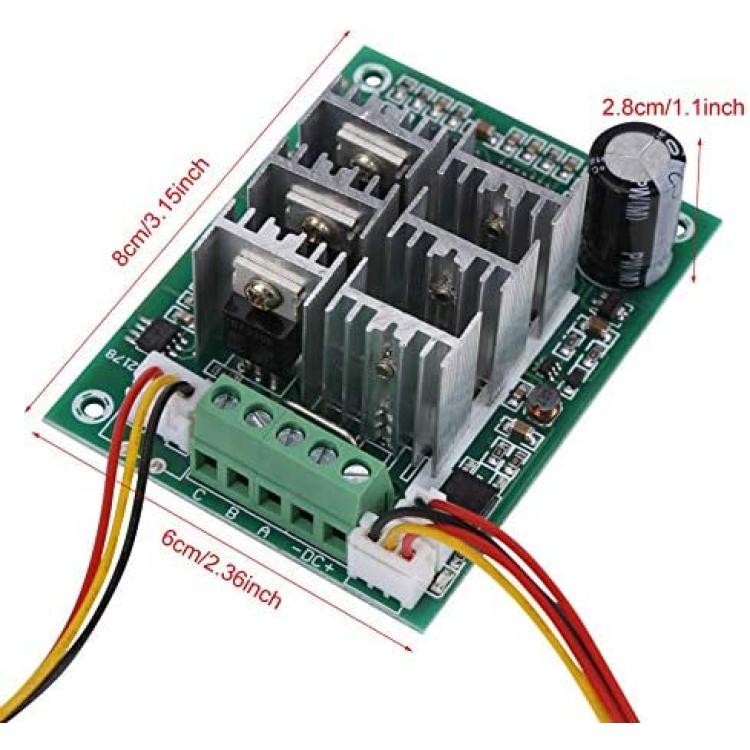

Module size: 8 x 6 x 2.8cm/3.15 x 2.36 x 1.1inch
Weight: 87g
Package Included:
1 x Motor Speed Controller
