Weohoviy DC 5V-36V 15A Brushless Motor Controller, 3-Phase Brushless Motor Speed Controller, Motor Speed Controller, Motor Control Board CW CCW Reversible Switch Motor Driver, Control Regulator Module
Availability: Pre-Order, Inquiry Price
About this product
*♛For Controlling The Dc Motor Speed : This motor speed controller is 15A power speed controller, mainly used for controlling the dc motor speed, easy to operate, and the speed of the motor can be regulated by the potentiometer, you can adjust it upon your different needs speed, very easy and convenient.The input voltage of the DC brushless motor controller is DC5-36v, it has an accuracy circuit design, high efficiency, and high quality, you can use it upon different voltage needs.
*♛Advantage : This speed controller switch is for 3-Phase brushless motor, and support motor CW CCW Stable performance.This Motor Speed Switch features with multi-functions to offer a effective performance, it has stable performance, and it also adopts with a protective current design, which will be shut down if over current.
*♛Brushless Motor Controller Functions : This Motor Speed Switch features with multi-functions to offer a effective performance, it has stable performance, simple and most cost-effective operation, and it also adopts with a protective current design, which will be shut down if over current, no worry about emergency issues happened.
*♛Suitable Size : This Brushless Motor Controller designed with a small size and elegant appearance for easy and convenient daily use, no worry about the space limitation, you can install it for different purposes.This 3-Phase Brushless Motor Speed Controller has a wide operation voltage range for wide use, and the range is DC 5-36v.
*♛Strict Quality Control : Each of our products are manufactured in strict accordance with standard specifications. We have a set of quality control system to ensure that the products are of high quality. At the same time, we will only ship products if they are in good condition. You can buy with confidence.
Description
Descriptions:
This speed controller switch is for 3-Phase brushless motor, and support motor CW CCW, stable performance, simple and most cost-effective multi-function operation.The speed of the motor can be regulated by the potentiometer, easy to use.
Features:
This speed controller switch is for 3-Phase brushless motor, and support motor CW CCW
Stable performance, simple and most cost-effective multi-function operation.
The speed of the motor can be regulated by the potentiometer, easy to use.
With wide voltage range, DC5-36v, and protective current is 15A.
Small size and elegant appearance.
Specifications:
Input voltage: DC5-36v
Output current: <15A
Protective current: 15A
CW CCW: support
Speed regulating mode: potentiometer (270 degree linear)
Speed adjustment range: 0-100%
support for Motor: brushless motor
Connection type: fence type terminal
Knob specification: 100K (with switch)
Module size: Approx. 8 x 6 x 2.8cm/3.15 x 2.36 x 1.1inch
Weight: 87g
Package Included:
1 x Motor Speed Controller
Note:
1.The input voltage must be divided into positive and negative and cannot enter 220V home power
2.The input voltage shall be equal to the rated voltage of the motor (5-36v).

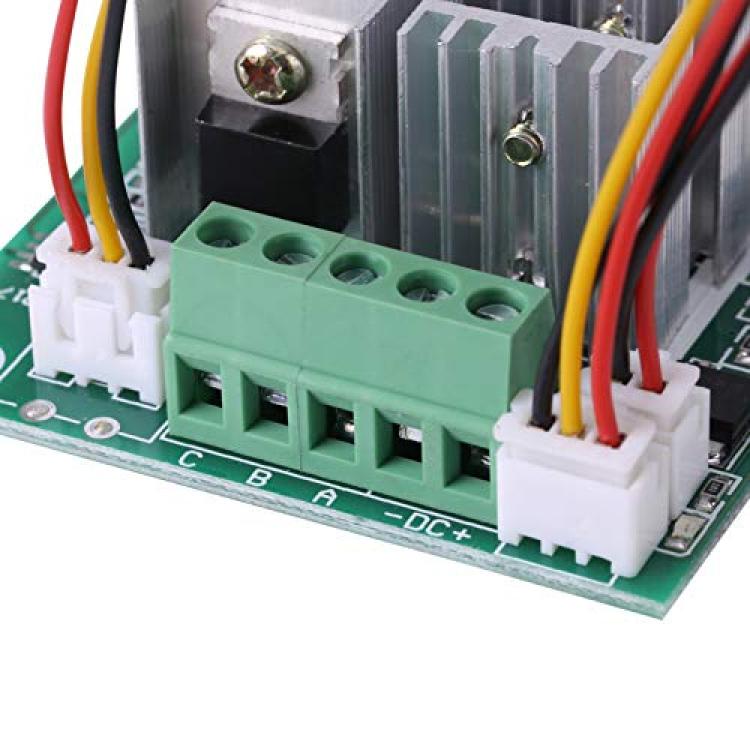

3. Motor line ABC,no sequence of distinction

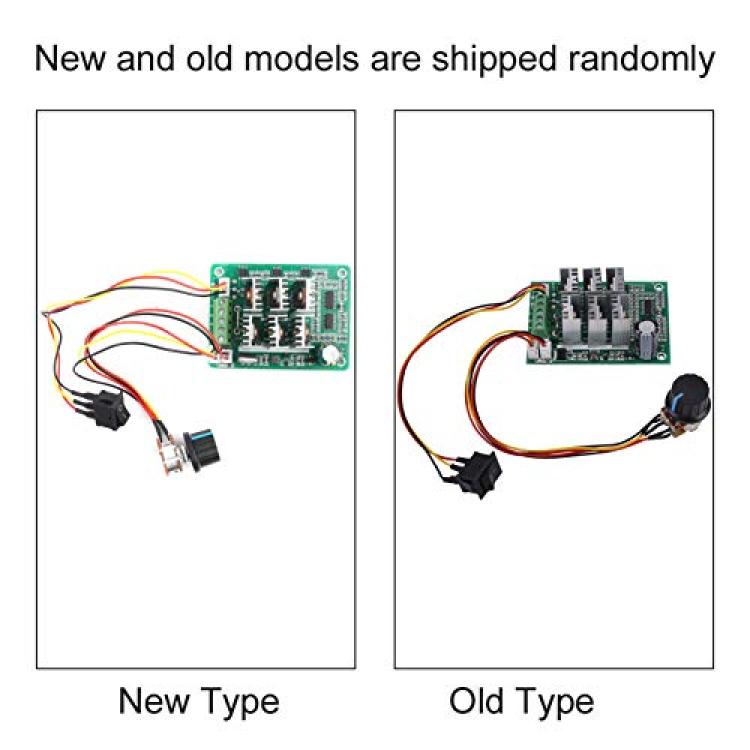

4. Please note that the new type and old type of this product will be sent randomly and make sure you will not mind before ordering.
