DC48V-500W WS55-220 Brushless Spindle BLDC Motor Drive CNC Controller Board Module
Availability: Pre-Order, Inquiry Price
About this product
*【HIGH PERFORMANCE】WS55-220 is a high performance,cost-effective 3 phase BLDC motor controller.Voltage range is from 20VDC to 50VDC.
*【CONVENIENT TO USE】The controller can drive the DLDC motor with HALL or without HALL, which can be very convenient and suitable for your using.
*【OPERATING PRINCIPLE】The driver is based on advanced technology and be provided with high speed, high torque, low noise, low vibration, over current protection, overload protection, less phase line. protection, phase line short protection, alarm output, speed signal output,
*【MULTIPLE APPLICATION】This controller can be used in small equipment, Electric Power Tools, exhaust Fan, Jade grinding machine, Vibrating motor etc.
*【MAIN FUNCTION】: when the motor stops running, the standby current is automatically reduced to half of the working current, which can reduce the heat of the driver.
Description
Features:

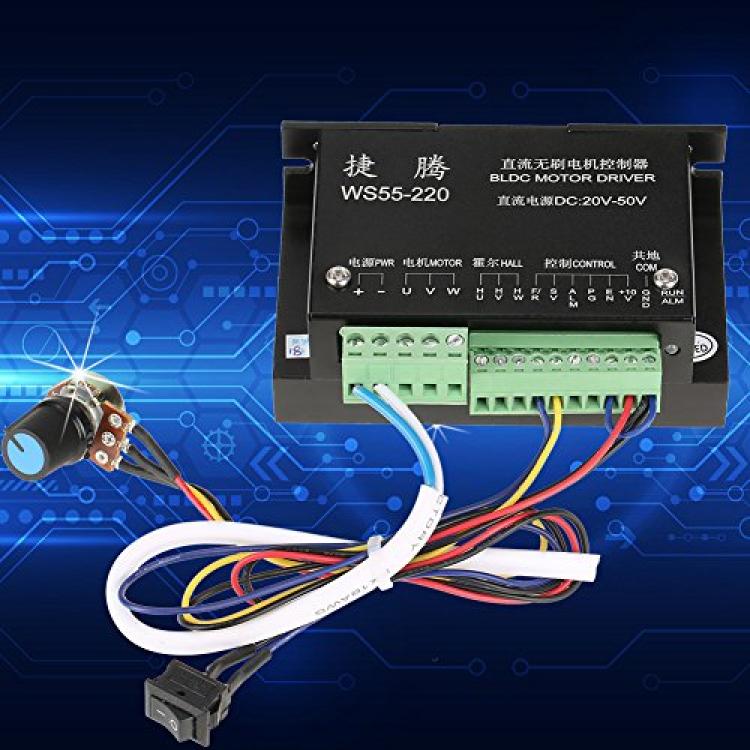

WS55-220 is a high performance,cost-effective 3 phase BLDC motor controller.Voltage range is from 20VDC to 50VDC.
The controller can drive the DLDC motor with HALL or without HALL.
The driver is based on advanced technology and be provided with high speed, high torque, low noise, low vibration, over current protection, overload protection, less phase line. protection, phase line short protection, alarm output, speed signal output, positive negative rotation control etc.
This controller can be used in small equipment, Electric Power Tools, exhaust Fan, Jade grinding machine, Vibrating motor etc.

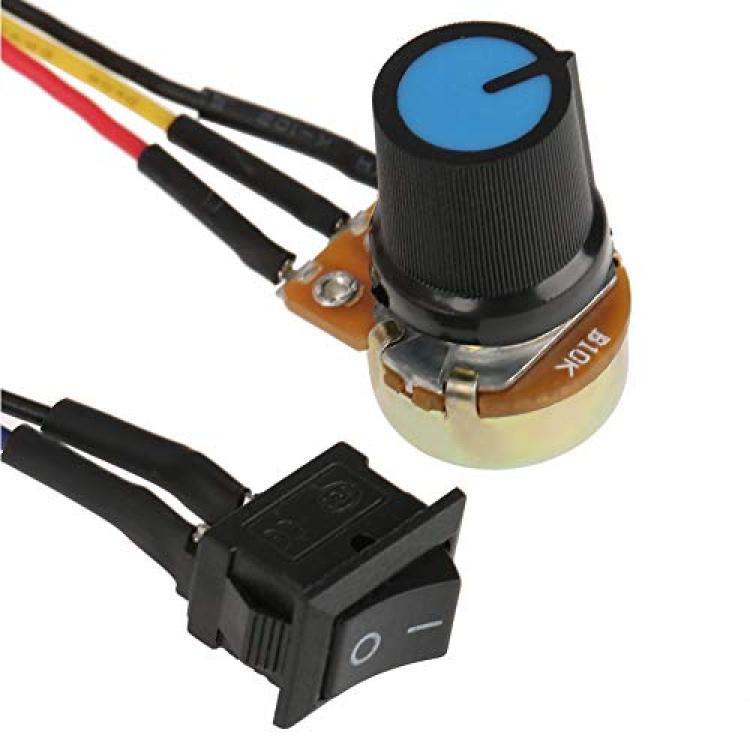

External potentiometer control/external voltage control. With overvoltage protection, over-current protection, locked-rotor protection.
Specifications:
Rated voltage: 20 to 50 VDC
Rated current: 12A
Current limiting: 15A
Maximum speed: 20000RPM( the specific speed depends on the motor itself and load)
Storage temperature: -20~+65
Usage environment: Avoid direct contact with dust, fumes and corrosive gases
Temperature: 0-45
Humidity: < 80%, no frost, frost free
Shock: 5.9m/S2 MAX
Storage humidity: 0~95%RH
Size: 9.5 * 6 * 3.5cm / 3.74 * 2.36 * 1.38inch
Weight: 258g
Package included:

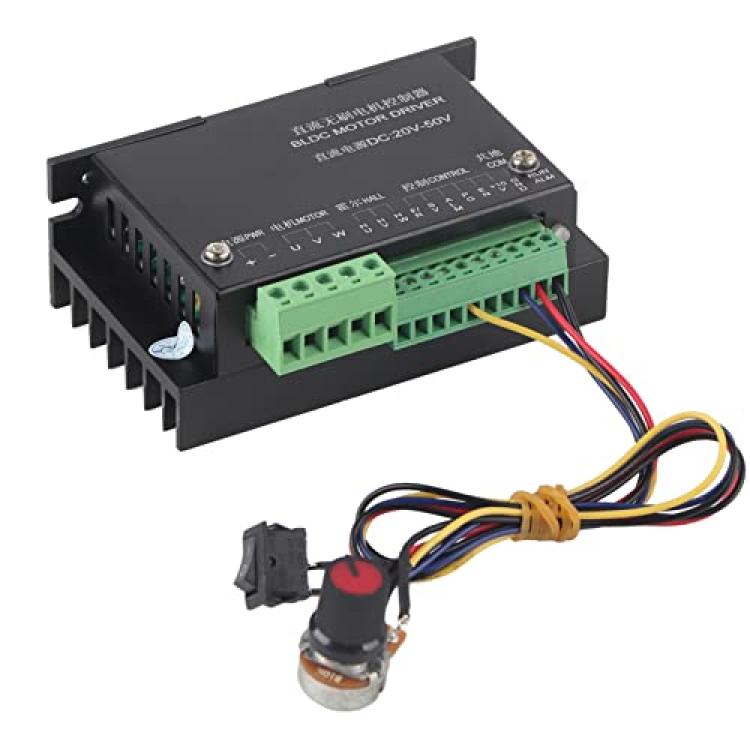

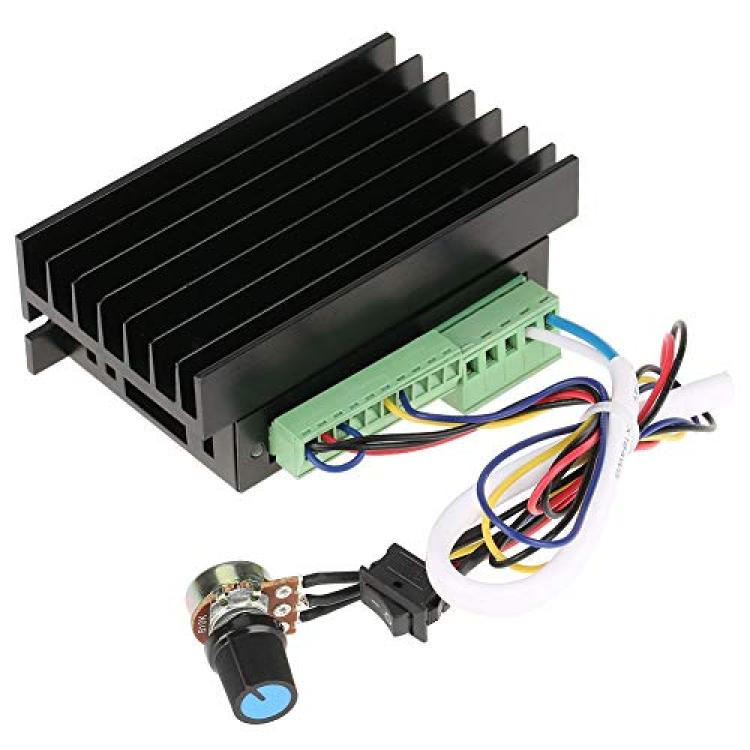

1 x Motor Driver Controller with cable

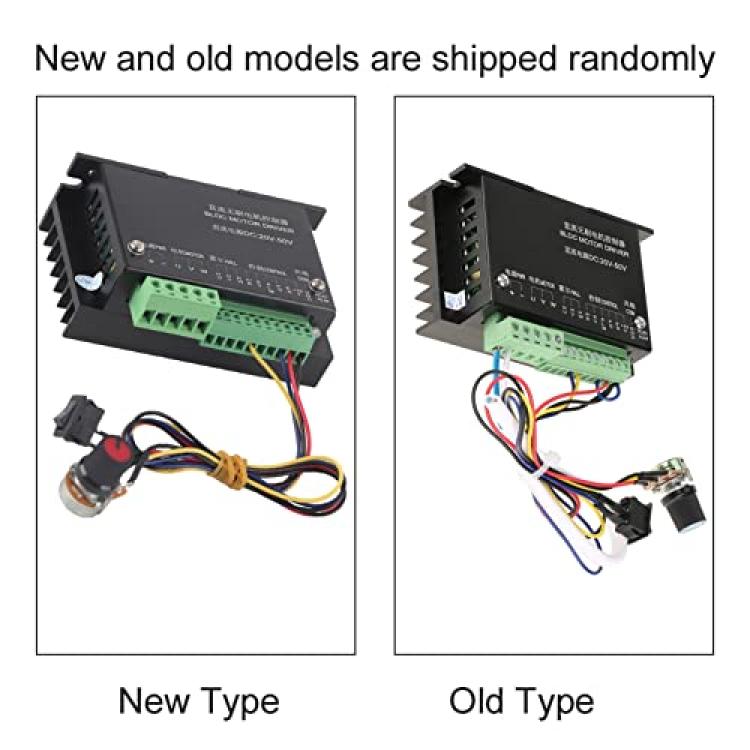

Please note that the new and old type of this product will be sent randomly, and make sure you will not mind before ordering.
