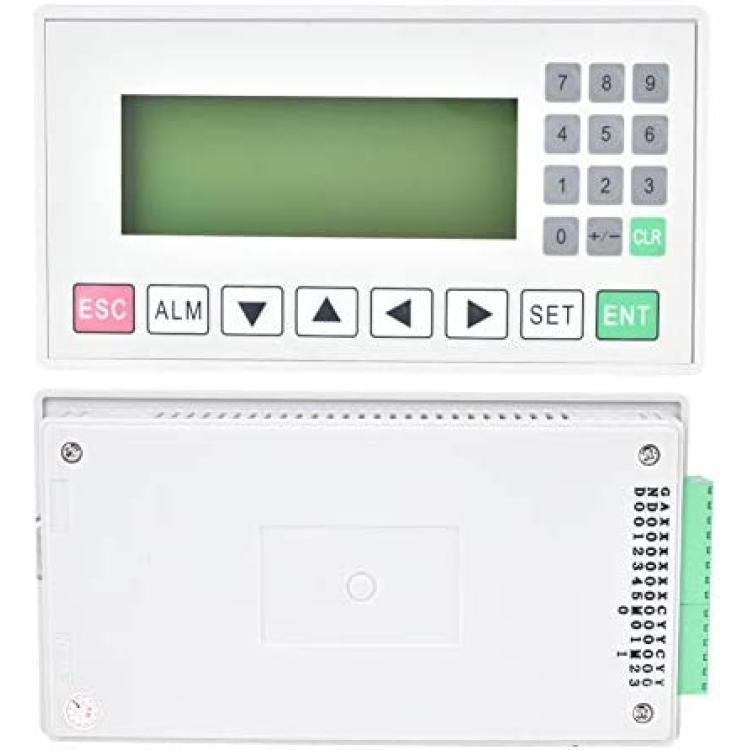

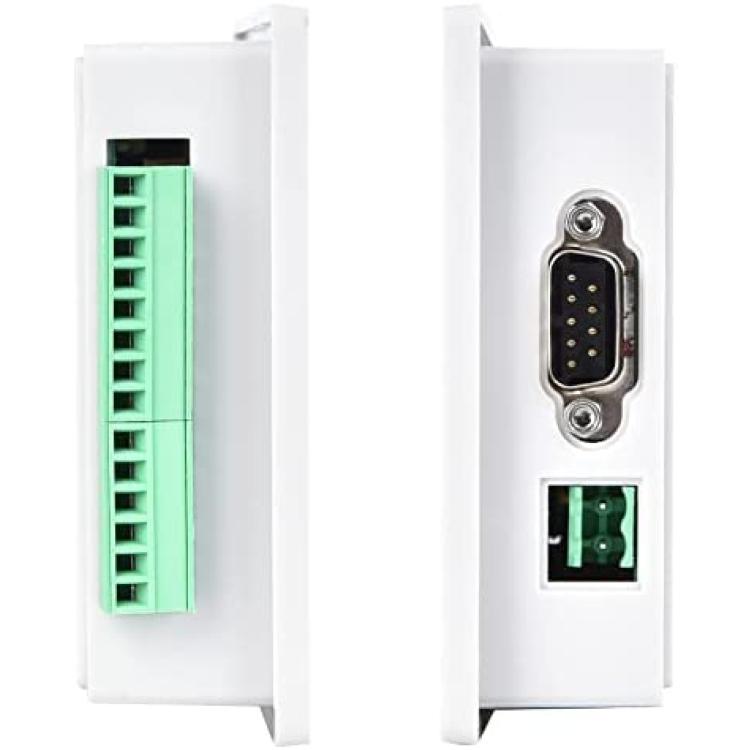

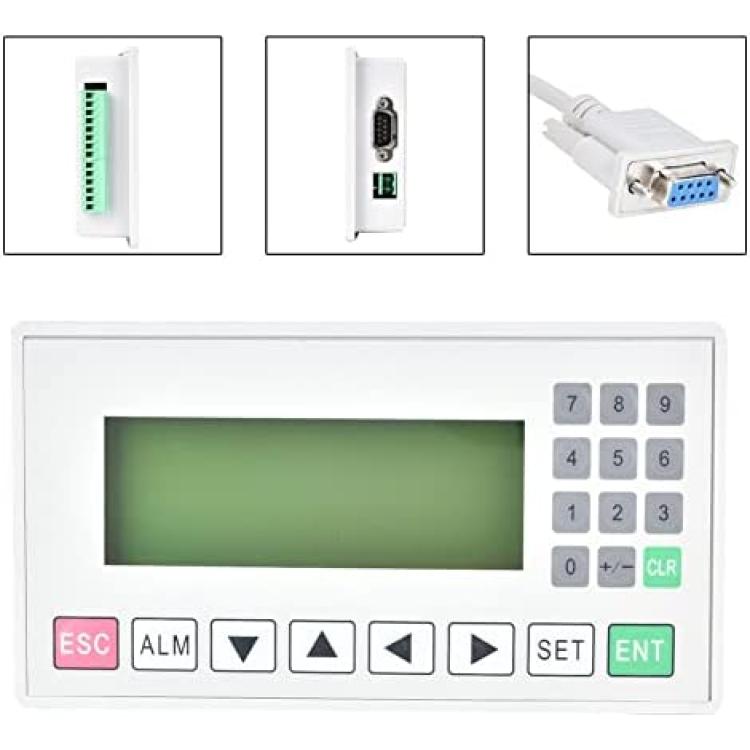

WagNian PLC All-in-one Controller,OP320- A-1-10MR, DC 24V Machine Operate Text Display Panel, 20 Keys Relay Output, LCD Screen Stepper Motor Control for CNC Router Engraving Milling, White, Standard
About this product
*Specification: 1 Pcs Display Panel, OP320- A&1-10MR Model, 6 points Input Points, 4 points Output Points, DC24V Supply Voltage, 5A Output Current, 8,000 steps Memory Capacity
*ABS Material: PLC controller shell is made of high-quality ABS material, lightweight, wear-resistant and compressive, and has high toughness, dual protections of waterproof and dustproof

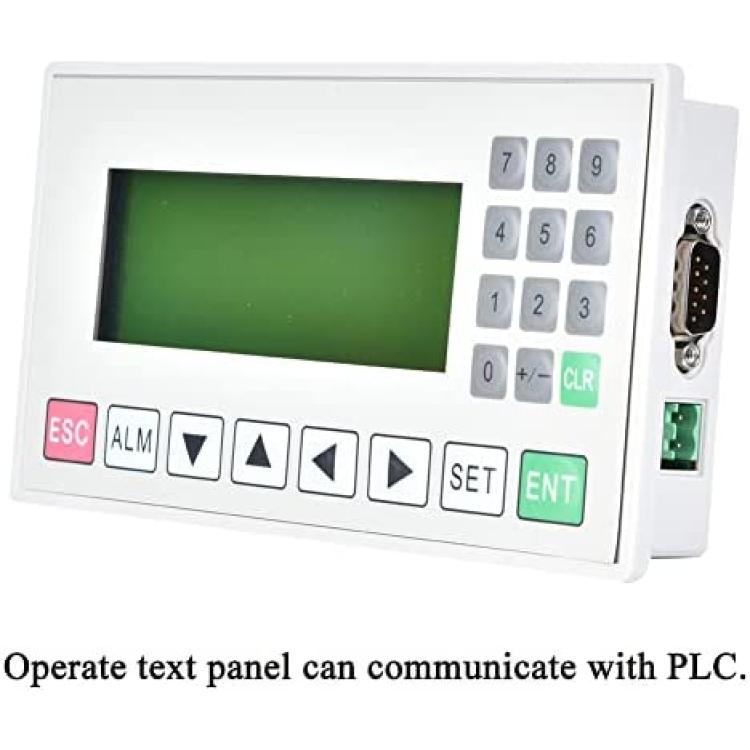

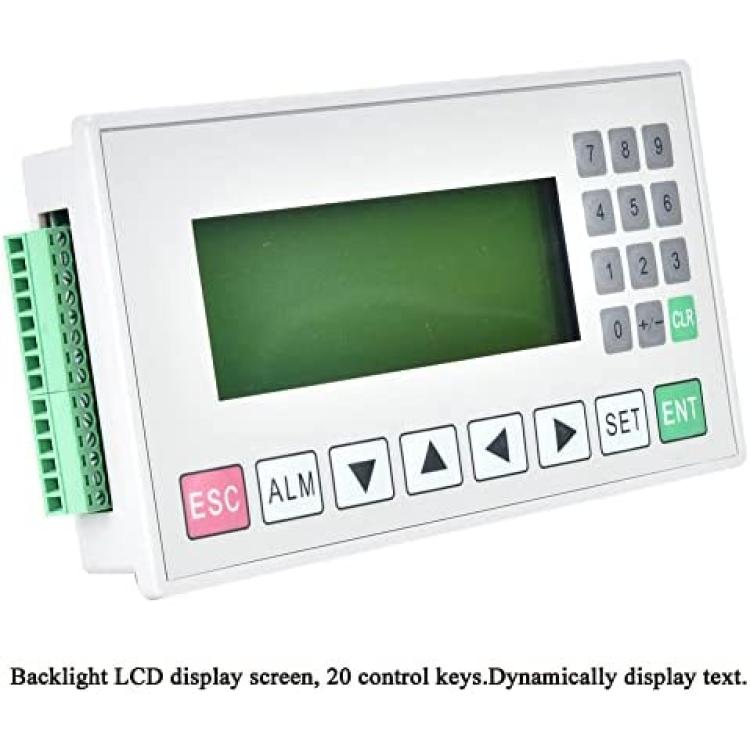

*PLC All-in-one Controller: Operate text panel display panel controller can communicate with PLC, Backlight LCD display screen, 20 control keys, Dynamically display text, Not support pulse output
*Easy to Install:PLC Controller appearance is small and light, With stable performance, which can be installed and disassembled quickly and easily, the relay can also be easy to operate and widely used
*Quality Service: We use our best efforts to provide you with the best quality stepper motor controller and the best customer experience. If you are not completely satisfied, please feel free to contact us by email, thank you
Description

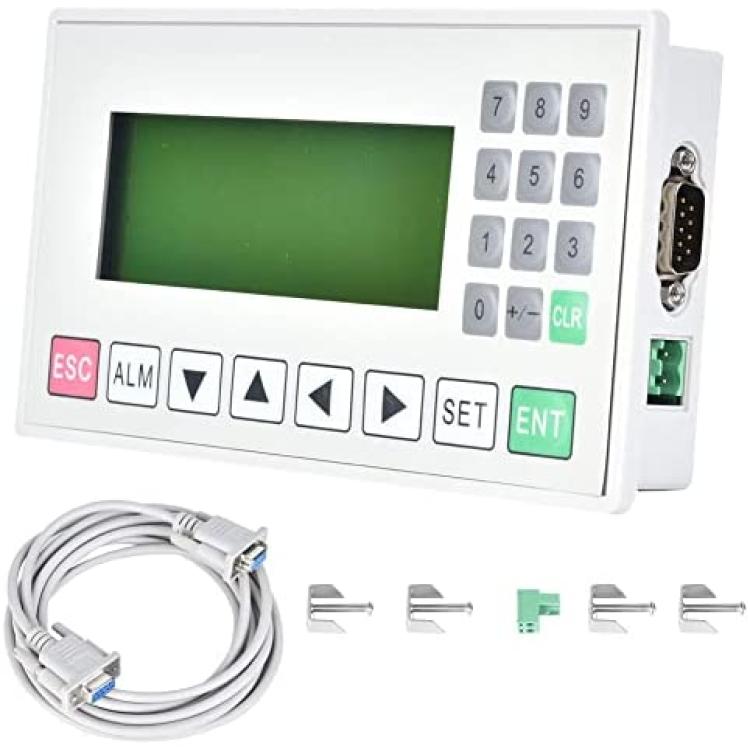

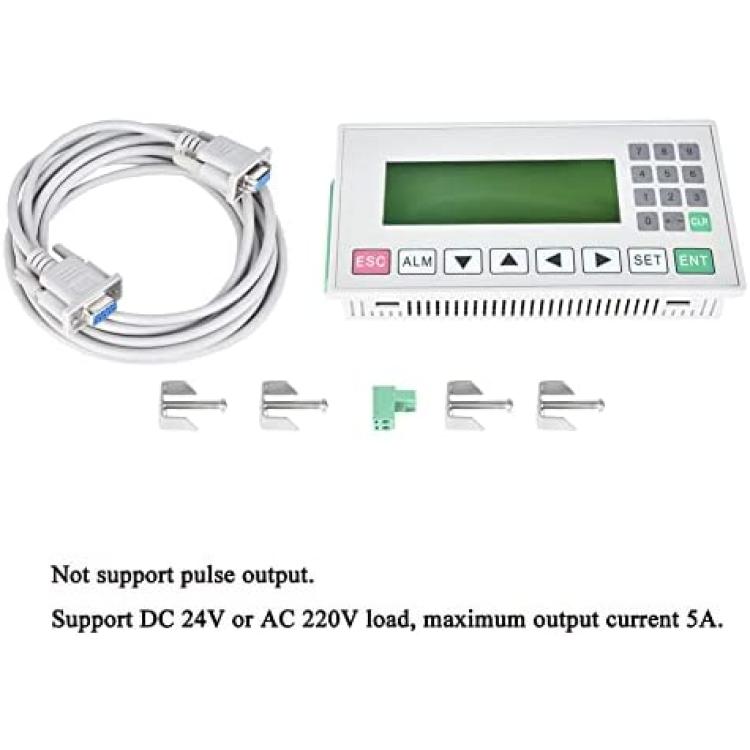

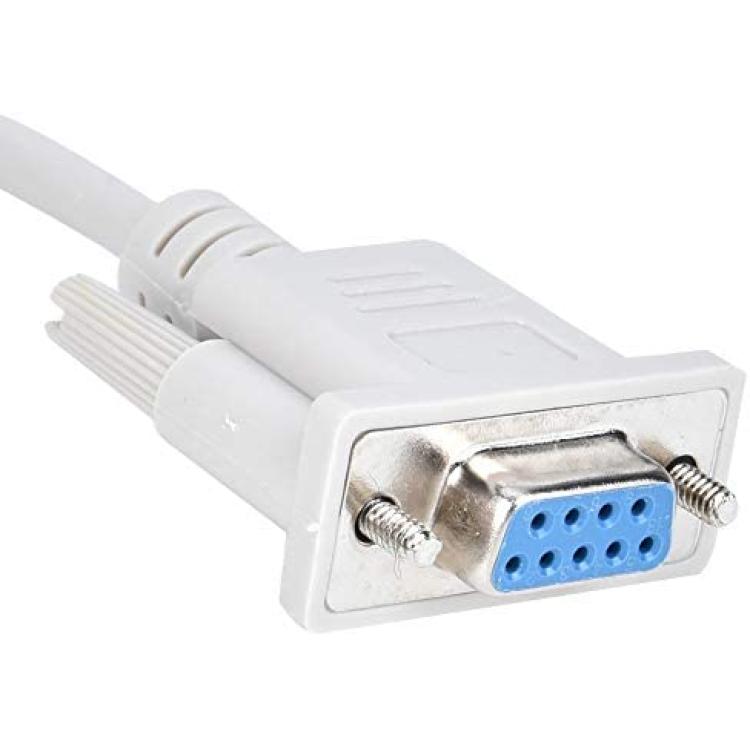

Features:This operate text panel can communicate with PLC.Backlight LCD display screen, 20 control keys.Dynamically display text.Not support pulse output.Support DC 24V or AC 220V load, maximum output current 5A.Specification:Model: OP320- A&1-10MROutput Type: Relay OutputInput Points: 6 pointsOutput Points: 4 pointsSupply Voltage: DC24VOutput Current: 5AAnalog Input: 1ADAnalog Output: NoneHigh-Speed Counting: 2 channel 3KPulse Output: NoneFloating Point: Not supportedStepper Motor: SupportMemory Capacity: 8,000 stepsDownload Method: Direct downloadRS485 Communication Port: NoneMODBUS: NoneText Programming Software: For XINJE OP320-8.0PLC Programming Software: For GX Developer or GX WorksPackage List:1 x Display Panel1 x Cable1 x Terminal4 Set of Metal AccessoriesNote:1. Please allow a small amount of error due to manual measurement, thanks for your understanding.2. Monitors are not calibrated the same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.3. If you have any questions, you can send us an email, you are welcome
