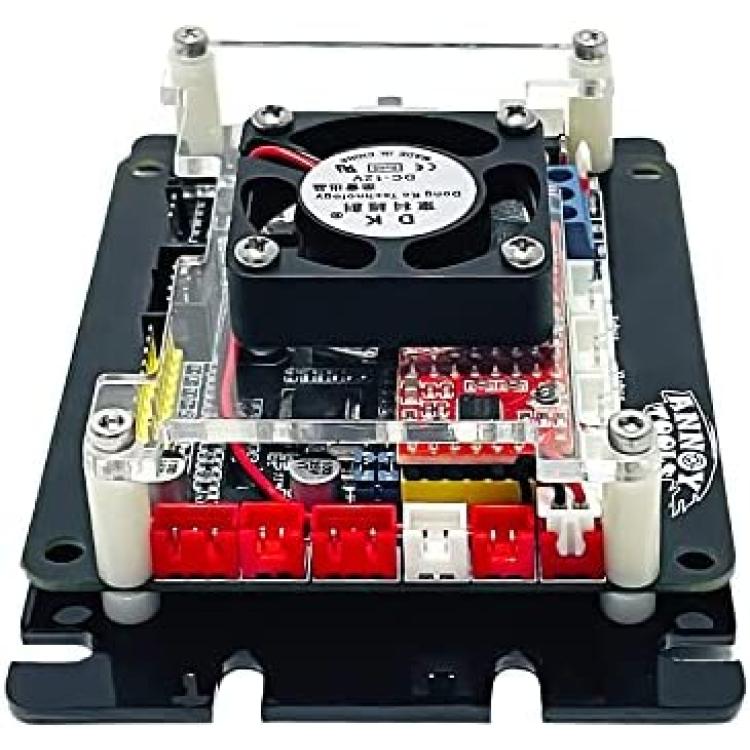

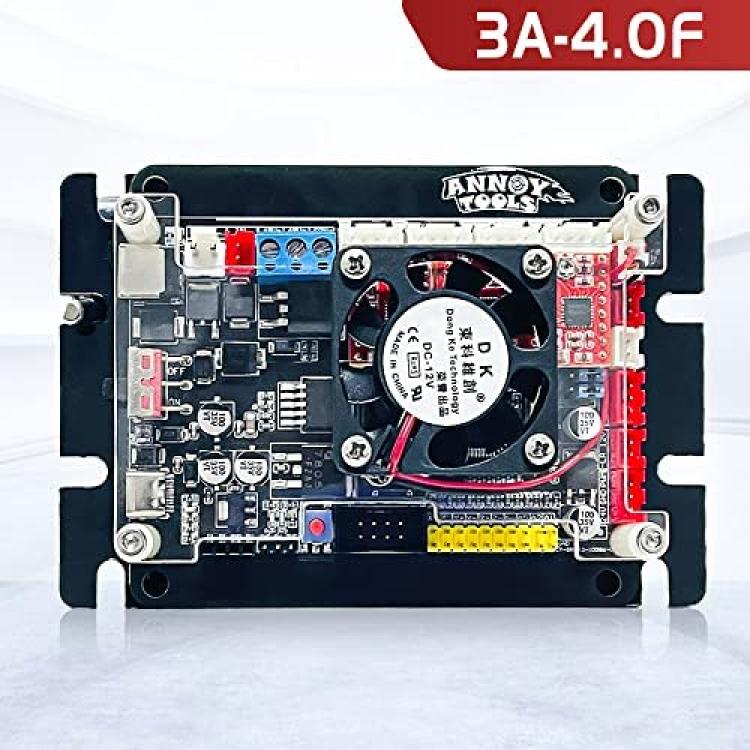

3-Axis 32-bit ARM Based CNC Controller,GRBL 1.1F USB Port CNC Engraving Machine Control Board with Fan Cooling,Support 500W Spindle/NEMA23 Stepper Motor/Laser (with Fan)
About this product
*Model:3 Axis GRBL 1.1F USB Port GRBL Control Board;ARM 32-Bit;Input voltage: 12-24VDC .CNC Router Engraver Milling Machine Controller board
*Compatibility: support 12V/24V laser, TTL/PWM modulation signal, 3P interface and 2P+2P interface; support 775 motor, 200W/300W/500W spindle; support dual Y-axis use, three-axis and two-axis switching use; support X/Y/Z limit switch, Z-axis probe, emergency stop switch
*Support software：LaserGRBL/Lightburn/Candle(3 axis)/Universal Gcode Sender; Support System: Windows XP/7/8/10.
*Support stepper motor: 12V, within 2A maximum current, within 1.5A recommended. (Stepper motor 42, 57).⚠️Please check the wire sequence when connecting the stepper motor, the wire sequence may be different for different motors, wrong connection may burn the motor and the motherboard.
*Tip: Before you connect the motherboard, please carefully check the need to connect the device wire sequence (laser, motor) to prevent a mismatch of wire sequence, burn the device. Customer service 24H online, to provide you with help.
Description

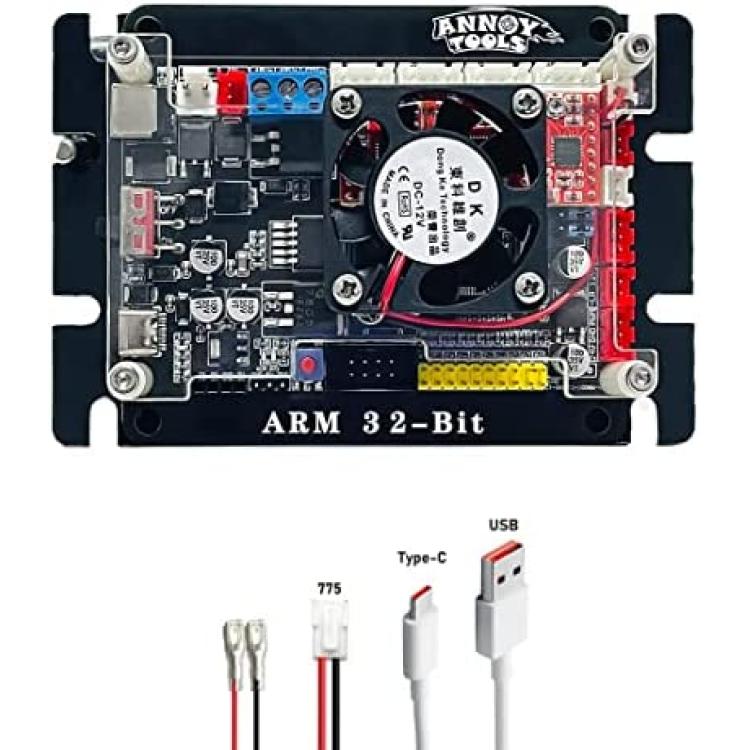

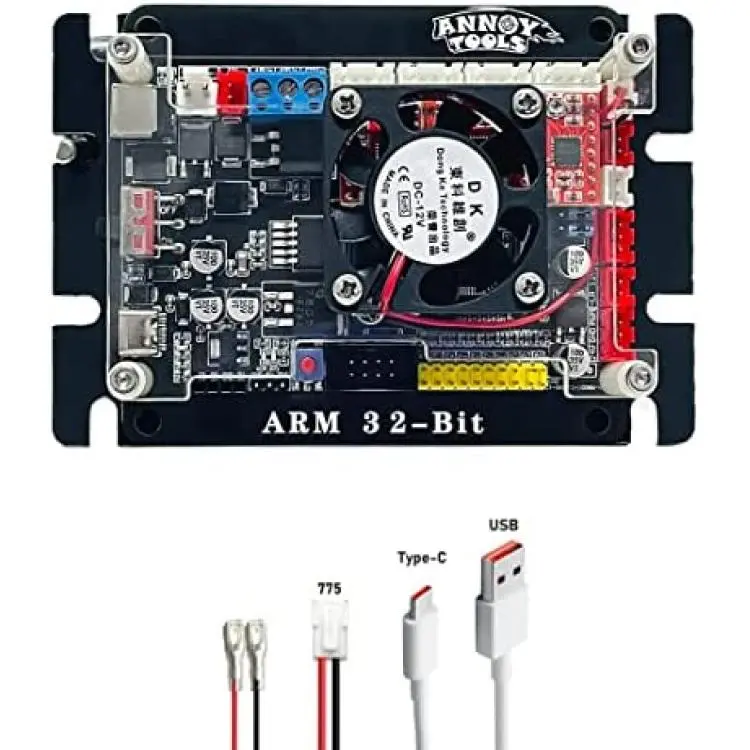

- Support XYZ axis, dual Y axis, all-round use, - Built-in 3 A4988 drivers, directly connected to 4-wire stepper motors. - Supports laser or spindle. - Supports 12V, 5V with TTL and non-TTL lasers. - Adjustable drive unit (version 4.0 only) - Support x/y/z limit switch, probe interface. - Supports external standalone controller (optional). - The A4988 can be replaced with the 8825 drivers. -Supports x, y, z limit switches - Installation firmware GRBL 1.1 - Support 2pin / 3pin / 4pin laser (all tpye lasers on the market) - Support voltage: 0-48V (spindle 300W/400W/500W) -Connection type:USB Type C Nano 3Axis control board is a 3-axis motion control system based on Arduino Nano, which can be used Suitable for laser engraving machines, telescoping machines, CNC engraving machine, etc. Packing list? 1*control board 1*USB Typ-c data cable 1*775 motor connection cable
