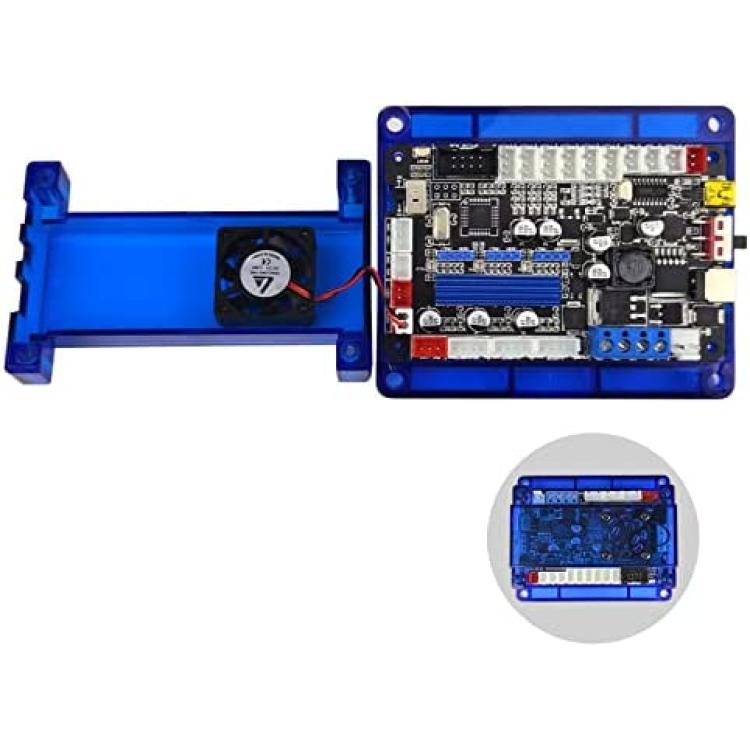

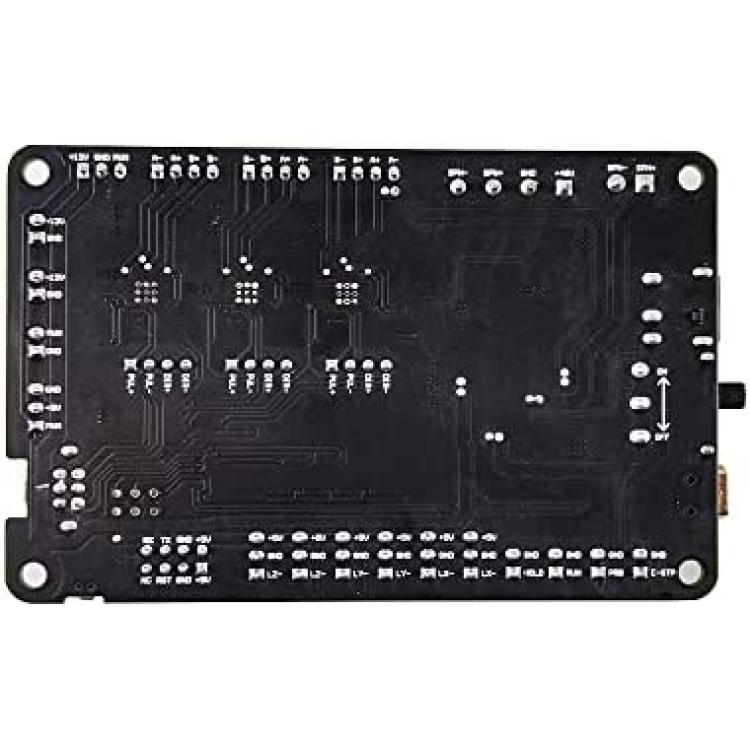

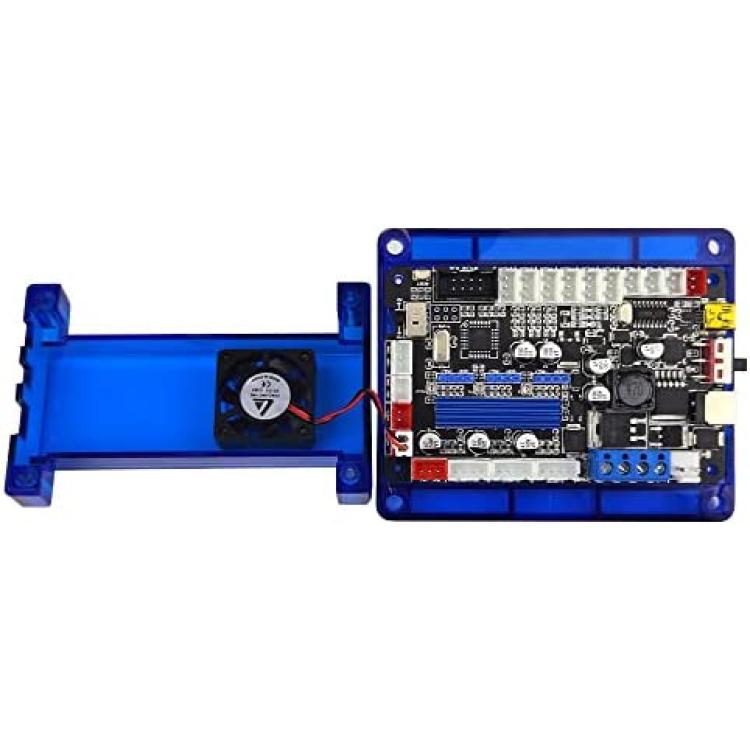

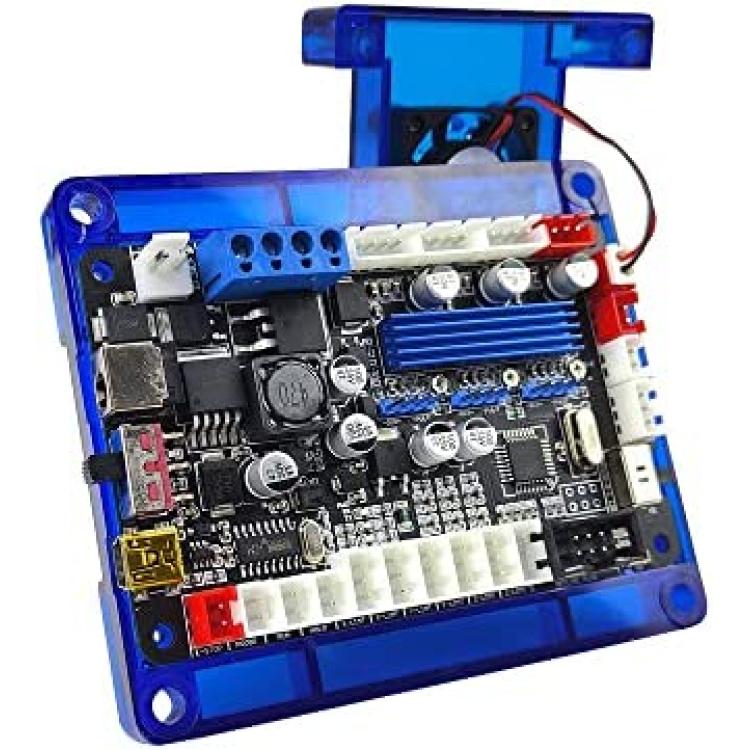

ANNOYTOOLS GRBL 1.1f 32-Bit CNC Control Board for 3018/3018Pro CNC Milling Machine Laser Engraving Machine, Maximum Support 48V 500W Spindle, 3-Axis Control Board Integrated Driver Controller Card
About this product
*Switching for XYY / XYZ axis switching, power switch switching, safe and efficient.
*GRBL 1.1f 32-Bit Controller Control Board;Integrated drive to prevent chip short circuit, integrated heat sink.
*Support: stand-alone controller, external powerful drive, emergency stop, reset, continue, pause, limit switch interface, which can meet different needs.
*Both the data transmission chip and the main control chip use an external crystal oscillator, the transmission operation is more stable.
*Acrylic case, beautiful appearance, protects your motherboard. Used for laser engraving, box, CNC engraving machine, etc.
Description
Control system: GRBL
Software support: Candle (3 axis); laserGRBL (laser)
System support: Windows XP; 7/8/10
Port: USB port
Laser: 12V 0-5A, optional 3P / 4P, 12V TTL / PWM interface
Spindle: 0-48V 0-500W
Power input: DC7-36V
Friendly reminder:
1. Spindle motor and laser cannot be connected at the same time
2. Offline control board and data cable cannot be connected at the same time
3. Turn on the power after completing the electrical connection.
4. Positive and negative input power should not be changed and the reverse connection will be lit
5. The 48V DC interface cannot be connected to the switching power supply, and the voltage that can be transmitted through the DC side of the control board cannot be more than 5A.
