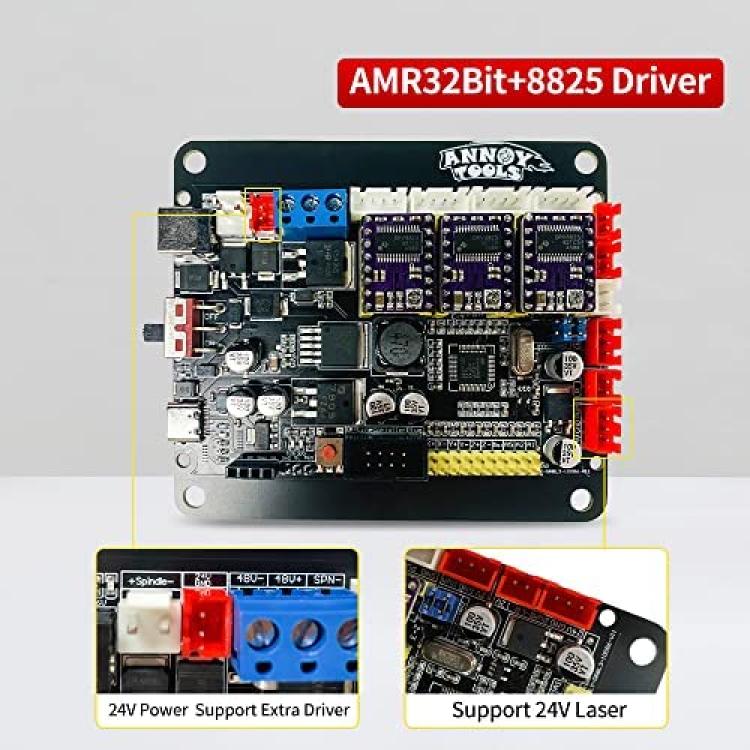

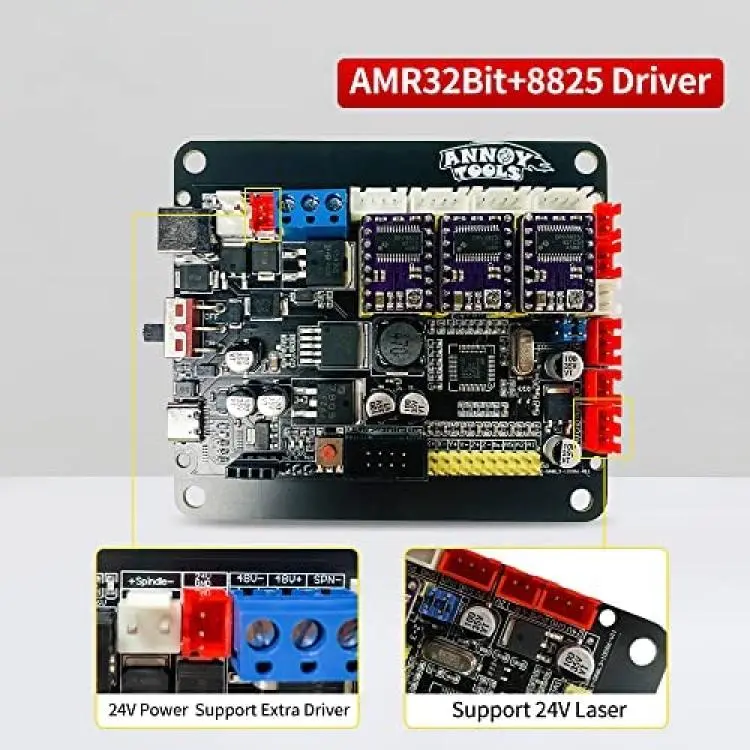

ANNOYTOOLS ARM 32-bit 3-Axis CNC Controller,GRBL 1.1F USB Port CNC Engraving Machine Control Board with Fan Cooling DRV8825 Standalone Driver,Support 500W Spindle/NEMA17/23 Stepper Motor/Laser Module
About this product
*Model:3 Axis GRBL 1.1F USB Port GRBL Control Board;ARM 32-Bit;Input voltage: 12-24VDC .CNC Router Engraver Milling Machine Controller board
*Compatibility: support 12V/24V laser, TTL/PWM modulation signal, 3P interface and 2P+2P interface; support 775 motor, 200W/300W/500W spindle; support dual Y-axis use, three-axis and two-axis switching use; support X/Y/Z limit switch, Z-axis probe, emergency stop switch
*Support stepper motor: 12V, within 2A maximum current, within 1.5A recommended. (Stepper motor 42, 57).⚠️Please check the wire sequence when connecting the stepper motor, the wire sequence may be different for different motors, wrong connection may burn the motor and the motherboard.
*Support software：LaserGRBL/Lightburn/Candle(3 axis)/Universal Gcode Sender;Support System: Windows XP/7/8/10.
*Tip: Before you connect the motherboard, please carefully check the need to connect the device wire sequence (laser, motor) to prevent a mismatch of wire sequence, burn the device. Customer service 24H online, to provide you with help.
Description
Product:
--Double y-axis, all-round use
--Integrated 3pcs DRV8825 drivers, directly connect to four wire stepper motor.
--Support Laser or Spindle.
--Support 12V, 5V with TTL and without TTL laser.
--Adjustable driver subdivision.
--Support the x/y/z limit switch, probe interface.
--Support external Offline Controller(Optional).
--Support X,Y,Z limit switch
Nano 3Axis Control Board is a Arduino Nano based 3 Axises Motion control system, can be used
for Laser Engraving machine, Drawer Machine, CNC Engraving Machine etc.
Packing List:
1*Controller
1*USB cable
1*775 motor line
-- Contact us get the software
