AC 85V 110V 220V 250V Wireless Remote Control Switch 220V Universal 4 Channel 10A Remote Receiver Module, 433MHz Remote Control for Garage Control, Motor, Lights & More
About this product
*Wireless control, easy to install. The wireless receiving controller, with high confidentiality, stable performance, Can be connected with manual switch, DIP switch for change working model.
*Application:Lamps, Pumps, Motors, Fans,Various types of electrical equipment (for home use, power up to 1000 watts Electrical appliances).
*Wireless RF signal can pass through walls, floors, doors or windows. You can use two or more units in the same place. You can turn on/ off the receiver with transmitter from any place within a reliable distance(Max range is up to 164ft/50m with no obstacle).
*4 Channel Wireless Remote Control , Adjustable working model, on/off. Switch Momentary/Toggle/Latched. All remote control switch kits support 433mhz frequency
*Learning code has high-level security for its low repetitive rate and re-learn mode, by which it can delete the old code and re-learn a new code when a remote control get lost, so you are always in control of it. NOTE: Please email us if you meet any problem, we are always here to help, thanks!
Description
About Receiver:
Model No.: AK-KZ04JM
1.Working voltage: AC85-250V
2.Working manner: RF+manual control
3.Working temperature: -40 Degree +80 Degree
4.Receiver sensitivity: more than -110dBm
5.Working frequency: 433mhz

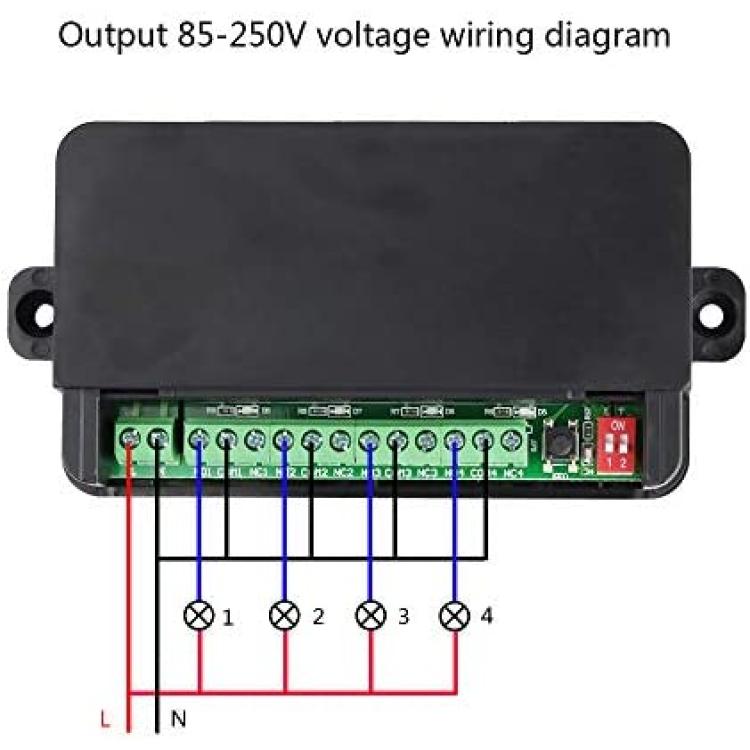

6.Output voltage: signal output and AC option
7.Output current: Less than 10A
8.Size: 131 x 67 x 25mm
About Working way:

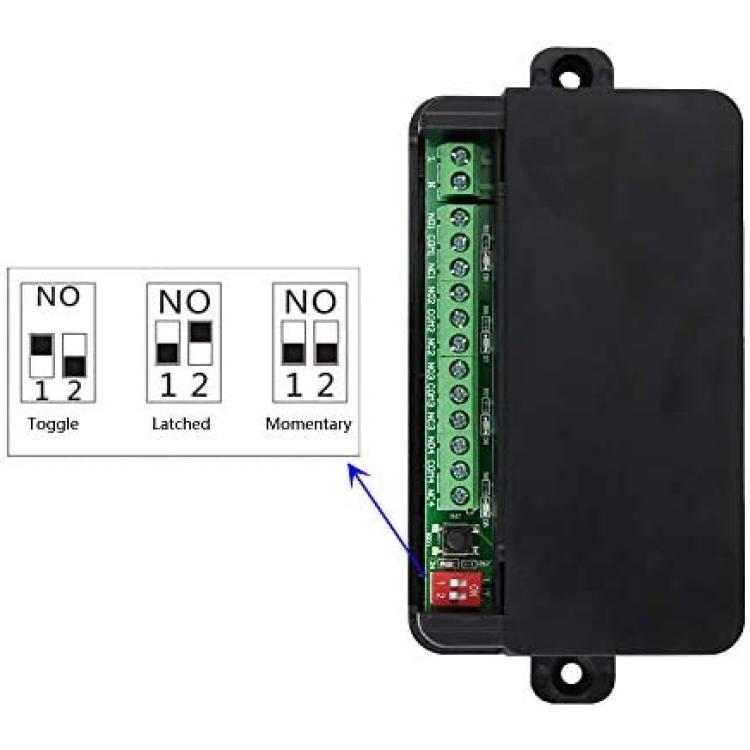

Working way changed by DIP switch
Momentary: 1,2 position default
Relay: Press and hold -> On; Release -> Off.
Toggle: 1 on position ,2 position default
Relay: Press -> On; Press same button again -> Off·
Latched: 2 on position ,1 position default
Relay: Press -> On; Press other button -> Off.
About Learning and clearing Method:
Learning:Press learning button, the indicator flash 1 time, loosen finger, press any button of the remote transmitter, indicator flashes three times, meaning learning succeeds.
Clearning: Hold press learning button about 5-8 seconds,,indicator flash four times, it means clearning code successful.
About Transmitter:
1.Buttons: 4 Buttons
2.Working Voltage:DC12V (1PCS 23A Battery)
3.Operating frequency :433MHz
4.Remote Distance: 20-50M
5.Operating Current: 13 mAh
6.Encode: Fixed code / EV1527 code
7.Size: 5.2 x 3.0 x 1.4cm

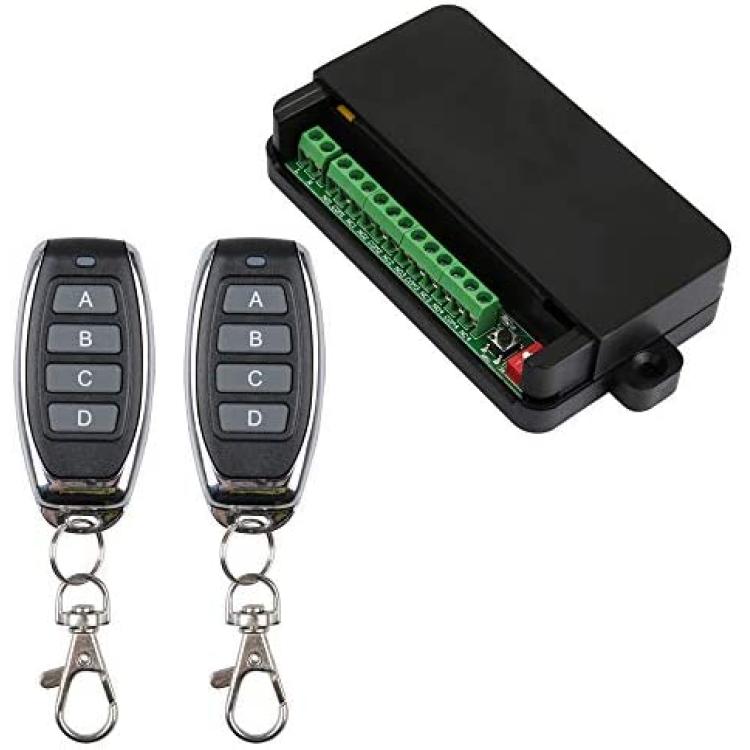

Package Includes
2 x Transmitters
1 x Receiver
1 x User Manual
