Mangood AC 85V 110V 120V 220V 250V 2 Channel Motor Forwards and Reverse Remote Switch Motor Remote Control 433MHz Wireless Switch Transmitter with Receiver Learning Code (Black 2X Control 433Mhz)
About this product
*【2 Channel for Wireless Control 】the remote switch is a learning switch, One/several transmitters can control one/several receivers simultaneously.They do not interfere with each other Out State: Momentary Latched Adjusted by the Jumper on the Receiver
*【Easy to Use 】We have made transmitter and receiver working together and test it before ship it,when you get it dont need to do anything ,just install it.

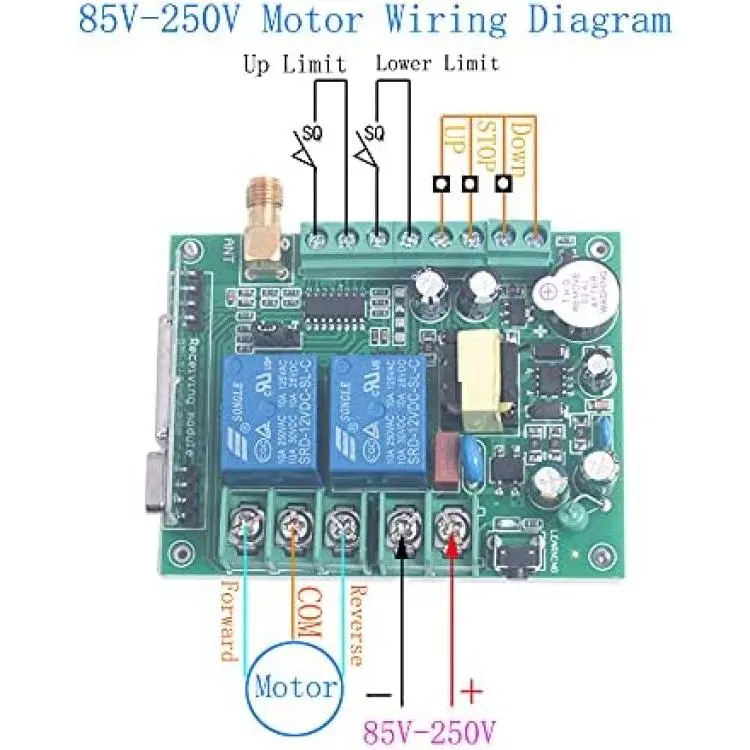

*【Wide Range Voltage】This is a wide voltage 85-250v 2-Channel wireless remote control switch. AC 85V--250V, Output with electric，Equal to input voltage. Receiver With special limit switch and manual control button wiring port.
*【Safe】Learn Code Control,Safe cecurity,the control code can add and remove.
*【widely used 】in remote water pump switches, motor, Electric curtain machine, machine switches, sockets,lifting equipment, wireless lamps, window, entrance, Garage Doors，other home appliances control and so on.
Description
Features:
1. Working Voltage: AC 85V-250V
2. Working Frequency: 433MHz
3. Receiving sensitivity: -105dBM
4. Max Load: 10A Relay ( have better load less than 5A)
5. PCB Size:75*58*15mm Case Size :95*62*29mm
6. Function: Limit & Wire External Button
7. Original State OFF, (Suddenly, the electricity was cut off, then comes again, the State still is OFF, you need manual turn it ON)
8. Out State: Momentary Latched Adjusted by the Jumper on the Receiver,
( we ship default as Latched, if you need use Momentary to change the Jumper on the Receiver ,Notice, please don’t use Toggle)
9. Momentary----------Jumper on 1 Pin
10. Latched----------- Jumper on “L&S”
11. Momentary -------------
Press button"Up", the Motor Forward, Release is Stop.
Press Button "Down", the Motor Reverse, Release is Stop.
Latched----------------
Press button "Up", the Motor Forward, Press Button "Stop" is stop.
Press Button "Down", the Motor Reverse, Press Button "Stop" is stop
12. When the relay is activated, the buzzer synchronize with a “beep” prompt.
13. When the receiver output state is “Latched”, we have set it 0.5s time delay for forwards and reverse, it is the Protection function.
14. We have made transmitter and receiver working together and test it before ship it,when you get it don't need to do anything ,just install it.
15. Learning Code :
(1) Press the learning button for 1 time,the learning indicator flashes slowly,Then press the transmitter button up
16. Clear code :
Press the learning button on the receiver for 8-10s,till LED Off,

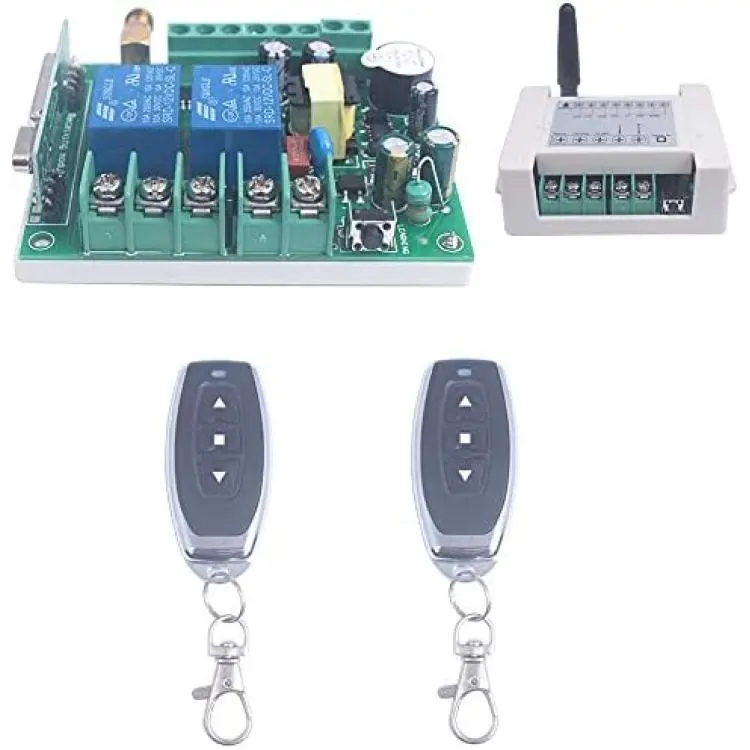

Package:
2 X Remote Controller Transmitter (Include Battery)
1X 85V-110V 220V 10A 2CH Motor Switch Module
