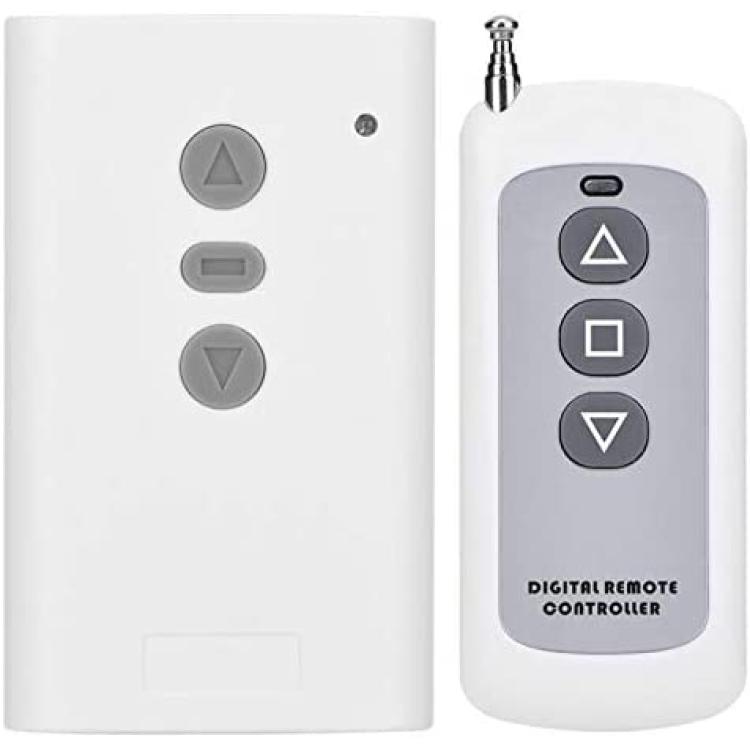

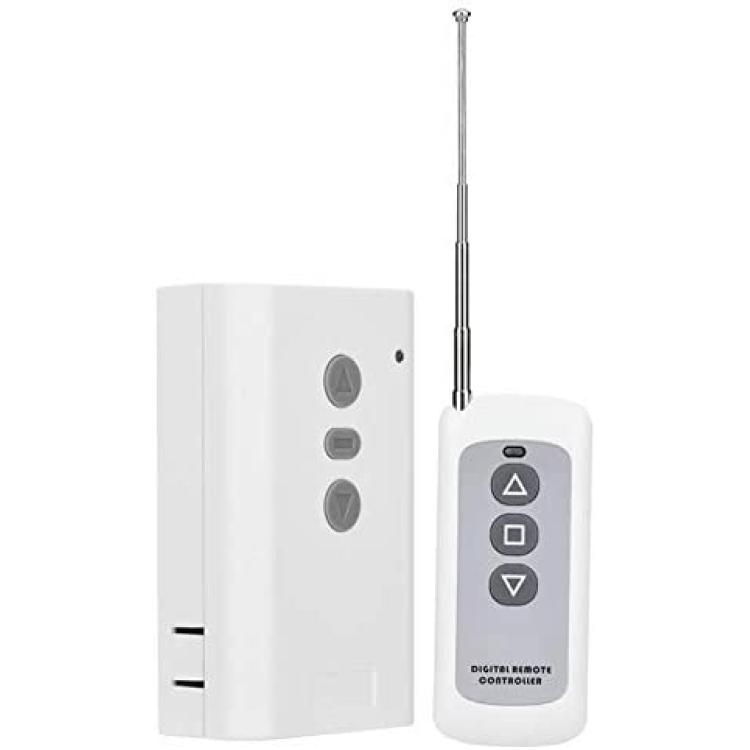

Calvas AC 110V 2 Channel 433MHz Wireless Motor Remote Control Switch Controller Transmitter
About this product
*Advantages: With high confidentiality, stable performance, low power consumption characteristic.
*High sensitivity: Wireless RF signal can pass through walls, floors, doors or windows.
*Remote Control Distance up to 100m / 328ft (Open area), transmission Distance up to 1000m (Open area and the receiver sensitivity is more than -103dBm).
*Very Convenient: You can turn on/ off the receiver with transmitter (remote control) from any place within a reliable distance.
*The receiver only works with the transmitter which use same code.
Description
AC 110V 2 Channel 433MHz Wireless Motor Remote Control Switch Controller Transmitter
Features:
Advantages: With high confidentiality, stable performance, low power consumption characteristic.
High sensitivity: Wireless RF signal can pass through walls, floors, doors or windows.
Remote Control Distance up to 100m / 328ft (Open area), transmission Distance up to 1000m (Open area and the receiver sensitivity is more than -103dBm).
Very Convenient: You can turn on/ off the receiver with transmitter (remote control) from any place within a reliable distance.
The receiver only works with the transmitter which use same code.

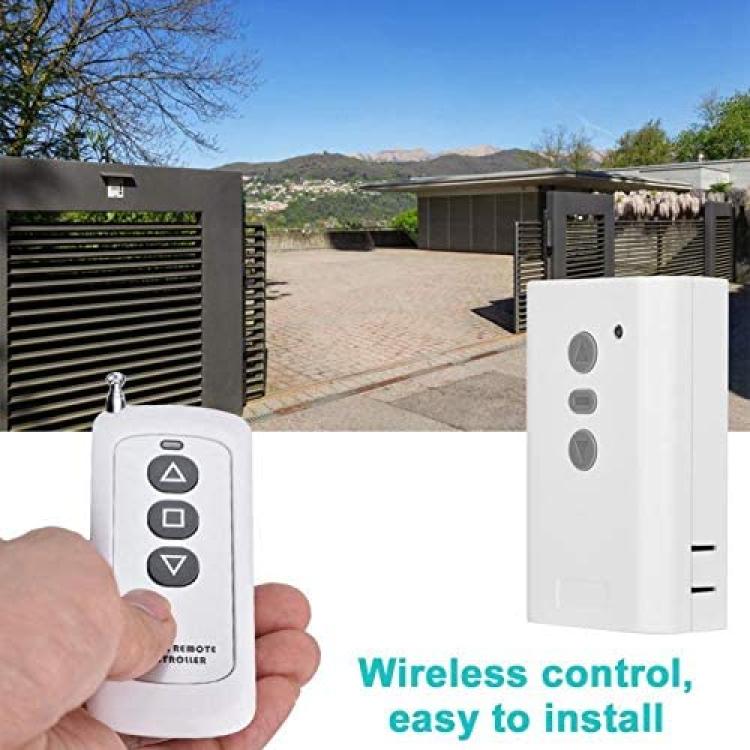

Easy to use: Wireless control, easy to install, direct replace your old or broken one.
Widely use: Mainly used in the control of AC motor positive and negative, such as: projection screen, electric curtains, electric hanger, Garage doors, retractable doors, etc.
Specifications:
Material: ABS
Channel: 2ch
Frequency: 433MHz
Power: 0.003w
Battery type: 970 (15)
Battery type / voltage: 23A 12V
Transmitter:
Operation Voltage: 12V
Operation Frequency: 433MHz
Common Resistance: 4.7M
Transmission Distance: 1000m (Open area and the receiver sensitivity is more than -103dBm)
Modulation: ASK
Key: Up(forward) / Down (Reversal) / Middle(Stop)
Receiver:
Default Status: Inter-locked / Latching
Operation Voltage: AC 110V
Load Power: ?500W
Operation Frequency: 433MHz
Operation Temperature: -25â??~75â?? / -13â??~167â??
Remote Control Distance: 100m / 328ft (Open area)
Receiver: 10 * 3 * 6cm / 3.9 * 1.2 * 2.4in
Remote control: 9 * 4 * 1cm / 3.5 * 1.6 * 0.4in
Output Working Mode:
Inter-locked/Latching: Press button 'Up', the motor forward, press button 'Stop' is stop. Press button 'Down', the motor reverse, press button "Stop" is
