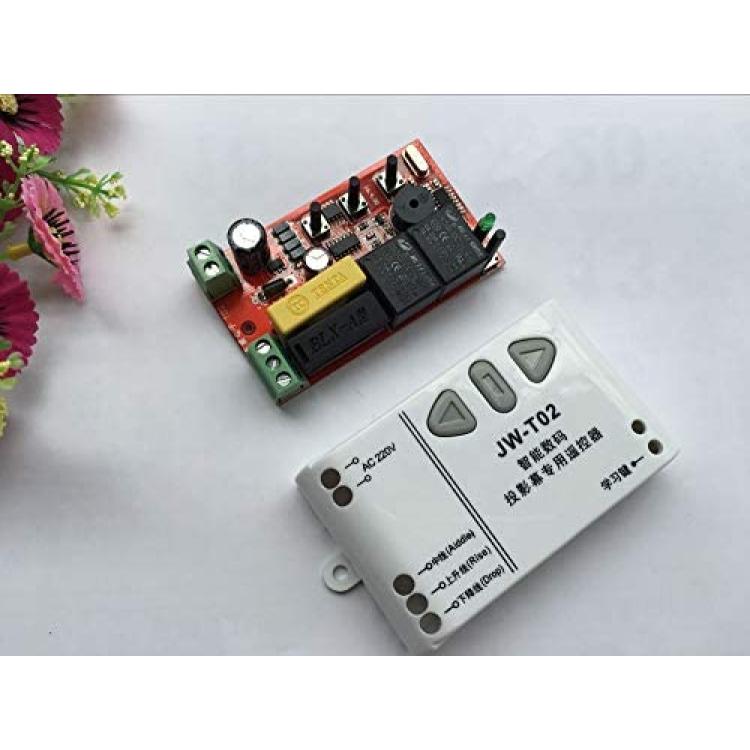

Calvas AC 110V 220 V Wireless remote control switch 1 receiver + 4 transmitter tubular motor controller forward/reverse/stop 3 key
About this product
*Package Includes: 1 x Receiver | 4 x Transmitter (with battery) |
*Use: Universal,Automated curtains,Lighting,Electric Door,Switch
*Wireless communication: RF
*Model number: 220V-2ch
*Package: No
Description
Working Frequency : 433mhz
 Input Voltage: AC110-220V Â
 Function: Manual & Remote Control

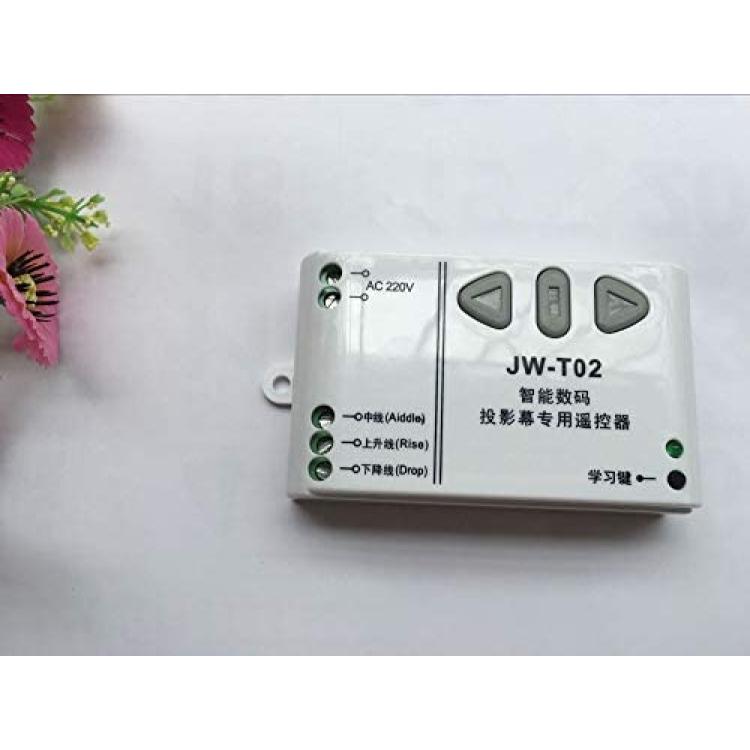

 Transmitter & Receiver Button for "Up  Triangle" Up/Motor Forward. Button " Down Triangle"  for Down/Motor Reverse. Button "Square"  for Stop.
Applicative Motor: AC220V  500W or less Â
 3 Lines   Forward Reverse Motor
(Forward Line +Reverse Line+ COM Line)
 Output State: Latched
Latched------------------
Press button "Up  Triangle", the Motor Forward, Press Button "Square" is stop. Press Button " Down Triangle"  , the Motor Reverse, Press Button" Square" is stop
Encoding Type: Learning Code (Learning Button to add Transmitter)

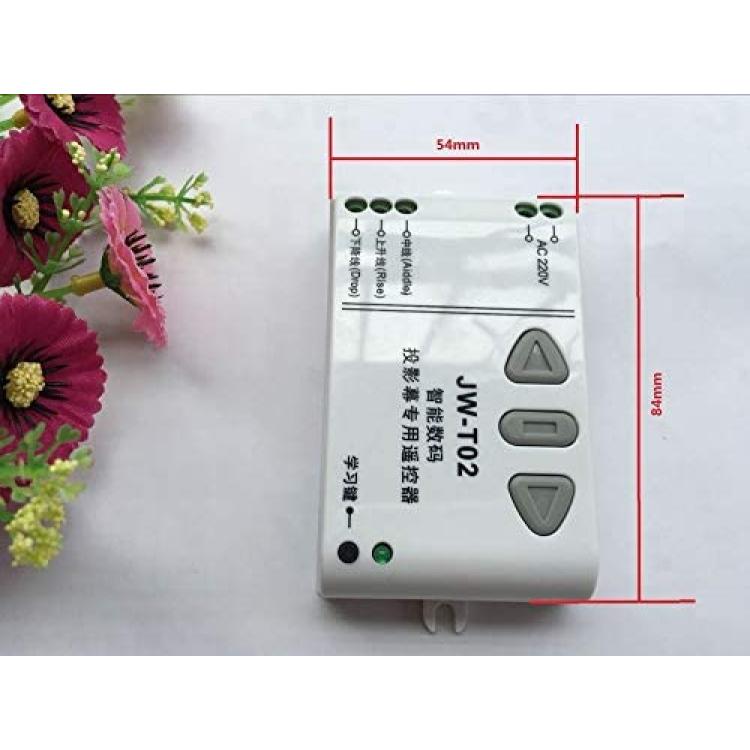

Receive Size: 83 x 51 x 24mm (L x W x H)
 Transmitter Size: 58 x 38 x 10mm (L x W x H)
 Transmitter: 50m Transmitter with a base for fixed it on the wall
Learning Code
Input AC220V for the receiver, press the receiver learning button, the LED indicator flash, then press the transmitter button, the LED indicator OFF, it means the learning is successfully. When you press the Up Stop Down Button, you will hear the sound of the relay.

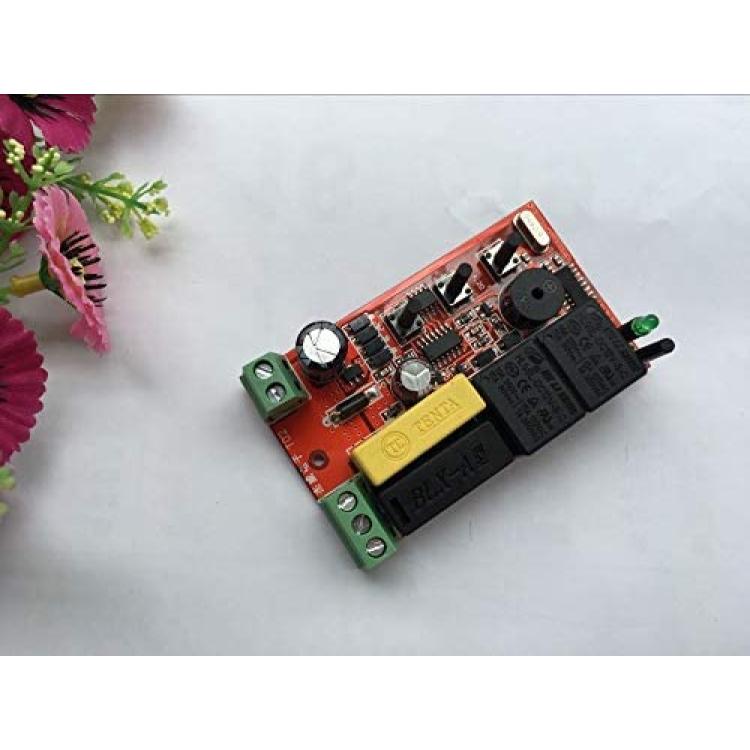

This Controller Perfectly suitable for Tubular Motor, the controller Terminal for Tubular Motor 4 Â Lines,( Tubular Motor Yellow Green Line connect to GND).This controller with no limited switch Terminal, Tubular Motor itself with Limited Switch
Package includes:

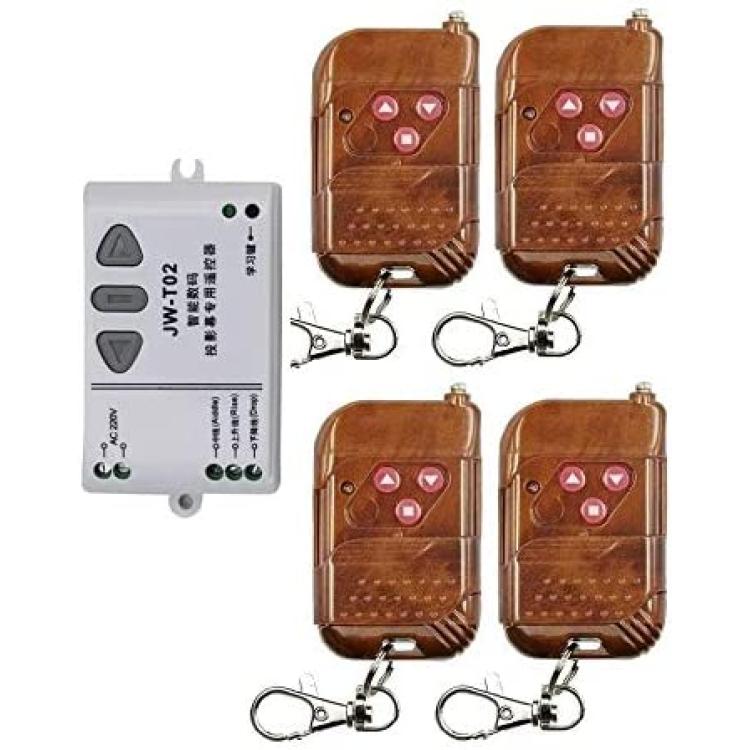

1 x Receiver
4 x Transmitter (with battery)Â
Item specifics:
Use: Universal,Automated curtains,Lighting,Electric Door,Switch
Wireless communication: RF
Model number: 220V-2ch
Package: No
Support app: No
Channel: 2
Frequency: 433mhz
Use: Universal
Transmitter distance: 20~100M
