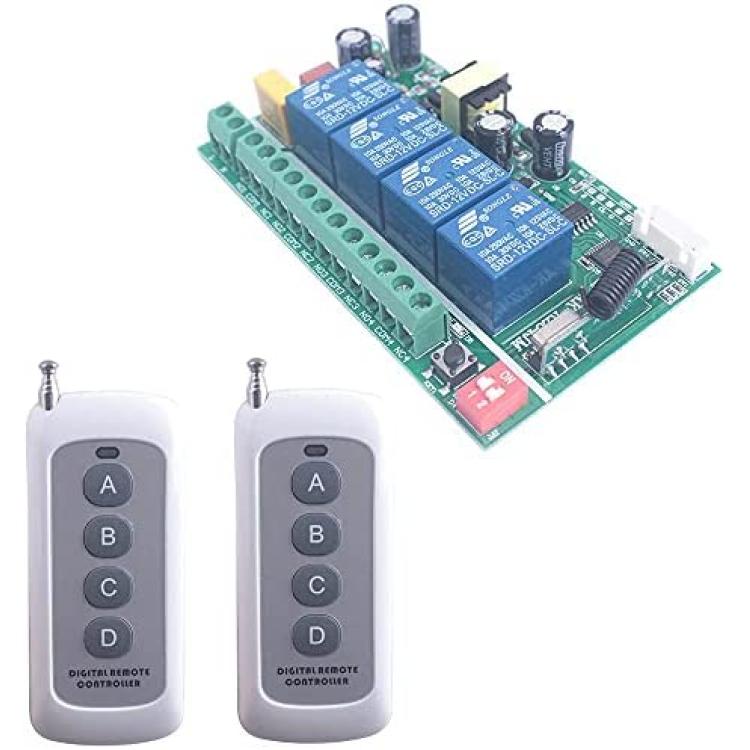

110V 4CH Wireless Control Relay Switch 433MHz 4 Channel Remote Relay 2 Transmitters and Receiver Universal Garage Doors,Window, Motor AC 85V 110V 220V 250V Remote Relay Switch (2X Control 433M)
Description
4CH Remote Switch Features:
110V-220V 4CH wireless siwtch,widely used for Control Lights, TVs, Motors, Fans, Cameras, Video signals, Audio signals, electrically operated Doors/ Locks/ Windows. it can can control 4 Channel circuit at same time. More convenient wiring combination. the switch can used 110~220V control Low and high Voltage 1V-250V. Engineers can modify to other wireless circuits.
1. Transmitter
Channel: 4 CH
Operating Voltage: DC12V (23A battery include)
Operating Current: 30MA
Operating Frequency: 433MHz
Frequency Distance: 100 meter(open/ideal) in theory, 15%-50% in reality, 100% safe.
Encode: Learn Code (Can clear and learn).
2.Switch Technical Parameters:
Channel: 4 Channel
Decode: Learning code
Working Voltage: 110V~220V
Output way: Momentary/Toggle Latched Adjustable
Maximum Load Current: 10A
Relay Load:10A 1V-250V 10A/250V AC, 10A/125V AC, 10A/30V DC, 10A/28V DC
Working temperature : -40\'C - +70\'C
Size : 8.8*6*3 CM
3.Work Model:
1) Toggle/Self-Lock: Press->On; Press again->Off . Press one button for one time is working/ON .press the same button again is stop/OFF.
2)Momentary/Jog: Press and hold->On; Release->Off . Keep pressing one button is working /ON. loosen your finger is stop/OFF.
3) Latched/Inter-Lock: Press->On; Press other button->Off. Press one button is working/ON ,press another button is stop/OFF.
Work model Set:(learn controller key choice model
1. Self -lock/Toggle: P1 to ON,P2 not to ON
2.Jog/(momentary): P1 P2 All not to ON
3.Inter-lock /Latched: P2 to ON,P1 not to ON
4.Package Included

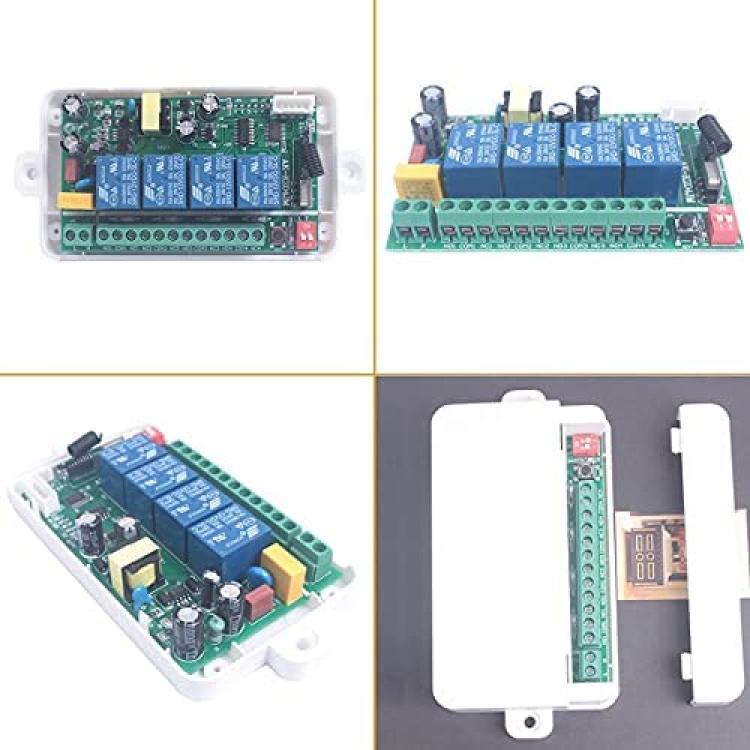

1 x 110~220V 4Channel Switch Receiver (with cover)
2 x Remote Control Transmitter (Include 23A Batteries For Controller)
