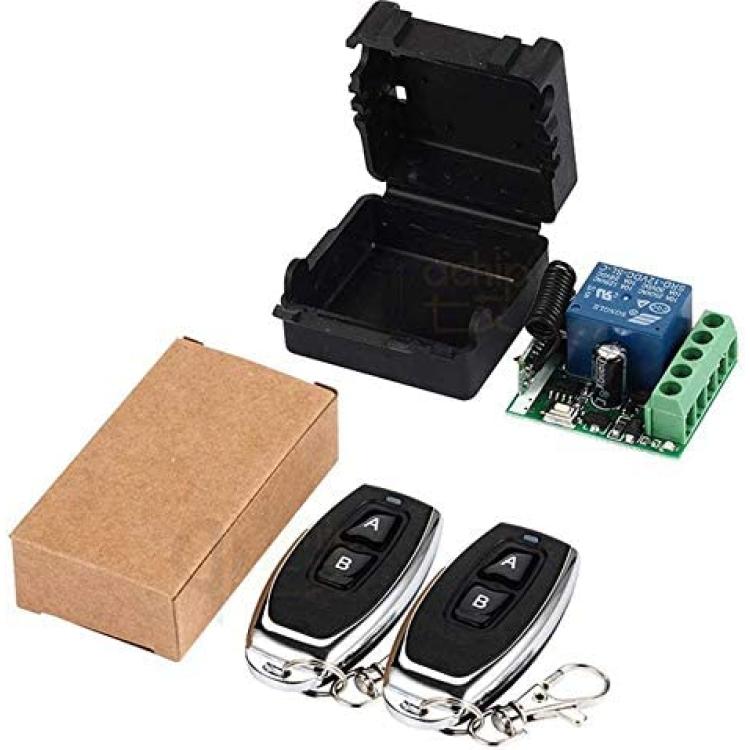

QIACHIP 433Mhz Universal Wireless Remote Control Switch DC 12V 1CH Relay Receiver Module RF Transmitter (2 Transmitters 2 Button+ 1 Receiver 1CH)
About this product
*433 Mhz Universal Wireless Remote: Input Voltage 12 V, Working Mode of Wireless 433mhz rf module receiver and transmitter RF are Superheterodyne .
*RF Switch DC: Transmitting distance: > 100 m ( open space), Only Support remote type: EV1527 learning code.
*Wireless Relay 12v :Dimension of PCB:35 x 30 x 18 mm (L,W,H) ,Output terminal: NO , NC , COM.
*It supports remotely and wirelessly control your Garage Door, Electronic Gates, Electrical Appliances and other telecommand equipments ,Electrical Appliances, Motorcycle Alarm, Car Sunroofs, Heating Systems, etc. Bringing you brand new experience of remote control, Please dont miss it.
*Support Remote Control up to 20 Pieces： any one with the same frequency of the remote control are used together, so you dont have to worry about losing the remote control. (If you lose the remote control, just buy one and pair it with a PCB board.)
Description

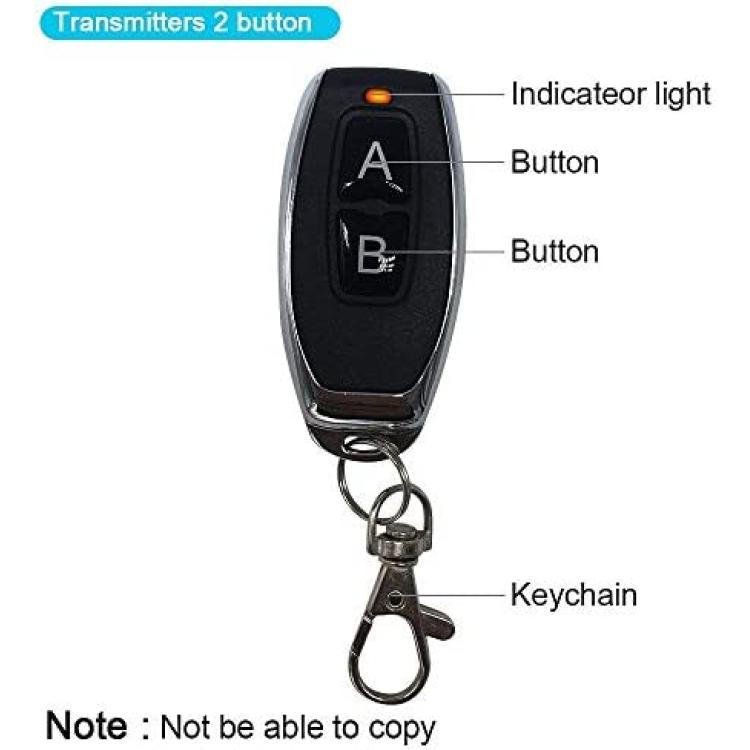

Product Type: 1 CH Wireless Remote Switch Receiver + 2-Button Transmitter
Coded System: 1527 Learning Code
Working Mode: Momentary, Toggle, Latched and Time Delay Mode.
Modulation Mode: ASK
Operating RF Frequency: 433MHz
Input Voltage: 12 V
RF working mode: Superheterodyne
Receiver sensitivity: > 97 dbm
Transmitting distance: > 100 m ( open space)
Decoding mode: MCU software decoding
Remote storage: 20
Support remote type: EV1527 learning code
Working mode: Momentary, toggle, latched, time delay (5s ,10s ,15s )

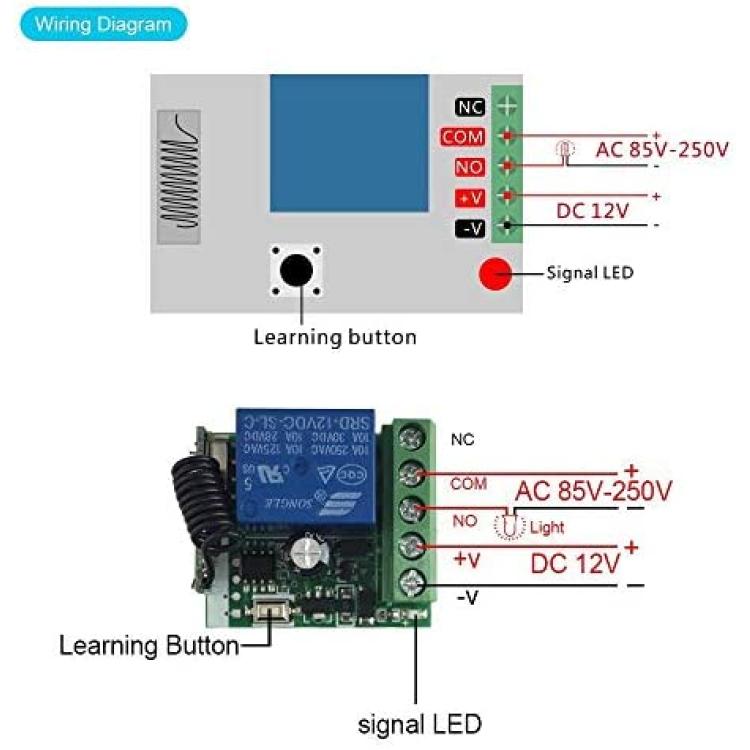

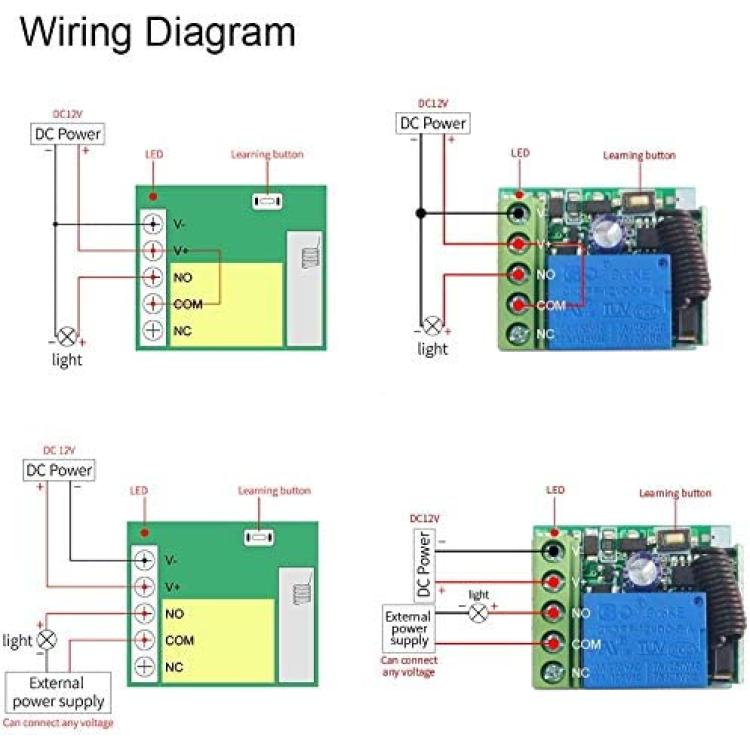

Output terminal: NO , NC , COM
Dimension of PCB: 35 x 30 x 18 mm (L,W,H)
Remote control battery: 2 x 3 V CR2016 button batteries
Note: Maximum input power is 250 V
Momentary: Press the remote button , the relay connects, release the remote button , the relay dis-connects.
Toggle: Press once the remote button , the relay connects , press the remote button again , the relay dis-connects .
Latched: Press the remote button A, the relay connects, press the remote button B, the relay dis-connect.
Time delay mode: Press the remote control button , the relay connects , from when release the remote button ,
After 5s or 10s or 15s , the relay disconnect automatically .
Reset function :
Reset function :Clear all matched remotes.When the data is cleared,all remote control can't make receiver work.
Setting reset:
Setting reset:After pressing the receiver's learning button 8 times,the receiver clears all remote control data in its memory.When the receiver's LED light flashes,the reset function is complete.
